1. Wprowadzenie
This manual provides comprehensive instructions for the installation, operation, and maintenance of the DS-2CE5AD3T-AVPIT3ZF TurboHD 2MP Outdoor Ultra-Low Light Dome Analog Camera. This camera is designed to deliver high-definition analog video output, leveraging TurboHD technology for transmission over existing coaxial cables. It features advanced night vision capabilities and a versatile motorized varifocal lens, making it suitable for a wide range of surveillance applications.
Przed użyciem produktu należy dokładnie przeczytać tę instrukcję, aby mieć pewność, że zostanie on prawidłowo skonfigurowany i będzie działał z optymalną wydajnością.
2. Funkcje produktu
- 2MP High-Definition Output: Provides clear and detailed video resolution.
- TurboHD Technology: Transmits HD analog signals over coaxial cable, simplifying upgrades.
- EXIR 2.0 Wizja nocna: Offers an infrared range of up to 230 feet (70 meters) for reliable surveillance in low-light conditions.
- Obiektyw progresywny z napędem silnikowym: Adjustable 2.7 mm to 13.5 mm lens with 4.8x optical zoom for flexible viewing angles and precise focus.
- True 120 dB Wide Dynamic Range (WDR): Ensures optimal image quality in scenes with strong contrast.
- Użycie na zewnątrz: Designed for robust performance in outdoor environments.
- Źródło zasilania: Ensures reliable operation and energy efficiency.
- Czujnik CMOS: Delivers superior HD video quality with lower power consumption.
3. Zawartość opakowania
Sprawdź, czy wszystkie elementy znajdują się w opakowaniu i są w dobrym stanie po jego otwarciu:
- DS-2CE5AD3T-AVPIT3ZF Dome Camera (1 unit)
4. Koniec produktuview

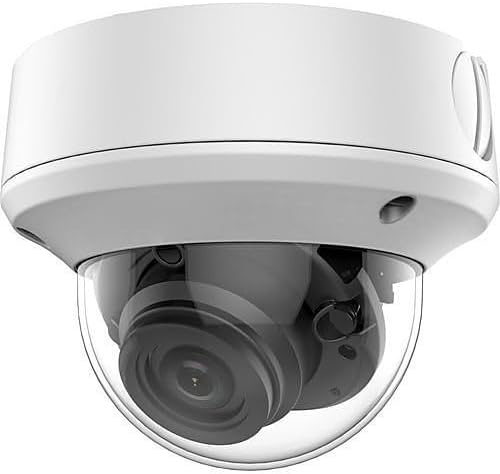

Figure 1: DS-2CE5AD3T-AVPIT3ZF TurboHD 2MP Outdoor Ultra-Low Light Dome Analog Camera. This image displays the white dome camera with its clear protective cover revealing the internal lens assembly.
5. Konfiguracja
5.1 Zagadnienia montażowe
The DS-2CE5AD3T-AVPIT3ZF camera is designed for outdoor usage and is typically installed via mocowanie sufitowe. Ensure the mounting surface is sturdy enough to support the camera's weight and provides a clear field of view do celów nadzoru.
5.2 Połączenie zasilania
Connect the camera to a reliable Źródło prądu przemiennego. Ensure the power supply meets the camera's voltage and current requirements for stable operation.
5.3 Łączność
This camera utilizes wired connectivity, konkretnie Sieć Ethernetowa, and is compatible with Rejestratory cyfrowe (DVR). Connect the camera's video output to your DVR using appropriate coaxial cabling. Ensure all connections are secure to prevent signal loss.
6. Instrukcja obsługi
6.1 Adjusting the Varifocal Lens
Aparat fotograficzny charakteryzuje się: motorized varifocal lens (2.7 mm to 13.5 mm) with 4.8x optical zoom. This allows for remote adjustment of the focal length and zoom level to achieve the desired field of view. Refer to your DVR or control system's interface for instructions on how to remotely adjust the lens settings.
6.2 Obsługa widzenia nocnego
The camera automatically switches to infrared (IR) night vision mode in low-light conditions, utilizing EXIR 2.0 technology. This provides clear black-and-white images up to 230 feet (70 meters). Ensure no obstructions block the IR illuminators for optimal night vision performance.
6.3 Szeroki zakres dynamiki (WDR)
Aparat fotograficzny True 120 dB WDR feature automatically adjusts image exposure to capture details in both very bright and very dark areas of a scene simultaneously. This is particularly useful in environments with strong backlighting or significant variations in light intensity.
6.4 Nagrywanie wideo
The camera records in Full HD (2MP) resolution. Video output is typically in Format AVI. Ensure your connected DVR is configured to record and store video footage according to your surveillance requirements.
7. Konserwacja
- Regularne czyszczenie: Periodically clean the camera's dome and lens with a soft, damp cloth to remove dust, dirt, or smudges that may affect image quality. Avoid abrasive cleaners.
- Kontrola kabla: Routinely check all cables and connections for wear, damage, or loose fittings, especially in outdoor installations.
- Aktualizacje oprogramowania układowego: Sprawdź producenta website for any available firmware updates to ensure optimal performance and security. Follow the provided instructions carefully for any update procedures.
- Kontrole środowiskowe: Ensure the camera's mounting remains secure and that it is not exposed to extreme environmental conditions beyond its operating specifications.
8. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Brak zasilania kamery | Loose power connection; faulty power adapter; no power from outlet. | Check power cable connection. Test power adapter. Verify outlet has power. |
| Brak sygnału wideo | Loose video cable; incorrect DVR input; faulty cable. | Ensure video cable is securely connected to camera and DVR. Verify correct DVR input channel. Test with a different cable if possible. |
| Poor image quality (blurry, dark, distorted) | Dirty lens/dome; incorrect lens focus; insufficient lighting; WDR not optimized. | Clean the camera lens and dome. Adjust the motorized varifocal lens focus. Ensure adequate lighting or rely on IR night vision. Check WDR settings on DVR. |
| Nie działa noktowizor | IR illuminators blocked; camera not switching to IR mode. | Remove any obstructions in front of the IR illuminators. Check camera settings on DVR to ensure auto-switch to IR is enabled. |
9. Specyfikacje
| Funkcja | Specyfikacja |
|---|---|
| Nazwa modelu | HX-OD5D3AVZF |
| Zastosowanie wewnątrz/na zewnątrz | Plenerowy |
| Rozdzielczość przechwytywania wideo | 2MP |
| Typ soczewki | Motorized Varifocal (2.7-13.5mm) |
| Zakres noktowizora | Do 230 stóp (70 metrów) |
| Szeroki zakres dynamiki (WDR) | 120 dB True WDR |
| Technologia łączności | Przewodowy (Ethernet) |
| Kompatybilne urządzenia | Cyfrowy rejestrator wideo |
| Typ montażu | Montaż sufitowy |
| Źródło zasilania | Zasilany bateryjnie (Note: Feature bullets indicate AC power source for reliable operation) |
| Format przechwytywania wideo | Plik AVI |
| Wymiary produktu (dł. x szer. x wys.) | 6 x 6 x 6 cala |
| Producent | Hikvision |
10. Gwarancja i wsparcie
For information regarding warranty coverage, technical support, or service, please contact the product manufacturer, Hikvision, or your authorized reseller. Keep your purchase receipt as proof of purchase for warranty claims.
