Instrukcja obsługi

Produkt ponadview

This manual provides essential information for the installation, operation, and maintenance of your Generic water filters, designed as replacements for DeLonghi coffee machines. These filters are engineered to improve water quality for your coffee, reduce limescale, and enhance the lifespan of your appliance.

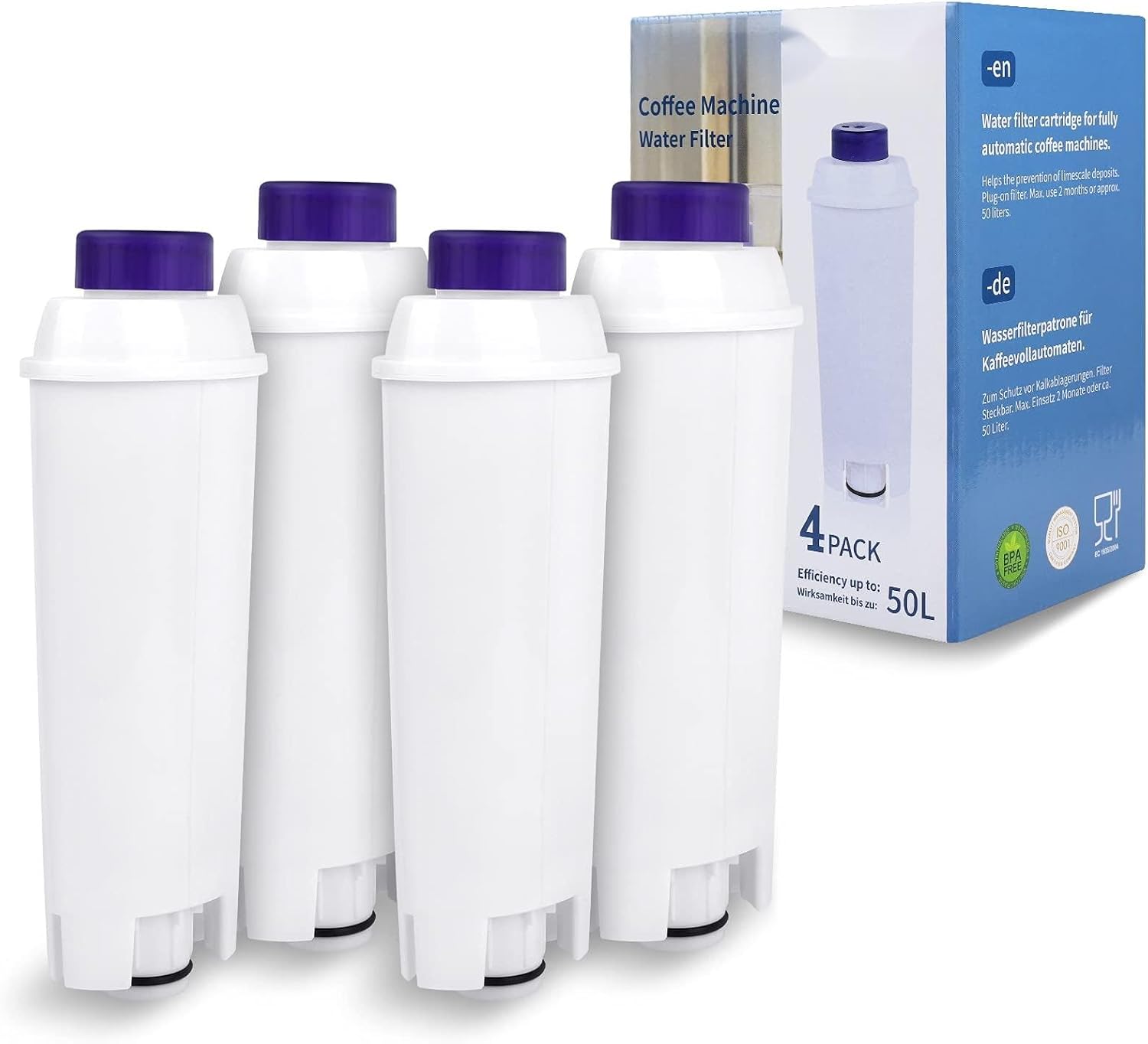

Image: A set of four white water filters with purple caps, displayed next to their retail packaging box. The box indicates "Coffee Machine Water Filter" and "4 PACK".

Zgodność

These water filters are compatible with various DeLonghi bean-to-cup and espresso machines. Please verify your machine's model number or existing filter to ensure compatibility.

• Zamiennik dla: DeLonghi DLSC002, SER3017, 5513292811, 9310926, 004399327252
• Suitable for DeLonghi Espresso and Fully Automatic Machines: EC800, EC820, EC850, EC860, ESAM, ECAM, Magnifica, Primadonna series.

Important: Always check the existing filter or machine batch code to confirm compatibility.

Image: A visual representation of the water filter alongside several DeLonghi coffee machine models (ECAM, ESAM, Magnifica, Primadonna series), illustrating compatibility.

Konfiguracja i instalacja

Follow these steps to correctly install your new water filter:

1. Krok 1: Przygotuj filtr
   Rotate the date display on the filter until it shows the next two months from the current date. This serves as a reminder for replacement.
2. Step 2: Activate the Filter
   To fully activate the filter, completely soak it under running water. Allow water to flow through the filter until it comes out from the other side for more than one minute.
3. Step 3: Prepare the Water Tank
   Remove the water tank from your coffee machine and fill it with water. Place the activated filter into the filter holder within the water tank. Completely submerge the filter for approximately ten seconds. Tilt the filter to allow any trapped air bubbles to escape. Lightly press the filter to expel any remaining air.
4. Krok 4: Włóż filtr
   Insert the filter firmly into its housing within the water tank and push it down until it is securely seated. Reinstall the water tank into your coffee machine.

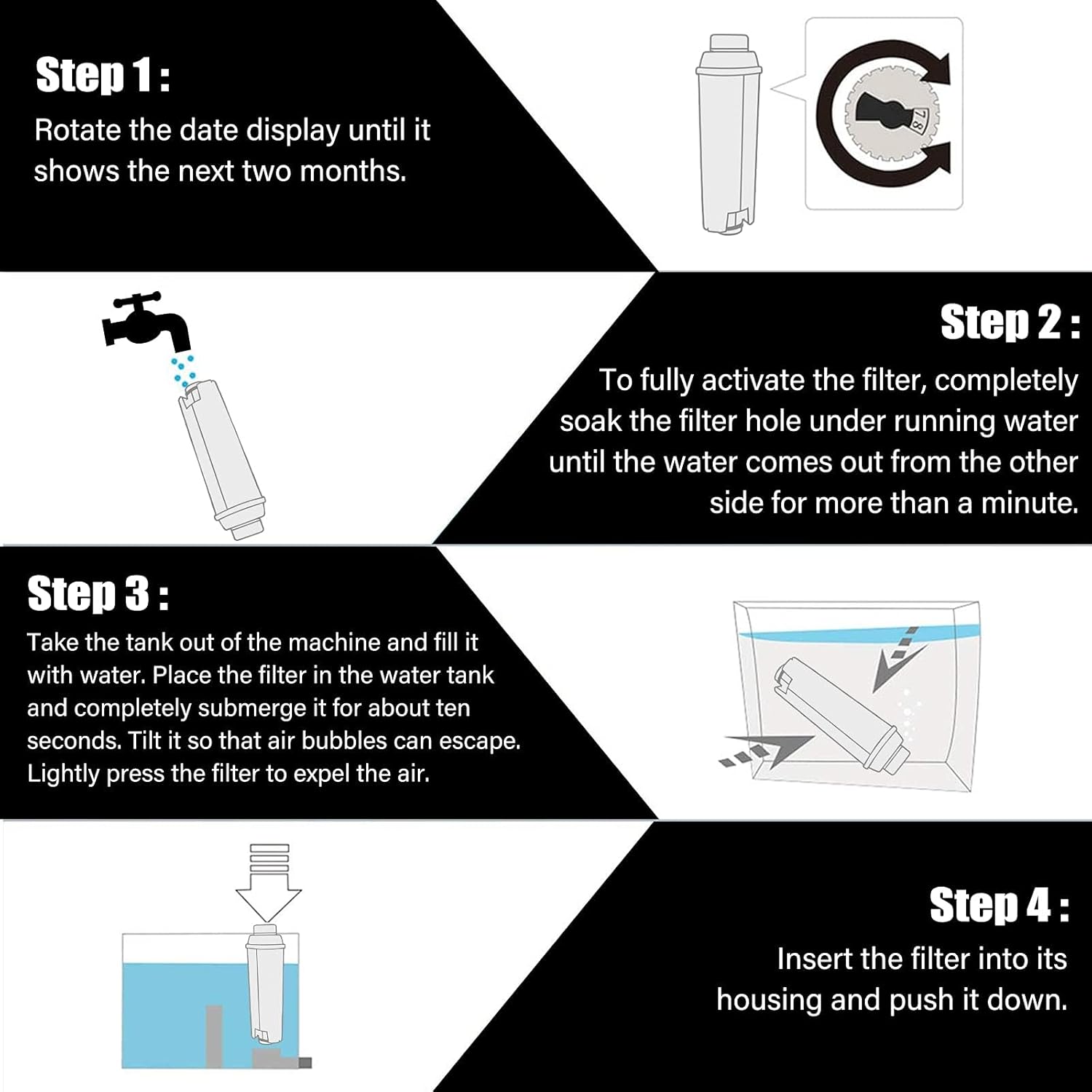

Image: A visual guide detailing the four steps for filter installation: setting the date, soaking the filter under running water, submerging it in the water tank, and inserting it into the housing.

Zasady działania i korzyści

The water filter is designed to enhance your coffee experience and protect your machine through a multi-stagProces filtracji:

• Inlet Filter Mesh: Removes large contaminants from the water.
• 50 Micron Internal Filter: Prevents small carbon particles from entering the purified water.
• Węgiel aktywowany: Made from high-quality natural coconut shell, effectively reduces chlorine, heavy metals, and other pollutants.
• Żywica jonowymienna: High-quality, non-sodium resin with strong ability to remove scale (limescale deposits) without introducing salts into the water. Stabilizes calcium carbonate.

Benefits of using this filter:

• Reduces limescale deposits, improving coffee machine performance and longevity.
• Enhances the taste and aroma of hot beverages by removing impurities that affect flavor.
• Retains beneficial minerals and fluoride in the water.
• Provides healthier filtered water.
• Contributes to a more mild coffee flavor.

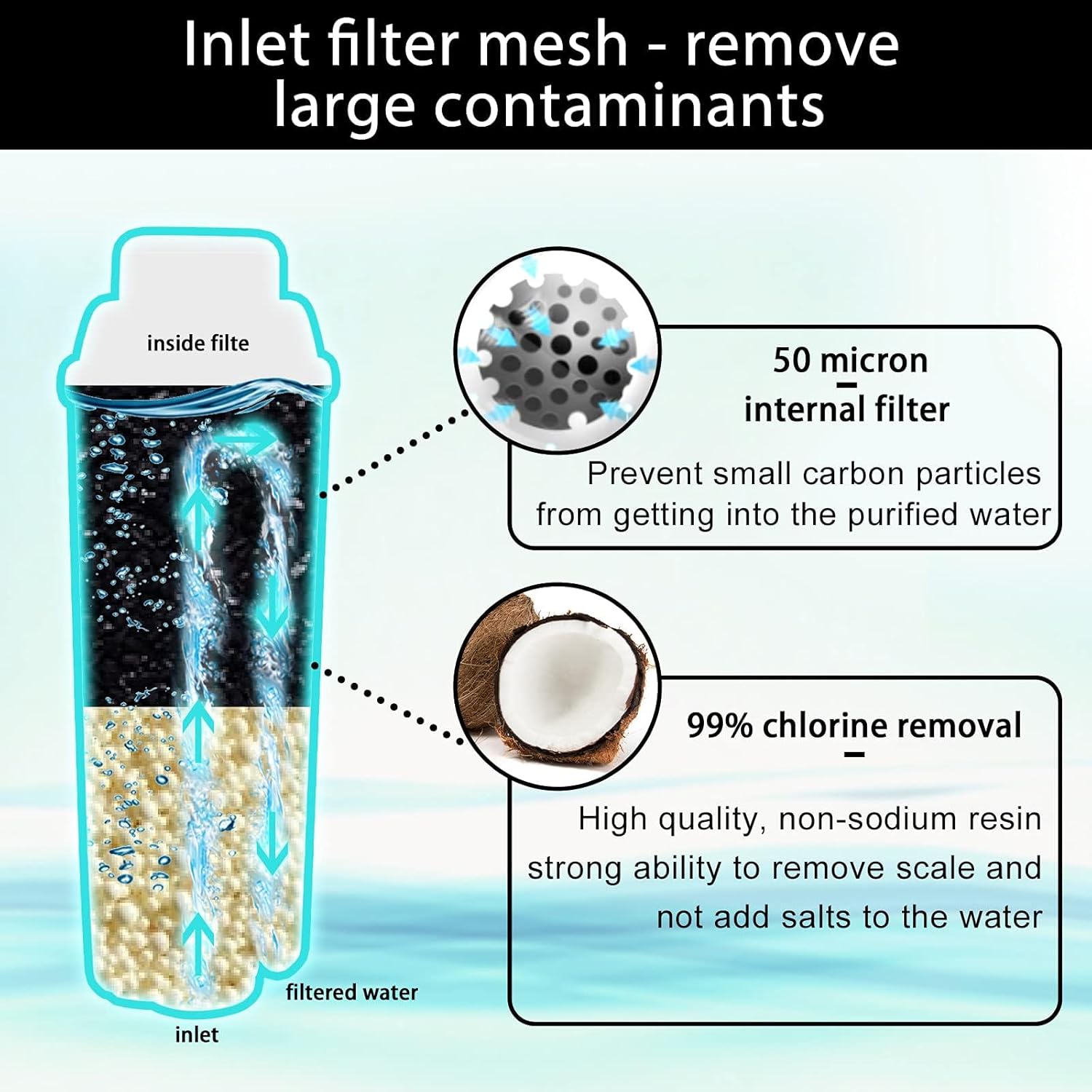

Image: An illustrative diagram showing the internal components of the filter, including the inlet filter mesh, 50 micron internal filter, activated carbon, and ion exchange resin, and how water flows through them.

Image: A hand holding a cup of latte art coffee on a wooden table, with overlaid text highlighting benefits such as "Save money", "Healthier filtered water", and "More mild coffee".

Konserwacja

For optimal performance and to ensure the best water quality for your coffee, regular filter replacement is crucial.

• It is recommended to change the DLSC002 replacement filter every 2 miesięcy.
• Each filter cartridge is sufficient for approximately 50 litrów of water filtration.
• The 4-pack set provides an estimated 8 months of filtration based on the recommended replacement schedule.

Image: A close-up of a coffee machine's water tank area, with text reminding the user to "Replace your water filter every 2 months" and stating that "Each filter cartridge is sufficient for 50L water".

Specyfikacje

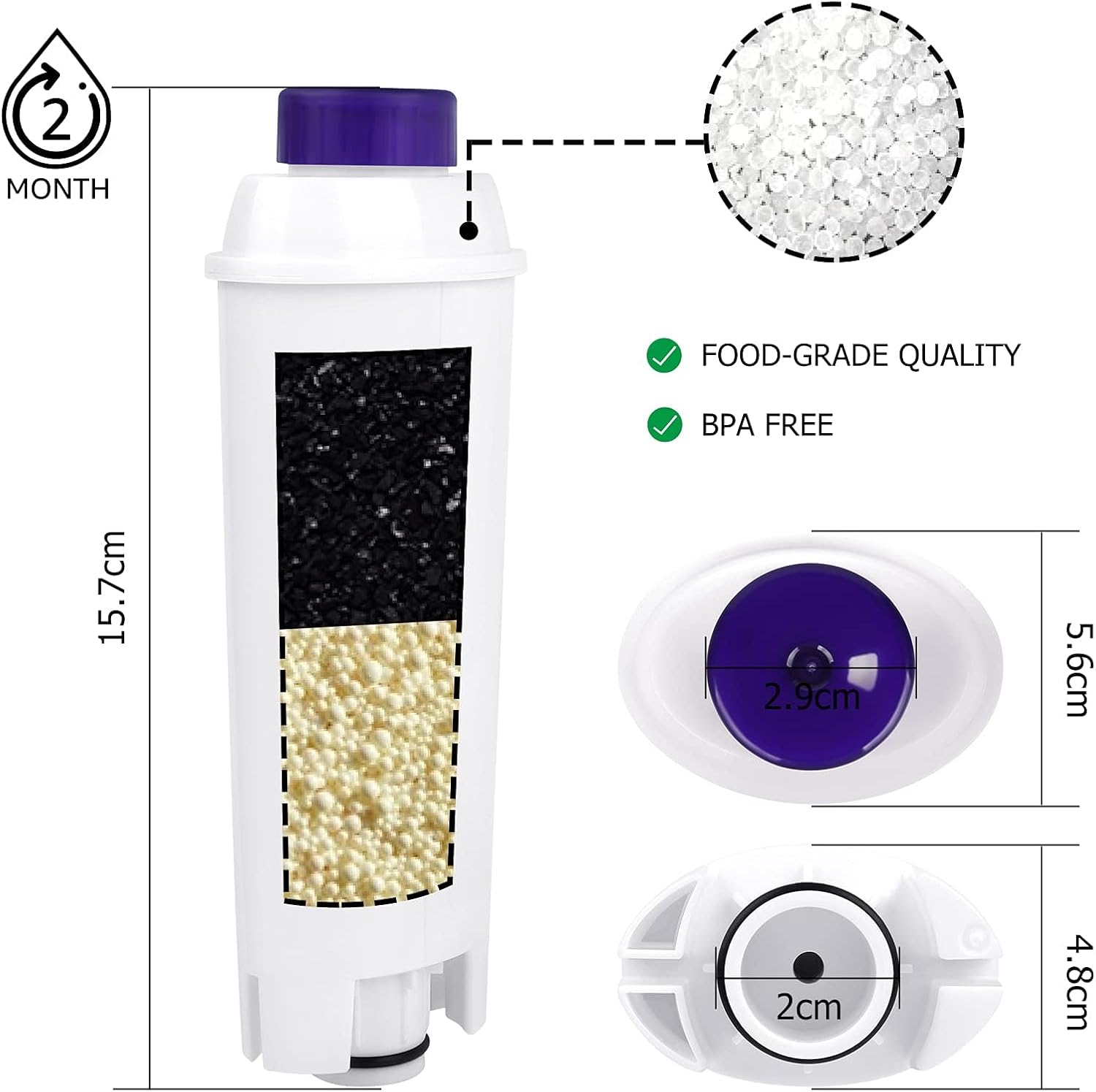

Obraz: szczegółowy view of the filter showing its dimensions (15.7cm height, 5.6cm top width, 4.8cm bottom width) and indicating "FOOD-GRADE QUALITY" and "BPA FREE" certifications, along with a "2 MONTH" replacement reminder.

Rozwiązywanie problemów

While these filters are designed for straightforward use, here are some common considerations:

• Filter Not Seating Properly: Ensure the filter is fully activated by soaking it and expelling air bubbles before insertion. Verify it is aligned correctly with the filter housing in the water tank.
• Zmniejszony przepływ wody: If water flow is noticeably slower after installing a new filter, ensure the filter was properly activated and air was expelled. If the filter has been in use for an extended period, it may be clogged and require replacement.
• Niezwykły smak/zapach: If you notice an unusual taste or odor, ensure the filter was properly activated. New filters may release a small amount of harmless carbon dust initially; flush thoroughly. If the issue persists, replace the filter.
• Limescale Buildup Persists: Ensure the filter is replaced every 2 months as recommended. In areas with extremely hard water, more frequent replacement might be necessary, or additional descaling of the machine may be required periodically.

Gwarancja i wsparcie

Information regarding specific warranty terms or direct manufacturer support for this Generic product is not available in the provided product details. For any issues or inquiries, please refer to the retailer from whom the product was purchased.
