LVYUAN 20A Automatic Pulse Battery Charger BC-200PRO User Manual

1. Wprowadzenie

This manual provides essential instructions for the safe and effective operation of your LVYUAN BC-200PRO Automatic Pulse Battery Charger. Please read this manual thoroughly before use and retain it for future reference. This charger is designed for 12V/24V lead-acid batteries (including open, sealed, AGM, GEL, and EFB types) and 12V Lithium Iron Phosphate (LiFePO4) batteries, with a compatible capacity range of 15Ah to 200Ah.

Przód view of the LVYUAN BC-200PRO Automatic Pulse Battery Charger, illustrating its compact design, digital display, and included battery clamps.

2. Informacje dotyczące bezpieczeństwa

Podczas obsługi urządzeń elektrycznych zawsze priorytetem jest bezpieczeństwo. Nieprzestrzeganie tych instrukcji może skutkować porażeniem prądem, pożarem lub poważnymi obrażeniami.

• Ensure the charger is connected to an AC100V-120V power source.
• Do not attempt to charge 24V Lithium Iron Phosphate (LiFePO4) batteries. This charger is only compatible with 12V LiFePO4 batteries.
• Avoid using the pulse repair mode on LiFePO4 batteries.
• Do not charge physically deteriorated or damaged batteries.
• Ensure proper ventilation during charging to prevent heat buildup.
• Trzymaj ładowarkę z dala od materiałów łatwopalnych, wilgoci i bezpośredniego światła słonecznego.
• Zawsze podłączaj akumulatoramps correctly: positive to positive, negative to negative. The charger includes reverse polarity protection.
• Disconnect the power supply before connecting or disconnecting battery clamps.
• Przechowywać w miejscu niedostępnym dla dzieci.

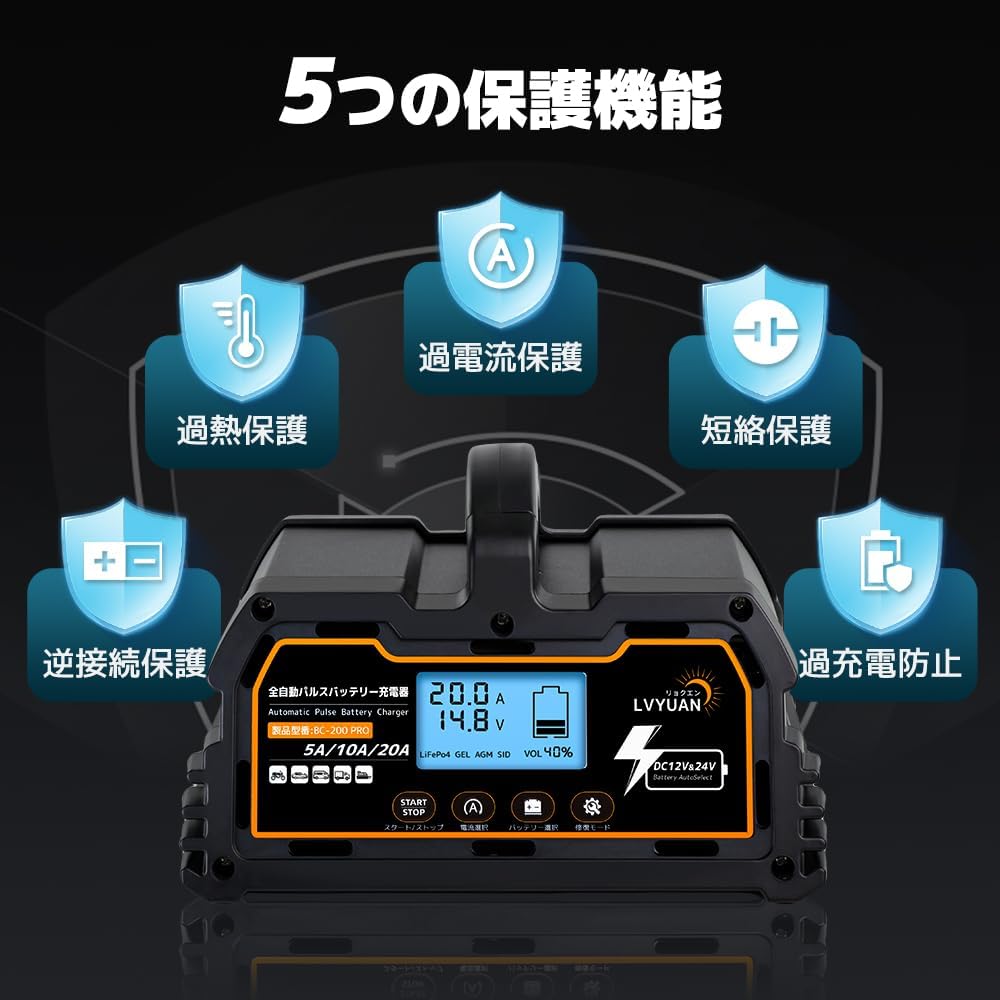

Visual representation of the five integrated protection functions: overheat, overcurrent, short circuit, reverse polarity, and overcharge prevention, ensuring safe operation.

3. Koniec produktuview

Główne cechy:

• Automatic Smart Charging: Wykrywa poziom naładowania bateriitage (12V/24V) and type automatically.
• Multi-stage Ładowanie: Wykorzystuje 4-stage charging process (pre-charge, constant current, constant voltage, float charge) for optimal battery health.
• Tryb naprawy impulsu: Helps to desulfate and revive certain lead-acid batteries. (Not for LiFePO4).
• Kompleksowa ochrona: Includes overheat, overcurrent, short circuit, reverse polarity, and overcharge protection.
• 0V Battery Startup: Capable of initiating charge on deeply discharged batteries.
• Szeroka kompatybilność: Supports various lead-acid battery types (WET/MF/EFB/GEL/AGM) and 12V LiFePO4.

Ponadview of the LVYUAN multi-function charger's capabilities, highlighting its warranty, pulse repair, 0V battery activation, automatic 12V/24V recognition, built-in safety features, smart charging, temperature-controlled fan, and broad battery compatibility.

Kompatybilne typy baterii:

• Lead-Acid Batteries (12V/24V): Open Type, Sealed Type, STD, GEL, AGM, EFB
• Lithium Iron Phosphate (LiFePO4) Batteries (12V only)

Note: 24V LiFePO4 battery use is prohibited.

An illustration of the wide range of battery types compatible with the charger, including various lead-acid batteries and 12V LiFePO4, with a clear warning against using 24V LiFePO4.

4. Konfiguracja i obsługa

Simple 4-Step Charging Process:

1. Podłącz do gniazdka elektrycznego: Connect the charger's power cord to an AC100V-120V electrical outlet.
2. Podłącz do akumulatora: Zamocuj czerwony (+) klamp do dodatniego bieguna akumulatora i czarnego (-) przewoduamp to the negative battery terminal. The charger will automatically detect the battery voltage (12 V lub 24 V).
3. Wybierz typ baterii: Use the 'Battery Type Selection' button on the charger to choose the correct battery type (e.g., Lead-Acid, LiFePO4).
4. Rozpocznij ładowanie: Press the 'START/STOP' button to begin the charging process. The charger will automatically select the appropriate charging current based on the battery's condition and capacity.

A visual guide demonstrating the simple four-step process for operating the charger: plugging it in, connecting to the battery for automatic voltage detection, selecting the battery type, and initiating the charge cycle.

Wybór prądu ładowania:

The charger offers selectable output currents for 12V (5A, 10A, 20A) and 24V (5A, 10A) batteries. For optimal charging, select a current appropriate for your battery's capacity:

• For larger batteries (e.g., 200Ah), select a higher current (e.g., 20A) for faster charging.
• For smaller batteries (e.g., 15Ah), select a lower current (e.g., 5A) for safer and more controlled charging.

Demonstrates how to select appropriate charging currents (20A for 200AH batteries for rapid charging, 5A for 15AH batteries for safe charging) based on battery capacity.

5. Tryby ładowania

4-Stage Inteligentne ładowanie:

The charger employs an intelligent 4-stage charging algorithm to optimize battery performance and lifespan:

1. Stage 1: Pre-charge (up to 10.5V): Delikatnie ładuje mocno rozładowane akumulatory.
2. Stage 2: Constant Current Charge (up to 50%): Charges the battery at a constant, high current.
3. Stage 3: Constant Voltage Charge (up to 75%): Ładunki o stałej objętościtage, z obecnym stopniowym spadkiemasing.
4. Stage 4: Float Charge (up to 100%): Maintains the battery at full charge, preventing overcharge.

A detailed graph explaining the charger's 4-stage smart charging process, including pre-charge, constant current, constant voltage, and float charge phases, designed to optimize battery health and longevity.

Pulse Repair Mode (Desulfation):

This mode is designed to help restore the capacity of sulfated lead-acid batteries by applying periodic pulse charges. Regular use of this mode can help maintain lead-acid batteries in good condition.

Ważne uwagi:

• Pulse repair mode cannot restore physically damaged or severely deteriorated batteries.
• Do not use pulse repair mode for Lithium Iron Phosphate (LiFePO4) batteries.

An image depicting the pulse charging function, emphasizing its role in maintaining battery health through periodic repair mode. Important usage restrictions for physically damaged batteries and LiFePO4 batteries in repair mode are noted.

Float Charge (Maintenance Charging):

Once a battery is fully charged, the charger automatically switches to float charge mode. This mode maintains the battery at an optimal voltage, preventing self-discharge and ensuring the battery is always ready for use without overcharging.

• 12V Lead-Acid Batteries: Float charge starts at 12.8V.
• 24V Lead-Acid Batteries: Float charge starts at 25.6V.
• 12V LiFePO4 Batteries: Float charge starts at 13.2V.

Illustrates the float charging capability, showing how the charger maintains a full charge state for 12V lead-acid, 24V lead-acid, and 12V LiFePO4 batteries, with specific start voltages for each type.

6. Konserwacja

Regular maintenance of your battery and charger ensures longevity and optimal performance.

• Utrzymuj ładowarkę w czystości, bez kurzu i zanieczyszczeń.
• Inspect battery clamps and cables for any signs of damage before each use.
• For lead-acid batteries, consider using the pulse repair mode periodically to prevent sulfation, especially if the battery is not in regular use.
• Przechowuj ładowarkę w suchym i chłodnym miejscu, gdy jej nie używasz.

7. Rozwiązywanie Problemów

Jeśli masz problemy z ładowarką, zapoznaj się z poniższymi typowymi problemami i ich rozwiązaniami:

• Ładowarka się nie włącza: Ensure the power cord is securely plugged into both the charger and the wall outlet. Check the power outlet for functionality.
• Charging not starting: Sprawdź, czy bateria jest naładowanaamps are correctly connected to the battery terminals (red to positive, black to negative). Ensure the battery type is correctly selected. The battery may be severely discharged (0V startup function should handle this, but extreme cases might require professional assessment).
• Komunikat o błędzie na wyświetlaczu: Refer to the specific error code in the full manual (if available) or contact customer support. Common errors relate to reverse polarity, short circuits, or overheating.
• Battery not fully charging: Ensure the selected charging current is appropriate for the battery's capacity. Physically deteriorated batteries may not reach full charge.

For persistent issues or problems not listed here, please contact LVYUAN customer support.

8. Specyfikacje

A specifications table comparing the BC-150 PRO and BC-200 PRO models, outlining their differences in compatible battery capacity, output currents, and maximum output, along with shared features like input voltage, charging method, and operating temperature.

An image detailing the physical dimensions of the charger and the lengths of its included clip and power cords, along with its approximate weight.

9. Gwarancja i wsparcie

LVYUAN is committed to providing high-quality products and customer service.

• Roczna gwarancja producenta: Your product is covered by a 1-year manufacturer warranty from the date of purchase.
• Bezpłatna wymiana: During the warranty period, eligible products may be exchanged free of charge for manufacturing defects.
• Dedykowane wsparcie: For any questions, issues, or warranty claims, please contact LVYUAN customer support via phone or email. Our specialized staff are available to assist you promptly.

Highlights the manufacturer's commitment to high-quality after-sales service, including a 1-year warranty, free exchanges, and dedicated support for problem resolution.
