1. Wprowadzenie
This manual provides detailed instructions for the installation, operation, and maintenance of your EaseLife Bifold Closet Door. Designed for optimal space utilization, this door features a folding panel design, making it suitable for various home environments including closets, storage rooms, and room partitions. The door is crafted from premium wood with high-hardness tempered glass panels, offering both durability and aesthetic appeal.
Image 1.1: EaseLife Bifold Closet Door in a home setting.
Konstrukcja oszczędzająca miejsce
The bifold design minimizes the space required for door operation compared to traditional swing or sliding doors. This feature is particularly beneficial in compact areas, allowing for customizable ventilation and natural light control.

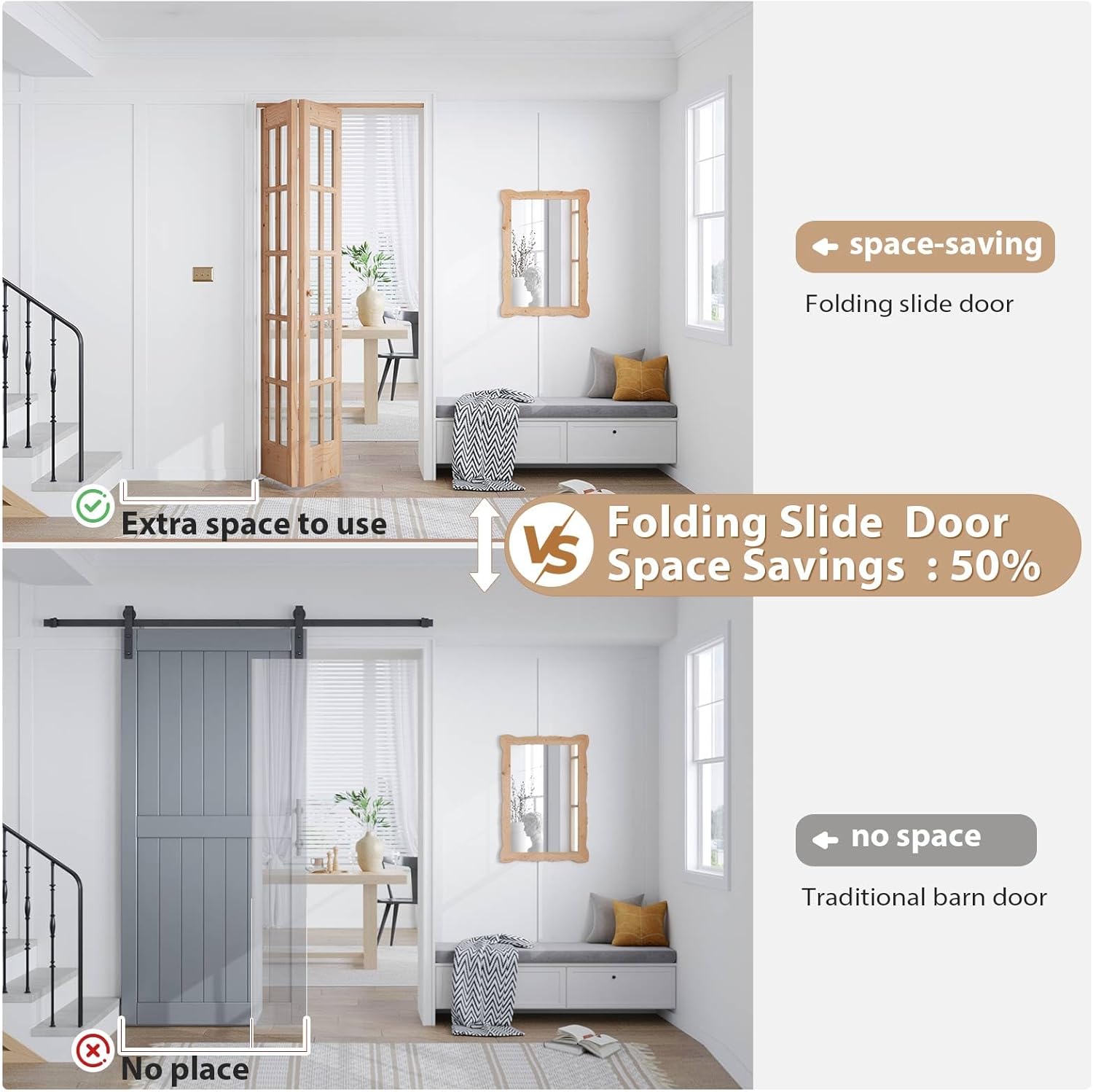

Image 1.2: Space-saving comparison of bifold door versus traditional barn door.
Materiały wysokiej jakości
The door panels are constructed from premium spruce wood, known for its strength and durability. The wood undergoes a multi-stage kiln-drying process to ensure stability and prevent warping or cracking. The design also supports DIY staining, allowing for customization to match various interior styles.

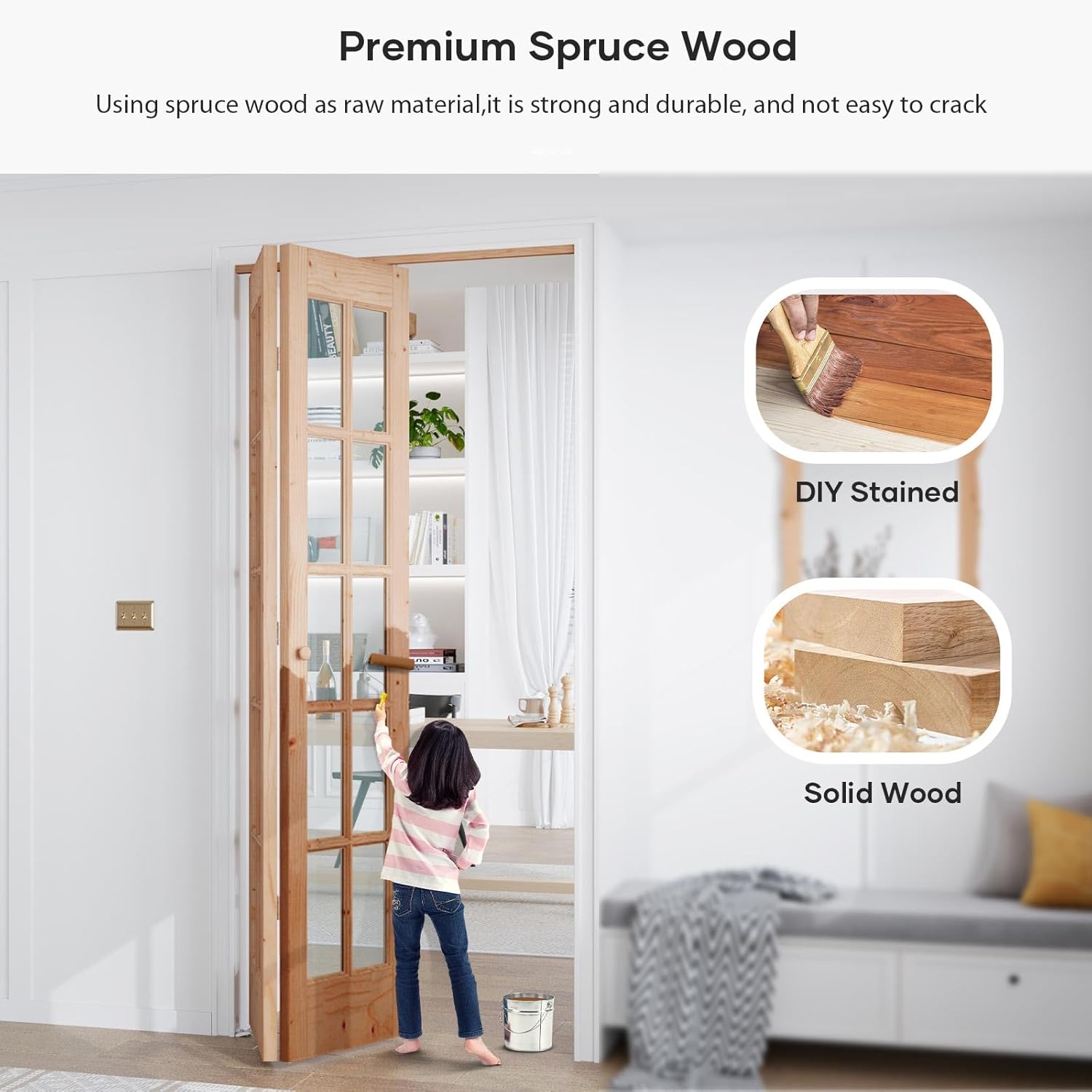

Image 1.3: Premium spruce wood construction and DIY staining option.
The door features high-hardness transparent tempered glass panels. This glass is easy to clean and allows light to pass through, brightening the room while adding a decorative element.

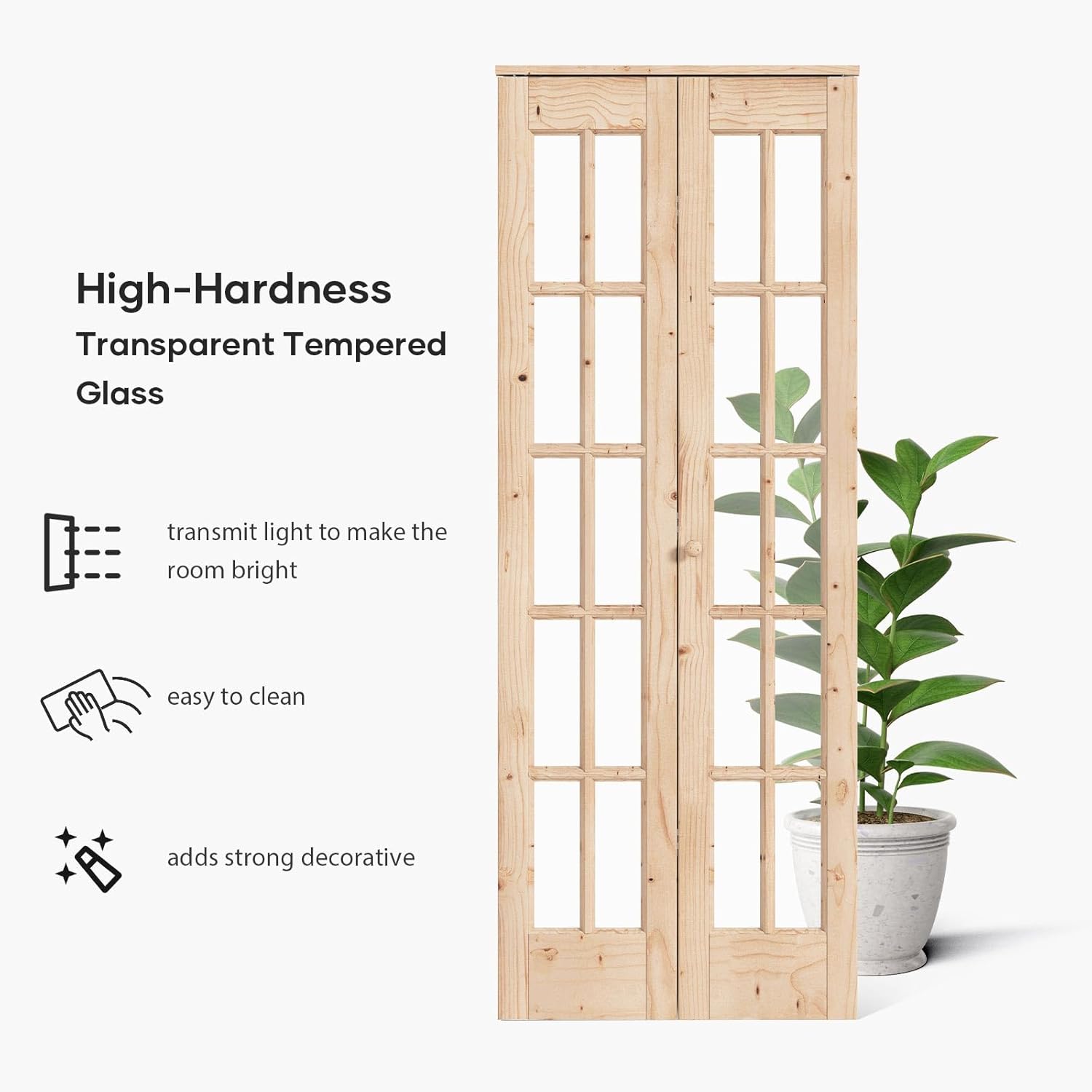

Image 1.4: Features of the tempered glass panels.
2. Informacje dotyczące bezpieczeństwa
Przed rozpoczęciem instalacji prosimy o zapoznanie się ze wszystkimi instrukcjami. Nieprzestrzeganie tych instrukcji może spowodować obrażenia ciała lub uszkodzenie produktu.
- Podczas montażu należy zawsze nosić odpowiedni sprzęt ochronny, obejmujący okulary ochronne i rękawice.
- Upewnij się, że w miejscu instalacji nie ma żadnych przeszkód i że jest ono dobrze oświetlone.
- Verify that the wall structure can support the weight of the door and hardware.
- Aby zapobiec stłuczeniu i obrażeniom, należy obchodzić się ostrożnie ze szklanymi panelami.
- Trzymaj dzieci i zwierzęta domowe z dala od miejsca instalacji.
- Jeśli masz jakiekolwiek wątpliwości, skonsultuj się z wykwalifikowanym specjalistą.
3. Zawartość opakowania
The EaseLife Bifold Closet Door comes as a complete kit, including preassembled door panels and all necessary hardware for installation. Please verify that all components listed below are present and undamaged before proceeding.
Zawartość zestawu:
- Double 14 3/4" x 78 3/4" Preassembled Doors (1-3/8" Thickness)
- 2.5FT Track Kit
- Zawiasy
- Gałka do drzwi
- Installation Hardware (screws, pivots, guides, etc.)
- Instrukcja instalacji (ten dokument)
Obraz 3.1: Koniecview of included door panels and hardware.
4. Konfiguracja i instalacja
The EaseLife Bifold Closet Door is designed for straightforward installation. The door panels are pre-assembled, simplifying the process. A step-by-step installation manual with detailed diagrams is included to guide you.
Kontrole przed instalacją:
- Verify Opening Dimensions: Ensure your door opening matches the specifications of your purchased door. Refer to the size chart in the Specifications section.
- Sprawdź komponenty: Before starting, carefully inspect all door panels and hardware for any damage or manufacturing defects. Ensure the track is straight and all pivots and guides are intact.
- Zbierz narzędzia: You will need basic tools such as a drill, measuring tape, level, screwdriver, and possibly shims.
Kroki instalacji zakończoneview:
- Przygotuj otwarcie: Ensure the door frame is plumb, level, and square. Make any necessary adjustments.
- Zainstaluj tor: Secure the top track to the header of the door opening according to the provided diagrams.
- Install Hinges and Door Knob: Attach the hinges to the pre-assembled door panels and install the door knob.
- Mount Door Panels: Insert the door pivots and guides into the track and floor brackets. Adjust for proper alignment and smooth operation.
- Ostateczne poprawki: Fine-tune the door's position to ensure it closes properly and operates smoothly.

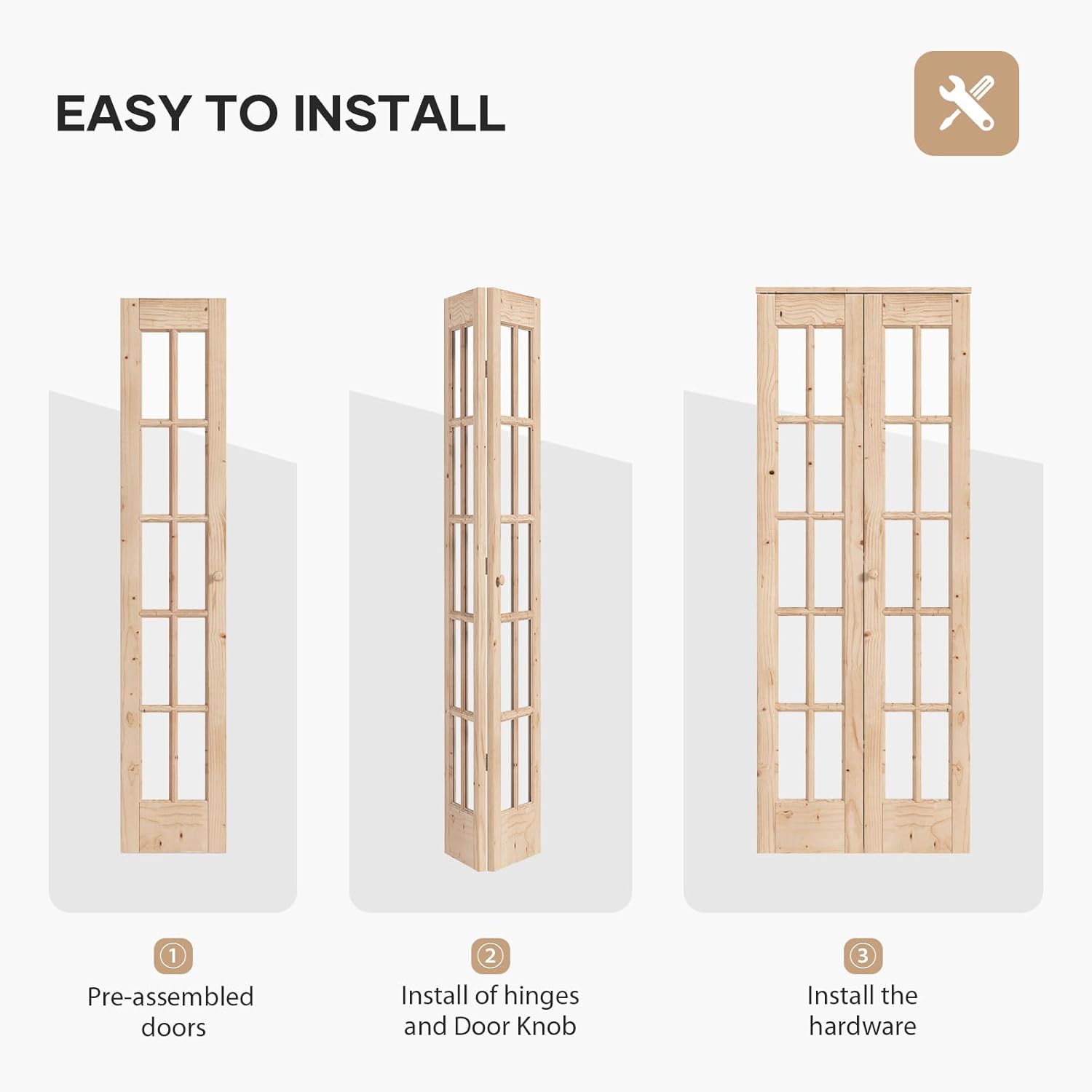

Image 4.1: Simplified installation process.
For detailed diagrams and specific measurements, please refer to the separate printed installation guide included with your product or contact our online service for a soft copy.
5. Działanie
Operating your EaseLife Bifold Closet Door is simple. Gently push or pull the door knob to fold or unfold the panels. The door can be partially or fully opened to suit your needs for access, ventilation, or light control.
- To open, grasp the door knob and pull the panels towards you, allowing them to fold inward.
- To close, push the folded panels back into the door frame until they are fully extended and aligned.
- Avoid forcing the door if it encounters resistance. Check for obstructions or alignment issues.
6. Konserwacja
Regular maintenance will ensure the longevity and smooth operation of your bifold door.
Czyszczenie:
- Wood Panels: Przetrzyj powierzchnie drewniane miękką,amp cloth. Avoid abrasive cleaners or excessive moisture. For deeper cleaning, use a wood-safe cleaner.
- Panele szklane: Clean tempered glass with a standard glass cleaner and a soft, lint-free cloth.
- Sprzęt komputerowy: Keep the track and hardware free of dust and debris. A dry cloth or vacuum cleaner attachment can be used.
Care and Upkeep:
- Smarowanie: Periodically apply a silicone-based lubricant to the track and pivots to ensure smooth gliding.
- Dokręć elementy złączne: Check all screws and fasteners periodically and tighten them if necessary to maintain stability.
- DIY Staining: If you choose to stain or paint the door, ensure the wood is clean and dry. Follow the instructions of your chosen wood finish product.
7. Rozwiązywanie Problemów
If you encounter issues with your EaseLife Bifold Closet Door, refer to the common problems and solutions below.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Drzwi nie przesuwają się płynnie lub się zacinają. | Track obstruction, misaligned pivots/guides, dirty track, loose hardware. | Clean the track, lubricate pivots/guides, check and adjust alignment, tighten hardware. |
| Door panels do not align properly when closed. | Incorrect pivot or guide adjustment, uneven floor/frame. | Adjust the top and bottom pivots/guides. Ensure the door frame is square and level. |
| Drzwi wydają się chwiejne lub niestabilne. | Loose hardware, damaged pivots/guides. | Tighten all screws. Inspect pivots and guides for damage and replace if necessary. |
| Gap between door panels or frame. | Improper installation, misaligned frame, bent track. | Re-check installation steps. Ensure the track is straight and the frame is square. Adjust door alignment. |
If these solutions do not resolve the issue, please contact EaseLife customer support.
8. Specyfikacje
Below are the key specifications for the EaseLife Bifold Closet Door, Model DOOR_SP_BFD_A1H_1580A_X2-A.
| Funkcja | Szczegół |
|---|---|
| Marka | EaseLife |
| Numer modelu | DOOR_SP_BFD_A1H_1580A_X2-A |
| Kolor | White (DIY staining supported) |
| Tworzywo | Glass, Wood (Spruce) |
| Styl | francuski |
| Waga przedmiotu | 21.77 kilograma (ok. 47.9 funta) |
| Wymiary produktu | 80 x 15 x 4.72 cala |
| Rozmiar (wersja aktualna) | 29 1/2" (Double 14 3/4") x 78 3/4'' |
| Ilość w opakowaniu przedmiotu | 1 |
| Stosowanie | Komercyjne / mieszkaniowe |
| Zawarte komponenty | Preassembled Doors, 2.5FT Track Kit, Hardware |
Door Fit Opening Sizes and Actual Panel Sizes:

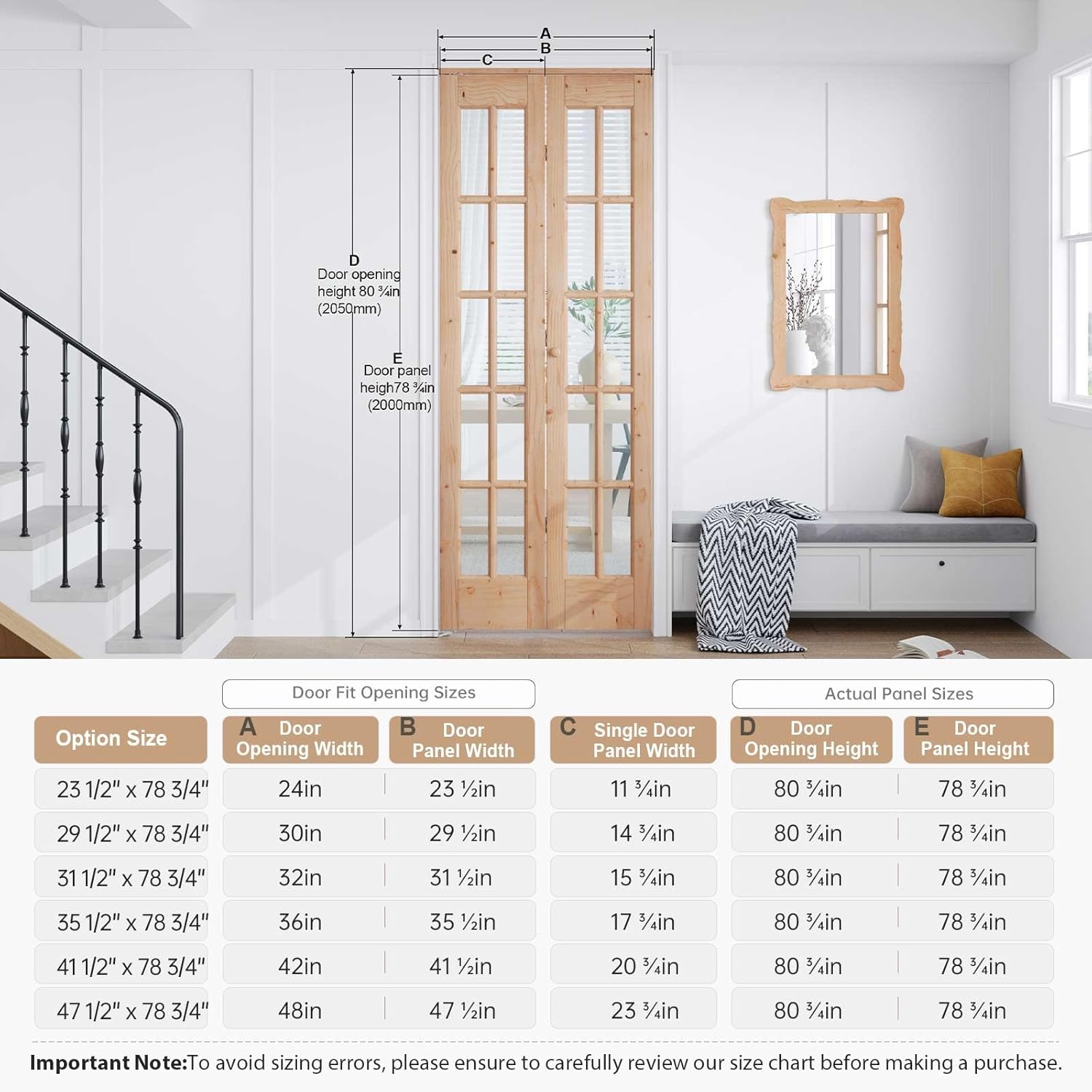

Image 8.1: Bifold Door Size Chart. Important: Review this chart carefully before purchase to avoid sizing errors.
9. Gwarancja i wsparcie
EaseLife is committed to providing high-quality products and excellent customer service. While specific warranty details are not provided in this manual, we encourage customers to reach out for any product-related inquiries or support needs.
Obsługa klienta:
- For technical assistance, installation guidance, or to obtain a soft copy of the installation manual, please contact EaseLife customer service through the retailer's platform or the official EaseLife webstrona.
- Our dedicated after-sales service team is available to assist you with any questions or concerns regarding your product.
