Acouto F6 Three-Axis Handheld Stabilizer User Manual

Wstęp

This manual provides detailed instructions for the safe and effective use of your Acouto F6 Three-Axis Handheld Stabilizer. Please read this manual thoroughly before operating the device and retain it for future reference.

The Acouto F6 is designed to provide enhanced stability for smartphone video recording, eliminating unwanted picture shake with its high-precision brushless motor and advanced anti-shake technology. It supports both horizontal and vertical shooting modes and offers intelligent tracking features for dynamic content creation.

Składniki produktu

Carefully unpack your Acouto F6 Stabilizer and ensure all components are present:

• Acouto F6 Three-Axis Handheld Stabilizer
• Miniaturowy statyw
• Kabel ładujący USB
• Instrukcja obsługi (ten dokument)

Image: The Acouto F6 Three-Axis Handheld Stabilizer, mini tripod, USB charging cable, and a small instruction booklet.

Przewodnik po konfiguracji

1. Ładowanie stabilizatora

Before first use, fully charge the stabilizer. Connect the provided USB charging cable to the charging port on the stabilizer and to a 5V USB power adapter (not included). The charging time is approximately 2.5 hours.

2. Attaching the Mini Tripod (Optional)

For stable standing, live broadcasting, or time-lapse photography, attach the mini tripod to the 1/4-inch screw hole located at the bottom of the stabilizer handle. Rotate clockwise until secure.

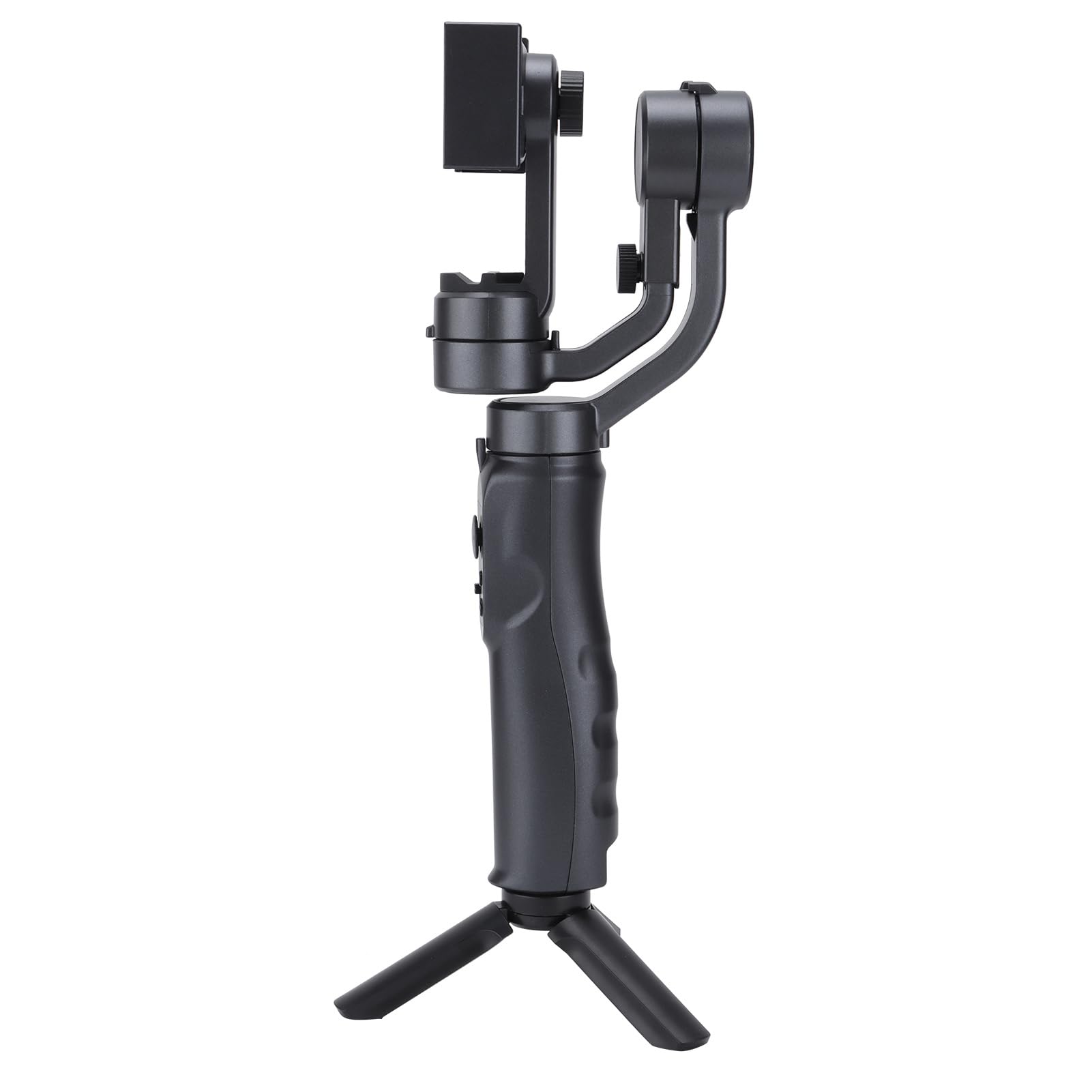

Image: The Acouto F6 Stabilizer shown upright with the mini tripod attached to its base.

3. Montaż smartfona

1. Przedłuż telefonamp on the stabilizer.
2. Ostrożnie umieść smartfon w schowku.amp, zapewniając jego wyśrodkowanie i bezpieczeństwo.
3. Adjust the horizontal bar by stretching it to quickly level the screen, whether for horizontal or vertical orientation. The stabilizer supports phones up to 280g.

Obraz: Zbliżenie view of the phone clamp mechanism on the Acouto F6 Stabilizer, ready to hold a smartphone.

Instrukcja obsługi

1. Włączanie/wyłączanie zasilania

Locate the power button on the handle. Press and hold for a few seconds to power on or off the stabilizer.

Obraz: szczegółowy view of the control panel on the Acouto F6 Stabilizer handle, showing buttons and ports.

2. Switching Between Horizontal and Vertical Modes

The stabilizer allows seamless switching between horizontal (landscape) and vertical (portrait) shooting modes. When your arm tilts to the left more than 70 degrees, the stabilizer can automatically rotate the phone to vertical portrait mode. You can also manually adjust as needed.

Image: The Acouto F6 Stabilizer displayed with a smartphone mounted in both horizontal and vertical orientations, demonstrating its versatility.

3. Anti-Shake and Tracking Features

The high-precision brushless motor provides real-time compensation to eliminate picture shake. In full follow mode, the DC stepping motor upgrades to 150°/SEC, allowing quick locking onto targets.

The stabilizer also features accurate human face tracking and object tracking, ensuring your subjects remain in focus during recording.

4. Using the Companion App

Connect your smartphone to the stabilizer's companion app (if available, check your phone's app store for "Acouto Stabilizer" or similar). The app may offer additional features such as:

• Fotografia poklatkowa
• Slow-motion photography
• Advanced camera controls

Konserwacja

To ensure the longevity and optimal performance of your Acouto F6 Stabilizer, follow these maintenance guidelines:

• Czyszczenie: Use a soft, dry cloth to wipe the stabilizer. Do not use harsh chemicals or abrasive materials.
• Składowanie: Store the stabilizer in a cool, dry place away from direct sunlight and extreme temperatures.
• Pielęgnacja baterii: For long-term storage, charge the battery to approximately 50% every three months to prevent deep discharge.
• Unikaj uderzenia: Protect the stabilizer from drops and impacts, which can damage internal components.

Rozwiązywanie problemów

If you encounter issues with your Acouto F6 Stabilizer, refer to the following common problems and solutions:

• Stabilizer does not power on:
  • Upewnij się, że bateria jest w pełni naładowana.
  • Press and hold the power button for the required duration.
• Phone is not stable/shaking:
  • Upewnij się, że smartfon jest prawidłowo wyśrodkowany i bezpiecznie zamocowany.ampwyd.
  • Verify the horizontal bar is stretched to level the phone correctly.
  • Check if the phone's weight exceeds the maximum load capacity (280g).
• Gimbal motors are unresponsive:
  • Restart the stabilizer.
  • Ensure there are no obstructions preventing motor movement.
• Nie można połączyć się z aplikacją:
  • Upewnij się, że Bluetooth jest włączony w Twoim smartfonie.
  • Restart both the stabilizer and your smartphone.
  • Sprawdź czy aplikacja została zaktualizowana do najnowszej wersji.

If problems persist, please contact Acouto customer support.

Specyfikacje

Informacje dotyczące bezpieczeństwa

Należy przestrzegać następujących środków ostrożności:

• Do not disassemble or modify the stabilizer.
• Trzymaj urządzenie z dala od wody i innych płynów.
• Avoid exposing the stabilizer to extreme temperatures or direct heat sources.
• Należy używać wyłącznie dołączonego kabla ładującego lub certyfikowanego odpowiednika.
• Przechowywać w miejscu niedostępnym dla dzieci.
