1. Wprowadzenie

This manual provides essential information for the safe and effective operation, setup, and maintenance of your Fein Cordless Angle Grinder CCG 18-115-12 AS. This powerful and dust-resistant tool is designed for cutting, grinding, and deburring work on various materials. It features an 18V brushless motor, a 115 mm grinding wheel diameter, and is compatible with AMPShare ProCORE batteries.

2. Instrukcje bezpieczeństwa

Aby zapobiec obrażeniom ciała i uszkodzeniu narzędzia, należy zawsze przestrzegać następujących środków ostrożności:

  • Noś środki ochrony indywidualnej (PPE): Zawsze należy używać okularów ochronnych, ochronników słuchu, rękawic i maski przeciwpyłowej.
  • Zabezpieczanie przedmiotu obrabianego: Ensure the material being worked on is firmly clampzamocowane lub zabezpieczone w sposób uniemożliwiający przemieszczanie się podczas pracy.
  • Maintain Proper Grip: Hold the angle grinder firmly with both hands, ensuring a stable stance.
  • Sprawdź, czy nie ma uszkodzeń: Before each use, inspect the tool, battery, and accessories for any damage. Do not use damaged equipment.
  • Użyj odpowiednich akcesoriów: Only use grinding and cutting discs that are rated for the tool's speed and diameter (115 mm).
  • Adjust Guard: Ensure the protective guard is correctly positioned to deflect sparks and debris away from you.
  • Unikaj przesady: Maintain balance and control at all times.
  • Utrzymuj miejsce pracy w czystości: Remove flammable materials and ensure adequate ventilation.
  • Odłącz zasilanie: Always remove the battery pack before making any adjustments, changing accessories, or performing maintenance.
  • Uruchom ponownie ochronę: The tool features restart protection. If power is interrupted, the tool will not restart automatically when power is restored.
  • Electronic Overload Protection: The tool will shut off if overloaded to prevent damage. Reduce pressure and allow the tool to cool.

3. Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie elementy:

  • 1 x Fein Cordless Angle Grinder CCG 18-115-12 AS
  • 1 x Separation Protection Cover
  • 1 x Tool-free Quick Release Nut
  • 1 x Anti-vibration Handle
  • 1 x Key (for disc changes if not using quick release)
  • 1 x Plastic Tool Box (L-BOXX 238)

4. Konfiguracja

Before operating the angle grinder, ensure it is properly assembled and configured.

4.1 Instalacja baterii

  1. Ensure the battery is fully charged. The Fein Cordless Angle Grinder is compatible with all 18V AMPShare ProCORE batteries.
  2. Dopasuj akumulator do portu akumulatora w narzędziu.
  3. Wsuń baterię do portu, aż zatrzaśnie się pewnie na swoim miejscu.
  4. Aby wyjąć baterię, naciśnij przycisk zwalniający na niej i wysuń ją.

4.2 Regulacja osłony

The separation protection cover must always be used. Adjust its position to provide maximum protection for the specific application.

  • Loosen the guard's locking mechanism.
  • Rotate the guard to the desired position, ensuring it deflects sparks and debris away from the operator.
  • Tighten the locking mechanism securely.

4.3 Disc Installation (Grinding/Cutting)

Always ensure the battery is removed before changing discs.

  1. Naciśnij i przytrzymaj przycisk blokady wrzeciona.
  2. If using the tool-free quick release nut: Unscrew the quick release nut by hand. Remove the old disc and the lower flange.
  3. Place the new 115 mm grinding or cutting disc onto the spindle, ensuring it sits correctly on the lower flange.
  4. Screw the quick release nut back on and tighten it firmly by hand. Release the spindle lock.
  5. If using a standard nut and key: Use the provided key to loosen and tighten the nut.
Man installing a grinding disc on the Fein Cordless Angle Grinder CCG 18-115-12 AS

Image: A user demonstrating the installation of a grinding disc onto the angle grinder. The tool-free quick release nut is visible.

4.4 Anti-vibration Handle Attachment

Attach the anti-vibration handle to either side of the gear housing for improved comfort and control during operation.

  • Screw the anti-vibration handle into one of the threaded holes on the side of the grinder head.
  • Dokręć mocno ręką.

5. Instrukcja obsługi

Familiarize yourself with the tool's controls and proper operating techniques.

5.1 Powering On/Off and Speed Preselection

  • Włączanie: Slide the power switch forward. The tool features a soft start function for smooth power-up.
  • Wyłączanie: Slide the power switch backward to the OFF position.
  • Electronic Speed Preselection: Use the speed dial to select the desired idle speed between 2,500 and 8,500 min⁻¹. Adjust the speed according to the material and application.

5.2 Techniki cięcia i szlifowania

Always maintain a firm grip and stable body position. Let the tool do the work; avoid excessive pressure.

Man using Fein Cordless Angle Grinder CCG 18-115-12 AS to grind a metal bar secured in a vise, sparks flying.

Image: A worker grinding a metal bar with the Fein angle grinder, demonstrating proper technique and safety gear.

  • Szlifowanie: Apply light, even pressure. Move the grinder smoothly across the surface. The tool's vibration damper helps ensure smooth operation.
  • Cięcie: For cutting, use a cutting disc and ensure the workpiece is securely clamped. Make straight cuts, allowing the disc to cut without forcing it.
Man using Fein Cordless Angle Grinder CCG 18-115-12 AS to cut a metal pipe secured in a vise, sparks flying.

Image: A worker cutting a metal pipe with the Fein angle grinder, showing the sparks generated during the process.

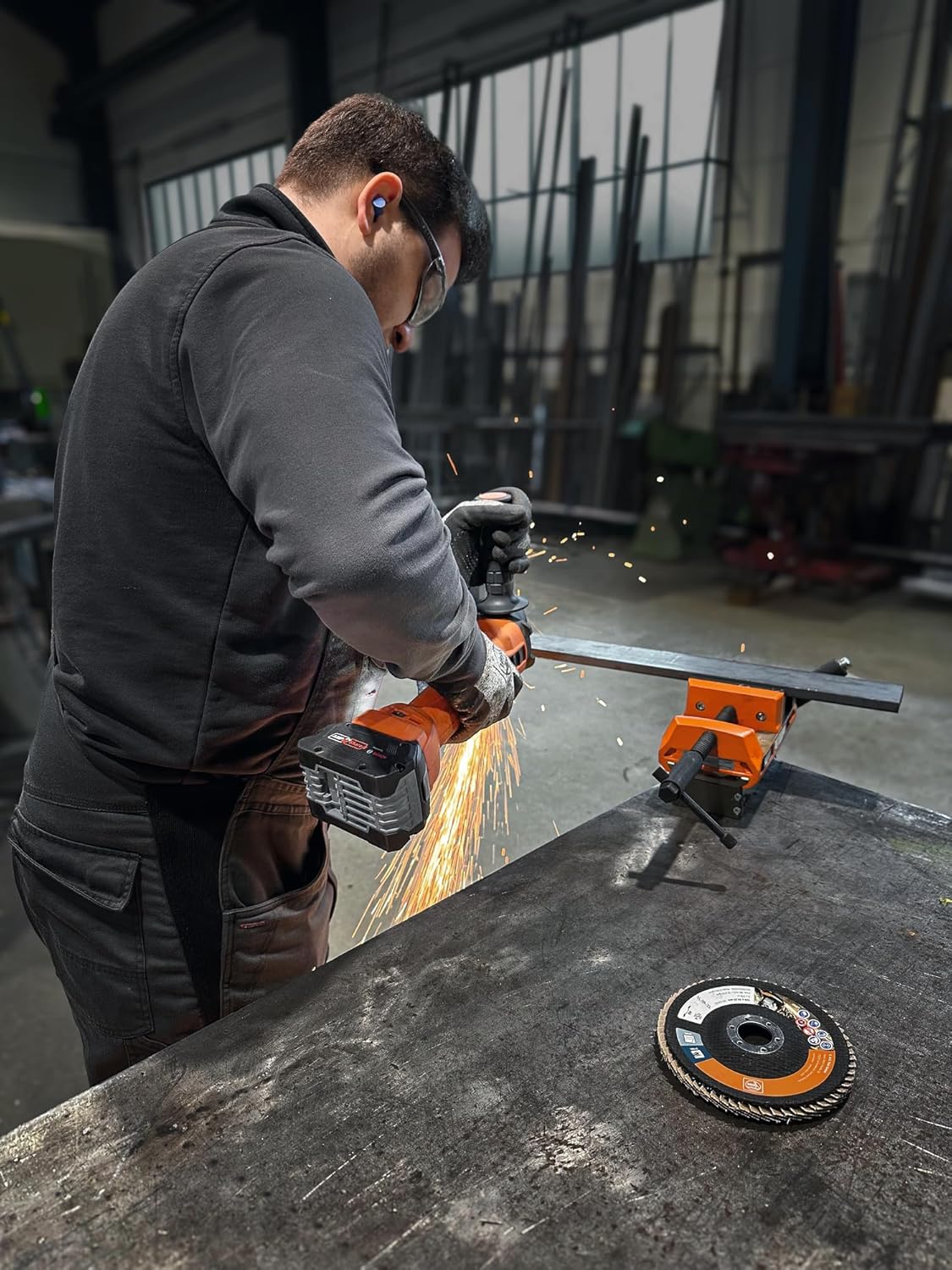

Man using Fein Cordless Angle Grinder CCG 18-115-12 AS to cut a metal bar, sparks flying.

Image: A worker performing a cutting operation on a metal bar with the Fein angle grinder, highlighting the tool's performance.

5.3 Funkcje zaawansowane

  • Blocking Monitoring: The tool is equipped with blocking monitoring, which helps prevent kickback if the disc jams.
  • Monitorowanie temperatury: Innovative cooling fin technology and temperature monitoring protect the motor and battery from overheating during intensive use.

6. Konserwacja

Regularna konserwacja zapewnia długowieczność i optymalną wydajność szlifierki kątowej.

  • Czyszczenie: The robust motor housing is designed to be dust resistant. Regularly clean the tool's ventilation slots and exterior with a soft brush or compressed air to remove dust and debris. Ensure the battery is removed before cleaning.
  • Kontrola dysku: Przed każdym użyciem sprawdź tarcze szlifierskie i tnące pod kątem pęknięć, odprysków lub nadmiernego zużycia. Uszkodzone lub zużyte tarcze należy natychmiast wymienić.
  • Pielęgnacja baterii: Store batteries in a cool, dry place. The Coolpack 2.0 technology helps extend battery life; however, avoid fully discharging batteries and charge them regularly.
  • Generalna Inspekcja: Periodically check all screws and fasteners for tightness. Ensure the guard operates smoothly and locks securely.

7. Rozwiązywanie Problemów

W tej sekcji znajdziesz informacje o typowych problemach i ich rozwiązaniach.

ProblemMożliwa przyczynaRozwiązanie
Narzędzie nie uruchamia się.Battery not charged or improperly inserted. Restart protection activated.Ensure battery is charged and correctly inserted. Cycle the power switch (OFF then ON) to reset restart protection.
Narzędzie zatrzymuje się podczas pracy.Electronic overload protection activated. Battery low. Temperature monitoring activated.Reduce pressure on the tool. Replace or recharge battery. Allow tool to cool down.
Nadmierne wibracje.Damaged or improperly installed disc. Loose handle.Inspect and replace disc if damaged. Ensure disc is correctly installed and nut is tightened. Tighten anti-vibration handle.
Reduced cutting/grinding performance.Worn or incorrect disc. Incorrect speed setting.Replace with a new, appropriate disc. Adjust speed setting for the material.

8. Specyfikacje

Technical data for the Fein Cordless Angle Grinder CCG 18-115-12 AS:

  • Model: CCG 18-115-12 AS
  • Pojemność bateriitage: 18 V
  • Kompatybilność baterii: Li-ion/ProCORE Li-ion (AMPShare compatible)
  • Silnik: Bezszczotkowy
  • Prędkość biegu jałowego: 2,500 - 8,500 min⁻¹ (stepless electronic speed preselection)
  • Średnica koła szlifierskiego: 115 mm
  • Elastic Sanding Disc Diameter: 115 mm
  • Kołnierze: M14
  • Waga (bez baterii): 2.20 kilogramów
  • Wymiary produktu (dł. x szer. x wys.): Wymiary 35.7 x 25.3 x 44.2 cm
  • Tworzywo: Metal, aluminium, copper, plastic
  • Funkcje: Soft start, Restart protection, Electronic overload protection, Electronic speed preselection, Blocking monitoring, Vibration damper (4 additional), Temperature monitoring (Coolpack 2.0 technology)

9. Gwarancja i wsparcie

For warranty information, technical support, or service inquiries, please refer to the official Fein website or contact your authorized Fein dealer. Keep your purchase receipt as proof of purchase.

Fein Official Webstrona: www.fein.pl
