SOFTSEA Twin Size Horizontal Murphy Bed Instruction Manual

Wstęp

This instruction manual provides essential information for the safe and efficient assembly, operation, and maintenance of your SOFTSEA Twin Size Horizontal Murphy Bed. Please read this manual thoroughly before assembly and retain it for future reference. This product is designed to offer a space-saving sleeping solution by folding into a cabinet when not in use.

Image: The SOFTSEA Twin Size Horizontal Murphy Bed unfolded, ready for use, within a room setting.

Ważne informacje dotyczące bezpieczeństwa

• Zawsze należy dokładnie przestrzegać instrukcji montażu, aby zapobiec niestabilności lub zawaleniu się konstrukcji.
• Be cautious around the folding mechanism to avoid potential injury.
• Nie przekraczać dopuszczalnego ciężaru 1000 funta.
• Przed użyciem należy upewnić się, że wszystkie elementy mocujące są mocno dokręcone i okresowo sprawdzać, czy nie ma luzów.
• Keep children and pets away from the bed during folding and unfolding operations.

Konfiguracja i montaż

The SOFTSEA Twin Size Horizontal Murphy Bed requires assembly. A detailed assembly instruction guide and all necessary tools are included with your purchase. Please ensure all components are present before beginning assembly.

Wymiary

Refer to the diagram below for overall product dimensions and key measurements.

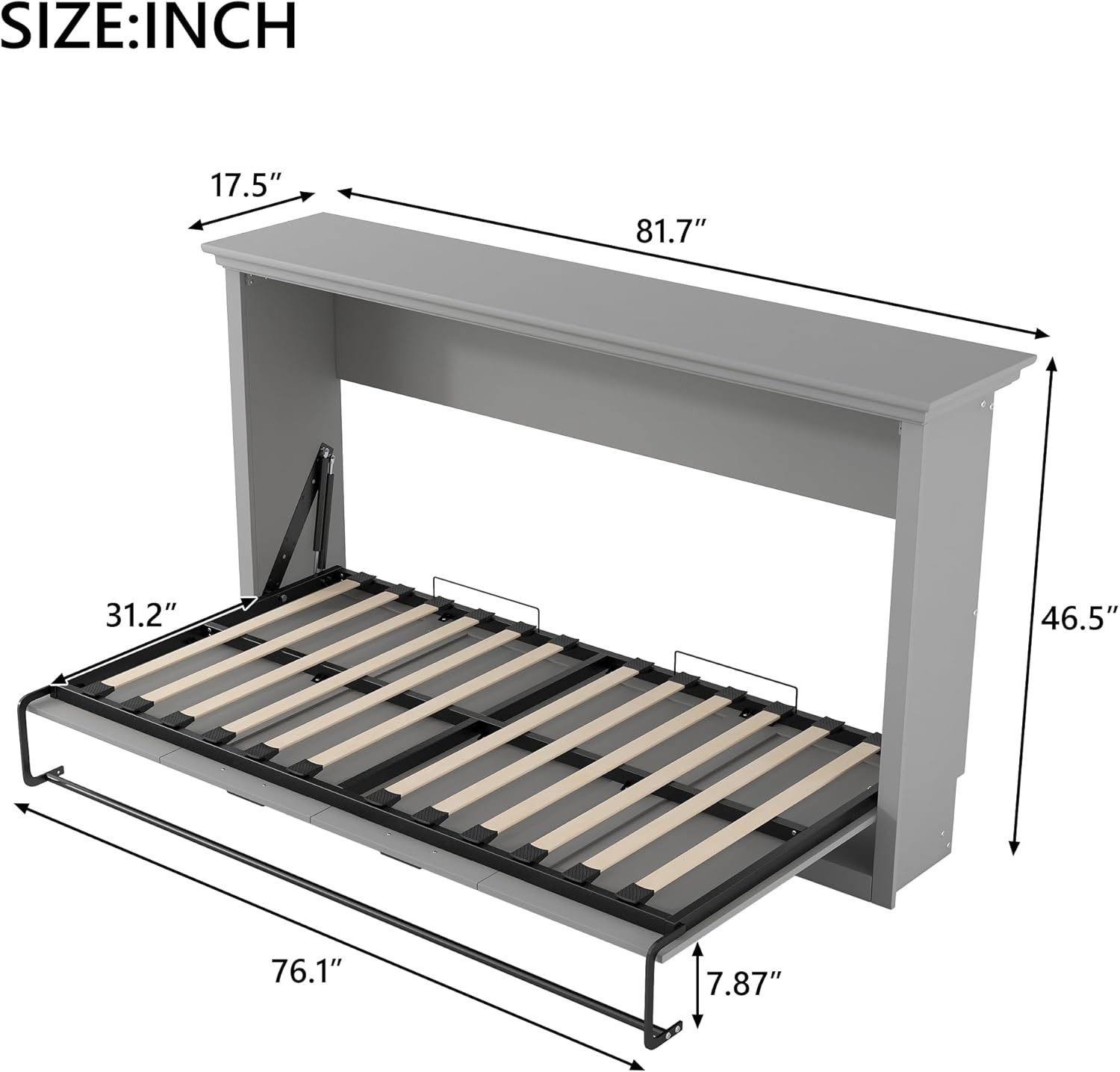

Image: Diagram illustrating the dimensions of the Murphy bed, including length, width, and height.

• Całkowite wymiary produktu: 81.7'' dł. x 48.7'' szer. x 46.5'' wys.
• Twin Bed Sleeping Area: 76.1'' x 39''
• Total Height (Cabinet): 46.5 cala
• Zalecana grubość materaca: 8-10''

Komponenty

The bed frame is constructed from MDF and metal, providing a solid and stable structure. High-quality pine slats support the mattress.

Obraz: Zbliżenie view of the bed frame showing the metal structure and wooden slats designed to support a mattress.

Instrukcja obsługi

Folding the Bed into a Cabinet

1. Zdejmij z ramy łóżka całą pościel, poduszki i materac.
2. Carefully lift the bed frame from the foot end. The folding mechanism will assist in raising the bed.
3. Guide the bed frame upwards until it is fully vertical and securely latched within the cabinet structure.
4. Close the cabinet doors to conceal the bed.

Image: The SOFTSEA Twin Size Horizontal Murphy Bed in its folded cabinet configuration, blending into a room as a piece of furniture.

Unfolding the Bed from a Cabinet

1. Otwórz drzwi szafki.
2. Carefully unlatch the bed frame from its vertical position.
3. Slowly lower the bed frame towards the floor, guiding it until it is fully horizontal.
4. Ensure the support legs are properly extended and locked into place for stability.
5. Place your mattress and bedding onto the frame.

Image: The Murphy bed fully unfolded, showcasing the robust slat system ready to support a mattress.

Kompatybilność materaca

This bed is designed for a Twin size mattress. A box spring is not required as the closely spaced wood slats provide ample support for latex, memory foam, or spring mattresses. The recommended mattress thickness is 8-10 inches to ensure proper folding and storage within the cabinet.

Konserwacja i pielęgnacja

• Czyszczenie: Przetrzyj powierzchnie miękką, damp szmatką. Unikaj silnych środków chemicznych i ściernych środków czyszczących, które mogą uszkodzić wykończenie.
• Kontrola mechanizmu: Periodically inspect the folding mechanism and all fasteners to ensure they are tight and functioning correctly. Lubricate moving parts if necessary, using a silicone-based lubricant.
• Nośność: Adhere strictly to the 1000 lbs weight capacity to prevent damage and ensure safety.
• Opieka ogólna: Manual measurement has been used, there may be some reasonable error. All pictures are taken by actual samples; slight chromatic aberration may occur due to lighting or display.

Rozwiązywanie problemów

• Bed does not fold/unfold smoothly: Check for obstructions around the mechanism. Ensure all assembly screws are tightened. The folding rod is built for long-term use, but ensure no foreign objects are interfering.
• Łóżko wydaje się niestabilne: Verify that all assembly hardware is securely fastened. Ensure the bed is placed on a level surface. Confirm that the support legs are fully extended and locked when the bed is unfolded.
• Brakujące części lub uszkodzone podzespoły: If you encounter missing parts or damaged components during assembly, please contact SOFTSEA customer support immediately for assistance. Do not attempt to assemble with incomplete or damaged parts.

Specyfikacja produktu

Gwarancja i wsparcie

For warranty information, please refer to the documentation included with your purchase or contact the retailer. For any questions, concerns, or assistance with your SOFTSEA Twin Size Horizontal Murphy Bed, please contact SOFTSEA customer support. Ensure you have your model number (B0DFYL9GPL) and purchase details available when contacting support.

Manufacturer: SOFTSEA
