MIZUDO Etech Pro 10 Gallon

MIZUDO 10 Gallon Point of Use Electric Water Heater

Model: Etech Pro 10 Gallon

1. Wprowadzenie

This manual provides essential information for the safe installation, operation, and maintenance of your MIZUDO 10 Gallon Point of Use Electric Water Heater. Please read all instructions carefully before installation and use. Retain this manual for future reference.

2. Informacje dotyczące bezpieczeństwa

Your MIZUDO water heater is designed with multiple safety features and is UL Listed to ensure safe operation. Adherence to these safety guidelines is crucial for preventing injury and property damage.

  • Certyfikat UL: The unit meets recognized safety standards.
  • Zawór bezpieczeństwa T&P: A Temperature and Pressure (T&P) relief valve is included to regulate internal pressure and temperature, preventing hazardous conditions.
  • HF-1 Flame Retardant: Materials used are HF-1 flame retardant for enhanced fire safety.
  • IPX4 Wodoodporny: Zapewnia ochronę przed wodą rozpryskującą się z dowolnego kierunku.
  • Zabezpieczenie przed przegrzaniem: Automatically shuts off the heater if water temperature exceeds safe limits.
  • Ochrona przed nadmiernym ciśnieniem: Safeguards against excessive internal pressure.
  • Ochrona przed suchym spalaniem: Zapobiega pracy elementu grzejnego bez wody.
  • Ochrona przed zamarzaniem: Protects the unit in cold environments.
Diagram illustrating the comprehensive safety protections of the MIZUDO water heater, including built-in anode rod, HF-1 flame retardant, IPX4 waterproof rating, overheat protection, over pressure protection, and UL certification.
Image: Comprehensive Safety Protection features of the MIZUDO water heater.

3. Funkcje produktu

The MIZUDO 10 Gallon Point of Use Electric Water Heater offers efficient and reliable hot water for various applications.

  • Duża pojemność: 10-gallon capacity suitable for various household needs.
  • Szybkie ogrzewanie: 1500W heating element provides hot water in approximately 60 minutes.
  • Energooszczędny: Well-insulated design with a 360° wrapped insulation layer minimizes heat loss.
  • Regulowany termostat: Allows temperature settings between 90°F and 150°F for precise control.
  • Trwała konstrukcja: Features a smooth enamel coating and a built-in, easily replaceable anode rod for corrosion protection and extended service life.
  • Stable Water Temperature: Maintains water temperature fluctuation within 5°F of the set point.
The MIZUDO 10 Gallon water heater shown in various point-of-use scenarios such as washing dishes, showering, and laundry, highlighting its versatility.
Image: Ideal applications for the MIZUDO 10 Gallon water heater, including kitchen, bathroom, and laundry use.

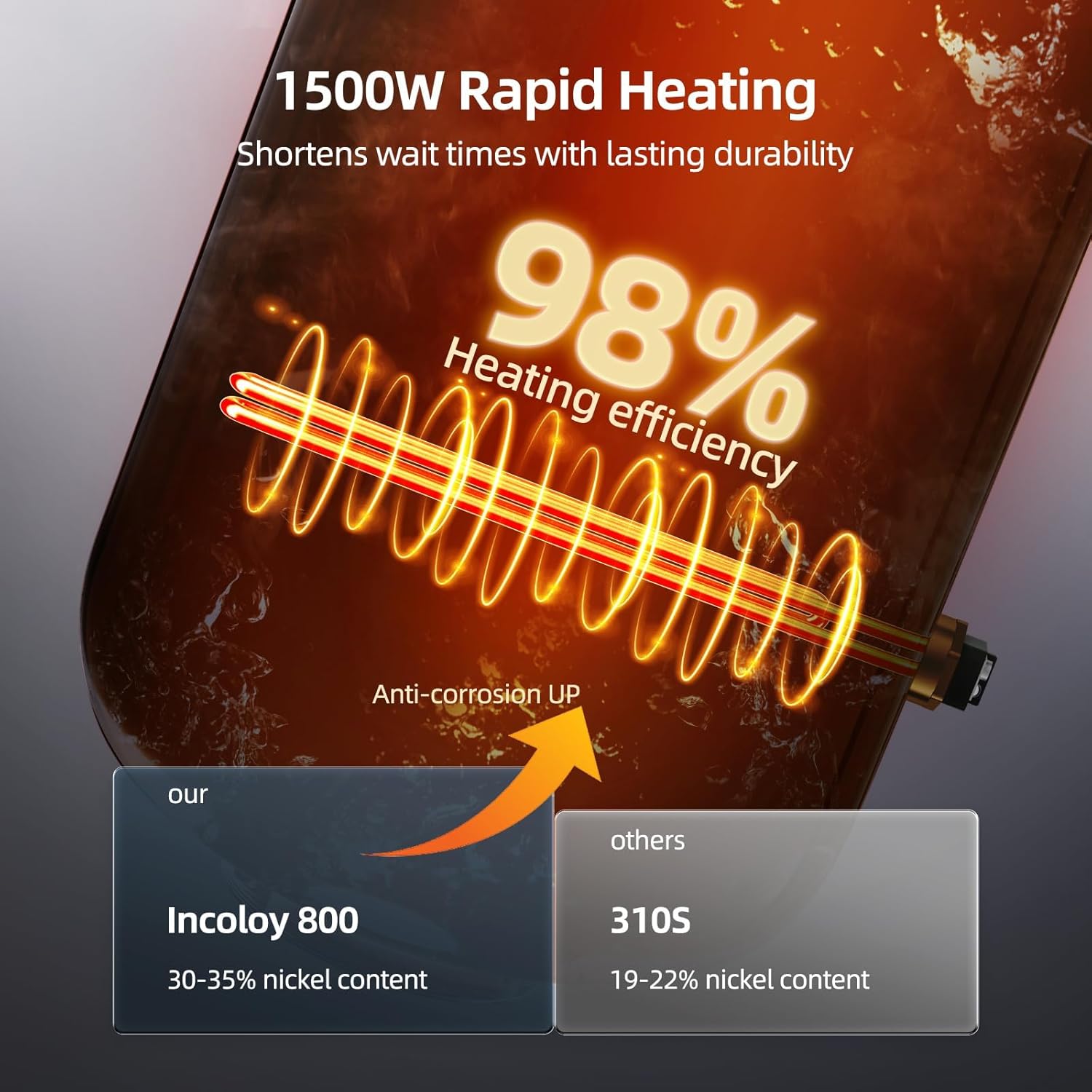

Diagram showing the 1500W heating element with 98% heating efficiency and comparing Incoloy 800 (30-35% nickel) to 310S (19-22% nickel) for anti-corrosion.
Image: Illustration of 1500W rapid heating and anti-corrosion properties of the heating element.
Przekrój view of the water heater showing a 1.20 inch thick 360-degree wrapped insulation layer, designed to reduce energy loss.
Image: Detail of the 360° wrapped insulation layer, indicating 1.20 inches thickness for energy efficiency.
Close-up of the water heater's control panel showing the reset button, thermostat dial pointer, and thermostat protective cover, with a temperature range of 90-150°F.
Image: Adjustable thermostat control with a temperature range of 90°F to 150°F.

Wideo: Ponadview of the MIZUDO Electric Hot Water Heater Tank, showcasing its features, installation options, and safety aspects. This video demonstrates the product's design and functionality.

4. Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie komponenty:

  • MIZUDO 10 Gallon Electric Water Heater x 1
  • Instrukcja obsługi x 1
  • T&P Relief Valve x 1
  • Power Cord Assembly (for plug-in option)
Diagram showing the water heater with labeled components: Junction Box, Anode Rod, Temperature Setting, Drain Valve, T&P Valve, 3/4 inch NPT Hot Water Outlet, and 3/4 inch NPT Cold Water Inlet. Also shown are included accessories: Power Cord Assembly, T&P Valve, and Instruction Manual.
Image: Product Information and Included Accessories.

5. Instalacja i konfiguracja

The MIZUDO 10 Gallon water heater is designed for flexible installation, either as a standalone unit or as a booster for an existing hot water system. It supports both plug-in and hardwired electrical connections.

5.1 Podłączenie elektryczne

The unit operates on 120V AC. You have two options for electrical connection:

  • Wtyczka: Use the included power cord for easy installation.
  • Podłączony na stałe: Requires a 16 AWG hardwired connection (not included). Consult a qualified electrician for hardwired installations.
Two diagrams showing the water heater. One illustrates a plug-in connection with an included power cord. The other shows a hardwired connection requiring a 16 AWG wire, not included.
Image: Compatible wiring options: Plug-in and Hardwired.

5.2 Podłączenia wodne

The water heater features 3/4" NPT water connections. Ensure proper plumbing practices are followed to prevent leaks.

  • Connect the cold water inlet to your cold water supply.
  • Podłącz wylot ciepłej wody do systemu dystrybucji ciepłej wody.
  • Install the T&P relief valve as per local codes and manufacturer instructions.

Maximum water pressure: 150 PSI.

Diagram illustrating the MIZUDO water heater connected as a booster unit to a larger tankless water heater. It shows the cold water inlet, hot water outlet, and the T&P relief valve.
Image: Hot Water Supply Systems - configured as a booster unit.

5.3 Umieszczenie

The compact design (14.76" W x 27.9" H) allows for installation in various locations such as under sinks, in garages, or utility closets. Ensure adequate clearance for maintenance and proper ventilation.

6. Instrukcja obsługi

6.1 Pierwsze uruchomienie

  1. Ensure the water heater is completely filled with water before turning on power. Open a hot water faucet to allow air to escape until a steady stream of water flows.
  2. Zamknij kran z ciepłą wodą.
  3. Connect the unit to power (plug-in or hardwired).

6.2 Regulacja temperatury

The thermostat is adjustable from 90°F to 150°F. To adjust the temperature:

  1. Locate the thermostat dial pointer behind the protective cover on the front of the unit.
  2. Carefully adjust the dial to your desired temperature setting.
  3. Allow approximately 60 minutes for the water to reach the set temperature.

6.3 Przycisk resetowania

In case of an overheat event, the unit's safety mechanism will trip. To reset:

  1. Wyłącz zasilanie urządzenia.
  2. Press the reset button located near the thermostat dial.
  3. Restore power to the unit. If the issue persists, consult the troubleshooting section or contact customer support.

7. Konserwacja

Regularna konserwacja zapewnia optymalną wydajność i wydłuża żywotność podgrzewacza wody.

  • Kontrola/wymiana pręta anodowego: The built-in anode rod protects against corrosion. Inspect it annually and replace as needed, especially in areas with hard water.
  • T&P Valve Testing: Test the T&P relief valve at least once a year by lifting the lever. Water should discharge from the drain pipe. If no water discharges, or if it continues to discharge, replace the valve immediately.
  • Opróżnianie zbiornika: If the unit will be unused for an extended period or if there is a risk of freezing, drain the tank completely.

8. Rozwiązywanie Problemów

This section provides solutions to common issues. For problems not listed here, or if solutions do not resolve the issue, please contact MIZUDO customer support.

ProblemMożliwa przyczynaRozwiązanie
Brak ciepłej wodyNo power; Thermostat tripped; Heating element failureCheck power supply/breaker; Press reset button; Contact support for element replacement
Woda nie jest wystarczająco gorącaThermostat set too low; Insufficient recovery time; Tank size inadequate for demandIncrease thermostat setting; Allow more time for heating; Consider usage patterns
Wyciek z jednostkiLoose connections; T&P valve discharge; Tank failureTighten connections; Check T&P valve operation; Contact support for tank inspection
Hałaśliwa pracaSediment buildup in tank; Loose heating elementDrain and flush tank; Contact support for inspection

9. Specyfikacje

Detailed technical specifications for the MIZUDO Etech Pro 10 Gallon Electric Water Heater.

FunkcjaSzczegół
MarkaMIZUDO
Numer modeluEtech Pro 10 Gallon
Pojemność10 galony
Źródło zasilania120V AC Hardwired
Cotage1500 watów
Tomtage120 wolty
Wymiary produktu (szer. x wys.)14.76" szer. x 27.9" wys.
Waga przedmiotu37.5 funtów
Podłączenie wody3/4" NPT
Maksymalna temperatura150 stopni Fahrenheita
Maksymalne ciśnienie150 PSI
Typ mocowaniaMontaż na podłodze
Typ materiałuPorcelain Enamel, Stainless Steel
CertyfikatyPosiada certyfikat UL
Table comparing specifications for 6 Gallon, 10 Gallon, and 18 Gallon MIZUDO water heater models, including nominal tank capacity, dimensions, amps, cotage, tomtage, water connection, and temperature range.
Image: Model Comparison Table for MIZUDO Water Heaters.

10. Gwarancja i wsparcie

MIZUDO provides the following warranty for your water heater:

  • 1 rok gwarancji for the Whole Unit
  • 3 rok gwarancji for the Inner Tank

For technical assistance, warranty claims, or to purchase replacement parts, please visit the official MIZUDO store or contact customer support through the provided channels on the product packaging or webstrona.
