Mechkeys VARMILO Muse65 Gaming Keyboard User Manual

1. Wprowadzenie

Thank you for choosing the Mechkeys VARMILO Muse65 Gaming Keyboard. This manual provides essential information for setting up, operating, and maintaining your new keyboard. The Muse65 features a CNC-machined aluminum alloy chassis, wired magnetic white switches with adjustable trigger, and customizable RGB lighting, designed to enhance your gaming and typing experience.

Obraz 1.1: Widok z góry na dół view of the Muse65 Gaming Keyboard.

2. Koniec produktuview

The VARMILO Muse65 keyboard is engineered for performance and aesthetics, featuring:

• CNC-Machined Aluminum Alloy Chassis: Provides exceptional durability and a premium feel.
• Gateron Magnetic White Switches: Offers smooth linear actuation with advanced features.
• Adjustable Trigger: Customize actuation points from 0.1mm to 4.0mm for precise control.
• Funkcja szybkiego wyzwalania: Enables instant input for competitive gaming.
• Dynamic Keystroke Function: Allows for multiple actions on a single keypress.
• Cherry Profile Nakładki na klawisze PBT: Durable and comfortable for extended use.
• Konfigurowalne oświetlenie RGB: Personalize your keyboard's backlighting.
• UV Glass Back Panel: Features vivid design themes like Asgard.

Image 2.1: Detail of Gateron Magnetic White Switches.

Obraz 2.2: Tył view showcasing the Asgard UV Mirror Glass Back Panel.

Image 2.3: Internal aluminum plate for structural integrity.

Image 2.4: Various design themes available for the Muse65 keyboard.

3. Konfiguracja

3.1 Podłączanie klawiatury

The Muse65 is a wired keyboard. To connect it to your computer:

1. Znajdź port USB-C na klawiaturze.
2. Podłącz jeden koniec dołączonego kabla USB do portu USB-C klawiatury.
3. Podłącz drugi koniec kabla USB do wolnego portu USB w komputerze.
4. Klawiatura powinna zostać automatycznie rozpoznana przez system operacyjny.

Image 3.1: USB-C port for keyboard connection.

3.2 Instalacja sterownika

To unlock the full functionality and customization options of your Muse65 keyboard, including adjustable trigger and dynamic keystrokes, it is necessary to install the dedicated driver software. The driver allows for precise control over key actuation points and lighting effects.

Aby zainstalować sterownik, wykonaj następujące kroki:

1. Visit the official VARMILO website. You can find the support section or a direct link for driver downloads.
2. Locate the driver for the Muse65 HE model.
3. Pobierz sterownik file (usually an .exe or a .zip file).
4. If it's a .zip file, extract its contents.
5. Uruchom instalator i postępuj zgodnie z instrukcjami wyświetlanymi na ekranie, aby ukończyć instalację.
6. Ensure your keyboard is connected to the computer during the installation process.

Image 3.2: Screenshot of the VARMILO driver download page, indicating where to find the Muse65 driver.

4. Instrukcja obsługi

4.1 Podstawowe funkcje

The Muse65 keyboard operates like a standard 65% layout keyboard. All keys perform their labeled functions by default. For combination functions, press the Fn key along with the desired function key.

4.2 Funkcje multimedialne

Access multimedia controls using the Fn key in combination with specific keys. Refer to the driver software for a detailed layout of multimedia functions, which typically include volume control, play/pause, and track navigation.

4.3 efektów świetlnych

The keyboard features customizable RGB backlighting. Lighting effects can be adjusted through the driver software. You can change colors, patterns, brightness, and speed of the effects. Some basic lighting adjustments might be available via Fn kombinacje klawiszy (np. Fn + or Fn+ > dla jasności, Fn + ? for mode change).

4.4 System Mode Switching

The keyboard may support different system modes (e.g., Windows mode, Mac mode). These modes can typically be switched using Fn key combinations or through the driver software to ensure compatibility with your operating system.

5. Zaawansowane funkcje

The Muse65 keyboard's Gateron Magnetic Switches offer advanced customization for an optimized user experience, especially for gaming.

5.1 Regulowany spust

The magnetic switches allow you to adjust the key trigger point (actuation distance) between 0.1mm and 4.0mm with 0.1mm precision. This feature is crucial for competitive gaming, allowing you to set a shorter actuation for faster responses or a longer one to prevent accidental presses.

5.2 Funkcja szybkiego wyzwalania

The Rapid Trigger function provides instant input. When enabled, a key registers an input as soon as it begins to be pressed and resets as soon as it begins to be released, allowing for extremely fast repeated actions without needing to fully release the key. This is highly beneficial in fast-paced games like FPS titles.

5.3 Dynamic Keystroke Function

With dynamic keystrokes, you can assign different actions to a single key based on how far it is pressed. For example, a light press could perform one action, while a deeper press performs another. This feature offers a new level of control and customization.

Image 5.1: Illustration of magnetic switch features like rapid and adjustable trigger response.

Image 5.2: Detail of the 5 independent Hall Effect chips for precise key detection.

6. Konserwacja

Właściwa konserwacja zapewnia długowieczność i optymalną wydajność klawiatury.

6.1 Czyszczenie klawiatury

• Ogólne sprzątanie: Użyj miękkiej, niestrzępiącej się ściereczki, lekko wyczyśćampened with water or a mild cleaning solution to wipe down the keycaps and chassis. Avoid harsh chemicals.
• Usuwanie kurzu: Za pomocą sprężonego powietrza usuń kurz i zanieczyszczenia spomiędzy klawiszy.
• Dokładne czyszczenie (nasadek klawiszy): For thorough cleaning, you can carefully remove the keycaps using the provided keycap puller. Wash them with mild soap and water, rinse thoroughly, and ensure they are completely dry before reattaching.
• Ważny: Do not immerse the keyboard in any liquid. Avoid spraying cleaning solutions directly onto the keyboard; apply them to a cloth first.

7. Rozwiązywanie Problemów

If you encounter any issues with your Muse65 keyboard, refer to the following common solutions:

7.1 Klawiatura nie odpowiada

• Sprawdź połączenie: Upewnij się, że kabel USB jest prawidłowo podłączony do klawiatury i komputera. Spróbuj użyć innego portu USB lub kabla.
• Restart komputera: Problemy z łącznością często można rozwiązać poprzez proste ponowne uruchomienie.
• Kontrola sterownika: Verify that the keyboard driver is correctly installed and up to date. Reinstall the driver if necessary.

7.2 Keys Not Registering / Incorrect Input

• Clean Keycaps/Switches: Ensure no debris is obstructing the key switches.
• Ustawienia sterownika: Check the driver software for any custom key assignments or actuation point settings that might be causing unexpected behavior.
• Przywrócenie ustawień fabrycznych: If issues persist, you can perform a factory data reset. Press and hold Fn+B for 3 seconds. The backlight will flash white three times, indicating a successful reset.

7.3 Problemy z oświetleniem

• Regulacja jasności: Sprawdź, czy jasność nie jest ustawiona na minimum.
• Ustawienia sterownika: Check the lighting settings within the driver software.

8. Specyfikacje

9. Co znajduje się w pudełku

Upon unboxing your Mechkeys VARMILO Muse65 Gaming Keyboard, you should find the following items:

• Klawiatura x 1
• Kabel USB x 1
• Ściągacz nasadek klawiszy x 1
• Instrukcja obsługi x 1

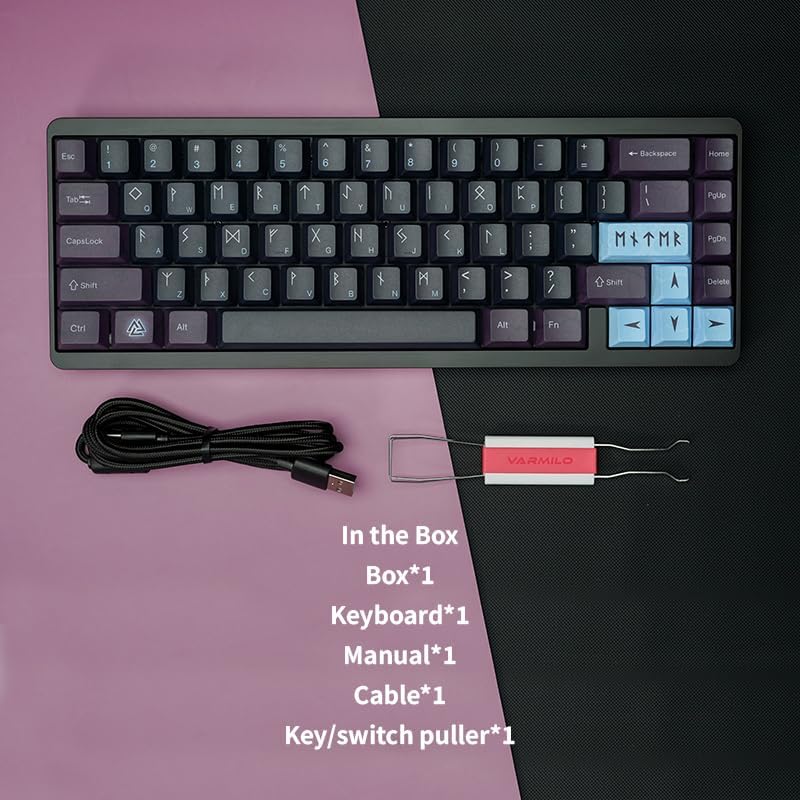

Image 9.1: Contents of the Muse65 keyboard packaging.

Image 9.2: The keyboard, USB cable, and keycap puller.

10. Gwarancja i wsparcie

10.1 Informacje o gwarancji

Varmilo typically offers a one-year warranty service for keyboards and three months for accessories from the date of purchase. The warranty period is based on the purchase date. Please retain your proof of purchase (invoice, receipt) for warranty claims.

The free warranty service is generally applicable to non-human quality problems. Damage caused by improper use, unauthorized disassembly, or natural disasters is not covered. Products with printed patterns on the chassis should avoid wiping with alcohol or other corrosive cleaning products.

10.2 Instrukcja konserwacji

During the warranty period, you can enjoy free maintenance service. If beyond the warranty period, Varmilo will provide paid maintenance service. For further assistance or warranty service, please contact the seller or Varmilo's official support channels.

10.3 Oficjalne wsparcie

For the latest drivers, firmware updates, and support, please visit the official Mechkeys or Varmilo website. You can also refer to the brand's social media channels for updates and community support.

Official Varmilo Webstrona: www.varmilo.com
