XMSJSIY DB9 RS485 Connector Serial Adapter Cable User Manual

1. Wprowadzenie

The XMSJSIY DB9 RS485 Connector Serial Adapter Cable provides a reliable and convenient solution for connecting devices with serial network functions. This cable features a D-SUB 9-pin connector on one end and a 2-pin breakout with solderless terminals on the other, allowing for easy and secure wire connections without the need for soldering. Its robust design ensures stable data transmission and broad compatibility with various computer systems and industrial equipment.

Obraz 1.1: Koniecview of the XMSJSIY DB9 RS485 Connector Serial Adapter Cable.

2. Zawartość opakowania

Proszę sprawdzić, czy po otwarciu paczki znajdują się wszystkie elementy:

• 1 x XMSJSIY DB9 RS485 Connector Serial Adapter Cable

3. Funkcje produktu

• Solder-Free Connection: Easily connect wires to the terminal end using a screwdriver, eliminating the need for soldering.
• Gold-Plated DB9 Plug: Features fine gold-plated treatment for oxidation resistance, abrasion resistance, corrosion resistance, and durability, ensuring stable signal transmission.
• High-Quality Copper Terminals: Made of high-quality copper for tight contact and good conductivity, capable of withstanding approximately 3A current.
• Szeroka kompatybilność: Compatible with various computer systems including Windows XP, Vista, 7, 8, 10, Mac OS, and Linux 2.4.0 or later, as well as industrial control equipment.
• Trwała konstrukcja: Flexible PVC body provides durability and stretch resistance.
• Enhanced Signal Protection: Features woven mesh and aluminum foil double-layer anti-interference shielding for stable data transmission.

Image 3.1: The cable features a flexible PVC body for enhanced durability and resistance to stretching.

Image 3.2: Internal structure showing woven mesh and aluminum foil shielding for stable data transmission.

4. Konfiguracja i instalacja

This cable is designed for easy, solder-free installation. Follow these steps to connect your devices:

1. Zidentyfikuj połączenia: The DB9 female connector has pins labeled 1 through 9. The 2-pin breakout cable typically uses red for positive (+) and black for negative (-). For RS485 applications, pin 3 is commonly used for Red (+) and pin 8 for Black (-). Refer to your device's documentation for specific pin assignments.
2. Przygotuj przewody: Ensure the wires from your device are stripped to an appropriate length for insertion into the terminal blocks.
3. Podłącz przewody: Insert the prepared wires into the corresponding red and black cold-crimp terminals on the breakout end of the cable. Use a small screwdriver to tighten the screws on the terminals, securing the wires firmly. No soldering is required.
4. Connect DB9: Plug the DB9 female connector into the male DB9 port of your compatible device (e.g., computer, PLC controller, industrial instrument).
5. Bezpieczne połączenie: If your DB9 port has screws, tighten them to secure the connection and prevent accidental disconnections.

Image 4.1: DB9 Female pinout showing common RS485 connections (Pin 3: Red +, Pin 8: Black -).

Image 4.2: Detail of the solderless terminal connection for the red (+) and black (-) wires.

Obraz 4.3: Example of the DB9 connector and 2-pin breakout cable connected to a terminal block for easy wiring.

5. Instrukcja obsługi

Once the cable is securely connected to your devices, it facilitates serial data communication. The operation of the connected devices will depend on their specific functions and software configurations. Ensure that the drivers for any connected serial devices are correctly installed on your computer system.

This cable is suitable for a wide range of applications, including:

• Automatic control equipment
• PLC controllers
• Touch screens
• Programiści
• Konwertery danych
• Silniki serwo
• Przemysłowe urządzenia sterujące
• Cash registers and tax controllers
• Desktop PCs and other computer systems

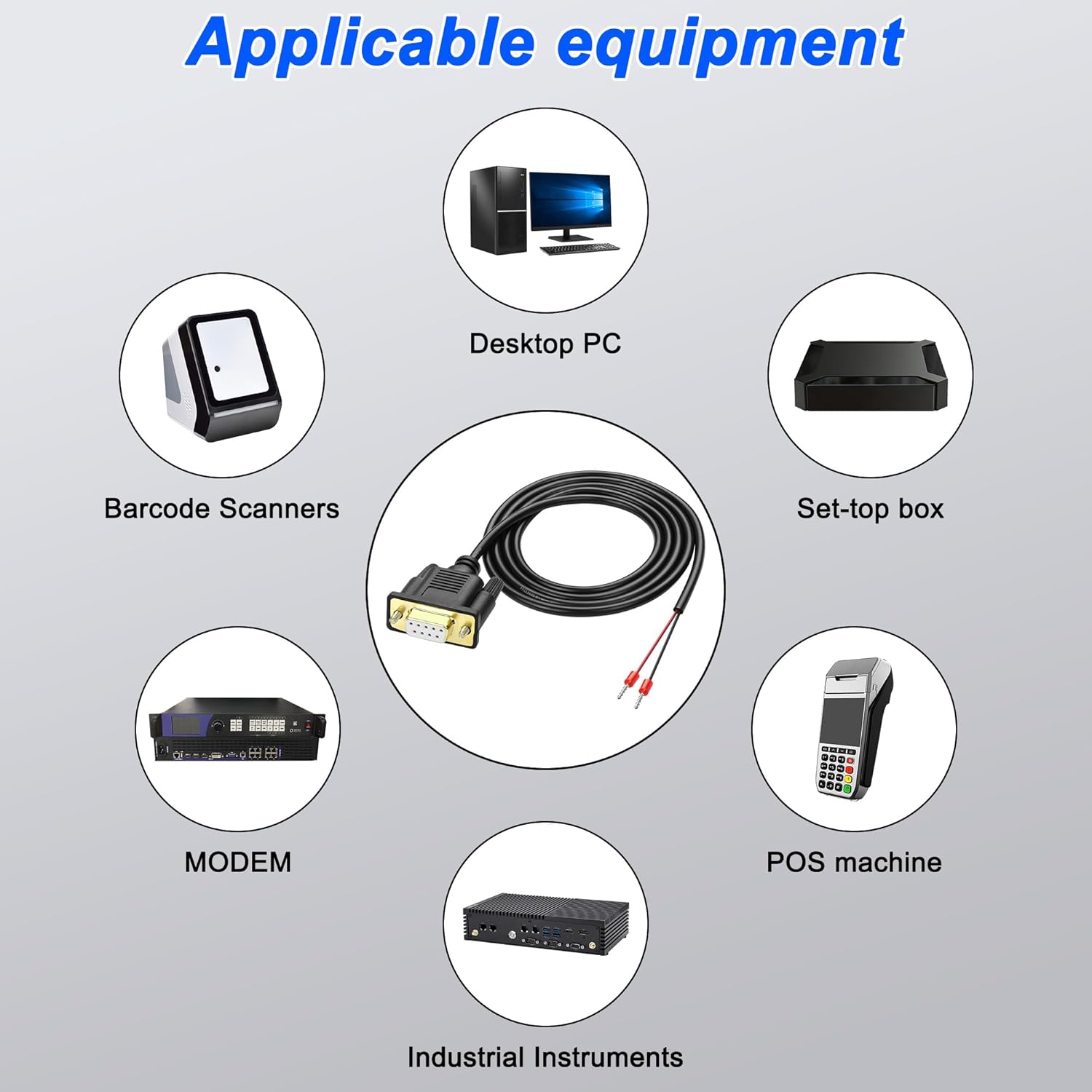

Obraz 5.1: Examples of devices compatible with the DB9 RS485 serial adapter cable.

6. Konserwacja

To ensure the longevity and optimal performance of your XMSJSIY DB9 RS485 Connector Serial Adapter Cable, follow these maintenance guidelines:

• Składowanie: Przechowuj kabel w chłodnym, suchym miejscu, z dala od bezpośredniego światła słonecznego i ekstremalnych temperatur.
• Czyszczenie: If necessary, gently wipe the cable and connectors with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Obsługiwanie: Avoid excessive bending, twisting, or pulling of the cable, especially near the connectors, to prevent internal wire damage.
• Kontrola: Okresowo sprawdzaj kabel i złącza pod kątem oznak zużycia, uszkodzeń lub korozji. W przypadku zauważenia jakichkolwiek uszkodzeń wymień kabel.

7. Rozwiązywanie Problemów

If you encounter issues while using the DB9 RS485 Connector Serial Adapter Cable, consider the following troubleshooting steps:

• No Connection/Data Transfer:
  • Ensure both the DB9 connector and the terminal wires are securely connected.
  • Verify that the wire connections at the terminal end match the correct pin assignments for your device (e.g., Red to +, Black to -).
  • Check if the connected devices are powered on and functioning correctly.
  • Confirm that the correct drivers are installed for your serial device on the computer.
  • Test the cable with another compatible device if possible to rule out a cable fault.
• Intermittent Connection/Signal Loss:
  • Ensure all connections are tight and free from movement.
  • Sprawdź, czy kabel lub złącza nie uległy uszkodzeniu fizycznemu.
  • Verify that the cable is not exposed to excessive electromagnetic interference (EMI). The double-layer shielding helps, but extreme environments can still cause issues.
• Incorrect Data:
  • Double-check the pin assignments and ensure they are correct for your specific application.
  • Verify the serial communication settings (baud rate, data bits, parity, stop bits) on both connected devices.

8. Specyfikacje

Image 8.1: Key dimensions of the DB9 RS485 Connector Serial Adapter Cable.

9. Gwarancja i wsparcie

For warranty information or technical support regarding your XMSJSIY DB9 RS485 Connector Serial Adapter Cable, please refer to the product packaging or contact the retailer where the product was purchased. You may also visit the official XMSJSIY webAby uzyskać dalszą pomoc, odwiedź naszą witrynę.
