TC-HOMENY 3-Tier 5-Gallon Water Jug Holder Instruction Manual

Wstęp

Thank you for choosing the TC-HOMENY 3-Tier 5-Gallon Water Jug Holder. This product is designed to provide an organized and space-saving solution for storing your 5-gallon water jugs. Its robust construction and versatile top shelf make it suitable for various environments, including homes and offices. This manual provides comprehensive instructions for assembly, operation, and maintenance to ensure optimal use and longevity of your water jug holder.

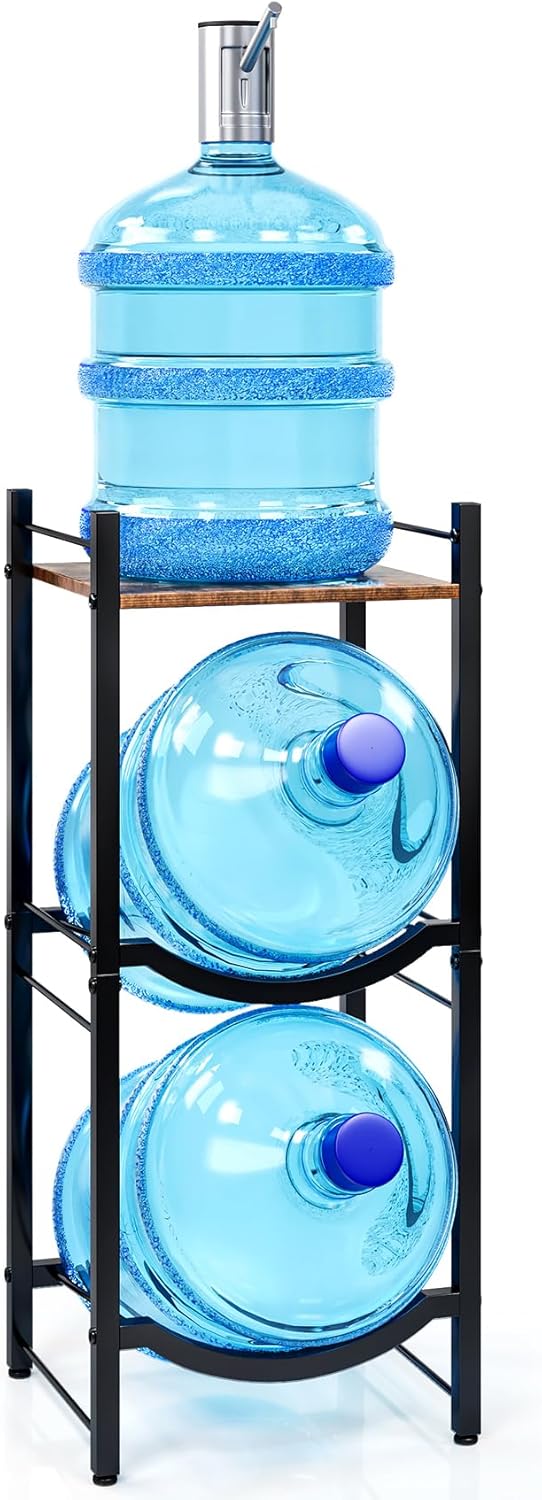

Image: The TC-HOMENY 3-Tier 5-Gallon Water Jug Holder, showcasing its design with one water jug on the top shelf and two stored below.

Zawartość opakowania

Before beginning assembly, please verify that all components listed below are present and undamaged. Refer to the assembly instruction sheet included in the package for detailed part identification.

Image: All components of the water jug holder laid out for assembly, including the metal frame pieces, wooden top, various screws, and the provided screwdriver.

• Sekcje ramy głównej (lewa i prawa)
• Curved Water Jug Supports (2 pieces)
• Wooden Tabletop (1 piece)
• Adjustable Rubber Feet (4 pieces)
• Assembly Screws and Bolts (various sizes, labeled A, B, C, D, E)
• Screwdriver (1 piece)
• Assembly Instruction Sheet (1 piece)

Instrukcja montażu

Assembly of the TC-HOMENY Water Jug Holder is straightforward and requires minimal tools, all of which are provided. Please follow these steps carefully:

1. Krok 1: Zamontuj regulowane nóżki

   Screw the four adjustable rubber feet (Part E) into the bottom of the main frame sections. Ensure they are securely tightened to provide stability and protect your floor.

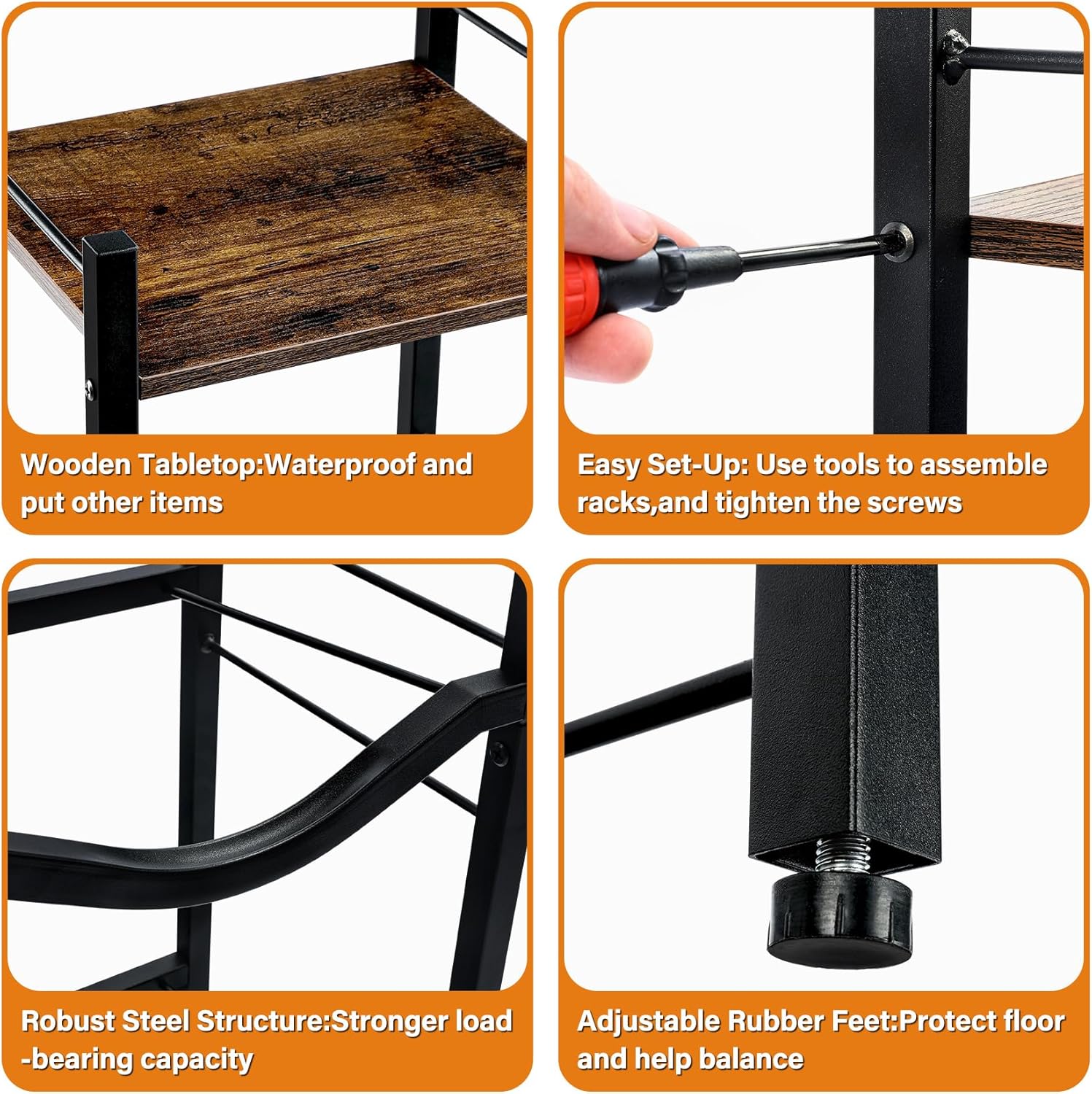

   Image: Detail showing the adjustable rubber feet, designed to protect floors and provide stability, being attached to the frame (bottom right of image).

2. Krok 2: Złóż sekcje ramy

   Connect the two main frame sections using the designated screws (refer to your assembly instruction sheet for specific screw types and locations). Ensure all connections are firm but do not overtighten initially.
3. Step 3: Install Water Jug Supports

   Attach the two curved water jug supports to the frame at the indicated positions. These supports are designed to cradle 5-gallon water jugs securely. Use the appropriate screws and the provided screwdriver.



   Image: A hand using the provided screwdriver to tighten a screw during the assembly of the rack, highlighting the easy setup process (top right of image).

4. Step 4: Secure Wooden Tabletop

   Place the wooden tabletop onto the uppermost frame. Secure it in place using the provided screws. This tabletop serves as a stable surface for a water dispenser, coffee machine, or an additional water jug.



   Obraz: Zbliżenie view of the wooden tabletop, emphasizing its waterproof surface and suitability for holding items like a coffee maker or water dispenser (top left of image).

5. Krok 5: Ostateczne dokręcenie i kontrola stabilności

   Once all components are in place, carefully tighten all screws. Ensure the stand is stable and level. Adjust the rubber feet if necessary to eliminate any wobbling.

The completed stand provides storage for two 5-gallon jugs on the lower tiers and a stable platform for one on the top shelf.

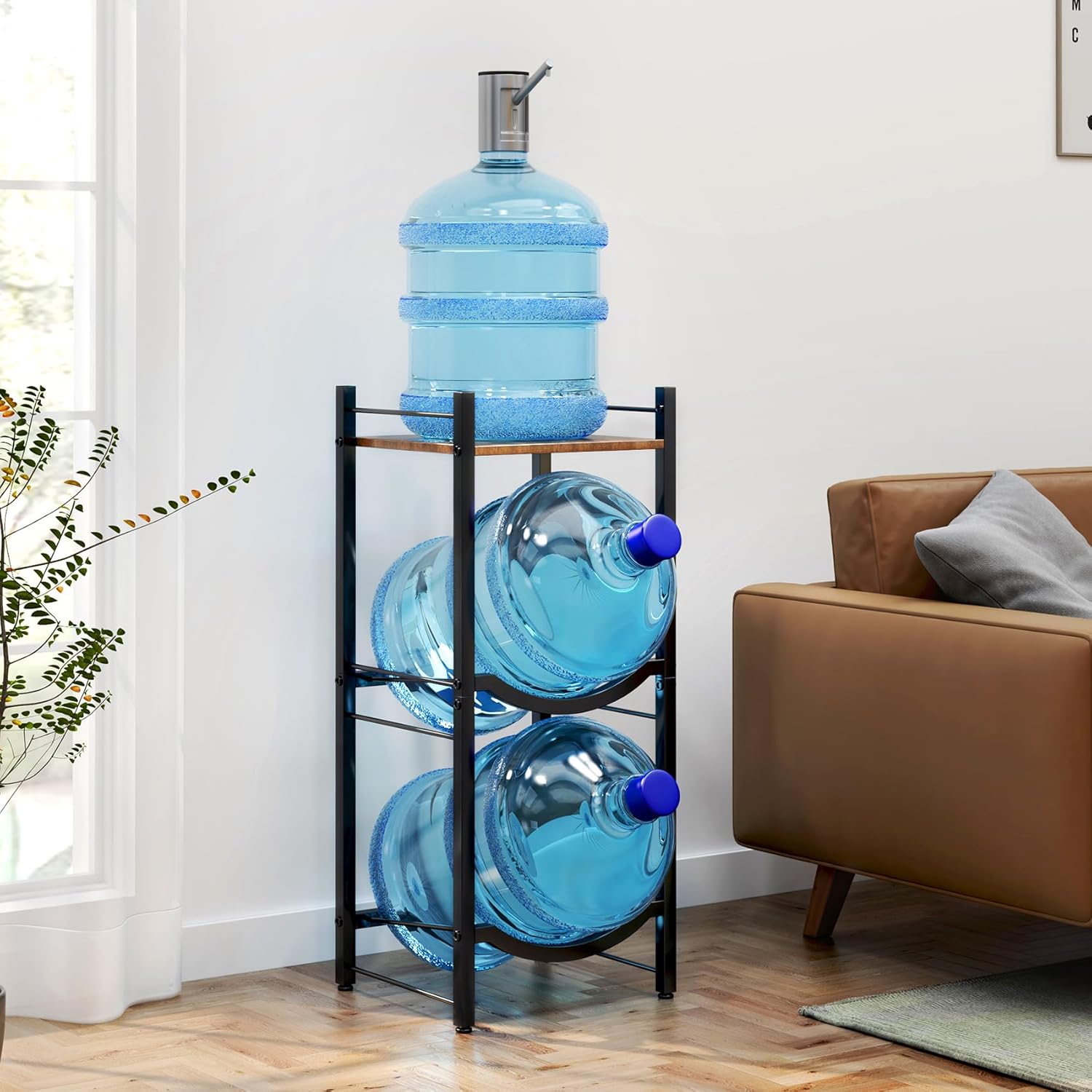

Image: The fully assembled water jug holder positioned in a living room, demonstrating its compact and functional design.

Instrukcja obsługi

Using your TC-HOMENY Water Jug Holder is simple:

• Placing Water Jugs: Carefully lift and place 5-gallon water jugs onto the curved supports on the lower tiers. Ensure they are seated securely.
• Korzystanie z górnej półki: The wooden tabletop can hold a 5-gallon water jug with a pump, a water dispenser, a coffee machine, or other small appliances. The anti-slip handle on the tabletop helps keep items in place.
• Pojemność: The holder is designed to accommodate up to three 5-gallon bottles (two on lower tiers, one on top). The maximum load capacity is 150 lbs.

Image: An illustration demonstrating the versatile storage capabilities of the water jug holder, showing space for water bottles, cups, coffee machines, and other items.

Konserwacja

To maintain the appearance and functionality of your water jug holder:

• Czyszczenie: Wipe down the metal frame and wooden tabletop with a damp ściereczką. Unikaj środków czyszczących o działaniu ściernym, które mogą uszkodzić wykończenie.
• Kontrola: Okresowo sprawdzaj wszystkie śruby i połączenia, aby upewnić się, że są dobrze dokręcone. W razie potrzeby dokręć.
• Umieszczenie: For indoor use only. Avoid prolonged exposure to direct sunlight or excessive moisture to preserve the wooden tabletop and metal finish.

Rozwiązywanie problemów

• Stojak chwiejny: If the stand feels unstable, ensure all screws are fully tightened. Adjust the individual rubber feet at the bottom to level the stand on uneven surfaces.
• Stopień trudności montażu: Double-check the assembly instruction sheet to ensure all parts are correctly oriented and the correct screws are used for each connection. If a part appears bent or damaged, do not force it. Contact customer support if parts are damaged.
• Water Jugs Not Fitting: Ensure you are using standard 5-gallon water jugs. The curved supports are specifically designed for this size.

Specyfikacje

Image: Technical drawing illustrating the precise dimensions of the water jug holder.

Obsługa klienta

If you have any questions regarding the assembly, operation, or maintenance of your TC-HOMENY 3-Tier 5-Gallon Water Jug Holder, please contact our customer service team. We are available to assist you with any inquiries.

Refer to your purchase documentation or the product listing for specific contact information.
