Bike Rack Locking Wedge Replacement Part User Manual

Produkt ponadview

This manual provides instructions for the installation, operation, and maintenance of the Bike Rack Locking Wedge Replacement Part. This precision-machined 6061 aluminum wedge is designed to replace a lost or damaged locking wedge on compatible Thule bike racks with a 2-inch receiver, ensuring the continued secure transport of your bicycles.

The replacement wedge restores the full functionality of your bike rack's locking mechanism, preventing theft and maintaining stability during transport. It offers a cost-effective and environmentally conscious alternative to replacing an entire bike rack.

Co jest w pudełku

Przed rozpoczęciem instalacji należy sprawdzić, czy wszystkie komponenty są obecne:

• Klin
• Nakrętka zabezpieczająca

Konfiguracja i instalacja

This replacement wedge is designed for straightforward installation, mirroring the original part's setup. Ensure your Thule bike rack uses a 2-inch receiver and has a locking wedge mechanism.

1. Przygotuj odbiornik: Ensure the 2-inch receiver on your bike rack is clean and free of debris.
2. Remove Old Wedge (if applicable): If replacing an existing damaged wedge, carefully remove it along with any associated hardware.
3. Insert New Wedge: Align the new locking wedge with the designated slot or opening in your bike rack's receiver mechanism. The wedge should slide into place securely.
4. Zabezpiecz sprzętowo: Insert the threaded rod (if not already part of your rack's assembly) through the wedge's hole and secure it with the provided lock nut. Tighten the lock nut firmly to ensure the wedge is held in place without excessive play.

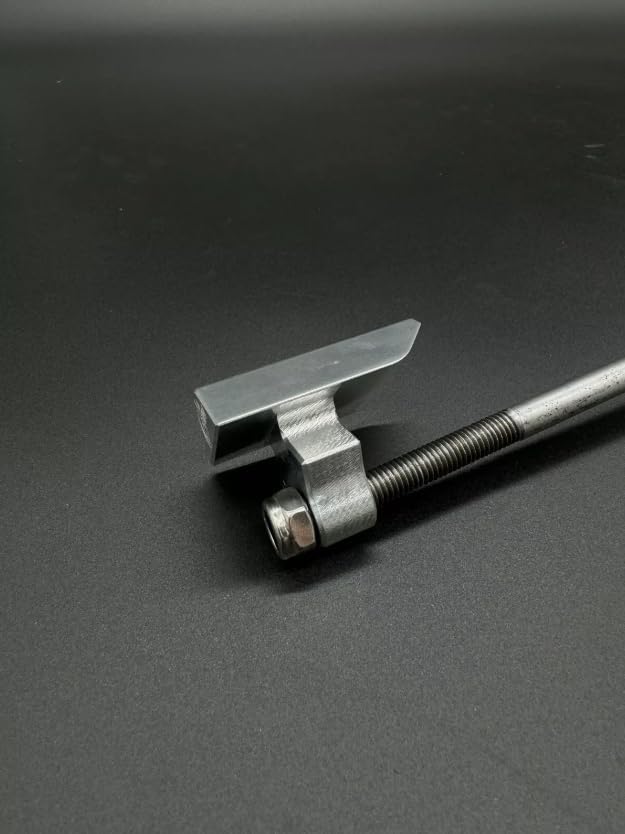

Image: The locking wedge with its associated threaded rod and nut, demonstrating how it secures into the bike rack's receiver.

Image: The silver locking wedge properly installed within a black bike rack receiver, showing its secure fit.

After installation, ensure the wedge is firmly seated and does not wobble. This secure fit is crucial for the proper function of your bike rack's anti-wobble and anti-theft features.

Operating the Locking Wedge

Once installed, the locking wedge works in conjunction with your bike rack's existing mechanism to provide a secure and stable connection to your vehicle's 2-inch receiver hitch. The wedge is designed to eliminate play between the hitch and the rack, reducing wobble and enhancing stability during transport.

The wedge also contributes to the anti-theft features of your Thule bike rack by creating a tight fit that makes unauthorized removal more difficult when the rack's primary locking mechanism is engaged.

Konserwacja

To ensure the longevity and optimal performance of your locking wedge, follow these simple maintenance guidelines:

• Regularna kontrola: Periodically inspect the wedge for any signs of wear, damage, or corrosion. Check that it remains securely fastened within the bike rack's receiver.
• Czyszczenie: Clean the wedge and surrounding receiver area with a damp cloth to remove dirt, dust, or road grime. Avoid harsh chemicals that could damage the aluminum finish.
• Smarowanie (opcjonalnie): If the threaded rod or nut becomes stiff, a small amount of general-purpose lubricant can be applied to the threads.

Rozwiązywanie problemów

If you encounter issues with your replacement locking wedge, consider the following:

• Wedge Does Not Fit:
  • Ensure your bike rack has a 2-inch receiver. This wedge is specifically designed for 2.00" receivers.
  • Verify that the internal mechanism of your bike rack is clear of obstructions.
• Wedge Feels Loose After Installation:
  • Retighten the lock nut securely. Over time, vibrations can cause fasteners to loosen.
  • Inspect the wedge and the receiver for any deformation or damage that might prevent a tight fit.
• Difficulty Tightening Nut:
  • Check for cross-threading on the nut or threaded rod.
  • Ensure the nut is correctly aligned before tightening.

Specyfikacje

Gwarancja i wsparcie

This product is typically covered by a standard return policy, allowing for returns or replacements within 30 days of purchase. For specific warranty details or to inquire about extended protection plans, please refer to your purchase documentation or contact the seller directly.

For technical support or further assistance, please contact the manufacturer or seller through the platform where the product was purchased. Provide your model number (51520242) and a detailed description of your issue for prompt service.
