1. Koniec produktuview
The Dragonhawk Fold Pro Wireless Tattoo Machine is a professional-grade device designed for various tattooing techniques. It features an MCORE-C3 motor, adjustable stroke length, and a wireless design for enhanced freedom and precision.
- System podwójnej baterii: Includes two replaceable batteries for extended operation, ensuring consistent power during long sessions.
- MCORE-C3 Motor: Equipped with an Ultra Power No-Snag Motor, providing exceptional power and durability. It glides smoothly through skin, suitable for both lining and shading, and ideal for demanding lining and color packing.
- Regulowana długość skoku: Offers 7 stroke options from 2.4mm to 4.2mm. Easily adjust the stroke length by turning the regulation knob, allowing versatility for various tattooing styles, including tattoo and SMP (Scalp Micropigmentation).
- Advanced Direct Drive System: Features a professional direct drive system that ensures smooth, precise, soft, and quiet operation. This system transfers ink gently and consistently, providing stable voltage and low noise for a comfortable experience.
- Profesjonalna precyzja: Designed for expert-level performance in lining, layering, shading, and blending, all with the convenience of a cordless tattoo pen.
2. Informacje dotyczące bezpieczeństwa
Read all safety instructions before using the Dragonhawk Fold Pro Wireless Tattoo Machine. Failure to follow these instructions may result in injury or damage to the device.
- Always ensure proper sterilization of all equipment and work surfaces before and after each use.
- This device is intended for professional use only. Do not use if you are not a trained and certified tattoo artist.
- Keep the machine and its components out of reach of children and unauthorized individuals.
- Do not expose the machine to water or other liquids, as it is not water-resistant.
- Use only genuine Dragonhawk replacement parts and accessories.
- If the machine exhibits unusual behavior, excessive heat, or damage, discontinue use immediately and contact support.
- Dispose of used needles and other hazardous materials according to local regulations.
3. Zawartość opakowania
Sprawdź, czy w opakowaniu znajdują się wszystkie elementy:
- Dragonhawk Fold Pro Tattoo Machine
- Two Replaceable Batteries (1500mAh each)
- RCA Connector Module
- Kabel ładujący (typ C)
- Instrukcja obsługi (ten dokument)
4. Konfiguracja
- Ładowanie baterii: Before first use, fully charge both batteries using the provided Type-C charging cable. Connect the cable to the battery and a suitable USB power adapter. The battery indicator will show charging status.
- Assemble Machine:
- Attach the desired battery module or the RCA connector module to the main body of the tattoo machine by twisting it securely.
- Insert a sterile needle cartridge into the machine's front opening. Twist gently until it locks into place.
- Regulacja głębokości igły: Rotate the grip of the machine to adjust the needle protrusion (depth). The machine allows for precise adjustment to achieve the desired needle depth for your work.

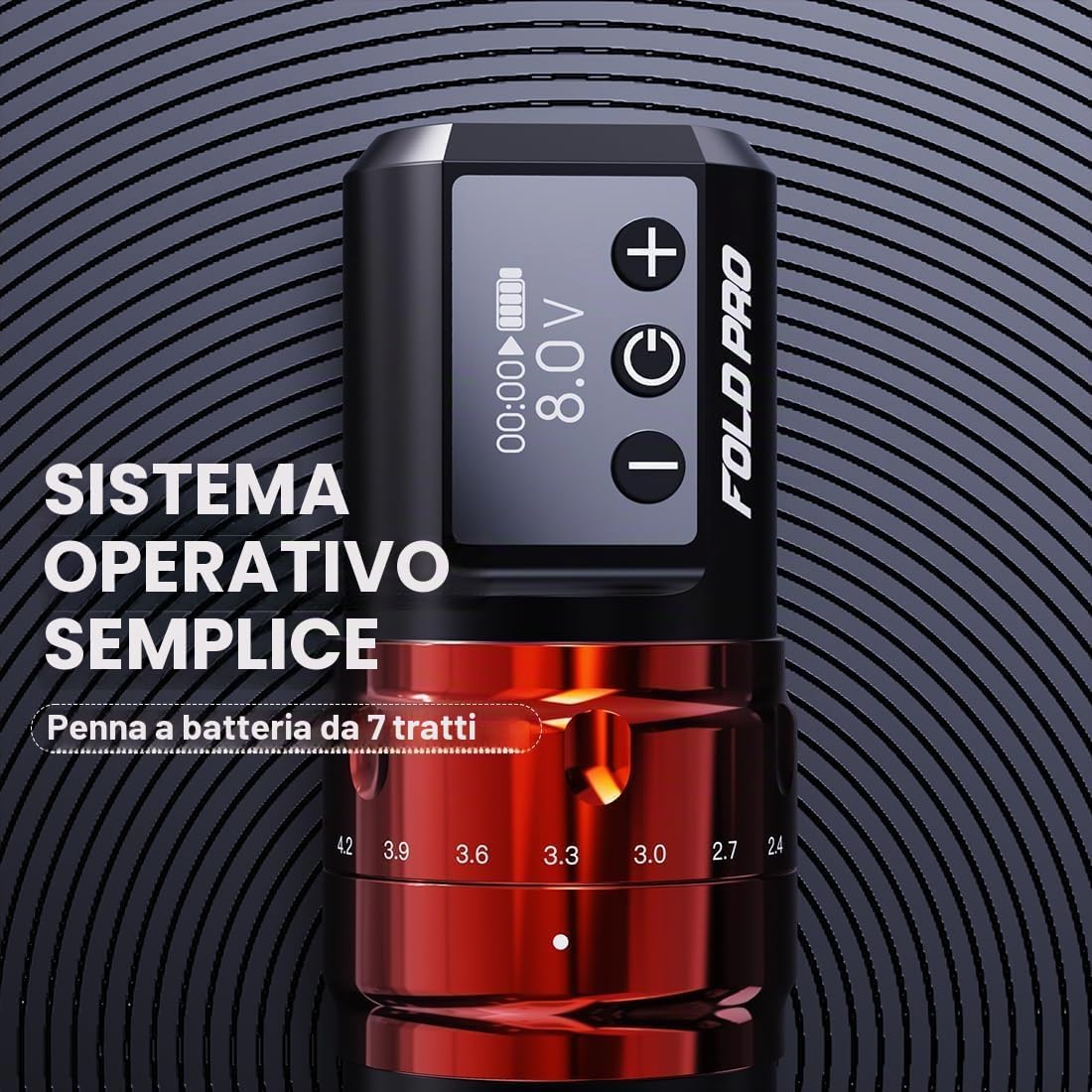

- Dostosuj długość skoku: The Fold Pro offers 7 adjustable stroke lengths from 2.4mm to 4.2mm. Rotate the stroke adjustment knob located on the machine body to select your preferred stroke. Refer to the markings on the machine for precise selection.
5. Instrukcja obsługi
- Włączanie/wyłączanie: Press and hold the power button on the battery module or RCA module to turn the machine on or off. The display will illuminate upon activation.
- Dostosuj głośnośćtage: Use the '+' and '-' buttons on the display to increase or decrease the operating voltagmi. Wyreguluj głośnośćtage according to your needle type, skin type, and desired effect.
- Wykonaj test: Before applying to skin, perform a brief test on practice skin or a sterile surface to ensure the machine is functioning correctly and the needle depth and stroke are set as desired.
- Zacznij tatuować: Gently press the needle onto the skin and move the machine in the desired direction. Maintain consistent pressure and speed for optimal results.
- Monitoruj baterię: If using the wireless battery, monitor the battery indicator on the display. When the battery is low, replace it with a charged one or switch to the RCA connector for wired operation.
- Switching between Wireless and Wired: The machine supports both wireless (with battery) and wired (with RCA module) operation. Simply swap the modules as needed.
6. Konserwacja
Proper maintenance ensures the longevity and optimal performance of your Dragonhawk Fold Pro Wireless Tattoo Machine.
- Czyszczenie: Po każdym użyciu dokładnie przetrzyj zewnętrzną część urządzenia sterylną chusteczką lub miękką szmatką.ampened with a suitable disinfectant. Avoid getting liquids inside the machine.
- Sterylizacja: While the machine itself cannot be autoclaved, ensure all parts that come into contact with skin or ink (e.g., needle cartridges, grips) are single-use or properly sterilized according to industry standards.
- Smarowanie: Periodically apply a small amount of machine lubricant (specifically designed for tattoo machines) to moving parts as recommended by the manufacturer. Do not over-lubricate.
- Pielęgnacja baterii: Store batteries in a cool, dry place. Avoid fully discharging batteries frequently, and recharge them regularly even if not in use to maintain battery health.
- Składowanie: Store the machine and its components in a clean, dry, and secure location when not in use.
7. Rozwiązywanie Problemów
If you encounter issues with your Dragonhawk Fold Pro, refer to the following common problems and solutions:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Maszyna się nie włącza. | Akumulator jest rozładowany lub nieprawidłowo podłączony. | Ensure battery is fully charged and securely attached. If using RCA, check cable connection and power supply. |
| Inconsistent power or stuttering. | Low battery, loose connection, or damaged needle cartridge. | Charge battery or switch to wired mode. Check all connections. Replace needle cartridge. |
| Needle not moving or stuck. | Needle cartridge improperly inserted or defective. | Re-insert needle cartridge firmly. If issue persists, try a new cartridge. |
| Machine overheating. | Długotrwałe stosowanie przy dużej objętościtage or motor strain. | Reduce operating voltage or take short breaks. Ensure proper ventilation. If overheating persists, discontinue use. |
| Pokrętło regulacji skoku jest sztywne. | Accumulated debris or lack of lubrication. | Clean the area around the knob. Apply a small amount of tattoo machine lubricant. |
If the problem persists after attempting these solutions, please contact Dragonhawk customer support.
8. Specyfikacje
| Funkcja | Specyfikacja |
|---|---|
| Numer modelu | WQP-031-5TX |
| Marka | Dragonhawk |
| Kolor | Red Machine |
| Waga | 224g |
| Średnica | 38mm |
| Długość | 130mm |
| Pojemność baterii | 1500 mAh (na baterię) |
| Objętość operacyjnatage | 4-12 V |
| Adjustable Stroke Lengths | 2.4mm - 4.2mm (7 options) |
| Typ połączenia | RCA |
| Port ładowania | Typ C |
| Poziom wodoodporności | Nie jest wodoodporny |
| Producent | Dragonhawk Tattoo Supply |
9. Informacje o gwarancji
Dragonhawk products are manufactured to high-quality standards. This product comes with a limited warranty against manufacturing defects. Please retain your proof of purchase for warranty claims.
For specific warranty terms and conditions, including duration and coverage, please refer to the warranty card included with your product or visit the official Dragonhawk webstrona.
10. Obsługa klienta
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Dragonhawk customer support:
- Webstrona: Visit the official Dragonhawk webStrona z odpowiedziami na często zadawane pytania i zasobami pomocy.
- E-mail: Zapoznaj się z opakowaniem produktu lub oficjalnym webwitryna zawierająca adresy e-mail obsługi klienta.
- Telefon: Numery kontaktowe mogą być dostępne na oficjalnej stronie webwitryna dla Twojego regionu.
When contacting support, please have your product model number (WQP-031-5TX) and proof of purchase readily available.
