Wstęp
This manual provides essential instructions for the installation, operation, and maintenance of your Aurlane LIFT UP 3 quarter-circle shower cabin. Designed with a modern aesthetic, this shower cabin features a white reinforced acrylic base, white tempered glass backgrounds, a black ABS hydro column, and matte black lacquered aluminum profiles. Please read these instructions carefully before proceeding with installation or use to ensure safe and optimal performance.

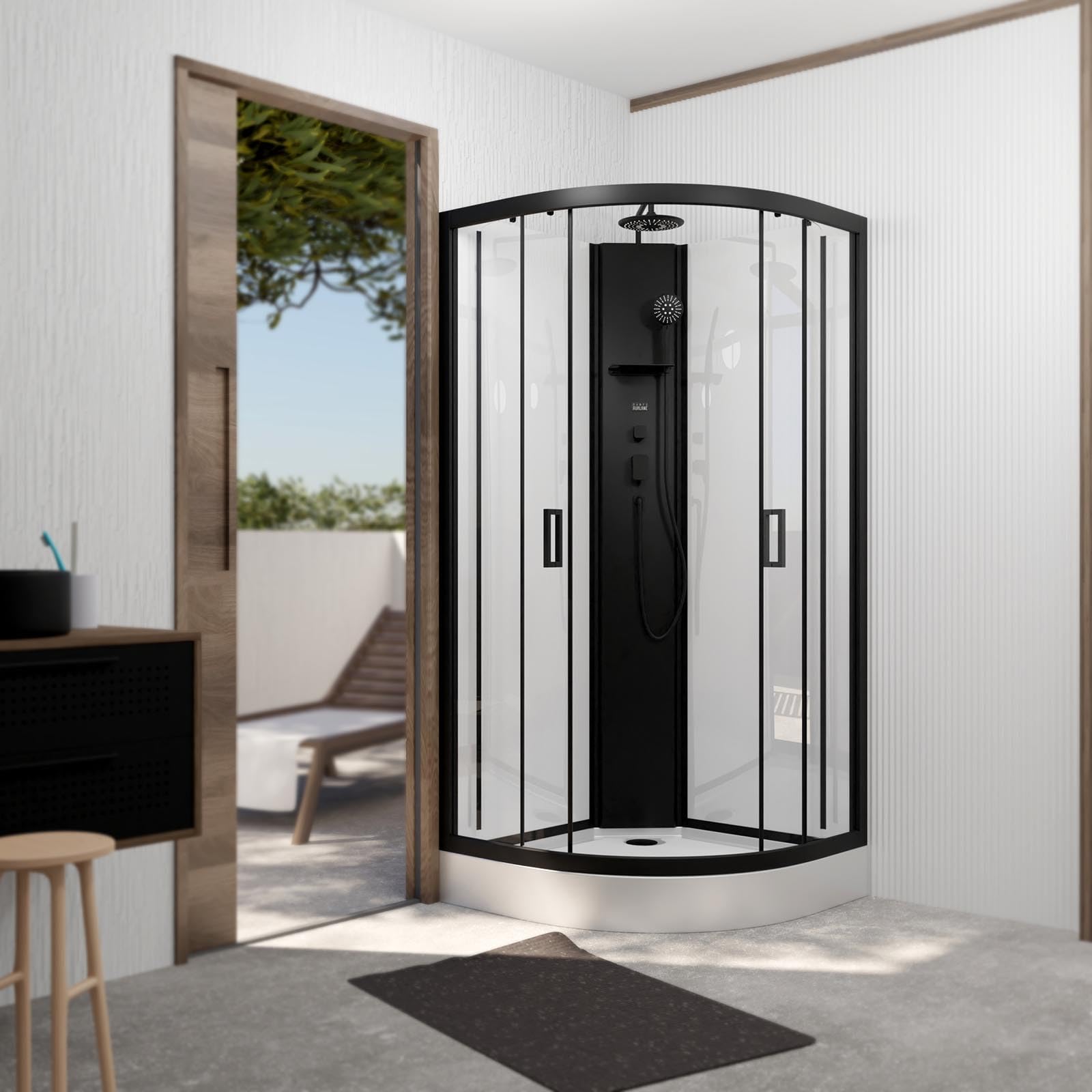

Rycina 1: Przód view z Aurlane LIFT UP 3 shower cabin, showcasing its quarter-circle design, black profiles, and white base.
Konfiguracja i instalacja
Proper installation is crucial for the functionality and longevity of your shower cabin. It is recommended that installation be performed by a qualified professional. Ensure the installation area is level, structurally sound, and has appropriate plumbing connections for hot and cold water, as well as drainage.
Kontrole przed instalacją:
- Rozpakowywanie: Carefully unpack all components. Due to the size and weight of the packages, assistance may be required. Drivers are typically only authorized to unload, not carry goods inside.
- Weryfikacja komponentów: Check all parts against the packing list to ensure everything is present and undamaged.
- Wymagania dotyczące miejsca: Verify that the dimensions of your bathroom accommodate the shower cabin. Refer to the dimensions diagram below.
- Zaopatrzenie w wodę: Ensure hot and cold water lines are accessible and correctly positioned.
- Drenaż: Confirm the floor drain is correctly located for the 60mm large flow drain fitting.
Figure 2: Detailed dimensions of the Aurlane LIFT UP 3 shower cabin. Overall dimensions are 85 x 85 cm. The height is adjustable from 210 to 235 cm. The shower tray height is 14 cm, and the door opening width is 48 cm.
Wskazówki dotyczące montażu:
- Follow the detailed assembly instructions provided with the product packaging.
- Ensure all seals and gaskets are correctly seated to prevent leaks.
- The shower tray is reinforced white acrylic. Handle with care during positioning.
- The sliding doors are made of 5mm tempered glass, and the white backgrounds are 4mm tempered glass. Exercise caution to prevent breakage.
- The matte black lacquered aluminum frame should be assembled according to the instructions, ensuring stability.
Działanie
Your Aurlane LIFT UP 3 shower cabin is designed for ease of use, offering a comfortable showering experience with its integrated features.
Using the Shower System:
Figure 3: Close-up of the matte black ABS hydro column, featuring the mechanical mixer, diverter, adjustable anti-limescale head shower, and multi-jet anti-limescale hand shower.
- Mechanical Mixer: Use the mechanical mixer tap to control water temperature and flow. Turn the handle to adjust the desired temperature.
- Head Shower: The anti-limescale head shower provides a rain effect. It is height-adjustable for personalized comfort.
- Słuchawka prysznicowa: The multi-jet anti-limescale hand shower offers various spray patterns. Select your preferred jet type using the selector on the hand shower.
- Odgałęzienie: A selector on the hydro column allows you to switch between the head shower and the hand shower.
- Drzwi przesuwne: The tempered glass sliding doors operate smoothly. Use the matte black door handles for opening and closing.
- Składowanie: Utilize the matte black metal shelf for storing shower essentials.
Konserwacja i pielęgnacja
Regular cleaning and maintenance will preserve the appearance and functionality of your shower cabin.
Instrukcje czyszczenia:
- Panele szklane: Clean tempered glass panels with a soft cloth and a non-abrasive glass cleaner. For anti-limescale features, simply wipe the nozzles to remove any buildup.
- Zawodowiecfiles and Hydro Column: Wipe matte black lacquered aluminum profiles and the ABS hydro column with a soft, damp szmatką. Unikaj środków czyszczących o działaniu ściernym i silnych środków chemicznych, które mogą uszkodzić wykończenie.
- Shower Tray: Clean the reinforced acrylic shower tray with mild soap and water. Do not use abrasive sponges or strong chemical detergents.
- Drenaż: Periodically check and clean the 60mm large flow drain fitting to prevent blockages.
- Ogólny: After each use, rinse the cabin thoroughly to remove soap residue and prevent limescale buildup.
Środki zapobiegawcze:
- Avoid hanging heavy objects on the shower doors or frame.
- Do not use sharp objects near the glass or acrylic surfaces.
- Ensure proper ventilation in the bathroom to minimize mold and mildew growth.
Rozwiązywanie problemów
If you encounter any issues with your Aurlane LIFT UP 3 shower cabin, refer to the common problems and solutions below. For complex issues, contact a qualified technician.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Wyciek wody | Improperly sealed joints, damaged seals, loose connections. | Check all seals and connections. Re-seal if necessary. Ensure the shower tray is level. |
| Niskie ciśnienie wody | Blocked shower head/hand shower nozzles, issues with household water supply. | Clean anti-limescale nozzles. Check household water pressure. |
| Doors Not Sliding Smoothly | Dirt or debris in tracks, worn rollers. | Clean door tracks thoroughly. Inspect rollers for damage and replace if needed. |
| Problemy z drenażem | Hair or debris blocking the drain. | Remove the drain cover and clear any obstructions. |
Specyfikacje
Detailed technical specifications for the Aurlane LIFT UP 3 shower cabin.
- Model: LIFT UP 3 (CAB276)
- Typ: Quarter-circle shower cabin
- Wymiary (dł. x szer.): Wymiary: 85x85 cm
- Height (Adjustable): 210 - 235 cm (Shower tray + walls + head shower)
- Shower Tray Height: 14 cm
- Wysokość ściany: 196 cm
- Szerokość otworu drzwiowego: 48 cm
- Materiał ramy: Matte black lacquered aluminum
- Drzwi przesuwne: Szkło hartowane 5 mm
- Panele tylne: White 4 mm tempered glass
- Hydro Column: Matte black ABS
- Shower Tray: Reinforced white acrylic
- Przyłącze odpływowe: Matte black, 60 mm large flow
- Head Shower: Anti-limescale, height-adjustable
- Słuchawka prysznicowa: Multi-jet, anti-limescale
- Mikser: Mechanical mixer tap
- Klamki do drzwi: Matowa czerń
- Półka: Czarny matowy metal
- Typ instalacji: Wolnostojące
- Styl drzwi: Drzwi przesuwne
Gwarancja i wsparcie
Aurlane provides a warranty for this product and offers customer support for any inquiries or issues.
- Okres gwarancji: 2 years warranty on AURLANE parts.
- Referencje produktu: CAB276 (Please provide this reference when contacting support).
- Więcej informacji: For more technical information, assembly tips, and advice, please visit the official AURLANE manufacturer's webstrona.
