ZdalaMit CT90479

ZdalaMit Universal Replacement Remote Control for Toshiba Regza TVs

Model: CT90479

Wstęp

This instruction manual provides essential information for the proper use and maintenance of your ZdalaMit Universal Replacement Remote Control (Model CT90479) for Toshiba Regza TVs. This remote is designed to be a direct replacement for several original Toshiba Regza remote models, offering immediate functionality without complex setup.

Zgodność: This remote control is compatible with a wide range of Toshiba Regza TV models, including but not limited to: 40/50/58M510X, 49/55BZ710X, 43/49/55J10X, 50/58/65/84Z9X, 43/49/55Z700X, 32/40V30, 32/40V31, 43/49/55G20X, 40/50/58M500X, 43/49C310X, 43/49/55J10. It also replaces original remote models such as CT-90467, CT-90466, CT-90453, CT-90478, CT-90479, CT-90475, CT-90463, CT-90481, and CT-90480.

ZdalaMit remote control compatible with Toshiba Regza series TVs, showing compatible models.

Image: ZdalaMit remote control with a list of compatible Toshiba Regza TV models.

Comparison of various Toshiba Regza remote control models and the ZdalaMit replacement remote.

Image: A visual comparison showing the ZdalaMit remote alongside several original Toshiba Regza remote models (CT-90453 to CT-90481), illustrating its broad compatibility.

Organizować coś

Instalacja baterii

This remote control requires two AAA alkaline batteries (sold separately). No programming or complex setup is needed. Simply insert the batteries, and the remote is ready for use with your compatible Toshiba Regza TV.

  1. Otwórz pokrywę komory baterii z tyłu pilota.
  2. Insert two AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals match the indicators inside the compartment.
  3. Dokładnie zamknij pokrywę komory baterii.

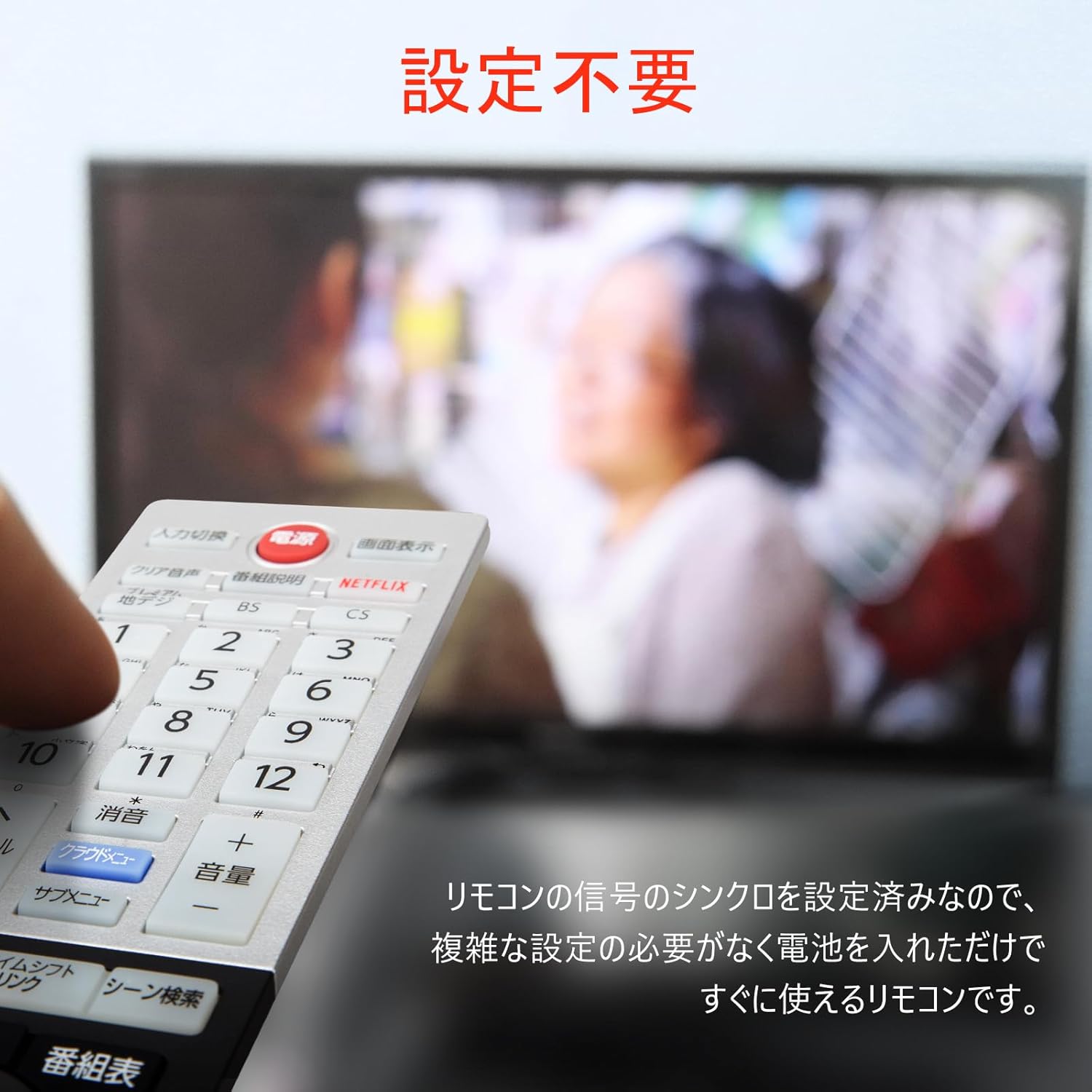

Hand holding the ZdalaMit remote control in front of a TV, with text indicating 'No Setup Required'.

Image: A hand holding the remote control in front of a television, emphasizing the 'No Setup Required' feature. The remote is ready to use after battery insertion.

Bok i tył view of the ZdalaMit remote control, showing dimensions and battery compartment.

Obraz: Bok i tył views of the remote control, illustrating its dimensions (240mm length, 52mm width, 19mm thickness) and the battery compartment for two AAA batteries.

Działanie

The ZdalaMit remote control is designed for intuitive operation, mirroring the functions of original Toshiba Regza TV remotes. Point the remote directly at your TV's infrared receiver for optimal performance.

Funkcje przycisków

Refer to the diagram below for a detailed overview of each button's function:

Full layout of the ZdalaMit remote control buttons with labels for various functions like channel, volume, input, and menu navigation.

Image: A comprehensive diagram illustrating the layout and function of each button on the ZdalaMit remote control. Key functions include: Input Selection, Power, Screen Display, Clear Audio, Program Guide, Netflix, Number Buttons (1-12), Channel Up/Down, Volume Up/Down, Mute, Sub-menu, Data, Time Shift Link, Scene Search, Record List, Program Guide, Navigation (Up/Down/Left/Right), OK/Enter, Back, Exit, Playback Controls (Play, Fast Forward, Rewind, Stop, Pause, Skip), Settings, Subtitles, Audio, and various colored function buttons.

Comfortable and Wide-Range Operation

The remote features soft, durable silicone buttons and an ergonomic design for comfortable handling. Its infrared signal provides an operating distance of approximately 10 meters (33 feet) and a wide control angle of up to 120 degrees, allowing flexible use within your room.

Szczegółowy view of the ZdalaMit remote control buttons, highlighting comfortable operation features like silicone buttons and ergonomic design.

Obraz: Zbliżenie views of the remote control, highlighting the comfortable silicone buttons and the ergonomic design that enhances usability and tactile feedback.

Image showing the wide application range of the ZdalaMit remote control, with a person using it in a living room setting.

Image: A person using the remote control in a living room, demonstrating its wide operating range of approximately 10 meters and broad control angle, allowing for comfortable use from various positions.

Konserwacja

  • Czyszczenie: Przetrzyj pilota miękką, suchą ściereczką. Nie używaj płynnych środków czyszczących ani materiałów ściernych, ponieważ mogą one uszkodzić powierzchnię lub elementy wewnętrzne.
  • Wymiana baterii: Replace batteries when the remote's response becomes sluggish or it stops functioning. Always replace both batteries at the same time with new AAA alkaline batteries. Do not mix old and new batteries, or different types of batteries.
  • Składowanie: Jeśli pilot nie będzie używany przez dłuższy czas, należy wyjąć baterie, aby zapobiec wyciekowi i potencjalnym uszkodzeniom. Przechowywać w chłodnym, suchym miejscu, z dala od bezpośredniego światła słonecznego.

Rozwiązywanie problemów

  • Pilot nie odpowiada:
    • Sprawdź, czy baterie zostały włożone prawidłowo, z zachowaniem właściwej polaryzacji (+/-).
    • Wymień baterie na nowe.
    • Upewnij się, że między pilotem zdalnego sterowania a odbiornikiem podczerwieni telewizora nie ma żadnych przeszkód.
    • Make sure you are within the operating range (approximately 10 meters) and pointing the remote directly at the TV.
  • Some buttons do not work:
    • While this remote is highly compatible, some specific functions or buttons on your original TV remote might not be present or might operate differently on this replacement remote. This is generally due to variations in TV models and original remote designs.
    • Ensure your TV model is listed as compatible.
  • Zakłócanie pracy innych urządzeń:
    • This remote uses infrared technology, which is generally not prone to interference from other infrared devices unless they are directly in the line of sight and operating on the same frequency. If you experience interference, try to minimize other infrared device usage or reposition devices.

Specyfikacje

FunkcjaOpis
MarkaZdala Mit
Numer modeluCT90479
ZgodnośćToshiba Regza TVs (various models), replaces CT-90467, CT-90466, CT-90453, CT-90478, CT-90479, CT-90475, CT-90463, CT-90481, CT-90480
Funkcja specjalnaNie wymaga programowania
KolorAs shown (typically silver/black)
Maksymalna liczba obsługiwanych urządzeń1 (Telewizja)
Interfejs komunikacyjnyPodczerwieni (IR)
Liczba przycisków60
Typ kontroleraSterowanie przyciskami
Maksymalny zasięg10 metrów (ok. 33 stóp)
Typ bateriiAAA Alkaline (x2, not included)
Wymiary produktu (dł. x szer. x wys.)24 cm x 5.3 cm x 2.1 cm (ok. 9.45 x 2.09 x 0.83 cala)

Informacje o gwarancji

Please refer to the retailer or manufacturer's website for specific warranty terms and conditions. Typically, replacement remote controls come with a limited warranty covering manufacturing defects.

Obsługa klienta

For further assistance or inquiries regarding your ZdalaMit Universal Replacement Remote Control, please contact the seller or refer to the product listing page where you made your purchase. Ensure you have your product model number (CT90479) and purchase details ready when contacting support.
