ROEDE Replacement Membrane Switch Panel User Manual

For Sharp R-6G65, R-583, R-6C65 Microwave Ovens

Wstęp

This manual provides comprehensive instructions for the installation, operation, and maintenance of your new ROEDE Replacement Membrane Switch Panel. This panel is specifically designed to restore functionality to Sharp microwave oven models R-6G65, R-583, and R-6C65. Please read this manual carefully before proceeding with installation to ensure proper and safe use.

Informacje dotyczące bezpieczeństwa

  • Always unplug the microwave oven from the power outlet before attempting any installation, repair, or maintenance. Failure to do so can result in electric shock or serious injury.
  • Jeśli masz jakiekolwiek wątpliwości, skonsultuj się z wykwalifikowanym technikiem.
  • Handle the new membrane switch panel carefully to avoid damage to the delicate electronic components.
  • Trzymaj małe części poza zasięgiem dzieci.

Produkt ponadview

The ROEDE Replacement Membrane Switch Panel is a high-quality, durable component designed to replace a faulty or worn-out control panel on compatible Sharp microwave ovens. It features a touch-sensitive interface that replicates the original functionality of your microwave's controls.

ROEDE Replacement Membrane Switch Panel for Sharp Microwave Ovens

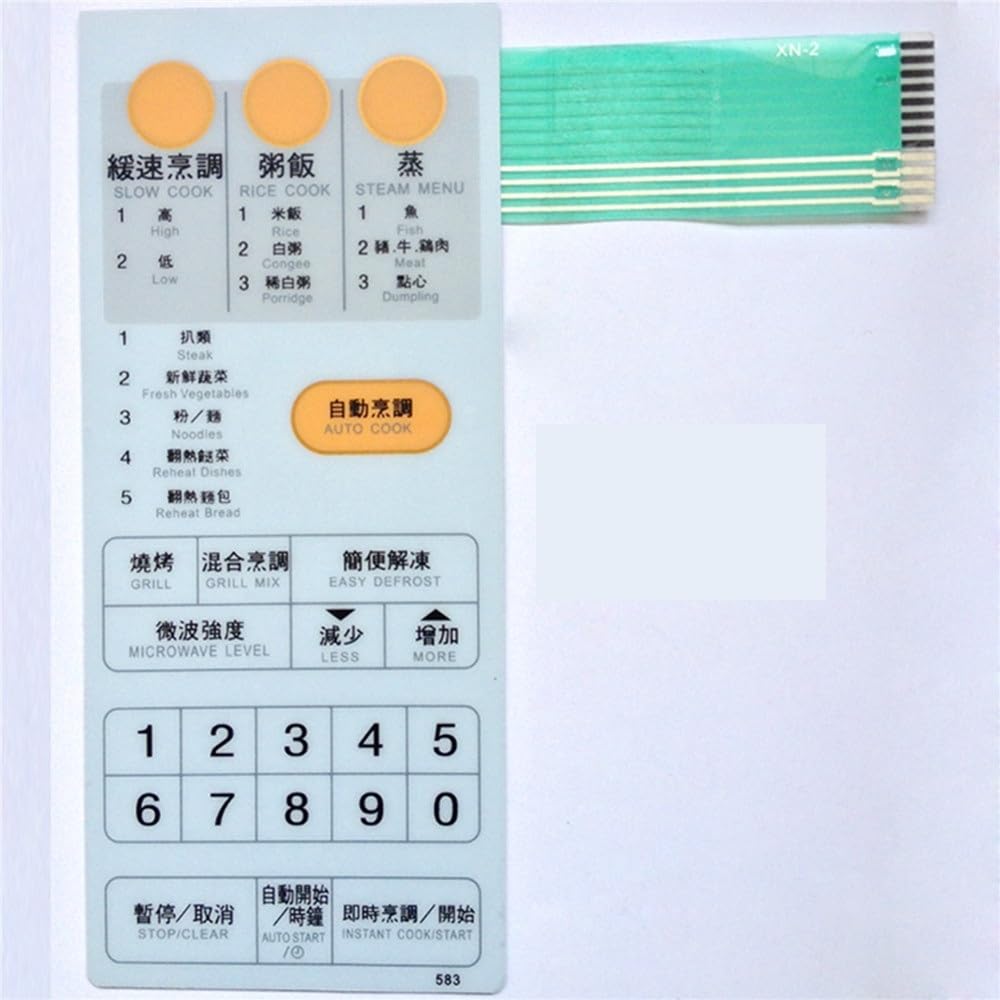

Image showing the ROEDE Replacement Membrane Switch Panel, a touch button interface designed for specific Sharp microwave oven models.

Konfiguracja i instalacja

Follow these steps carefully to replace your microwave oven's membrane switch panel:

  1. Odłącz zasilanie: Odłącz kuchenkę mikrofalową od gniazdka elektrycznego.
  2. Panel kontroli dostępu: Depending on your specific Sharp microwave model (R-6G65, R-583, R-6C65), you may need to remove screws from the back, top, or side panels to access the control board assembly. Refer to your microwave's original service manual if available for precise disassembly instructions.
  3. Usuń stary panel: Carefully detach the old membrane switch panel. This usually involves peeling it away from the control board housing and disconnecting its ribbon cable from the main control board. Note the orientation of the ribbon cable connector.
  4. Czyszczenie powierzchni: Ensure the surface where the new panel will be adhered is clean, dry, and free of any residue from the old panel.
  5. Podłącz nowy panel: Connect the ribbon cable of the new ROEDE Replacement Membrane Switch Panel to the corresponding connector on the microwave's control board. Ensure it is seated firmly and correctly oriented.
  6. Adhere New Panel: Carefully align the new membrane switch panel with the control panel housing and firmly press it into place. Most panels have an adhesive backing. Ensure all buttons align correctly with their respective positions.
  7. Ponowne złożenie kuchenki mikrofalowej: Reassemble the microwave oven by reversing the disassembly steps. Ensure all screws are tightened and panels are securely in place.
  8. Funkcjonalność testu: Plug the microwave oven back into the electrical outlet. Test all buttons on the new membrane switch panel to ensure they respond correctly and the microwave functions as expected.

Instrukcja obsługi

The ROEDE Replacement Membrane Switch Panel is designed to replicate the original functionality of your Sharp microwave oven's control interface. Once installed, operate your microwave as you normally would. Each button on the panel corresponds to a specific function (e.g., time set, power level, start, stop, number keys).

  • Press buttons firmly but gently.
  • Ensure the microwave door is properly closed before attempting to operate.
  • If a button does not respond, refer to the Troubleshooting section.

Konserwacja

To ensure the longevity and responsiveness of your membrane switch panel:

  • Czyszczenie: Wipe the surface of the panel with a soft, damp ściereczką. W razie potrzeby użyj łagodnego mydła, a następnie wytrzyj czystą,amp szmatką, aby usunąć resztki mydła.
  • Unikaj silnych środków chemicznych: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the panel's surface and functionality.
  • Zapobiegaj wyciekom: Try to prevent liquids from spilling onto the control panel, as moisture can seep into the electronics and cause damage.

Rozwiązywanie problemów

Problem Możliwa przyczyna Rozwiązanie
Przyciski nie reagują lub działają nieregularnie. Ribbon cable not fully seated; panel not properly adhered; internal microwave issue.
  • 1. Unplug the microwave and re-check the ribbon cable connection to the control board.
  • 2. Ensure the panel is firmly adhered to the housing.
  • 3. If the issue persists, the problem might be with the microwave's main control board, not the membrane panel.
Panel nie jest prawidłowo zamontowany. Incorrect model purchased; old adhesive residue.
  • 1. Verify that your microwave model (R-6G65, R-583, or R-6C65) matches the compatible models listed for this product.
  • 2. Ensure all old adhesive and debris have been thoroughly removed from the mounting surface.
Mikrofalówka nie włącza się po instalacji. Microwave not plugged in; circuit breaker tripped; internal wiring issue.
  • 1. Ensure the microwave is securely plugged into a working electrical outlet.
  • 2. Check your household circuit breaker.
  • 3. Re-verify all internal connections made during installation.

Jeżeli napotkasz problemy, które nie zostały tutaj wymienione lub jeżeli proponowane rozwiązania nie pomogą w rozwiązaniu problemu, skontaktuj się z obsługą klienta.

Specyfikacje

  • Model produktu: ROEDE321
  • Compatible Microwave Models: Sharp R-6G65, Sharp R-583, Sharp R-6C65
  • Wymiary (przybliżone):
    • Długość: 18.7 cm (7.36 cala)
    • Szerokość: 8.0 cm (3.15 cala)
  • Waga przedmiotu: 1.76 uncji (50 grama)
  • Tworzywo: High-quality membrane material
  • Zawartość opakowania: 1 x ROEDE Replacement Membrane Switch Panel

Gwarancja i wsparcie

ROEDE stands behind the quality of its products. While specific warranty details may vary, we are committed to providing reliable replacement parts. For technical assistance, installation questions, or to inquire about warranty coverage, please contact ROEDE customer service through the retailer where the product was purchased or visit our official webstrona.

Please have your product model number (ROEDE321) and purchase information ready when contacting support.
