Cryfokt Sliding Gate Operator Control Board K329E User Manual

1. Wprowadzenie

This manual provides detailed instructions for the installation, operation, and maintenance of the Cryfokt K329E Sliding Gate Operator Control Board. This universal PCB circuit is designed for automatic sliding gate motors, offering features such as adjustable slow speed settings, customizable motor force, and LED indicators for easy troubleshooting. Please read this manual thoroughly before installation and use to ensure proper function and safety.

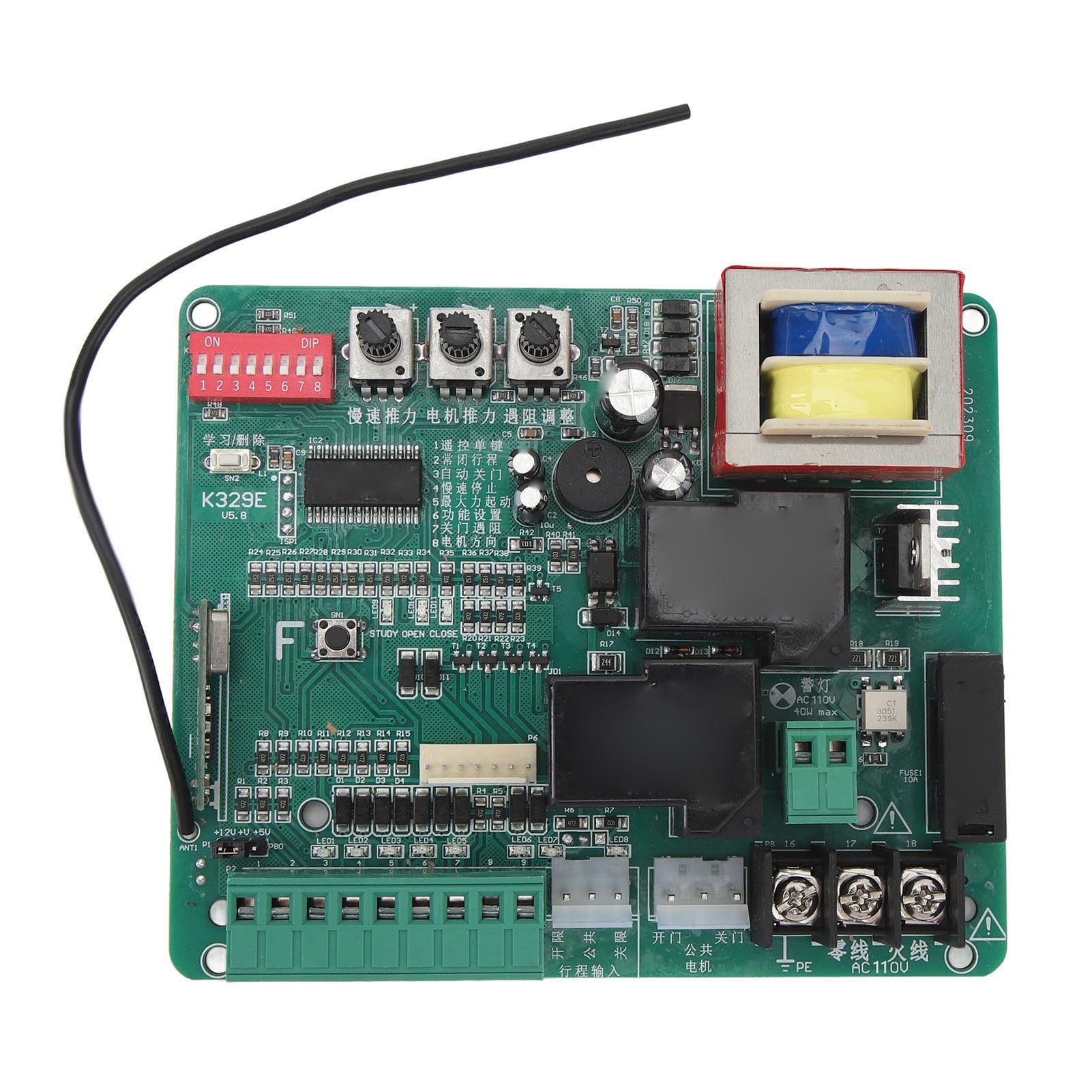

Obraz 1.1: Koniecview of the Cryfokt K329E Sliding Gate Operator Control Board. The green circuit board features various electronic components, including relays, capacitors, a transformer, and terminal blocks for connections.

2. Informacje dotyczące bezpieczeństwa

OSTRZEŻENIE: Nieprawidłowa instalacja lub użytkowanie może prowadzić do poważnych obrażeń lub uszkodzeń. Zawsze należy przestrzegać poniższych zasad bezpieczeństwa:

• Przed przystąpieniem do prac instalacyjnych, konserwacyjnych lub naprawczych należy upewnić się, że całe zasilanie jest odłączone.
• Installation should only be performed by qualified personnel familiar with electrical systems and gate operators.
• Sprawdź, czy napięcie zasilania jest prawidłowetage matches the requirements of the control board (AC 110V or AC 220V, depending on the model).
• Keep hands and loose clothing clear of moving gate parts during operation.
• Do not allow children to play with or operate the gate controls.
• Regularly inspect the gate and its components for signs of wear or damage.
• Ensure all safety devices, such as photocells or safety edges, are correctly installed and functioning.

3. Funkcje produktu

The Cryfokt K329E Control Board offers the following key features:

• Adjustable Slow Speed Function: Ensures smooth and stable operation of the gate with customizable slow speed settings during opening and closing.
• Customizable Motor Force Settings: Allows adjustment of motor power to prevent injuries or damage to the gate or obstacles.
• Funkcja automatycznego zatrzymania: The motor automatically stops when encountering obstacles, enhancing safety.
• Convenient One-Button Control: Enables easy manual opening and closing of the gate with strong anti-interference capabilities.
• Wskaźniki LED: Provides visual feedback for each step of action, facilitating maintenance and troubleshooting.

4. Zawartość opakowania

Pakiet zawiera:

• 1 x Cryfokt K329E Sliding Gate Circuit Board

5. Konfiguracja i instalacja

Proper installation is crucial for the safe and efficient operation of your sliding gate. Refer to the wiring diagram and component overview below for guidance.

Rysunek 5.1: Szczegółowy view of the terminal blocks and DIP switches on the Cryfokt K329E Control Board. Key connections for power, motor, and control signals are visible.

5.1. Połączenia okablowania

Connect the control board to your gate motor and power supply according to the following general guidelines. Always consult the specific wiring diagram provided with your gate motor for precise connections.

1. Power Supply (AC 110V/220V): Connect the main AC power to the designated "AC" terminals on the board. Ensure correct voltage dopasowanie.
2. Połączenia silnika: Connect the gate motor's open, close, and common wires to the "MOTOR" terminals (L1, L2, COM). A capacitor may be required for certain motor types; refer to your motor's manual.
3. Wyłączniki krańcowe: Connect the limit switches (Open, Close, Common) to the "LIMIT" terminals (O.P, C.L, COM). These switches define the gate's fully open and fully closed positions.
4. Wejścia sterujące: Connect external control devices such as push buttons, keypads, or remote receivers to the "KEY" terminals (OP, CL, STP, COM).
5. Urządzenia bezpieczeństwa: Connect safety photocells or other safety sensors to the appropriate input terminals, typically labeled "FSL" or similar, ensuring they are wired to interrupt gate movement if an obstruction is detected.
6. Grunt: Ensure the board and gate motor are properly grounded to prevent electrical hazards.

5.2. Ustawienia przełącznika DIP

The control board features DIP switches (typically labeled 1-8) to configure various operational parameters. Refer to the markings on the board or a separate diagram for specific functions of each switch. Common settings include:

• Automatic closing time delay.
• Soft start/stop function.
• Photocell function (normally open/normally closed).
• Motor direction.

Obraz 5.3: Zbliżenie view of the red DIP switch block and three potentiometers on the Cryfokt K329E Control Board. These are used for fine-tuning operational parameters such as motor force and speed.

5.3. Potentiometer Adjustments

Three potentiometers are typically present on the board for adjusting motor force, slow speed, and other timing parameters. Use a small screwdriver to carefully turn these knobs to achieve desired performance.

• Motor Force: Adjusts the power delivered to the motor. Set it to the minimum required for smooth operation to prevent excessive strain or damage.
• Niska prędkość: Controls the speed of the gate during its soft start and soft stop phases.
• Auto-Close Time: Sets the delay before the gate automatically closes after opening (if enabled via DIP switches).

6. Instrukcja obsługi

Once the control board is correctly installed and configured, operating your sliding gate is straightforward.

• Ręczne otwieranie/zamykanie: Press the designated open or close button on your remote control or wired push button. The gate will move to its fully open or closed position.
• Funkcja zatrzymania: Press the stop button at any point to halt the gate's movement.
• Automatyczne zamykanie: If enabled, the gate will automatically close after a set delay once it reaches the fully open position.
• Wykrywanie przeszkód: If the gate encounters an obstacle during closing, it will automatically stop or reverse to prevent damage or injury. During opening, it will stop.

7. Konserwacja

Regular maintenance ensures the longevity and reliable operation of your gate system.

• Kontrola wizualna: Periodically check the control board for any signs of damage, loose connections, or corrosion.
• Czystość: Keep the control board enclosure clean and free from dust, moisture, and insects.
• Gate Mechanism: Ensure the gate itself is well-maintained, with tracks clear and moving parts lubricated.
• Urządzenia bezpieczeństwa: Test all safety devices (e.g., photocells) regularly to confirm they are functioning correctly.
• Odłączenie zasilania: Always disconnect power before performing any cleaning or inspection of the control board.

8. Rozwiązywanie Problemów

The LED indicators on the control board can assist in diagnosing common issues.

If problems persist after attempting these solutions, contact qualified technical support.

9. Specyfikacje

10. Gwarancja i wsparcie

Information regarding product warranty and customer support is not available in the provided product data. Please refer to the product packaging or contact the retailer/manufacturer directly for details on warranty coverage and technical assistance.
