POWEROWL Rechargeable AAA Batteries Kit with 8-Bay Smart Charger Instruction Manual

1. Wprowadzenie

Thank you for choosing the POWEROWL Rechargeable AAA Batteries Kit. This kit provides a convenient and eco-friendly power solution for your electronic devices. It includes high-capacity rechargeable batteries and a smart charger designed for optimal performance and safety.

• High Capacity 1.2V NiMH Batteries: Pack of 8 AAA rechargeable batteries, each with 1000mAh capacity.
• 8-Bay Smart Charger: US safety certified with chip control, designed to automatically stop charging when batteries are full.
• Advanced Protection: Scientific design and high-quality materials protect batteries during charging, including overcharge, overcurrent, overvoltage, overtemperature, and short-circuit protection.
• Trickle Charge Function: The charger uses trickle charge to extend battery life and ensure up to 99% charge.
• Versatile Charging Options: Features a USB input interface for convenient charging.
• Long Lifespan: Batteries are rechargeable up to 1200 times, promoting environmental sustainability.
• Wide Compatibility: Suitable for a wide range of electronics operating under 1.5V, including high-power devices like digital cameras, electric toothbrushes, and flashlights.

2. Konfiguracja

Follow these steps to set up your POWEROWL Rechargeable AAA Batteries Kit:

1. Rozpakuj zestaw: Carefully remove the 8-bay smart charger and the 8 AAA rechargeable batteries from their packaging.
2. Podłącz ładowarkę: Connect the provided USB cable to the charger's input port (either USB-C or Micro USB, depending on the model) and plug the other end into a compatible USB power source (e.g., a wall adapter, computer USB port, or power bank). The LED indicators on the charger will illuminate.
3. Włóż baterie: Insert the AAA rechargeable batteries into the charging slots. Ensure the positive (+) and negative (-) terminals of the batteries align correctly with the markings in each slot. The charger's flexible pedestals will adjust to securely hold the batteries.

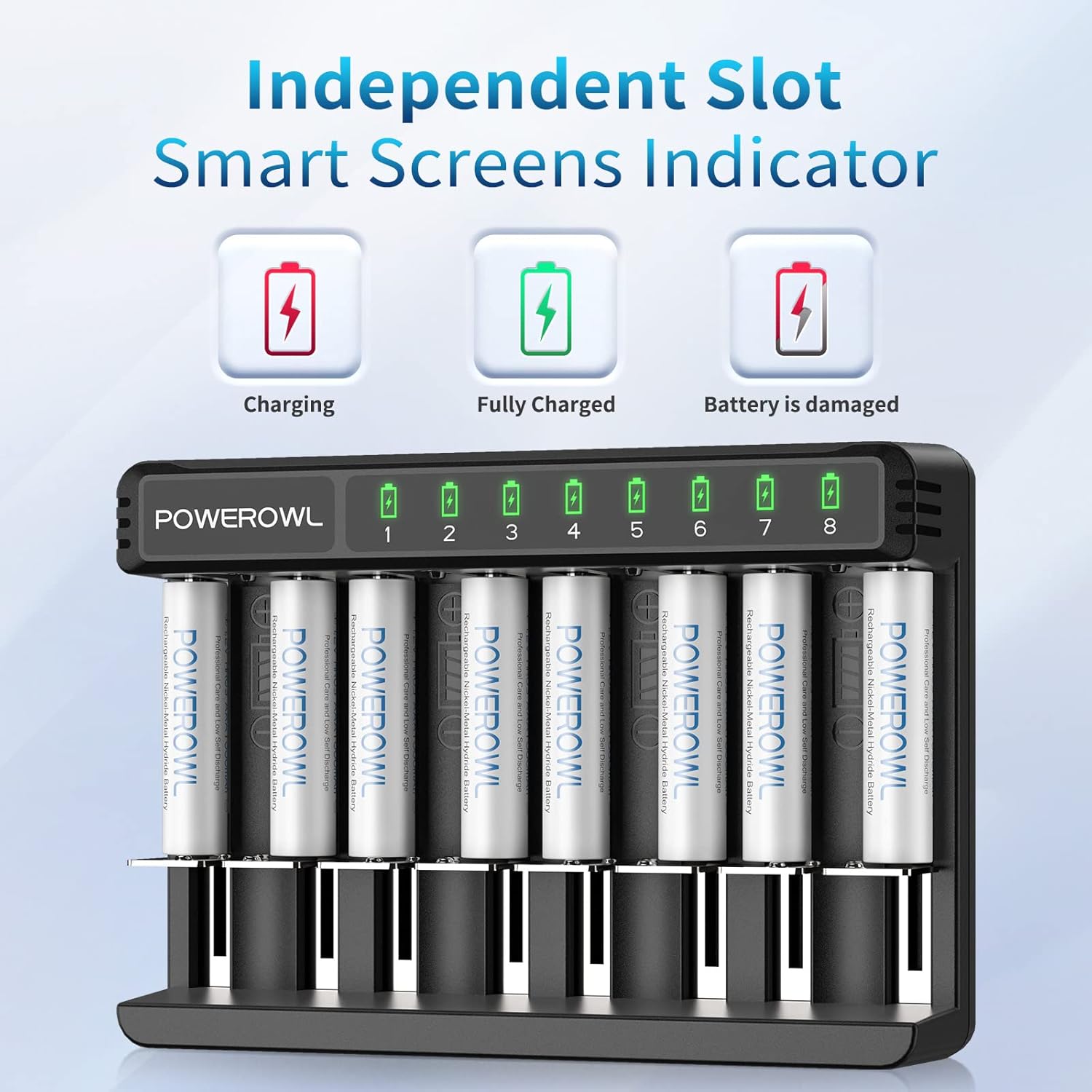

Figure 1: The POWEROWL 8-Bay Smart Charger showing independent slots and LED indicators for each battery.

Figure 2: The charger is designed to maximize battery capacity during the charging process.

3. Instrukcja obsługi

The POWEROWL smart charger features intuitive LED indicators to keep you informed about the charging status of each battery:

• Czerwona dioda LED: Indicates that the battery in the corresponding slot is currently charging.
• Zielona dioda LED: Indicates that the battery in the corresponding slot is fully charged and ready for use.
• Migająca czerwona dioda LED: Indicates a potential issue with the battery (e.g., damaged, non-rechargeable, or incorrectly inserted). Refer to the Troubleshooting section for more details.

The charger automatically detects the battery type and applies the appropriate charging current. Once a battery is fully charged, the smart chip control will automatically stop charging to prevent overcharging and prolong battery life.

Figure 3: The charger incorporates multi-protection technology for safe and efficient charging.

4. Konserwacja

To ensure the longevity and optimal performance of your POWEROWL rechargeable batteries and charger, follow these maintenance guidelines:

• Regularne ładowanie: Recharge batteries when they are low to maintain their capacity. Avoid completely draining them if possible, though NiMH batteries are less prone to memory effect than older battery types.
• Składowanie: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge them to about 50% capacity.
• Czyszczenie: Periodically clean the charging contacts on both the charger and the batteries with a dry cloth to ensure good electrical connection.
• Odpowiedzialność za środowisko: POWEROWL NiMH batteries are environmentally friendly and free from harmful substances. When batteries reach the end of their lifespan, please dispose of them responsibly at designated recycling centers.

5. Rozwiązywanie Problemów

If you encounter any issues with your POWEROWL Rechargeable AAA Batteries Kit, refer to the following common troubleshooting tips:

• Batteries Not Charging (Red LED not lit):
  • Ensure the charger is properly connected to a working USB power source.
  • Check that the batteries are inserted correctly with the positive (+) and negative (-) terminals aligned.
  • Clean the battery and charger contacts to remove any dirt or debris.
• Migająca czerwona dioda LED:
  • This indicates a potentially damaged or non-rechargeable battery. Remove the battery from the slot.
  • Try inserting a different battery to confirm if the issue is with the battery or the slot.
  • The charger has a 'detect bad battery' feature. If a battery is severely damaged, it may not charge.
• Powolne ładowanie:
  • Ensure your USB power source provides sufficient current (e.g., a 5V/2A adapter is recommended for faster charging).
  • Charging multiple batteries simultaneously may result in longer charging times.
• Przegrzanie:
  • The charger has over-temperature protection. If the charger or batteries become excessively hot, disconnect the power source immediately.
  • Podczas pracy ładowarki należy zapewnić odpowiednią wentylację.

Figure 4: The charger is equipped with a feature to detect and indicate bad batteries.

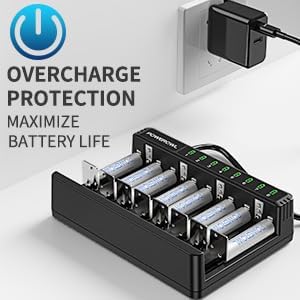

Figure 5: The charger features overcharge protection to maximize battery life.

Figure 6: The charger can attempt to repair damaged batteries, indicated by specific LED patterns.

6. Specyfikacje

7. Gwarancja i wsparcie

POWEROWL products are designed for reliability and performance. For specific warranty information and customer support, please refer to the documentation included with your product or visit the official POWEROWL webZachowaj paragon jako dowód zakupu na wypadek ewentualnych roszczeń gwarancyjnych.
