1. Wprowadzenie
This manual provides detailed instructions for the setup, operation, and maintenance of your BoxWave SlimKeys Bluetooth Keyboard. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.
Zawartość opakowania:
- BoxWave SlimKeys Bluetooth Keyboard
- Kabel ładujący USB
- Instrukcja obsługi
2. Koniec produktuview
The BoxWave SlimKeys Bluetooth Keyboard is a compact and portable input device designed for seamless connectivity with various Bluetooth-enabled devices, including smartphones and tablets. It features a slim profile, chiclet-style keys for comfortable typing, and a long-lasting battery.

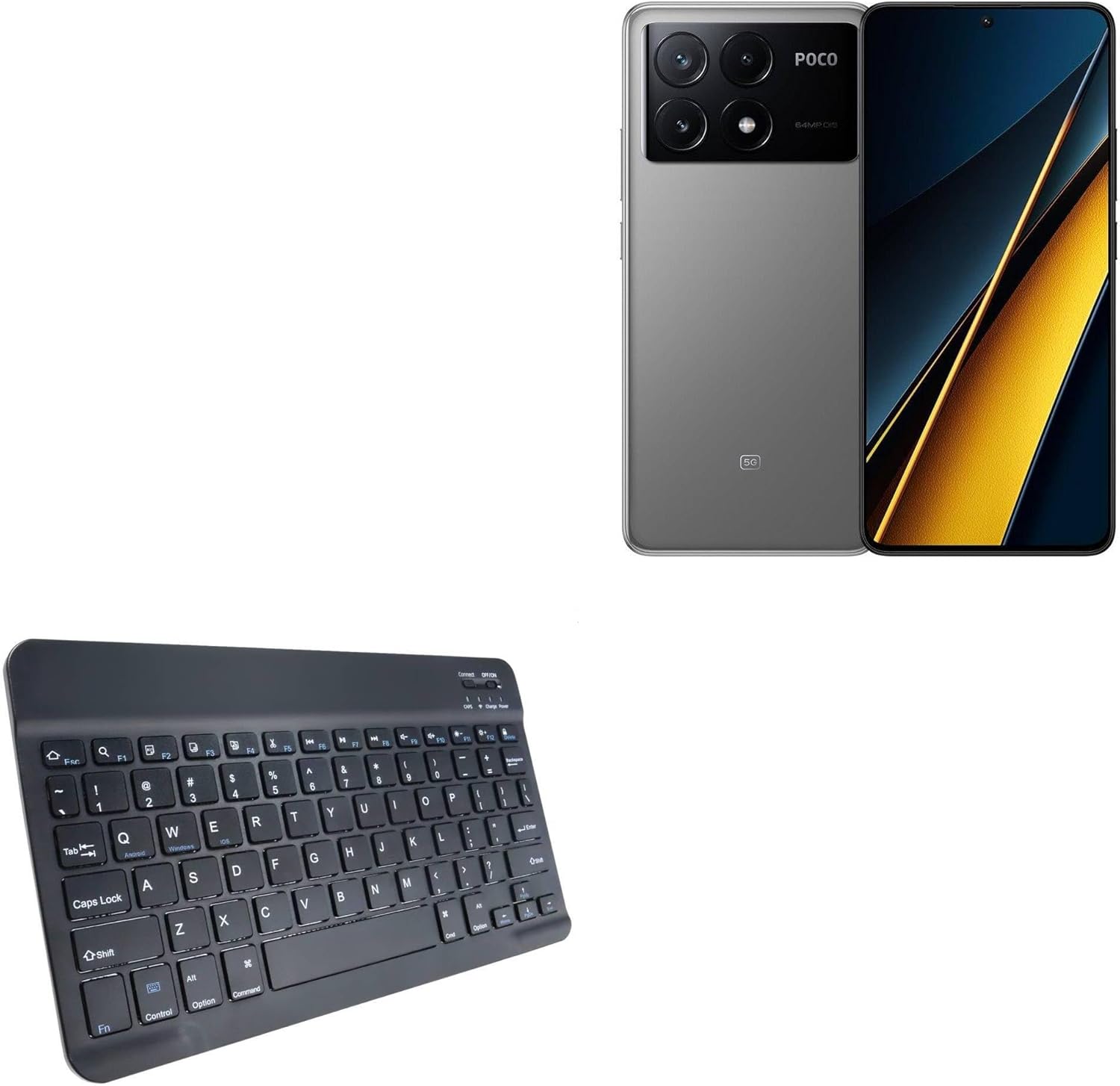

Image 2.1: The BoxWave SlimKeys Bluetooth Keyboard, showcasinze względu na kompaktową konstrukcję.
Obraz 2.2: Kątowy view of the keyboard, highlighting the key layout and slim profile.
Image 2.3: A user typing comfortably on the SlimKeys Bluetooth Keyboard, demonstrating its ergonomic use.
3. Instrukcje konfiguracji
3.1 Ładowanie klawiatury
Before initial use, fully charge the keyboard. Connect the included USB charging cable to the keyboard's charging port and the other end to a USB power source (e.g., computer, wall adapter). The charging indicator light will illuminate during charging and turn off when fully charged.
Image 3.1: The charging port located on the side of the SlimKeys Bluetooth Keyboard.
Image 3.2: The keyboard connected to a charging cable, illustrating the long-lasting battery feature.
3.2 parowanie Bluetooth
Follow these steps to pair your SlimKeys Bluetooth Keyboard with your device:
- Sprawdź, czy klawiatura jest w pełni naładowana.
- Turn on the keyboard using the ON/OFF switch located on the top right. The power indicator light will turn on.
- Naciśnij Łączyć button (usually located near the ON/OFF switch). The Bluetooth indicator light will start blinking, indicating it is in pairing mode.
- On your device (e.g., Xiaomi Poco X6 Pro), go to Bluetooth settings and turn Bluetooth on.
- Szukaj available devices. You should see "BoxWave SlimKeys Keyboard" or a similar name appear in the list.
- Select the keyboard from the list. Your device may prompt you to enter a pairing code displayed on the screen. Type this code on the SlimKeys keyboard and press Wchodzić.
- Once paired, the Bluetooth indicator light on the keyboard will stop blinking and remain solid or turn off, depending on the model. Your device will confirm successful pairing.
If pairing fails, turn off both the keyboard and your device's Bluetooth, then repeat the steps.
4. Instrukcja obsługi
4.1 Podstawowe pisanie
Once paired, the keyboard functions like a standard computer keyboard. Simply open any text input application on your device and begin typing.
4.2 klawiszy funkcyjnych
The SlimKeys Bluetooth Keyboard includes specialized function keys (F1-F12) that provide quick access to various device functions. These keys often require pressing the Fn naciśnij jednocześnie klawisz z wybranym klawiszem funkcyjnym.
Image 4.1: A detailed diagram illustrating the specialized function keys and their corresponding actions.
| Kombinacja klawiszy | Funkcjonować |
|---|---|
| Fn + Esc (Home) | Przejdź do ekranu głównego |
| Fn + F1 (Search) | Open Search function |
| Fn + F2 (Select All) | Select all text/items |
| Fn + F3 (Copy) | Skopiuj wybraną zawartość |
| Fn + F4 (Paste) | Paste copied content |
| Fn + F5 (Cut) | Wytnij wybraną zawartość |
| Fn + F6 (Skip Back) | Skip to previous track/media |
| Fn + F7 (Play/Pause) | Play or Pause media |
| Fn + F8 (Skip Forward) | Skip to next track/media |
| Fn + F9 (Volume Down) | Zmniejsz głośność |
| Fn + F10 (Volume Up) | Zwiększ głośność |
| Fn + F11 (Brightness Down) | Zmniejsz jasność ekranu |
| Fn + F12 (Brightness Up) | Zwiększ jasność ekranu |
| Fn + Delete (Lock) | Lock the device screen |
5. Konserwacja
5.1 Czyszczenie
Aby wyczyścić klawiaturę, delikatnie przetrzyj jej powierzchnię miękką szmatką.amp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the keyboard's electronics and finish.
5.2 Przechowywanie
When not in use, store the keyboard in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the keyboard is turned off to conserve battery life.
Image 5.1: The SlimKeys Bluetooth Keyboard being stored in a bag, demonstrating its portability and ease of storage.
6. Rozwiązywanie Problemów
Klawiatura 6.1 nie łączy się z parą
- Upewnij się, że klawiatura jest naładowana i włączona.
- Upewnij się, że Bluetooth jest włączony w Twoim urządzeniu.
- Naciśnij Łączyć button on the keyboard to enter pairing mode.
- Przysuń klawiaturę bliżej urządzenia.
- Restart both the keyboard and your device, then attempt pairing again.
6.2 Klawisze nie reagują
- Sprawdź poziom naładowania baterii klawiatury i w razie potrzeby naładuj ją.
- Ensure the keyboard is properly paired and connected to your device.
- Try unpairing and re-pairing the keyboard.
- Test the keyboard with another Bluetooth-enabled device to rule out device-specific issues.
6.3 Przerywane połączenie
- Ensure there are no obstructions or sources of interference (e.g., other wireless devices, metal objects) between the keyboard and your device.
- Keep the keyboard within the recommended Bluetooth operating range (typically 10 meters or 33 feet).
- Update your device's operating system and Bluetooth drivers if available.
7. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Łączność | Bluetooth 3.0 |
| Zgodność | Android, Windows, iOS devices (e.g., Xiaomi Poco X6 Pro) |
| Typ klawiatury | Chiclet-style |
| Wymiary (w przybliżeniu) | Width: 9.5 inches (24.2 cm), Depth: 5.75 inches (14.5 cm), Height: 0.2 inches (0.5 cm) |
| Waga | 8.6 uncji (około 244 gramów) |
| Bateria | Rechargeable (1 Product Specific battery included) |
| Żywotność baterii | Up to 30 days (usage), 6 months (standby) |
| Kolor | Czarny jak kruk |
Image 7.1: The SlimKeys Bluetooth Keyboard displaying its ultra-slim and lightweight dimensions.
8. Gwarancja i wsparcie
BoxWave products are designed for quality and reliability. For warranty information, please refer to the product packaging or visit the official BoxWave website. If you encounter any issues or require technical assistance, please contact BoxWave customer support through their official channels.
Aby uzyskać dalszą pomoc, odwiedź stronę: BoxWave Support
