Goplus Heavy Duty Foldable Rollator Walker with Seat and 9.5-inch Pneumatic Wheels - Instruction Manual

Wstęp

This manual provides comprehensive instructions for the Goplus Heavy Duty Foldable Rollator Walker. Designed for seniors and adults requiring mobility assistance, this rollator features 9.5-inch all-terrain pneumatic wheels for enhanced shock absorption and stability across various surfaces. It includes a comfortable seat, supportive backrest, and adjustable handles, offering both mobility and a convenient resting option. The durable aluminum structure and dual hand brakes ensure safety and reliability. Please read this manual thoroughly before assembly and use to ensure proper operation and safety.

Image: An elderly man using the Goplus Heavy Duty Foldable Rollator Walker. The walker features a black frame, a seat, and a storage bag.

Informacje dotyczące bezpieczeństwa

Always prioritize safety when using the rollator walker. Failure to follow these instructions may result in injury.

• Nośność: Nie przekraczać maksymalnego udźwigu wynoszącego 158 kg (350 funtów).
• Hamulce: Always engage the parking brakes when sitting on the rollator's seat or when the rollator is stationary to prevent accidental movement. Regularly check brake functionality.
• Stabilność: Ensure all wheels are on a stable, level surface before sitting or applying weight.
• Regulacja uchwytu: Ensure handles are securely locked at the desired height before use. Improperly secured handles can lead to loss of balance.
• Mechanizm składania: Exercise caution when folding or unfolding the rollator to avoid pinching fingers or hands.
• Ciśnienie w oponach: Maintain correct tire pressure for optimal performance and safety. Refer to the tire sidewall for recommended PSI.
• Przeszkody: Be aware of your surroundings and avoid uneven terrain, loose gravel, or steep inclines that could compromise stability. Use the pedal for stairs as instructed.
• Nadzór: Individuals with cognitive impairments or severe balance issues should use the rollator under supervision.

Zawartość opakowania

Upon opening the package, verify that all components are present and undamaged. If any parts are missing or damaged, contact Goplus customer support immediately.

• Goplus Rollator Walker Frame (pre-assembled components)
• 9.5-inch Pneumatic Wheels (typically pre-attached or easily attachable)
• Seat with Backrest
• Torba do przechowywania
• Uchwyt na laskę/parasol
• Instrukcja obsługi

Konfiguracja i montaż

The Goplus Rollator Walker is designed for straightforward assembly. While some components may be pre-assembled, follow these general steps to prepare your walker for use. It is recommended to have assistance during assembly.

1. Rozłóż ramkę: Carefully remove the rollator from its packaging. Stand the frame upright and gently pull the sides apart until the locking mechanism engages, securing the frame in its open position.
2. Zamontuj koła (jeśli nie zostały zamontowane wcześniej): If the wheels are separate, follow the instructions to securely attach them to the frame. Ensure all wheels are firmly in place and rotate freely.
3. Montaż siedziska i oparcia: Position the seat onto the designated supports and ensure it is securely fastened. Attach the backrest to the handles or frame as per the design.
4. Dostosuj wysokość uchwytu: Locate the height adjustment pins or levers on the handle tubes. Press or pull them to adjust the handles to a comfortable height. The handles should be at wrist level when standing upright with arms relaxed. Ensure both handles are at the same height and securely locked. The adjustable range is typically between 32" and 37".
5. Attach Storage Bag and Accessories: Secure the storage bag to the frame beneath the seat. Attach the cane/umbrella holder to the designated spot.
6. Sprawdź hamulce: Test both hand brakes to ensure they engage and disengage smoothly. Adjust brake tension if necessary (refer to Maintenance section).
7. Napompuj opony: Check the tire pressure on the sidewall of each pneumatic wheel and inflate to the recommended PSI using a suitable pump.

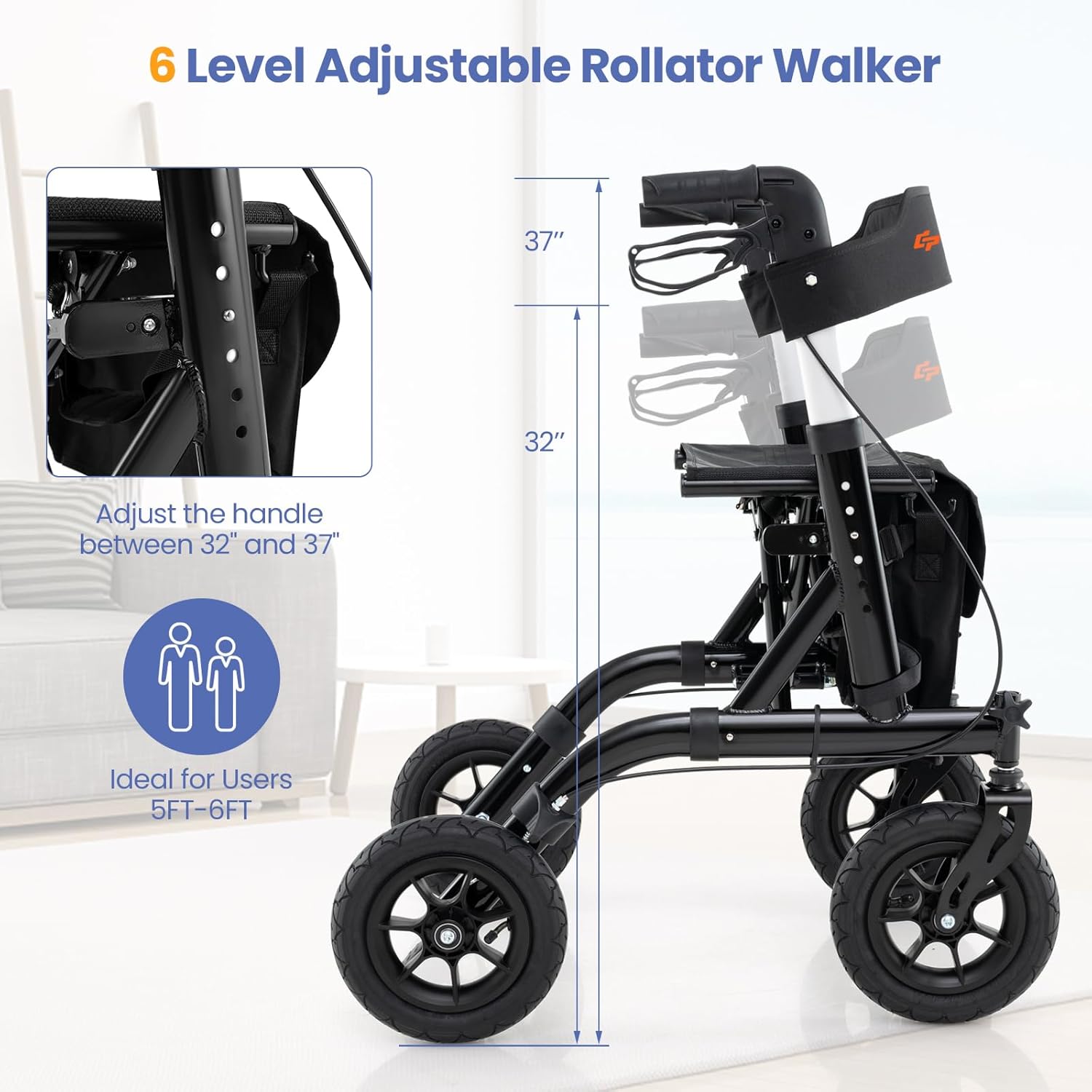

Obraz: Zbliżenie view of the Goplus Rollator Walker's handle adjustment mechanism, showing the height can be set between 32 and 37 inches.

Instrukcja obsługi

Chodzenie z rollatorem

• Stand behind the rollator with your body slightly forward, maintaining a comfortable grip on the handles.
• Push the rollator forward a short distance, then step forward with one foot, followed by the other. Maintain a steady pace.
• Use the hand brakes to control your speed, especially when descending inclines. Squeeze the levers to slow down.

Korzystanie z hamulców

• Operating Brakes: Squeeze both brake levers towards the handles to slow down or stop the rollator.
• Hamulce postojowe: To engage the parking brakes, push the brake levers down until they lock into place. This will prevent the rollator from moving. Always engage parking brakes before sitting. To release, pull the levers back up.

Obraz: Szczegółowy view of the Goplus Rollator Walker's seat, showing its breathable design, X-shaped support, and the hand brake mechanism for speed control and parking.

Korzystanie z siedzenia

• Upewnij się, że chodzik stoi na równej powierzchni.
• Zaciągnij mocno oba hamulce postojowe.
• Turn around and slowly lower yourself onto the seat. Use the handles for support if needed.
• To stand up, lean forward, push off the handles, and slowly rise. Disengage parking brakes before moving.

Składanie i transport

The rollator can be folded for compact storage and easy transport.

1. Remove any items from the storage bag.
2. Lift the seat or pull the designated strap/handle (location may vary) to initiate the folding mechanism.
3. Gently push the sides of the frame together until it is fully folded.
4. Secure the folded rollator with any integrated locking clips or straps to prevent it from unfolding during transport.

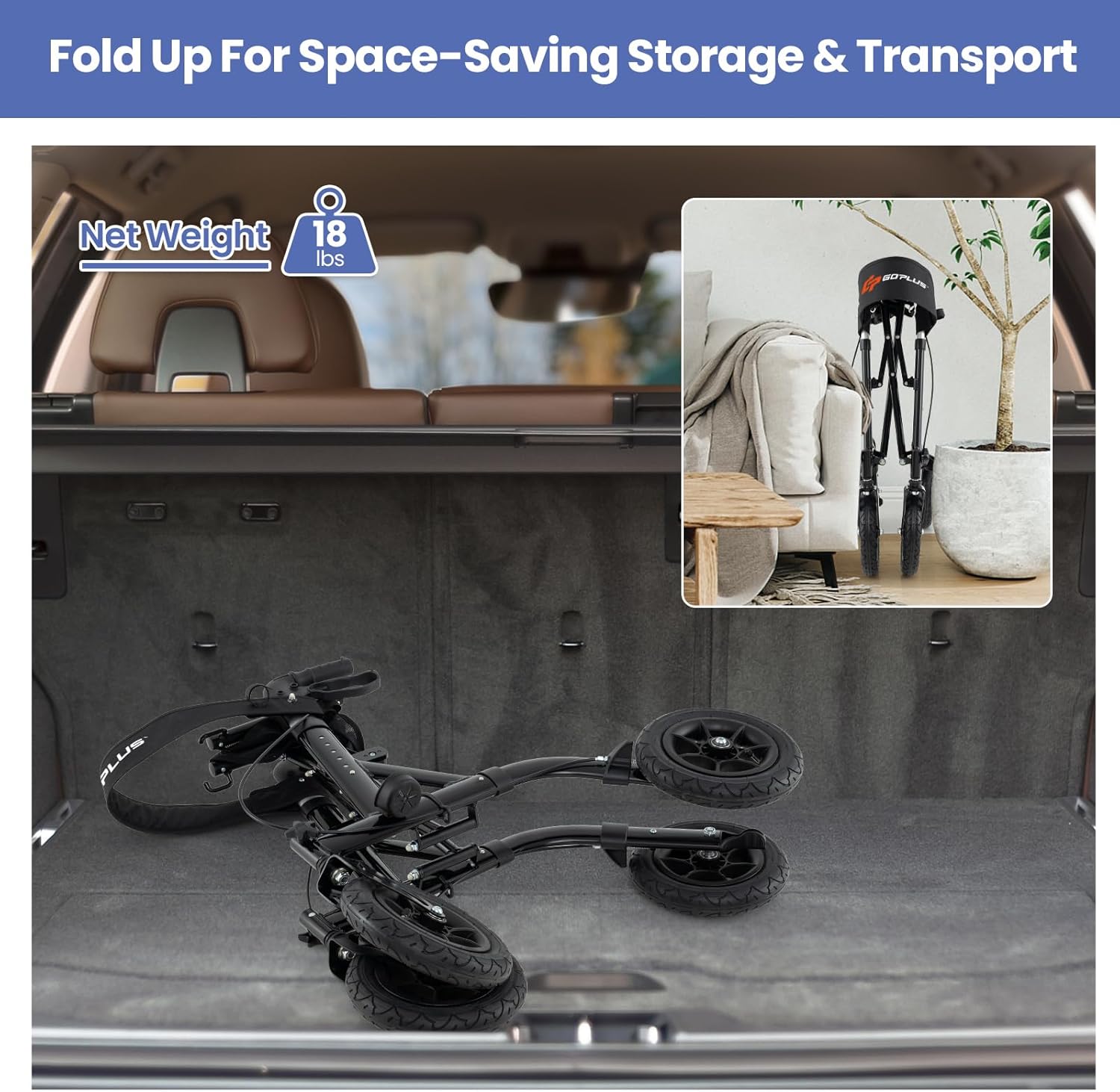

Image: The Goplus Rollator Walker folded compactly and placed in the trunk of a car, demonstrating its portability. Another view shows it folded upright for storage.

Using the Pedal for Stairs

The integrated pedal at the rear of the rollator assists in navigating small steps or curbs. Place your foot on the pedal and gently press down to lift the front wheels, allowing you to roll over the obstacle.

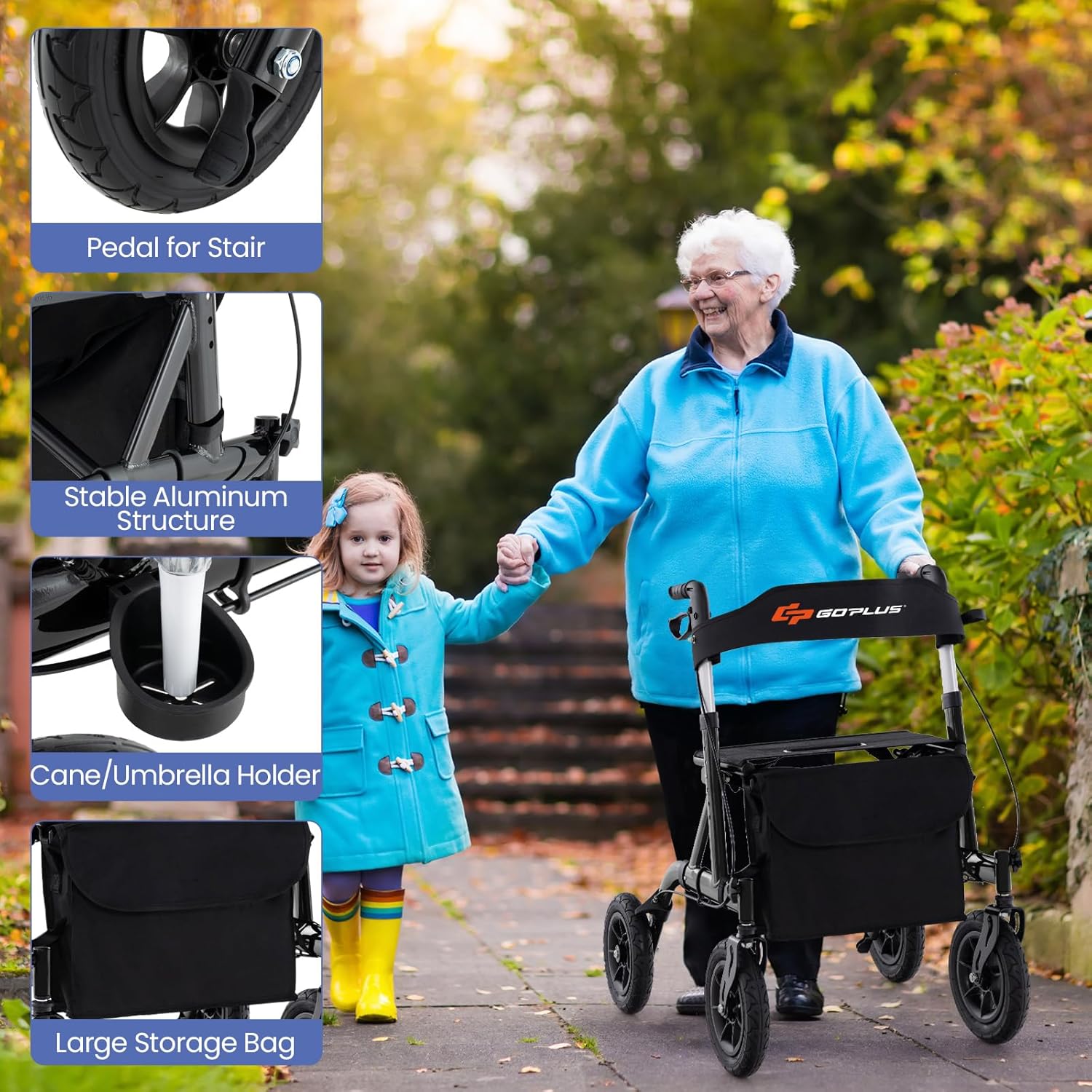

Image: A collage highlighting key features of the Goplus Rollator Walker, including the pedal for stairs, stable aluminum structure, cane/umbrella holder, and a large storage bag.

Konserwacja

Regular maintenance ensures the longevity and safe operation of your Goplus Rollator Walker.

• Czyszczenie: Przetrzyj ramę i siedzisko reklamąamp cloth and mild soap. Avoid abrasive cleaners. Ensure all parts are dry before storage.
• Regulacja hamulców: If brakes feel loose or too tight, they may need adjustment. Locate the brake cable adjusters near the handles or wheels. Turn the barrel adjuster to increase or decrease tension. Ensure both brakes engage evenly and firmly. If unsure, consult a professional.
• Ciśnienie w oponach: Periodically check the pressure of the pneumatic tires. Inflate to the PSI indicated on the tire sidewall. Under-inflated tires can affect stability and maneuverability.
• Kontrola kół: Regularly inspect wheels for wear, damage, or debris. Ensure they rotate freely and are securely attached.
• Elementy złączne: Check all screws, bolts, and fasteners periodically to ensure they are tight. Do not overtighten.
• Składowanie: Przechowuj chodzik w suchym i czystym miejscu, chroniąc go przed ekstremalnymi temperaturami.

Rozwiązywanie problemów

Specyfikacje

• Marka: Goplus
• Model: Heavy Duty Foldable Rollator Walker
• Tworzywo: Aluminium
• Rozmiar koła: 9.5 inches (Pneumatic, All-Terrain)
• Nośność: Do 350 funtów (158 kg)
• Waga przedmiotu: 18 funta (8.16 kg)
• Regulowana wysokość uchwytu: 32" - 37" (81 cm - 94 cm)
• Wymiary po złożeniu: Approximately 30" L x 10" W x 32" H (76 cm x 25 cm x 81 cm)
• Wymiary po rozłożeniu: Refer to product dimension image for detailed measurements.

Image: A diagram illustrating the various dimensions of the Goplus Rollator Walker, including height, width, and length in both unfolded and folded states.

Image: A visual comparison highlighting the benefits of 9.5-inch all-terrain pneumatic wheels over smaller wheels, showing their suitability for asphalt, cement, brick, and wooden surfaces.

Gwarancja i wsparcie

Specific warranty details are not provided within this manual. For information regarding warranty coverage, claims, or technical support, please contact Goplus customer service directly or visit the official Goplus webZachowaj paragon jako dowód zakupu.

Producent: Goplus

Kontakt: Refer to the Goplus official webna stronie internetowej lub opakowaniu produktu, aby uzyskać najaktualniejsze dane kontaktowe.
