Instrukcja obsługi wideoniani VB603

Wstęp

Thank you for choosing the VB603 Video Baby Monitor. This device is designed to provide reliable and clear monitoring of your baby or pet, ensuring their safety and your peace of mind. It features a high-definition display, two-way audio, night vision, temperature monitoring, and a long transmission range. Please read this manual carefully before using the product to ensure proper operation and maintenance.

Co jest w pudełku

Po otwarciu opakowania należy sprawdzić, czy wszystkie elementy są obecne i w dobrym stanie:

• 1 x Baby Monitor (with battery inside)
• 1 x kamera
• 1 x Power Plug (AU plug)
• 1 x Instrukcja obsługi

Image: The package includes one baby monitor, one camera unit, and one power plug.

Przewodnik po konfiguracji

1. Umiejscowienie kamery

Place the camera unit in a secure location that provides a clear view of your baby or pet. Ensure it is out of reach of children and pets. The camera features a 360° horizontal and 60° vertical adjustable angle for optimal positioning.

2. Włączanie

1. Connect the power plug to the camera unit and then to a power outlet.
2. The monitor has a built-in rechargeable battery. Charge the monitor fully before first use by connecting it to the power plug.
3. Slide the ON/OFF switch on both the camera and the monitor to the 'ON' position.

Image: The monitor features a rechargeable battery for up to 24 hours of life in VOX mode. The camera requires continuous power via the charger.

3. Połączenie początkowe

The camera and monitor are pre-paired at the factory. Once both units are powered on, they should automatically connect. If the connection is not established, refer to the Troubleshooting section.

Instrukcja obsługi

1. Monitorowanie w czasie rzeczywistym

Once connected, the monitor will display the live video feed from the camera. The 3.2-inch LCD screen provides a clear view with 380TVL resolution.

Image: The VB603 baby monitor system, featuring the camera and the monitor displaying a live feed.

2. Dźwięk dwukierunkowy

Both the monitor and camera have built-in microphones and speakers. To speak to your baby or pet, press and hold the microphone button on the monitor. Release the button to listen.

3. Wizja nocna

The monitor automatically activates night vision in low-light conditions, providing a clear black and white image of the monitored area.

4. Monitorowanie temperatury

The camera has a built-in temperature sensor. The current room temperature will be displayed on the monitor screen, allowing you to ensure a comfortable environment.

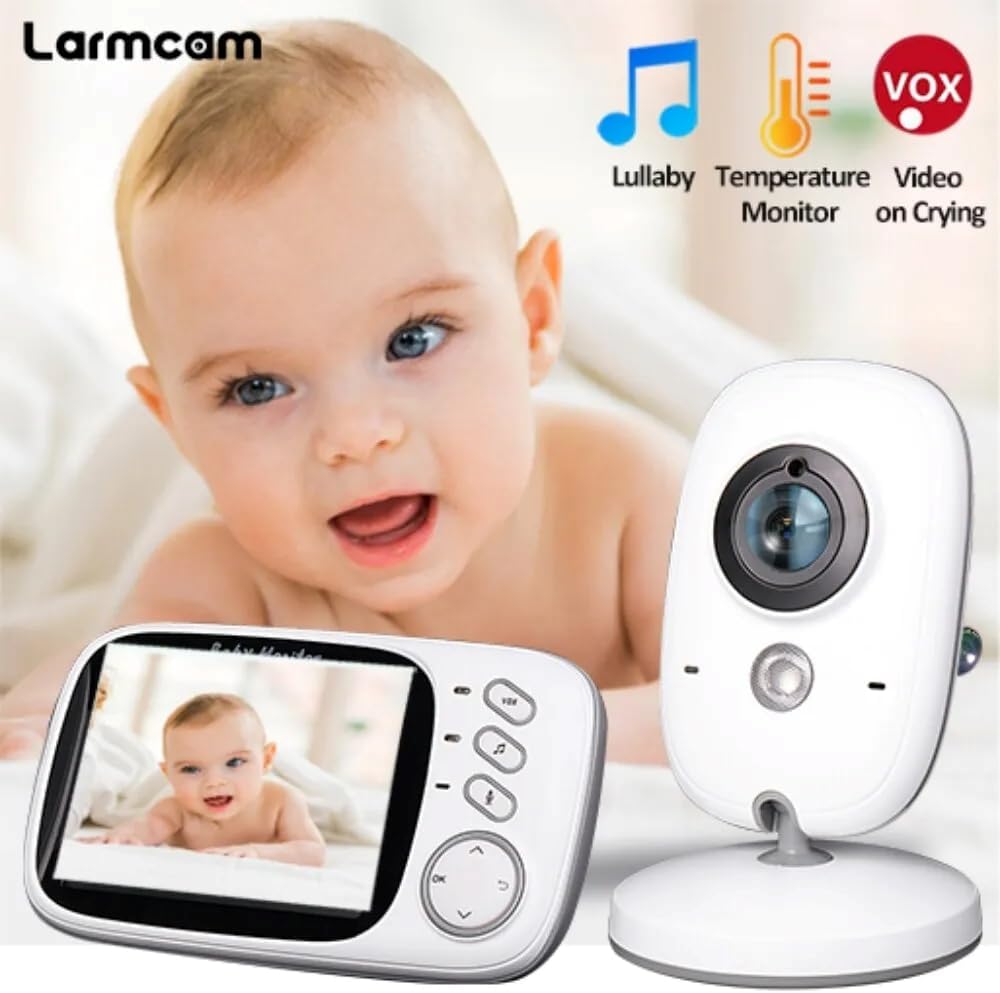

Image: The monitor provides accurate temperature monitoring, displaying the baby's room temperature in real-time.

5. Built-in Lullabies

The monitor includes 8 built-in lullabies. You can play these melodies to soothe your baby. Refer to the monitor's on-screen menu for controls.

Image: The baby monitor features 8 built-in lullabies to help comfort and soothe the baby to sleep.

6. Funkcja VOX

The advanced professional-grade VOX (Voice Operated eXchange) function intelligently detects sound. When activated, the monitor screen will turn on automatically when sound is detected, conserving battery life.

7. Odległość transmisji

The monitor offers a signal coverage of up to 160 feet (50 meters) indoors and 850 feet (250 meters) outdoors, allowing for flexible placement within your home or property.

Image: The system provides a 260m transmission distance, allowing monitoring across various rooms in a home.

Konserwacja

• Czyść monitor i powierzchnię kamery miękką, suchą ściereczką. Nie używaj środków czyszczących o właściwościach ściernych ani rozpuszczalników.
• Trzymaj urządzenia z dala od wody i wilgoci.
• Ensure the camera lens is clean for optimal video quality.
• Store the units in a cool, dry place when not in use for extended periods.

Rozwiązywanie problemów

• Brak obrazu/dźwięku: Ensure both the camera and monitor are powered on and within range. Check power connections.
• Słaby sygnał: Move the monitor closer to the camera. Avoid placing units near large metal objects or other 2.4GHz devices that may cause interference.
• Czas pracy baterii: Ensure the monitor is fully charged. Battery life may vary based on usage (e.g., continuous video vs. VOX mode).
• Brak dźwięku dwukierunkowego: Check that the microphone button is pressed correctly on the monitor when speaking. Ensure volume levels are adequate.

Specyfikacje

Gwarancja i wsparcie

This product comes with a standard manufacturer's warranty. For warranty claims, technical support, or any questions regarding your VB603 Video Baby Monitor, please contact the retailer or manufacturer directly. Please retain your proof of purchase for warranty purposes.
