Philips 180° White Solar Powered Motion Activated Outdoor Integrated LED Flood Light

1. Wprowadzenie

This manual provides essential information for the safe and efficient operation of your Philips 180° White Solar Powered Motion Activated Outdoor Integrated LED Flood Light. Please read this manual thoroughly before installation and use, and retain it for future reference.

The Philips Solar LED Outdoor Flood Light is designed to provide reliable outdoor security lighting. It features motion activation, a wide 180-degree detection angle, and a powerful 900 lumens output. Powered entirely by solar energy, it offers an eco-friendly and cost-effective lighting solution for various outdoor areas such as gardens, patios, driveways, and garages. Its robust design ensures water resistance with an IP44 rating, making it suitable for humid outdoor environments.

Image 1.1: The Philips 180° White Solar Powered Motion Activated Outdoor Integrated LED Flood Light shown with its retail packaging. The light unit and separate solar panel are visible.

2. Informacje dotyczące bezpieczeństwa

Aby zapobiec obrażeniom ciała lub uszkodzeniu produktu, należy zawsze przestrzegać następujących środków ostrożności:

• Aby zapewnić optymalne ładowanie, należy zainstalować produkt w miejscu, w którym będzie on wystawiony na bezpośrednie działanie promieni słonecznych.
• Nie należy podejmować prób demontażu ani modyfikacji produktu. Może to spowodować unieważnienie gwarancji i zagrożenie bezpieczeństwa.
• Keep the solar panel clean to ensure efficient energy absorption.
• Avoid direct eye exposure to the LED light when it is active.
• Ten produkt jest przeznaczony do użytku na zewnątrz i posiada klasę wodoodporności IP44. Należy jednak unikać zanurzania go w wodzie.
• Dispose of the product and its internal battery responsibly according to local regulations at the end of its lifespan.

3. Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie komponenty:

• 1 x Philips Solar Powered Motion Activated LED Flood Light Unit
• 1 x Solar Panel with connecting cable
• Sprzęt montażowy (śruby, kotwy ścienne)
• Instrukcja obsługi (ten dokument)

Image 3.1: The main light unit and the separate solar panel, which are the primary components of the package.

4. Konfiguracja i instalacja

The Philips Solar LED Flood Light is designed for easy, wire-free installation. Follow these steps for optimal performance:

1. Wybierz lokalizację: Select an outdoor location for the light unit and solar panel.
   • For the solar panel, choose a spot that receives at least 6-8 hours of direct sunlight daily, especially during peak daylight hours. Avoid shaded areas.
   • For the light unit, select a wall or surface where the motion sensor can cover the desired detection area (up to 180° angle and 49ft range). Ensure it is mounted at a height that allows for effective motion detection and light distribution.
2. Zamontuj panel słoneczny:
   • Using the provided mounting hardware, secure the solar panel to the chosen surface. Angle the panel slightly towards the sun for maximum exposure.
3. Montaż jednostki świetlnej:
   • Secure the light unit to the desired wall or mounting surface using the appropriate screws and wall anchors.
   • Ensure the motion sensor is facing the area you wish to monitor. The light unit is designed for wall mount installation.
4. Podłącz panel słoneczny:
   • Connect the cable from the solar panel to the input port on the light unit. Ensure the connection is secure and watertight.
5. Opłata początkowa: Allow the solar panel to charge the internal battery for at least 24-48 hours in direct sunlight before first use to ensure full battery capacity.

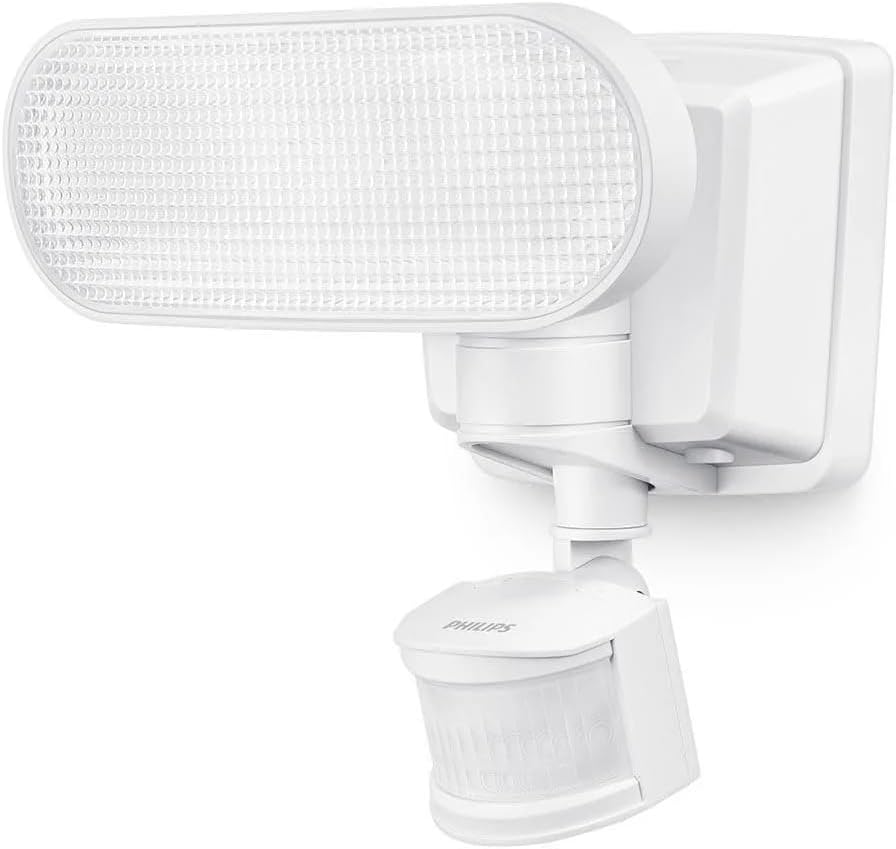

Rysunek 4.1: Szczegółowy view of the Philips LED Flood Light unit, showing the main light head and the adjustable motion sensor below.

5. Instrukcja obsługi

Your Philips Solar LED Flood Light is equipped with advanced sensors for automatic operation.

5.1. Funkcjonalność czujnika ruchu

• The built-in motion sensor has a 180° detection angle and a range of up to 49 feet (approximately 15 meters).
• When motion is detected within this range, the light will automatically turn on at full brightness (900 lumens).
• The light will remain on as long as motion is detected and for a short period after motion ceases.

5.2. Dusk-to-Dawn Sensor Functionality

• The integrated dusk-to-dawn sensor automatically detects ambient light levels.
• The light unit will only activate (via motion sensor) when it is dark enough outside. This conserves battery power during daylight hours.
• Światło wyłączy się automatycznie o świcie.

No manual switches or adjustments are typically required for daily operation once installed correctly.

6. Konserwacja

Regular maintenance ensures the longevity and optimal performance of your solar flood light.

• Czyszczenie panelu słonecznego: Okresowo przecieraj powierzchnię panelu słonecznego miękką,amp Ściereczka do usuwania kurzu, brudu, liści lub śniegu. Czysty panel zapewnia maksymalną absorpcję światła słonecznego i wydajność ładowania.
• Czyszczenie jednostki świetlnej: Clean the light fixture and motion sensor lens with a soft, damp ściereczka. Nie należy używać środków czyszczących o właściwościach ściernych ani rozpuszczalników.
• Bateria: The product contains a Lithium Ion battery (included). This battery is designed for long life (up to 25,000 hours of LED life) and is not user-replaceable. If the light's performance significantly degrades over time, ensure the solar panel is clean and receiving adequate sunlight.
• Warunki środowiskowe: While weather-resistant (IP44), extreme weather conditions (e.g., heavy snow accumulation on the panel, prolonged periods of no sunlight) may affect performance.

7. Rozwiązywanie Problemów

If you encounter issues with your Philips Solar LED Flood Light, refer to the following common problems and solutions:

8. Specyfikacje

9. Gwarancja i wsparcie

Gwarancja: This Philips Solar Powered Motion Activated Outdoor Integrated LED Flood Light comes with a 2-Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims.

Obsługa klienta: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Philips customer support. Refer to the Philips official webna stronie internetowej lub opakowaniu produktu, aby uzyskać najaktualniejsze dane kontaktowe.

Note: No official product videos from the seller were available in the provided data.
