1. Koniec produktuview
The DeerValley DV-1F52636 is an elongated one-piece toilet designed for comfort and efficiency. It features a 17-inch ADA compliant seat height, a powerful dual-flush system, and a sleek, easy-to-clean skirted design. This toilet is constructed from high-temperature fired ceramic for durability and includes a soft-closing seat for quiet operation.
Image 1.1: The DeerValley DV-1F52636 Elongated One-Piece Toilet.
Główne cechy:
- Comfortable Seat Height: 17 inches from the floor, reducing strain for sitting and standing.
- Efficient Siphon Flushing: Fully glazed flush system with a dual-flush mechanism (1.1/1.6 GPF) for powerful and quiet performance.
- Łatwe czyszczenie: Skirted trapway with a glazed surface eliminates hard-to-reach corners and grooves.
- Siedzisko z funkcją cichego zamykania: Zapobiega trzaskaniu i redukuje hałas.
- Szybkozłącze siedzenia: Allows for easy removal for thorough cleaning.
2. Zawarte komponenty
The following components are included in your DeerValley DV-1F52636 toilet package:
- One-Piece Toilet Unit
- Pre-installed Soft-Closing Toilet Seat
- Pre-installed Flush Valve
- High-Quality Wax Ring
- Śruby podłogowe
- Installation Instructions (separate sheet)
- Supply Line Connector (adapter for 1/2" supply lines)
Image 2.1: Product Information and Included Components.
3. Instrukcje instalacji
Refer to the separate detailed installation instructions sheet included in your package for complete step-by-step guidance. Below are general notes and key considerations.
3.1 Kontrole przed instalacją
- Ensure your rough-in measurement is 12 inches.
- Sprawdź, czy wszystkie elementy wymienione w Sekcji 2 są obecne.
- Zakręć dopływ wody do miejsca instalacji.
Image 3.1: Detailed dimensions for 12-inch rough-in.
3.2 Connecting the Supply Line
The toilet is designed for easy connection to your water supply line. It comes with a supply line connector (adapter).
- If your supply line size is 7/8", you can connect it directly to the toilet.
- If your supply line size is 1/2", unscrew the adapter from the toilet and connect your 1/2" supply line accordingly.
3.3 Quick Release Seat Installation/Removal
The toilet seat features a quick-release design for easy cleaning and maintenance.
- Aby usunąć: Locate the buttons near the hinges. Press them inwards and lift the seat upwards.
- Aby zainstalować: Align the seat hinges with the mounting posts and press down until they click into place.
Image 3.2: Quick Release Seat Disassembly in Three Steps.
4. Działanie
The DeerValley DV-1F52636 toilet features a water-saving dual-flush mechanism.
- Naciśnij small button for a half flush (0.8 GPF) for liquid waste.
- Naciśnij large button for a full flush (1.28 GPF) for solid waste.
Video 4.1: Demonstration of the DeerValley DV-1F52636 toilet's features, including the soft-close seat, quick release mechanism, dual-flush system, and skirted design for easy installation and cleaning.

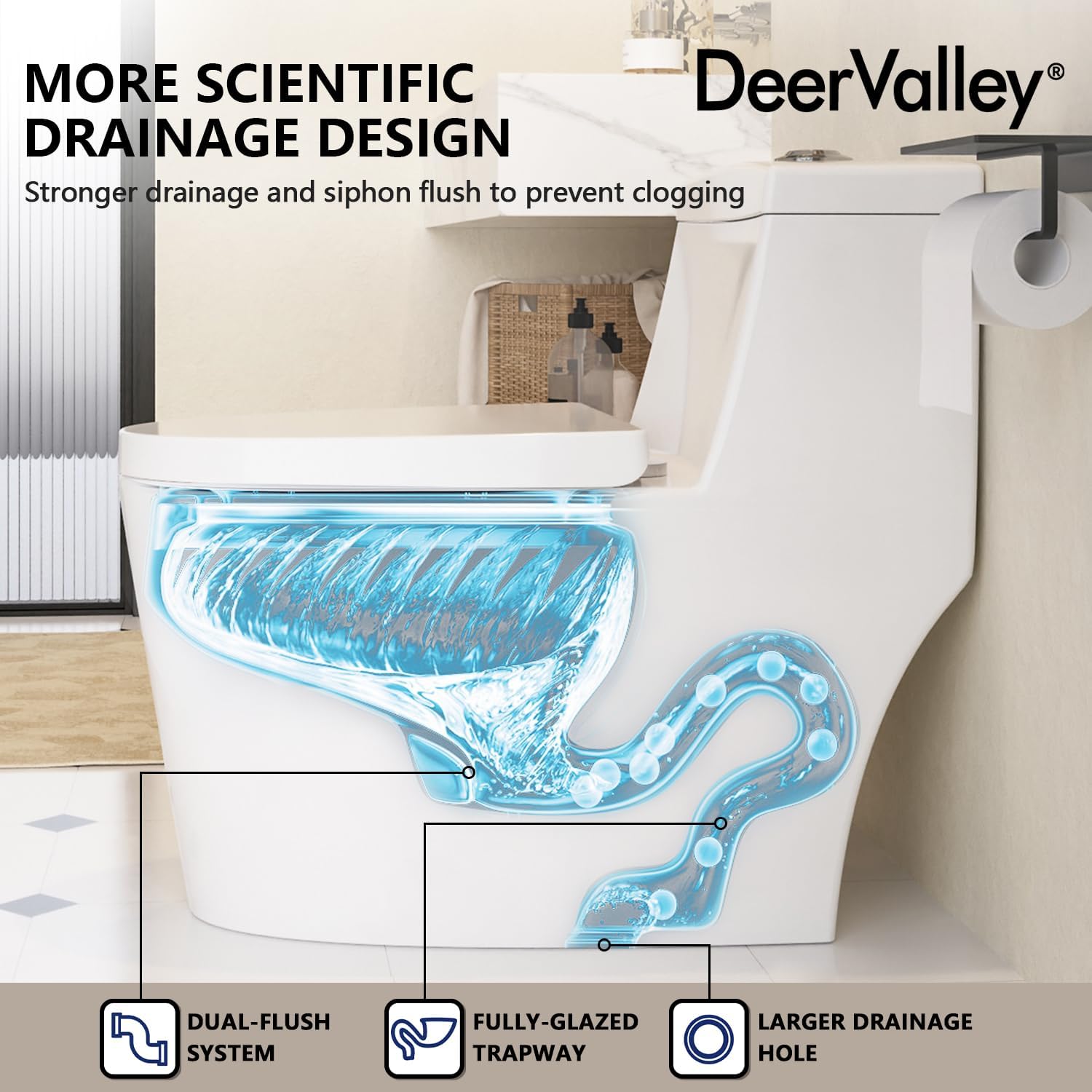

Obraz 4.2: Wewnętrzny view of the dual-flush system and fully-glazed trapway.
5. Konserwacja i czyszczenie
Regularne czyszczenie i konserwacja zapewnią długowieczność i optymalną wydajność Twojej toalety.
- The fully skirted design and glazed surface simplify cleaning, as there are no hard-to-reach corners or grooves.
- Use mild, non-abrasive cleaners and a soft cloth or sponge for cleaning the ceramic surfaces.
- For the toilet seat, use a damp cloth and mild soap. Avoid harsh chemicals that may damage the plastic.
- Utilize the quick-release feature of the seat (refer to Section 3.3) for thorough cleaning underneath the seat and around the bowl rim.
Image 5.1: The one-piece design minimizes dirt accumulation and simplifies cleaning.
Image 5.2: Soft-close seat mechanism for quiet operation.
6. Rozwiązywanie Problemów
If you encounter any issues with your DeerValley DV-1F52636 toilet, please consider the following general troubleshooting steps:
- Wyciek: Check all connections for tightness. Ensure the wax ring is properly sealed during installation.
- Słaby Flush: Verify the water supply valve is fully open. Inspect the flush valve for any obstructions.
- Ciągły przepływ wody: Check the flush valve and flapper for proper seating and alignment.
For persistent problems or issues not covered here, please contact DeerValley customer support for assistance.
7. Specyfikacje
Detailed specifications for the DeerValley DV-1F52636 Elongated One-Piece Toilet:
| Specyfikacja | Szczegół |
|---|---|
| Numer modelu | DV-1F52636 |
| Kolor | White with Chrome Button |
| Wymiary produktu (Gł. x Szer. x Wys.) | 28.62" x 15.47" x 26.46" |
| Tworzywo | Ceramiczny |
| Typ instalacji | Montaż na podłodze |
| Rodzaj materiału siedziska | Plastikowy |
| Rozmiar wstępny | 12 cali |
| Typ spłukiwania | Dual Flush (1.1/1.6 GPF) |
| Wysokość siedziska | 17 inches (ADA Compliant) |
| Waga przedmiotu | 124.7 funta |
| UPC | 751313648549 |
Image 7.1: Comfortable seat height comparison.
8. Gwarancja i wsparcie
DeerValley is committed to providing high-quality products and excellent customer service. If you encounter any issues with your DeerValley DV-1F52636 toilet, please reach out to us directly.
For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official DeerValley webstrona.
