1. Wprowadzenie
This manual provides detailed instructions for the assembly, operation, and maintenance of your VINGLI 24-Inch Laundry Sink with Cabinet and Pull-Out Sprayer Faucet. This versatile unit is designed for use in various spaces including laundry rooms, utility rooms, kitchens, garages, workshops, art studios, basements, and vacation cabins. It features a durable stainless steel sink, a convenient pull-out sprayer faucet, and integrated cabinet storage.

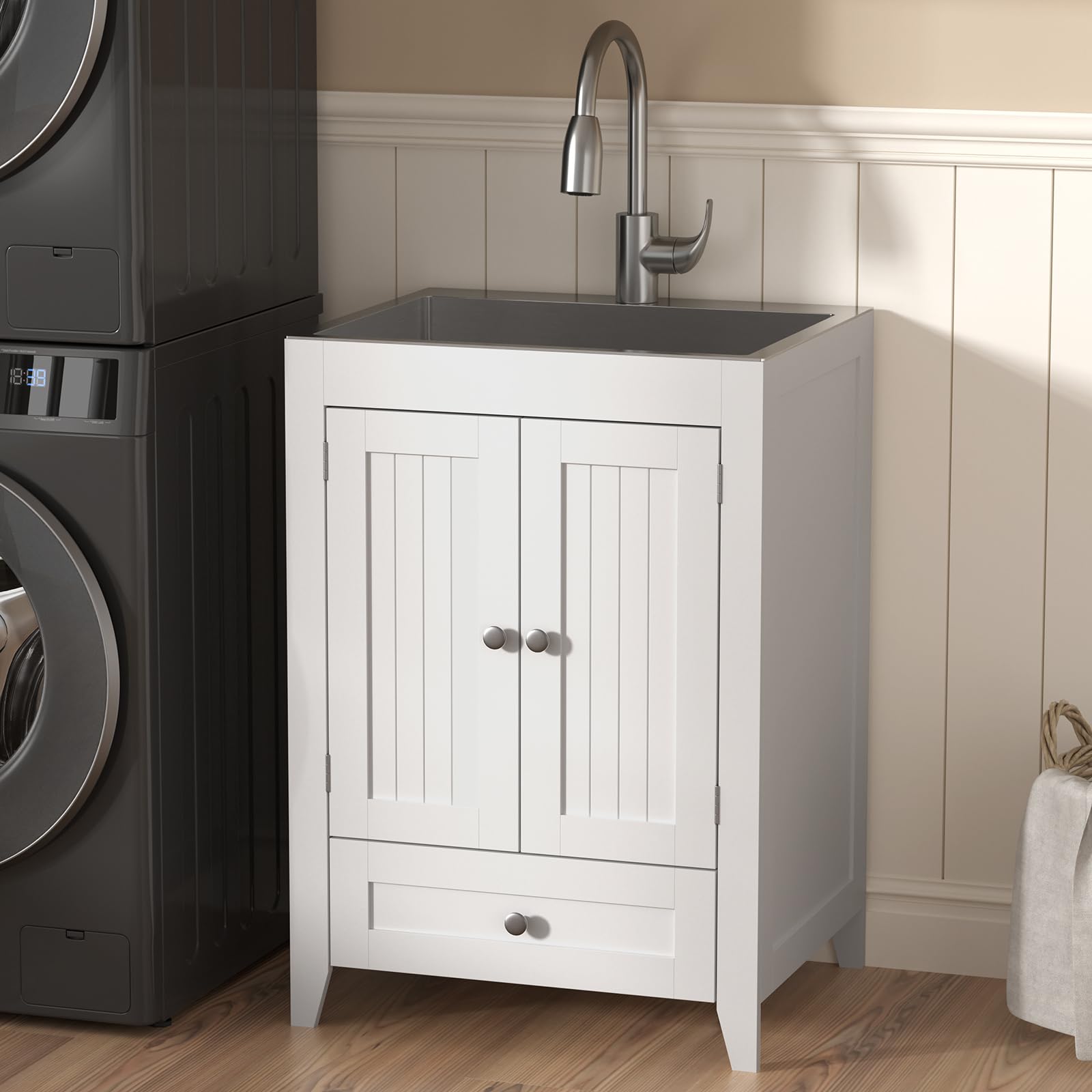

Image 1.1: VINGLI 24-Inch Laundry Sink with Cabinet and Pull-Out Sprayer Faucet.
2. Informacje dotyczące bezpieczeństwa
Please read all safety instructions carefully before assembly and use. Failure to follow these instructions may result in injury or property damage.
- Always ensure the cabinet is securely mounted to the wall to prevent tipping.
- Keep young children and pets away from the sink area to prevent drowning hazards.
- Podczas montażu należy zachować ostrożność przy posługiwaniu się narzędziami.
- Do not overload the cabinet or drawer.
- Upewnij się, że wszystkie przyłącza wodne są odpowiednio uszczelnione, aby zapobiec przeciekom.
3. Zawartość opakowania
Your VINGLI laundry sink cabinet will arrive in two separate boxes. Please note that these boxes may arrive on different days. Verify all components are present before beginning assembly.
Image 3.1: Product packaging indicating two separate boxes for shipment.
Box 1: Cabinet Components
- Wood Cabinet with Drawer (P2 Grade MDP panels)
- Assembly Screws and Hardware
Box 2: Sink and Faucet Components
- Stainless Steel Sink (18-gauge T-304)
- Pull-Out Sprayer Faucet
- Drain Strainer (3 1/2")
- Pipe Supply Lines
4. Instalacja i montaż
Assembly is designed to be straightforward with labeled panels corresponding to the manual. Refer to the included user manual for detailed diagrams. The assembled cabinet measures 24"W x 20"D x 34"H.
4.1 Zgromadzenie gabinetu
Follow the step-by-step diagrams in your provided manual. Ensure all wooden dowels and cam bolts are correctly inserted and tightened. Panels are labeled for easy identification.
Video 4.1: Demonstration of 3-in-1 connector and wooden drawer installation for VINGLI cabinets. This video illustrates key assembly steps for cabinet components.
Image 4.1: Detail of the full extension silent drawer slide for the cabinet drawer.
4.2 Sink and Faucet Installation
Install the stainless steel sink into the cabinet top. Connect the pull-out sprayer faucet, drain strainer, and pipe supply lines according to standard plumbing practices. Ensure all connections are watertight. It is recommended to apply plumber's putty or silicone sealant around the drain and faucet base for a secure, leak-free seal.
Image 4.2: Detail of the 304 food-grade stainless steel sink, featuring 18-gauge thickness.
Image 4.3: Detail of the stainless steel pull-out sprayer faucet, showing hot and cold inlets.
4.3 Zabezpieczanie szafki
For stability and safety, it is crucial to secure the cabinet to the wall using the provided anti-tipping device. Mark the wall, drill pilot holes, and attach the hardware as instructed.
Video 4.2: Demonstration of the VINGLI Anti-Tipping Device installation. This video provides guidance on how to securely attach the cabinet to a wall.
5. Instrukcja obsługi
5.1 Faucet Operation
- The faucet features a single handle for adjusting both water volume and temperature.
- The pull-out sprayer offers both spray and stream modes. Pull down the sprayer head to extend it, and press the button on the sprayer to switch between modes.
5.2 Sink Usage
The 9-inch deep stainless steel sink provides ample space for various tasks, including handwashing laundry, cleaning tools, or bathing small pets. The 3 1/2" basket strainer helps prevent clogs.
Image 5.1: The spacious washing bowl, illustrating its 9-inch depth and 13-gallon water capacity.
5.3 Cabinet and Drawer Storage
Utilize the cabinet and drawer for storing laundry detergents, cleaning supplies, towels, or other utility items. The drawer features full extension silent slides for smooth operation.
6. Konserwacja
- Czyszczenie szafki: Wipe the cabinet surfaces with a dry cloth. Avoid abrasive cleaners that may damage the painted finish.
- Cleaning the Stainless Steel Sink: Clean the stainless steel sink regularly with a mild detergent and a soft cloth. Avoid steel wool or harsh chemicals that can scratch the surface or compromise its corrosion resistance. Rinse thoroughly after cleaning.
- Faucet Care: Wipe the faucet with a soft, damp cloth. For stubborn water spots, use a mild vinegar solution, then rinse and dry.
- Kontrola szczelności: Okresowo sprawdzaj wszystkie połączenia hydrauliczne pod kątem ewentualnych przecieków. W razie potrzeby dokręć połączenia.
7. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Difficulty with assembly instructions | Diagrams may be unclear or lack narrative. | Refer to the assembly videos provided in Section 4.1. Sort all parts into piles and identify labeled panels before starting. |
| Screws stripping or not tightening | Screws may be soft or cabinet material is dense. | Apply gentle, consistent pressure when screwing. If a screw strips, try a slightly larger screw or use wood glue with a toothpick in the hole for better grip. |
| Water leaks from drain or faucet connections | Improperly sealed connections, inadequate gaskets, or faulty drain assembly. | Ensure all connections are hand-tightened, then use a wrench for a quarter turn. Apply plumber's putty or silicone sealant around the drain and faucet base. Inspect gaskets and replace if damaged or insufficient. Consider upgrading drain components if leaks persist. |
| Faucet supply hoses are too short | Standard hose length may not reach floor-level water connections. | Measure the required length and purchase compatible extension hoses from a hardware store. |
| Sink feels unsecured to the cabinet | The sink may not have specific mounting points to the cabinet. | Apply a bead of silicone sealant around the perimeter of the sink where it meets the cabinet top to secure it and prevent water ingress. |
| Cabinet doors are uneven or do not close properly | Hinges may be misaligned or improperly installed. | Adjust the screws on the hinges to align the doors. Ensure hinges are fully seated in their recesses. |
8. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Marka | VINGLI |
| Numer modelu | SC0SSMW |
| Kolor | Biały |
| Tworzywo | Engineered Wood (P2 Grade MDP), Stainless Steel (T-304, 18-gauge) |
| Wymiary produktu (Gł. x Szer. x Wys.) | 19.7" x 23.6" x 33.5" |
| Głębokość zlewu | 9 cali |
| Typ kranu | Pull-Out Sprayer Faucet |
| Drain Strainer Size | 3 1/2 cala |
| Liczba szuflad | 1 |
| Liczba drzwi | 2 |
| Typ instalacji | Freestanding (Floor Mount) |
| Wymagany montaż | Tak |
| Waga przedmiotu | 67.1 funtów |
9. Gwarancja i pomoc techniczna
VINGLI-Direct offers a 30-day easy return policy for this product. For specific warranty details, technical assistance, or to report missing/damaged parts, please contact VINGLI-Direct customer support directly through your purchase platform or the official VINGLI website. Please have your model number (SC0SSMW) and purchase information ready when contacting support.
