CWOVRS Knife Sharpening Kit User Manual

Wstęp

Thank you for choosing the CWOVRS Professional Fixed-Angle Knife Sharpening System. This manual provides detailed instructions for the safe and effective use of your sharpening kit. Please read it thoroughly before assembly and operation to ensure optimal performance and longevity of your tools.

Zawartość opakowania

Your CWOVRS Knife Sharpening Kit includes the following components:

• Główny osprzęt z Quick-Clamp Projekt
• Blok regulacji kąta
• Angle Adjustment Rods (2)
• Uchwyt przedłużający pręt
• Uchwyt drewniany
• 6 Diamond Sharpening Stones (Grits: 120#, 240#, 600#, 1000#, 2000#, 3000#)
• Pasek skórzany
• Pasta polerska

Image: All components included in the CWOVRS Knife Sharpening Kit, laid out for identification.

Informacje dotyczące bezpieczeństwa

Always prioritize safety when using sharpening tools. Keep hands clear of the blade's edge during sharpening. Ensure the system is securely clamped to a stable surface. The handle is positioned above the blade to help prevent hand injuries. The blade clamp features a soft silicone gasket to protect the blade from scratching, and the fixture has an anti-slip silicone gasket to prevent wobbling during use.

Instrukcje konfiguracji

1. Zabezpieczenie osprzętu: Umieść główny element na stabilnym stole lub blacie. Użyj szybkozłączki.amp design to tightly secure it. Turn the black knob to tighten the clamp. The fixture's anti-slip silicone gasket will help prevent movement.


   Image: The quick-release wrench for clamping the fixture and the anti-skid pads for stability.
2. Zainstaluj ostrze: Ostrze klamping device automatically raises for easy blade insertion. Insert your knife blade into the clamp. The soft silicone gasket will protect the blade. Ensure the blade is held firmly and centrally.


   Image: The quick clamping fixture shown in both loose and clamped positions, illustrating how it secures the blade and helps maintain a consistent sharpening angle.

3. Dostosuj kąt ostrzenia: The system allows for flexible angle adjustment. Insert the angle adjustment rod into the main fixture. Adjust the height of the rectangular squares on the vertical rod to achieve your desired sharpening angle. There are two installation methods for the angle adjustment block to accommodate low or high angles.


   Image: Illustration of two methods for installing the angle adjustment block to achieve either a low or high sharpening angle.

4. Zamontuj kamień do ostrzenia: Connect the handle extension rod to the wooden handle. Insert the chosen diamond sharpening stone into the double-sided clamping mechanism on the handle extension rod. Ensure it is securely held.

Instrukcja obsługi

Sharpening involves a progression from coarser grits to finer grits. Always use water with the diamond sharpening stones; no oil is needed.

1. Postęp Grit: Begin with the lowest grit stone (120# or 240#) for repairing damaged blades or establishing a new edge. Progress through the grits (600#, 1000#, 2000#, 3000#) to refine the edge.


   Image: A visual guide detailing the function of each diamond stone grit, from coarse (120#, 240#) for repairing to fine (2000#, 3000#) for polishing.

2. Technika ostrzenia: Apply light, consistent pressure as you slide the stone across the blade's edge, moving from the heel to the tip. Perform an equal number of strokes on each side of the blade to maintain symmetry.

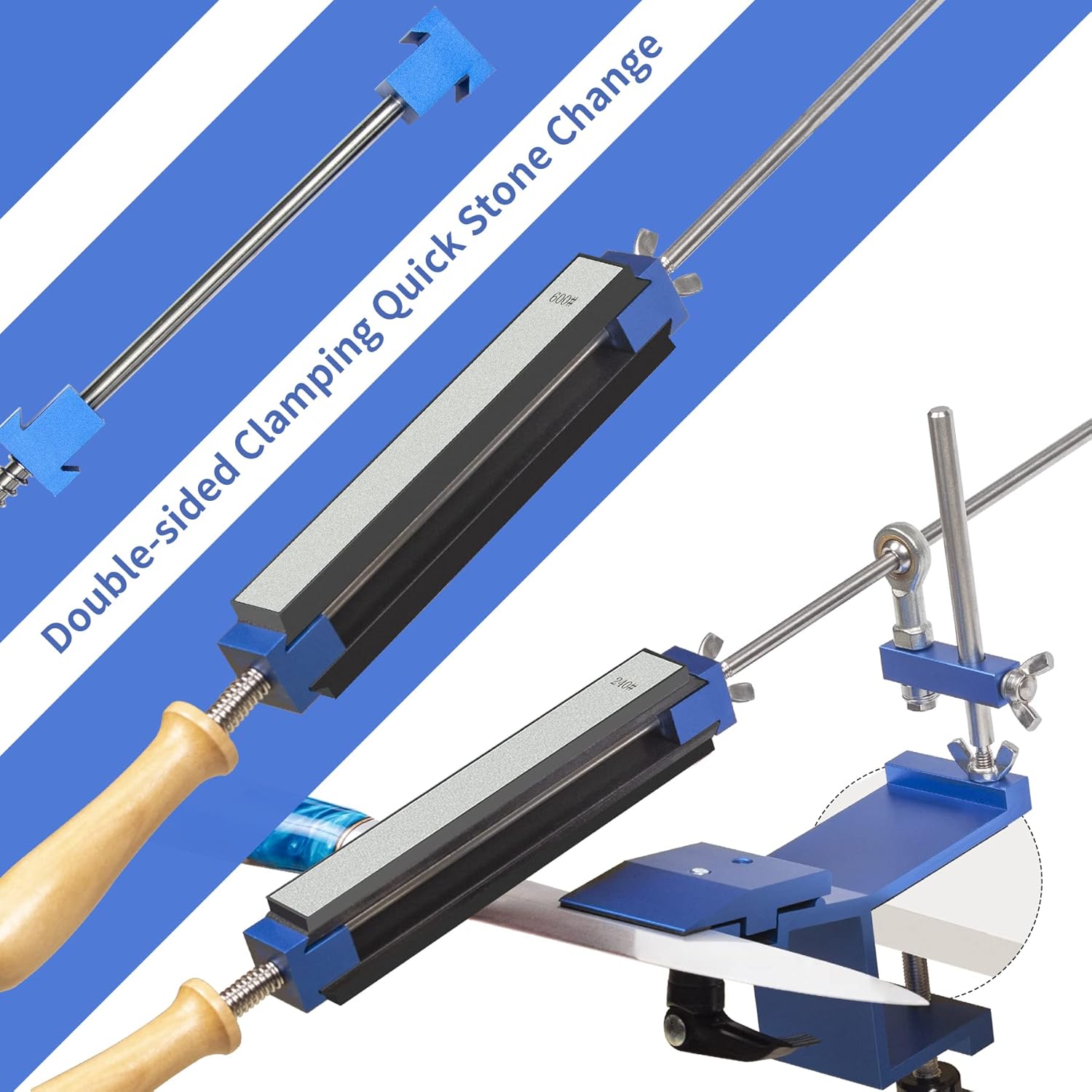

3. Changing Stones: The double-sided clamping mechanism allows for quick stone changes. Simply unclamp the current stone and insert the next grit.


   Image: The double-sided clamping system designed for efficient and quick changing of sharpening stones.
4. Ostrza: After reaching the desired sharpness with the finest grit stone, apply a small amount of polishing paste to the leather strop. Use light, backward strokes (away from the edge) to remove any burr and achieve a mirror-like finish.

Konserwacja

• Czyszczenie kamieni: After each use, rinse the diamond sharpening stones with water to remove metal particles and debris. Allow them to air dry completely before storage.
• System czyszczenia: Przetrzyj metalowe elementy systemu ostrzenia za pomocąamp cloth. Ensure all parts are dry before storing to prevent rust.
• Składowanie: Store the sharpening kit in a dry, safe place, away from children and pets.

Rozwiązywanie problemów

• Nóż się nie ostrzy:
  • Ensure the correct sharpening angle is set for your knife type.
  • Verify that you are progressing through the grits correctly, starting coarse and finishing fine.
  • Apply consistent, light pressure. Excessive pressure can hinder sharpening.
  • Ensure the stones are wet during use.
• Złamane osełki: The whetstones included in the package are fragile. If one or more break during transportation or initial use, please contact CWOVRS customer support for immediate replacements.
• System Wobbles During Use: Ensure the quick-clamp fixture is securely tightened to a stable surface. Check that the anti-slip silicone gasket on the fixture is properly positioned.

Specyfikacje

Gwarancja i wsparcie

For any questions, concerns, or warranty inquiries regarding your CWOVRS Knife Sharpening Kit, please contact CWOVRS customer support. Refer to the product packaging or the retailer's webodwiedź witrynę, aby uzyskać szczegółowe informacje kontaktowe.
