ILIHOME Zealtron Industrial Dual Lens Endoscope t31 User Manual

1. Koniec produktuview

The ILIHOME Zealtron Industrial Dual Lens Endoscope t31 is a versatile inspection tool designed for detailed visual examination in hard-to-reach areas. It features a 4.3-inch IPS screen, a dual-lens 1080P camera with IP68 waterproofing, and a 10-meter semi-rigid cable. This device supports photo capture and video recording, storing media on a TF card.

Figure 1.1: Main unit of the ILIHOME Zealtron Industrial Dual Lens Endoscope t31 with its coiled cable.

Figure 1.2: Key features of the Zealtron Industrial Borescope, highlighting its dual camera, 10-meter cable, and 1080P resolution.

2. Zawartość opakowania

Sprawdź, czy w przesyłce znajdują się wszystkie elementy wymienione poniżej:

• 1 x Endoscope Host (Main Unit)
• 1 x 10-meter (32.8ft) Semi-rigid Cable with Dual Camera Probe
• 1 x kabel ładujący USB typu C
• 1 x Accessory Set (Hook, Magnet, Side Mirror)
• 1 x Multi-language Instruction Manual
• 1 x Black Organizing Bag

Figure 2.1: All components included in the endoscope package.

3. Przewodnik konfiguracji

3.1 Instalacja i ładowanie akumulatora

The endoscope comes with a replaceable rechargeable lithium battery. Ensure the battery is properly installed and charged before first use.

1. Open the battery compartment cover on the main unit.
2. Insert the provided rechargeable lithium battery, ensuring correct polarity.
3. Dokładnie zamknij pokrywę komory baterii.
4. Connect the Type-C USB cable to the charging port on the endoscope and to a standard USB power adapter (not included) or a computer USB port.
5. The charging indicator light will show the charging status. A full charge typically takes 3-4 hours and provides 3-4 hours of continuous operation.

Figure 3.1: Battery compartment and two methods for charging the endoscope battery.

3.2 Połączenie kablowe

The endoscope features a detachable semi-rigid cable for easy replacement and storage.

1. Locate the USB port on the main endoscope unit.
2. Align the USB connector of the semi-rigid cable with the port.
3. Firmly push the cable connector into the port until it clicks into place, ensuring a stable and reliable connection for image transfer.

Figure 3.2: Connecting the detachable semi-rigid cable to the main unit.

3.3 Wkładanie karty TF

To save photos and videos, a TF (MicroSD) card must be inserted into the device. The endoscope supports internal storage, but a TF card is recommended for extended media storage.

1. Locate the TF card slot on the side of the main unit (often near the charging port).
2. Gently insert a TF card (up to 32GB, not included) into the slot until it clicks.
3. Aby wyjąć kartę, delikatnie ją dociśnij, aż wyskoczy.

Figure 3.3: Location of the TF card slot, reset button, and charging port.

4. Instrukcja obsługi

4.1 Włączanie/wyłączanie zasilania

• Aby włączyć: Naciśnij i przytrzymaj przycisk zasilania (⏻) przez kilka sekund, aż ekran się zaświeci.
• Aby wyłączyć: Naciśnij i przytrzymaj przycisk zasilania (⏻) ponownie, aż ekran się wyłączy.

4.2 Screen Navigation and Controls

The endoscope features a 4.3-inch IPS screen for clear viewintuicyjne i intuicyjne sterowanie.

Figure 4.1: The 4.3-inch IPS screen provides rich colors and sharp images.

• Przycisk OK: Confirm selections or take a photo/start recording.
• Strzałki w górę/w dół: Navigate menus, adjust LED brightness, or zoom.
• Przycisk trybu: Switch between photo, video, and playback modes.
• Przycisk jasności diody LED: Adjust the intensity of the LED lights on the camera probe.

4.3 Using the Dual Lens Camera

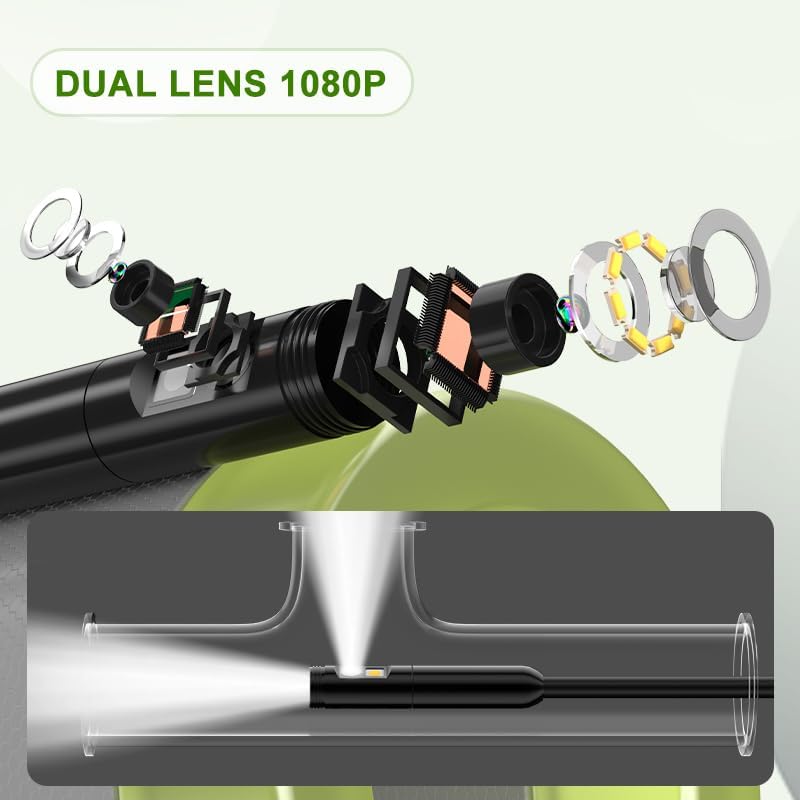

The endoscope is equipped with a dual-lens camera, allowing you to switch between a front view i bok view for comprehensive inspection.

Figure 4.2: Dual lens 1080P camera providing both front and side perspectives.

• To switch between front and side cameras, press the dedicated camera switch button (often labeled with a camera icon or 'M' for mode, refer to your device's specific button layout).
• The front camera typically has a focus range of 4cm-10cm, while the side camera has a focus range of 2cm-6cm.

Figure 4.3: Front and side camera focus distances.

4.4 Robienie zdjęć i nagrywanie wideo

The endoscope supports 1080P video recording and photo capture directly to an inserted TF card.

• In Photo mode: Press the OK button to take a picture.
• In Video mode: Press the OK button to start recording. Press again to stop recording.

4.5 Odtwarzanie i przesyłanie multimediów

Możesz ponownieview captured media directly on the endoscope screen or transfer it to a computer.

• Na urządzeniu: Switch to Playback mode using the Mode button. Use the Up/Down arrows to browse photos and videos.
• Do komputera: Connect the endoscope to your computer using the provided Type-C USB cable. The device will appear as a removable storage device, allowing you to copy files.

Figure 4.4: Connecting the endoscope to a PC for media transfer.

5. Konserwacja

5.1 Cleaning the Lens and Probe

The camera probe is IP68 waterproof, allowing for use in wet environments. However, proper cleaning is essential for clear images and longevity.

Figure 5.1: The IP68 waterproof lens is designed for challenging environments.

• After each use, especially in dirty or wet conditions, wipe the camera lens and probe with a soft, damp płótno.
• For stubborn dirt, use a small amount of mild soap or lens cleaner on the cloth. Avoid abrasive materials or harsh chemicals.
• Ensure the lens is dry before storing the device.

5.2 Pielęgnacja baterii

• Przed długotrwałym przechowywaniem naładuj całkowicie akumulator.
• Jeśli akumulator będzie przechowywany przez dłuższy czas, należy go ładować co 3–6 miesięcy, aby zachować jego sprawność.
• Unikaj wystawiania baterii na działanie ekstremalnych temperatur.

5.3 Cable Care and Storage

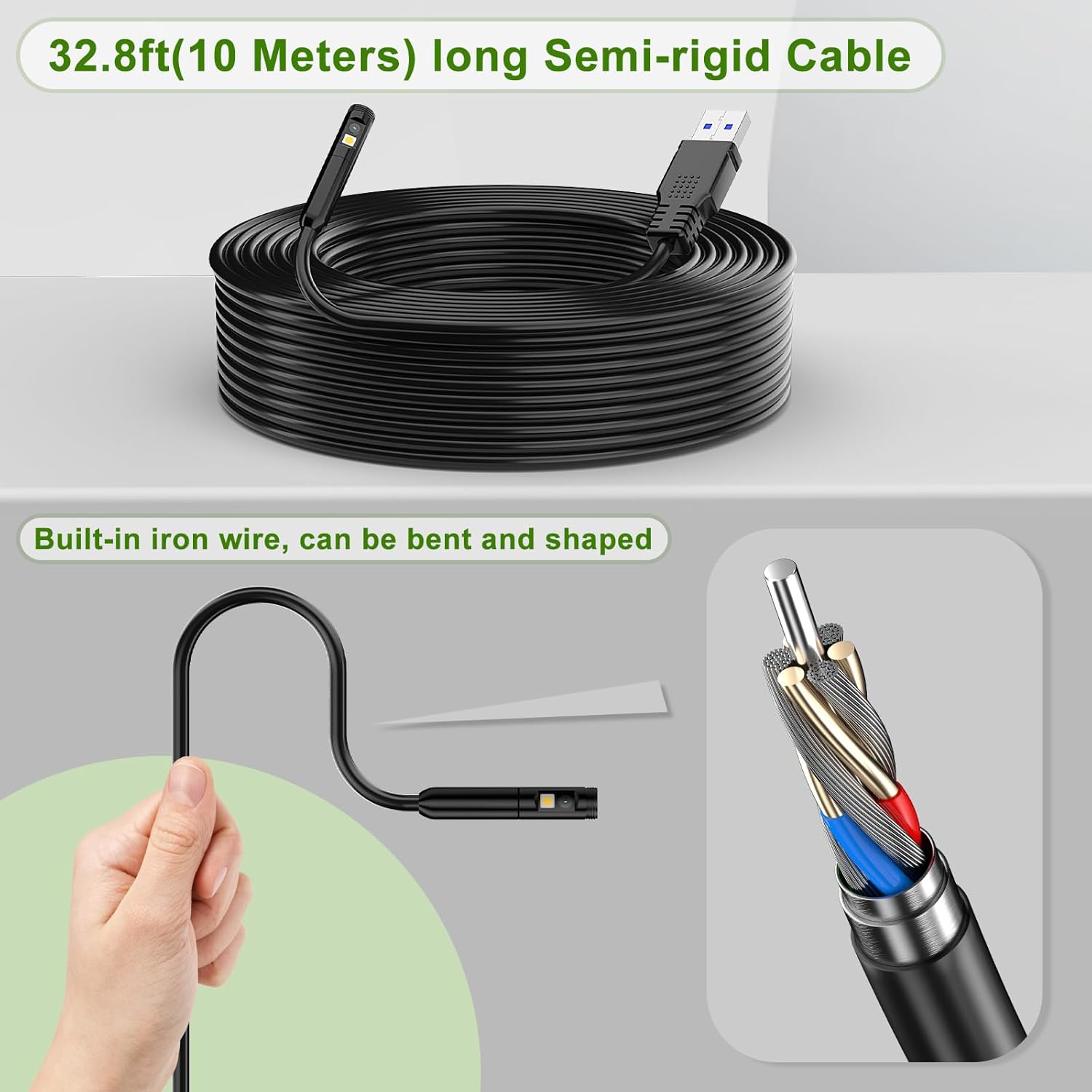

The 10-meter semi-rigid cable contains a built-in iron wire, allowing it to be bent and shaped for various inspection needs.

Figure 5.2: The semi-rigid cable can be bent and shaped as needed.

• Avoid sharp bends or kinks in the cable that could damage internal wiring.
• When not in use, coil the cable neatly and store it in the provided organizing bag.
• Ensure the cable is clean and dry before storage.

6. Rozwiązywanie Problemów

If you encounter issues with your endoscope, refer to the following common problems and solutions:

6.1 Resetowanie urządzenia

If the device becomes unresponsive or exhibits unusual behavior, a reset may resolve the issue.

• Locate the reset button (a small pinhole) on the main unit (refer to Figure 3.3).
• Use a thin, pointed object (like a paperclip) to gently press and hold the reset button for a few seconds.
• The device should power off and restart.

7. Specyfikacje

Key technical specifications for the ILIHOME Zealtron Industrial Dual Lens Endoscope t31:

8. Gwarancja i wsparcie

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact the retailer.

For technical support, troubleshooting assistance, or inquiries regarding replacement parts, please contact ILIHOME customer service through the contact information provided on the product packaging or the official ILIHOME webstrona.
