Nania START I FIX i-Size Car Seat Booster Instruction Manual

1. Wprowadzenie

Thank you for choosing the Nania START I FIX i-Size car seat booster. This manual provides essential information for the correct installation, use, and maintenance of your car seat. Please read these instructions carefully before use and keep them in a safe place for future reference. This car seat is designed for children with a height between 106 cm and 140 cm (approximately 5 to 10 years old) and is approved according to the R129 i-Size standard.

2. Informacje dotyczące bezpieczeństwa

• Always ensure the car seat is correctly installed and secured in the vehicle before placing a child in it.
• The child must always be secured with the vehicle's 3-point seat belt.
• This car seat is designed for forward-facing use only.
• Nigdy nie zostawiaj dziecka bez opieki w foteliku samochodowym.
• Nie używaj fotelika samochodowego, jeśli brał udział w wypadku, nawet jeśli nie ma widocznych uszkodzeń. Uszkodzenia wewnętrzne mogą zagrozić jego bezpieczeństwu.
• Regularly check all parts for wear or damage. Replace immediately if any damage is found.
• Ensure the vehicle's seat belt is not twisted and is correctly routed through all designated guides.

3. Koniec produktuview i funkcje

The Nania START I FIX car seat booster offers enhanced safety and comfort for your child. Key features include:

• i-Size R129 Approval: Complies with the latest European safety standards.
• Isofix Fixations: Zapewnia bezpieczne i stabilne połączenie z punktami mocowania Isofix w pojeździe.
• Regulowany zagłówek: The headrest can be adjusted in height to accommodate your child's growth, featuring memory foam for added comfort.
• Reclinable Base: Allows for a single recline position for increased comfort during travel.
• Ochrona boczna: Integrated side impact protection for enhanced safety.
• Wygodne siedzenia: Designed with comfortable seat and cushion padding.
• Zdejmowany i nadający się do prania pokrowiec: The fabric cover can be removed and washed by hand at 30°C for easy maintenance.

Rycina 3.1: Przód view of the Nania START I FIX car seat booster.

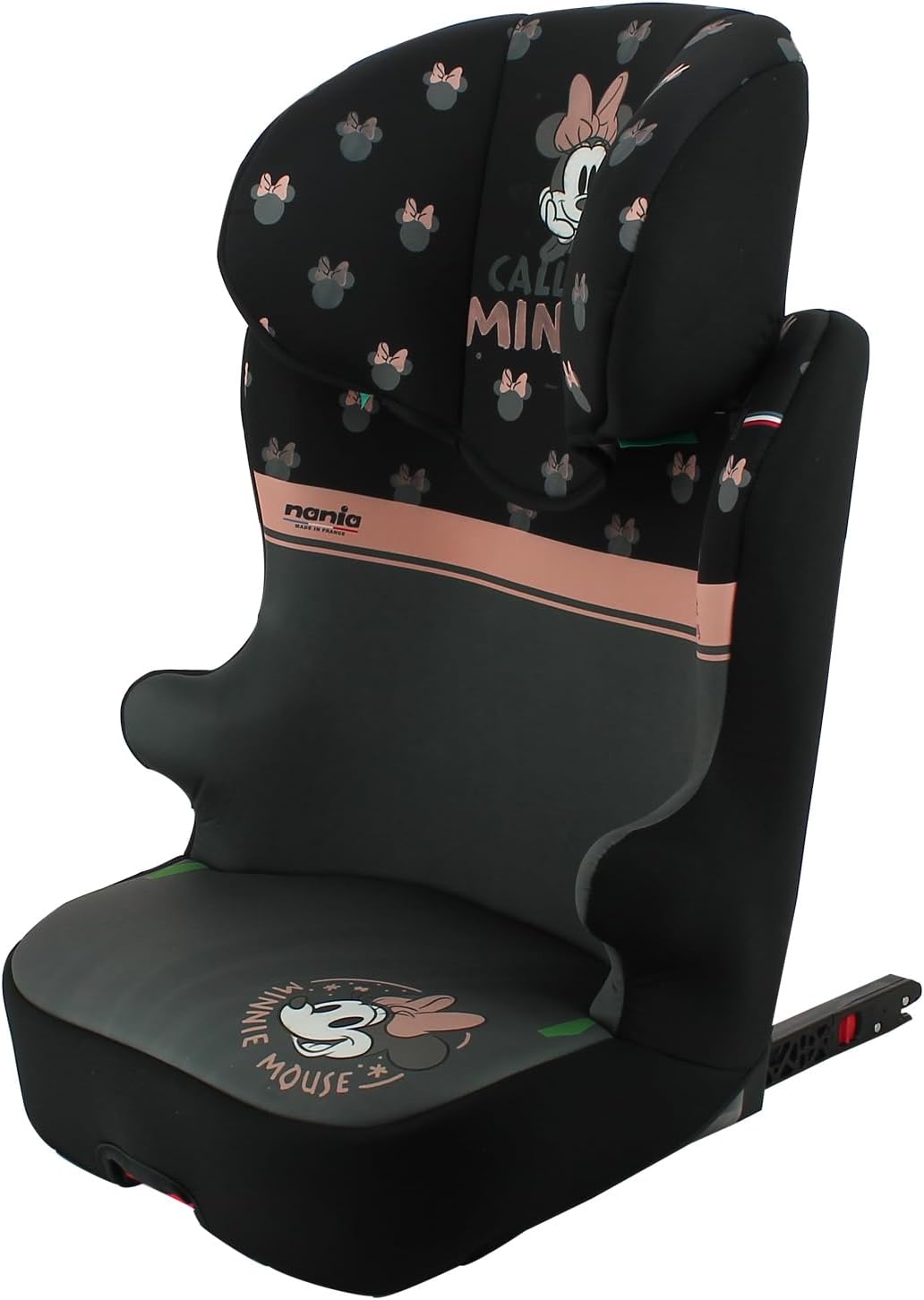

Rysunek 3.2: Kątowy view of the Nania START I FIX car seat booster.

Rysunek 3.3: Strona view of the Nania START I FIX car seat booster.

4. Instalacja i konfiguracja

4.1. Regulacja zagłówka

The headrest can be adjusted to ensure optimal comfort and safety for your child. To adjust, locate the adjustment mechanism (usually a lever or button) at the back or top of the headrest. Press the mechanism and slide the headrest up or down until it is at the correct height, ensuring the shoulder belt guide is just above your child's shoulders.

Figure 4.1: Adjusting the headrest height.

4.2. Reclining the Base

The car seat features a reclinable base for a more comfortable position. To recline, locate the red lever or button at the front underside of the seat base. Press or pull this mechanism and gently tilt the seat to the desired recline position. Ensure it locks securely into place.

Figure 4.2: Reclining the seat base.

4.3. Isofix Installation

The START I FIX car seat is installed using the vehicle's Isofix anchor points. This provides a rigid and secure connection.

1. Extend the Isofix connectors from the car seat base by pressing the release button (often red) and pulling them out.
2. Align the Isofix connectors with the Isofix anchor points in your vehicle's back seat. Push the car seat firmly until the connectors click into place. Green indicators should appear, confirming a secure connection.
3. Push the car seat firmly against the vehicle's seat back to remove any slack.

Figure 4.3: Extending the Isofix bars for installation.

4.4. Video Guide: Installation and Features

5. Instrukcja obsługi

5.1. Zapewnienie bezpieczeństwa dziecku

Once the car seat is securely installed with Isofix, follow these steps to secure your child:

1. Umieść dziecko w foteliku samochodowym.
2. Pull the vehicle's 3-point seat belt over your child and through the designated belt guides on the car seat. Ensure the lap belt passes low over your child's hips and the shoulder belt rests across their shoulder and chest, not on their neck.
3. Insert the seat belt buckle into the vehicle's buckle receiver until you hear a distinct 'click'.
4. Pull the shoulder belt to tighten the entire 3-point belt system, ensuring there is no slack and the belt fits snugly against your child.

5.2. Checking for Correct Fit

Always check the following after securing your child:

• The car seat is firmly attached to the Isofix anchor points and does not move excessively.
• The vehicle's 3-point seat belt is correctly routed through all guides and is not twisted.
• The seat belt is snug against your child's body, with no more than two fingers fitting between the belt and your child's collarbone.
• The headrest is adjusted so the shoulder belt guide is at or just above your child's shoulders.

6. Konserwacja

6.1. Czyszczenie pokrywy

The fabric cover of your Nania START I FIX car seat is removable and washable.

• Carefully remove the cover from the car seat frame.
• Wash the cover by hand at 30°C using a mild detergent. Do not bleach, tumble dry, or iron.
• Przed ponownym przymocowaniem pokrowca do fotelika samochodowego należy odczekać, aż całkowicie wyschnie.
• Ensure the cover is correctly reattached and all straps and buckles are accessible and functional.

6.2. Czyszczenie ramy

The plastic and metal parts of the car seat frame can be cleaned with a damp ściereczką i łagodnym mydłem. Nie używaj ściernych środków czyszczących ani rozpuszczalników.

7. Specyfikacje

Rysunek 7.1: Wymiary produktu.

8. Gwarancja i wsparcie

This Nania car seat is manufactured and tested in France by TEAM TEX. For warranty information, product support, or to report any issues, please contact your retailer or the manufacturer directly using the contact details provided at the point of purchase. Keep your proof of purchase for warranty claims.
