Generic XYWHPGV Star Shaped Head Screw Clamping Knob M10 Instruction Manual

1. Koniec produktuview

The XYWHPGV Star Shaped Head Screw Clamping Knob is designed as a reliable replacement component for various applications. Its threaded design ensures easy installation, while the star-shaped head provides a comfortable and secure grip for manual operation. This knob is widely utilized in mechanical equipment, instruments, appliances, and within the food and industrial sectors.

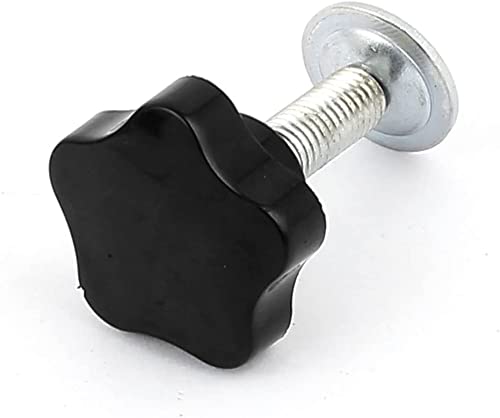

Obraz 1.1: Koniecview of the XYWHPGV Star Shaped Head Screw Clamping Knob, showing the black star-shaped head and the M10 male thread with a washer and small screw at the end.

2. Funkcje produktu

• Nazwa produktu: Clamping Pokrętło
• Typ: Screw On
• Całkowita wysokość: 58 mm / 2.28 cala
• Tworzywo: Plastic (head), Metal (thread)
• Kolor: Black (head), Silver Tone (thread)
• Masa netto: 49g
• Rozmiar głowy: 38 x 22mm / 1.5" x 0.87" (Diameter*Height)
• Rozmiar gwintu: M10 x 28mm / 0.4" x 1.1" (Diameter*Length)
• Średnica płyty: 25 mm / 1 cala

Rysunek 2.1: Szczegółowy view z clamping knob, highlighting the star-shaped grip and the M10 threaded shaft.

3. Specyfikacje

4. Konfiguracja i instalacja

1. Identify Thread: Ensure the receiving component has an M10 internal thread compatible with the knob's M10 male thread.
2. Wyrównaj i wstaw: Carefully align the threaded shaft of the clamping knob with the corresponding threaded hole on your equipment or fixture.
3. Przykręcić: Turn the star-shaped head clockwise to screw the knob into place. Continue turning until the knob is securely fastened and provides the desired clampsiły.
4. Sprawdź stabilność: After installation, verify that the knob is tight and the clamped components are stable.

No special tools are typically required for installation due to the manual screw-on design.

5. Instrukcja obsługi

The XYWHPGV Star Shaped Head Screw Clamping Knob is designed for manual clamping and adjustment. To operate:

1. Dokręcać: Grip the star-shaped head firmly and rotate it clockwise. Apply sufficient force to achieve the required clamping pressure without overtightening, which could damage the threads or the clampmateriał redakcyjny.
2. Aby poluzować: Grip the star-shaped head firmly and rotate it counter-clockwise. Continue turning until the desired component is released or adjusted.

The ergonomic star shape provides a comfortable grip for efficient manual operation.

6. Konserwacja

Ten clamping knob requires minimal maintenance to ensure long-lasting performance:

• Czyszczenie: Wipe the knob periodically with a clean, dry cloth to remove dust, dirt, or debris. For stubborn grime, a slightly damp Można użyć ściereczki i wysuszyć.
• Kontrola: Regularly inspect the threads for any signs of wear, damage, or corrosion. Check the plastic head for cracks or excessive wear.
• Smarowanie (opcjonalnie): If the threads become stiff or difficult to turn, a small amount of appropriate lubricant (e.g., silicone grease or light machine oil) can be applied to the male thread to facilitate smoother operation. Avoid over-lubrication.
• Składowanie: Store the knob in a clean, dry environment when not in use to prevent corrosion of the metal components.

7. Rozwiązywanie Problemów

• Knob is difficult to turn:
  • Check for debris or foreign objects in the threads. Clean if necessary.
  • Ensure the threads are not cross-threaded. If so, unscrew, realign, and re-thread carefully.
  • Apply a small amount of lubricant to the threads.
• Knob does not hold securely:
  • Ensure the knob is fully tightened.
  • Inspect the threads on both the knob and the receiving component for wear or damage. Worn threads may require replacement of the knob or the receiving part.
  • Verify that the M10 thread size is correct for the application.
• Plastic head is damaged:
  • If the plastic head is cracked or broken, the knob should be replaced to ensure safe and effective operation.

8. Gwarancja i wsparcie

This product is manufactured by XYZOOM. For specific warranty information or technical support, please refer to the documentation provided at the point of purchase or contact your retailer. General inquiries regarding product specifications can be directed to the manufacturer.
