EISL CARNEO Bathtub Faucet with Thermostatic Control - Instruction Manual

Wstęp

Thank you for choosing the EISL CARNEO Bathtub Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new thermostatic mixer. Please read these instructions carefully before installation and retain them for future reference.

Informacje dotyczące bezpieczeństwa

• Przed rozpoczęciem instalacji należy upewnić się, że wszystkie linie doprowadzające wodę są zamknięte.
• The faucet features a 38°C safety lock to prevent scalding. Do not attempt to bypass this feature.
• Jeśli nie jesteś pewien któregokolwiek kroku, instalację powinien wykonać wykwalifikowany specjalista.
• Check for leaks after installation and before full use.

Zawartość opakowania

Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:

• 1 x EISL CARNEO Bathtub Faucet (Matte Black)
• 1 x Mounting set including S-connections (45 mm)
• 2 x Zaślepki
• Foki
• Instrukcja obsługi

Figure 1: Package contents including the faucet, mounting hardware, and manual.

Konfiguracja i instalacja

The EISL CARNEO faucet is designed for wall mounting. Follow these steps for proper installation:

1. Przygotuj połączenia ścienne: Ensure your hot and cold water supply lines are correctly positioned and spaced for the S-connections (standard 150mm center distance). The hot water inlet should typically be on the left, and cold on the right.
2. Install S-Connections: Screw the S-connections into the wall outlets. Adjust them until they are level and the correct distance apart for the faucet. Use thread seal tape for a watertight connection.
3. Attach Cover Caps: Place the decorative cover caps over the S-connections, flush against the wall.
4. Zamontuj kran: Carefully align the faucet with the S-connections. Hand-tighten the nuts onto the S-connections.
5. Ostateczne dokręcanie: Use an appropriate wrench to securely tighten the nuts. Be careful not to overtighten, which can damage the connections or seals.
6. Sprawdź, czy nie ma wycieków: Slowly turn on the main water supply and inspect all connections for any signs of leakage. Tighten further if necessary.

Figure 2: Visual guide for faucet installation.

Figure 3: The faucet's low projection (approx. 100 mm) enhances bathing space and reduces impact risk.

Instrukcja obsługi

The EISL CARNEO faucet offers precise temperature control and versatile water delivery.

Kontrola temperatury

• The right knob controls the water temperature. Turn it to adjust between cold and hot water.
• 38°C Safety Lock: To select temperatures above 38°C, press and hold the safety button located on the right knob while turning it further. This prevents accidental scalding.
• The thermostatic cartridge maintains a constant water temperature, compensating for pressure fluctuations in the water supply.

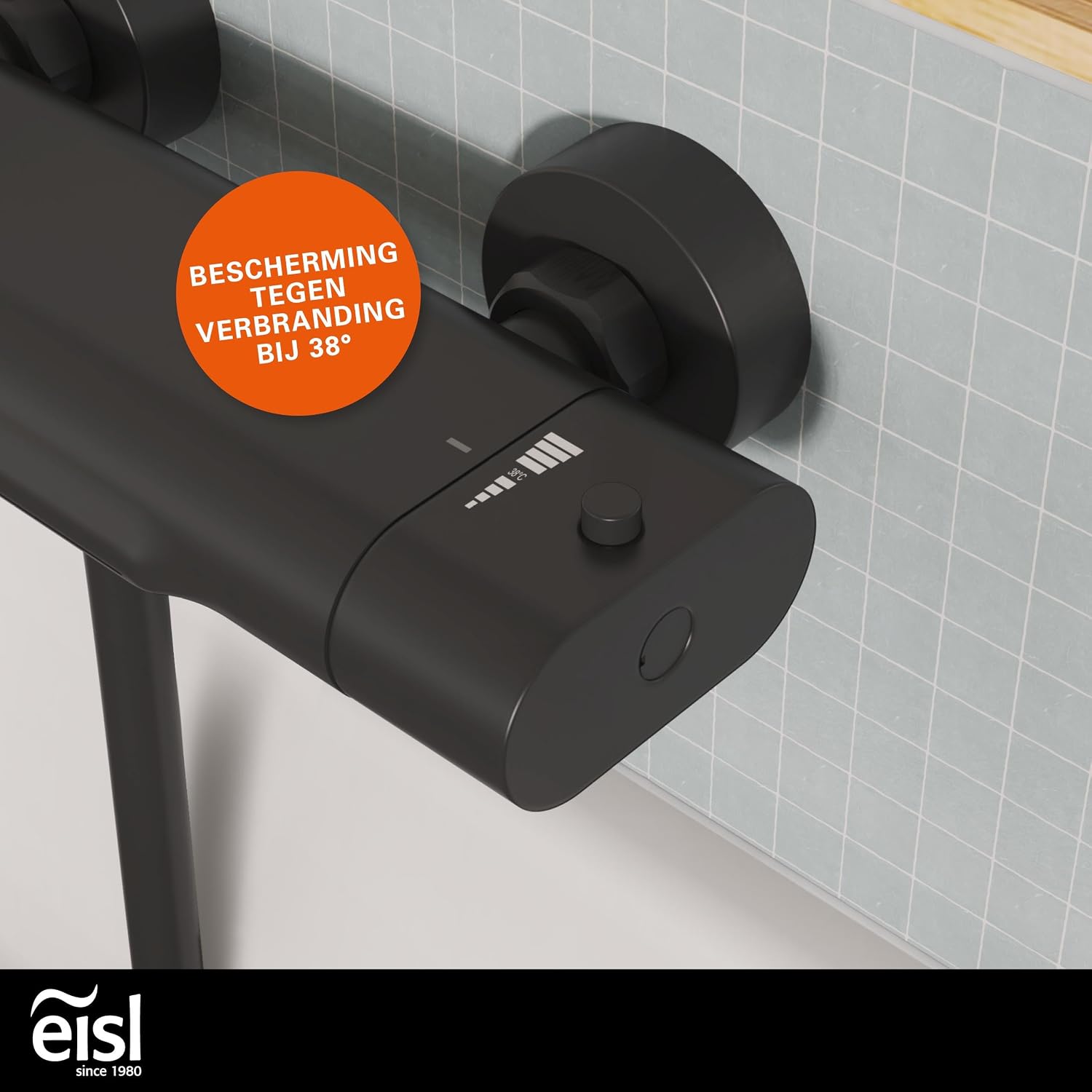

Figure 4: The 38°C safety lock button for scald protection.

Water Flow and Spout Selection

• The left knob controls the water flow and switches between the waterfall spout and a connected hand shower (if applicable).
• Turn the knob to increase or decrease water flow.
• Rotate the knob to switch between the integrated waterfall spout and the hand shower outlet.

Figure 5: The waterfall spout in operation and the easy switching mechanism.

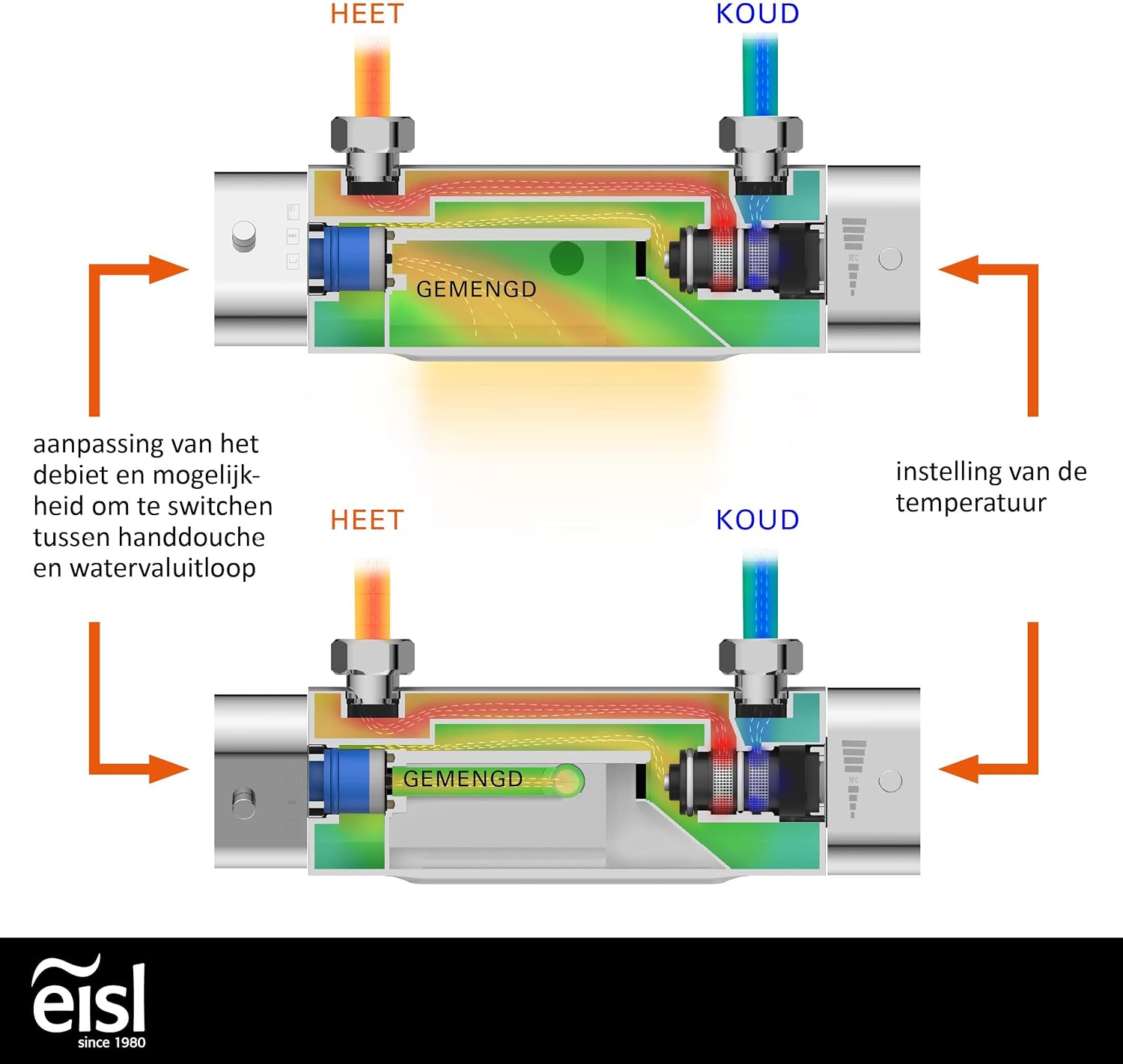

Figure 6: Internal diagram showing hot and cold water mixing and temperature regulation.

Konserwacja i czyszczenie

To ensure the longevity and appearance of your EISL CARNEO faucet, follow these cleaning guidelines:

• Regularne czyszczenie: Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive bathroom cleaner.
• Unikaj silnych środków chemicznych: Do not use abrasive cleaners, scouring pads, or cleaners containing alcohol, ammonia, or phosphoric acid, as these can damage the matte black finish.
• Dokładnie wypłucz: After cleaning, rinse the faucet thoroughly with clean water and dry it with a soft cloth to prevent water spots.
• Wkład termostatyczny: If temperature regulation becomes inconsistent, the thermostatic cartridge may need descaling or replacement. This should be done by a qualified professional.

Rozwiązywanie problemów

Jeśli masz problemy z kranem, zapoznaj się z poniższymi typowymi problemami i ich rozwiązaniami:

• Brak przepływu wody lub niskie ciśnienie:
  • Sprawdź, czy główny dopływ wody jest całkowicie otwarty.
  • Inspect the aerator (if present) for blockages and clean it.
  • Ensure the S-connections are not obstructed.
• Niestabilna temperatura wody:
  • Verify that the hot and cold water supplies are connected correctly.
  • The thermostatic cartridge might require calibration or descaling. Consult a professional.
  • Ensure sufficient hot water supply from your water heater.
• Wycieki z połączeń:
  • Tighten the S-connection nuts carefully.
  • Check the seals and O-rings for damage and replace if necessary.
• Water Not Switching Between Spout/Shower:
  • Ensure the diverter knob is fully rotated to the desired position.
  • Internal diverter mechanism might be obstructed or faulty.

W przypadku powtarzających się problemów prosimy o kontakt z obsługą klienta.

Specyfikacje

Figure 7: Detailed dimensions of the EISL CARNEO faucet.

Gwarancja i wsparcie

EISL stands behind the quality of its products. For warranty information or technical support, please contact us directly.

Informacje kontaktowe:
EISL Customer Service
Phone: +49 (0) 5407-81529-0 – 29
Location: Wallenhorst

Please have your model number (1330090B) and purchase date ready when contacting support.
