Instruction Manual: 594601 Carburetor for Briggs & Stratton Engines

Produkt ponadview

The 594601 Carburetor is a replacement component designed for various Briggs & Stratton engines, particularly those found in lawn tractors and other outdoor power equipment. This carburetor is crucial for mixing air and fuel in the correct ratio for combustion, ensuring optimal engine performance.

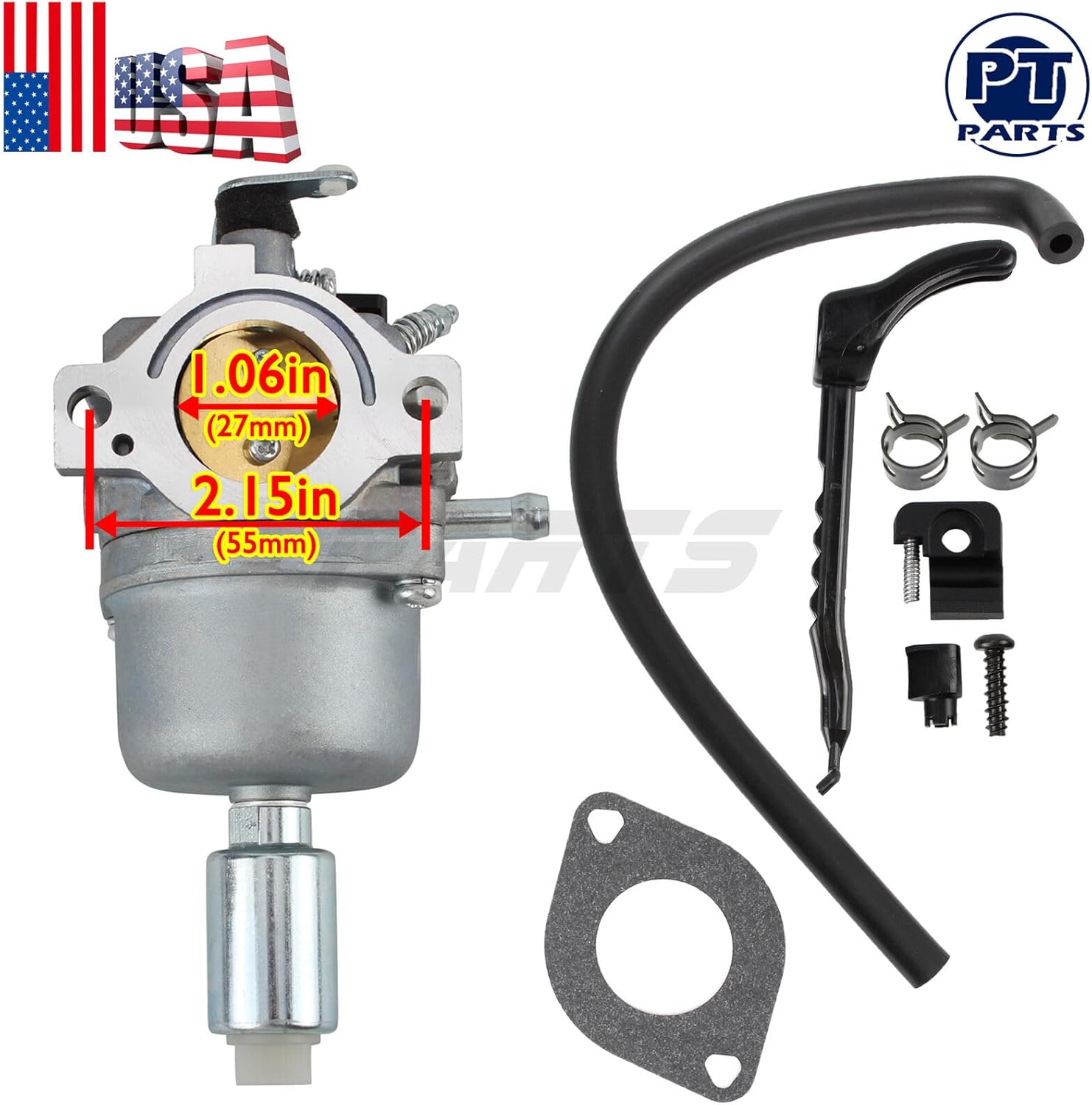

Rysunek 1: The complete 594601 Carburetor assembly, including the main carburetor unit, fuel line, mounting gasket, and securing clamps. This image shows all components included in the kit.

This replacement part is engineered to meet or exceed original equipment specifications, providing reliable and efficient operation for compatible models. It is essential to verify compatibility with your specific engine model before installation.

Konfiguracja i instalacja

Proper installation is critical for the carburetor's performance and engine safety. If you are unsure about any step, it is recommended to consult a qualified technician.

Środki ostrożności:

• Always disconnect the spark plug wire before beginning any work on the engine to prevent accidental starting.
• Przed przystąpieniem do pracy z podzespołami należy upewnić się, że silnik jest chłodny.
• Pracuj w dobrze wentylowanym pomieszczeniu.
• Have a fire extinguisher readily available when working with fuel.
• Należy nosić odpowiedni sprzęt ochrony osobistej, taki jak rękawice i okulary ochronne.

Wymagane narzędzia:

• Zestaw kluczy nasadowych
• Zestaw śrubokrętów (płaski i krzyżakowy)
• Szczypce
• Przewód paliwowy klamps or pinch-off tool
• Czyste szmaty
• Container for draining fuel

Kroki instalacji:

1. Przygotuj silnik: Disconnect the spark plug wire. Turn off the fuel supply valve, if present, or use fuel line clamps to prevent fuel flow. Place a container under the fuel line to catch any spilled fuel.
2. Wyjmij zespół filtra powietrza: Carefully remove the air filter housing and filter element to gain access to the carburetor.
3. Odłącz przewód paliwowy: Rozluźnij clamp and carefully disconnect the fuel line from the old carburetor.
4. Połączenia rozłączające: Note the position and connection of all throttle and choke linkages, springs, and wires. Take photos if necessary for reassembly. Disconnect them from the old carburetor.
5. Demontaż starego gaźnika: Unbolt the old carburetor from the engine manifold. Remove any old gaskets.
6. Wyczyść powierzchnię montażową: Ensure the engine mounting surface is clean and free of old gasket material.
7. Zamontuj nową uszczelkę: Place the new gasket (included in the kit) onto the engine manifold.
8. Zamontuj nowy gaźnik: Carefully position the new carburetor onto the gasket and secure it with the bolts. Do not overtighten.
9. Ponowne połączenie połączeń: Reattach all throttle and choke linkages, springs, and wires to their correct positions on the new carburetor.
10. Ponowne podłączenie przewodu paliwowego: Attach the fuel line to the new carburetor and secure it with a clamp. Remove any fuel line clamps used earlier.
11. Ponowna instalacja zespołu filtra powietrza: Reattach the air filter housing and filter element.
12. Ponowne podłączenie świecy zapłonowej: Podłącz ponownie przewód świecy zapłonowej.

Rysunek 2: Przód view of the carburetor showing key dimensions: 1.06 inches (27mm) for the air intake opening and 2.15 inches (55mm) for the overall height of the main body.

Rysunek 3: Tył view of the carburetor, illustrating the mounting bolt hole spacing. The distance between the bolt holes is approximately 2.15 inches (55mm) horizontally and 2.15 inches (32mm) vertically (center to center).

Rozważania operacyjne

After installation, ensure all connections are secure and there are no fuel leaks. Start the engine and allow it to warm up. The carburetor is pre-set for optimal performance, but minor adjustments may be needed for specific environmental conditions or engine wear. Refer to your engine's service manual for detailed adjustment procedures if necessary.

• Pierwsze uruchomienie: After installation, it may take a few pulls or cranks for the fuel system to prime and the engine to start.
• Wydajność silnika: Observe engine idle, acceleration, and overall power. A properly functioning carburetor will provide smooth operation.
• Jakość paliwa: Always use fresh, clean fuel as recommended by your engine manufacturer. Stale or contaminated fuel can lead to carburetor issues.

Konserwacja

Regular maintenance extends the life of your carburetor and ensures consistent engine performance.

• Fuel System Cleanliness: Use a fuel stabilizer, especially during storage, to prevent gum and varnish buildup in the carburetor.
• Filtr powietrza: Regularly inspect and clean or replace the air filter. A dirty air filter can restrict airflow, causing the engine to run rich and affect carburetor performance.
• Filtr paliwa: Check and replace the fuel filter periodically to prevent contaminants from reaching the carburetor.
• Czyszczenie gaźnika: If the engine experiences performance issues due to fuel contamination, the carburetor may need to be cleaned. This typically involves disassembling the carburetor and cleaning its internal passages with carburetor cleaner. This procedure should only be performed by individuals with mechanical experience.
• Składowanie: Before long-term storage, either run the engine until it runs out of fuel or drain the fuel system completely to prevent fuel degradation and carburetor clogging.

Rozwiązywanie problemów

Jeżeli po zamontowaniu nowego gaźnika wystąpią problemy, należy rozważyć poniższe typowe problemy i ich rozwiązania:

Notatka: For complex issues or if troubleshooting steps do not resolve the problem, it is advisable to seek assistance from a certified small engine mechanic.

Specyfikacje i zgodność

This carburetor is designed as a direct replacement for Briggs & Stratton engines, specifically those using Nikki carburetors. It is compatible with a wide range of models and part numbers.

Kluczowe dane techniczne:

• Numer części: 594601
• Typ: Nikki Carburetor Replacement
• Aplikacja: Various Briggs & Stratton engines for lawn tractors and other outdoor power equipment.
• Producent: partscollect (as per product specifications)
• Numer modelu: 1 (as per product specifications)

Compatible Part Numbers (PN):

This carburetor replaces or is compatible with the following part numbers:

289707, 303777, 331877, 494502, 495706, 496592, 498027, 498061, 499161, 502556, 590399, 590400, 591731, 591734, 592223, 592224, 592226, 592953, 593432, 593433, 594593, 594601, 594603, 594605, 602701, 602705, 695115, 696353, 697122, 697202, 697203, 697215, 697216, 698620, 698945, 699915, 699916, 790023, 791886, 792036, 792060, 792345, 792534, 792554, 792768, 793365, 793371, 794294, 795366, 795373, 795374, 795872, 795873, 796109, 796110, 796178, 796250, 799244, 799246, 799252, 799256, 799728, 808891

Compatible Engine Models and Series:

This carburetor is known to fit the following engine models and series. Please cross-reference with your engine's specific model and type numbers.

• 12.5 hp Nikki B&S 219802 4118 F1
• 13-38XL 38'' Lawn Tractor model 71185 w/ 13hp B&S
• 15-38HXL Lawn Tractor
• For model 71221 16 hp series number 303777 with Nikki 696353
• 2005 Bolens Riding Mower 13AM762F765
• 2013 DR Brush Mower w/ 799244 NIKKI G02558
• 590399 Nikki 215802, 215805 (works for 10hp, 12hp, 14hp)
• 590399 Nikki 215807, 215872, 215877
• 590399 Nikki 217877, 217902, 217907 (works for 10hp, 12hp, 14hp)
• Fits For 590400 / 593432 / 593433 / 594593 / 594601 Nikki

Fits for Following Serials (partial list):

210700, 210800, 212700, 212800, 212900, 214700, 214900, 215700, 215800, 215900, 216700, 216900, 217700, 217800, 217900, 218700, 218800, 219700, 219800, 219900, 216800, 21A700, 21A800, 21A900, 21B000, 21B807, 21R502, 21R507, 21R602, 21R607, 21R702, 21R707, 21R772, 21R777, 21R806, 21R807, 21R876, 21R877, 21B700, 21B800, 212702-0015-E1, 212702-0111-E1, 212702-0114-E1, 212702-0114-E2, 212702-0116-E1, 212702-0117-E1, 212702-0119-E1, 212702-0124-E1, 212707-0025-E1, 212707-0026-E1, 212707-0050-E1, 212707-0113-E1, 212707-0120-E1, 212802-0110-E1, 212902-0015-E1, 212902-0020-E1, 212902-0117-E1, 212902-0122-E1, 212902-0125-E1, 212902-0127-E1, 212902-0129-E1, 212907-0025-E1, 212907-0026-E1, 212907-0028-E1, 212907-0114-E1, 212907-0121-E1, 212907-0124-E1, 212907-0128-E1, 212907-0272-E1, 214707-0113-E1, 214707-0114-E1, 214907-0272-E1, 215702-0015-E1, 215702-0015-G1, 215702-0110-B1, 215702-0110-E1, 215702-0110-E9, 215702-0113-B1, 215702-0113-E1, 215702-0113-E9, 215702-0115-B1, 215702-0115-E1, 215702-0116-B1, 215702-0116-E1, 215702-0116-E9, 215702-0466-B1, 215702-0466-E1, 215702-0553-B1, 215702-0578-B2, 215702-0578-G2, 215705-0119-

Gwarancja i wsparcie

Specific warranty information for this Generic brand carburetor is not provided in the product details. For warranty claims or technical support, please refer to the seller or manufacturer directly. It is recommended to retain your purchase receipt for any potential warranty inquiries.

For general engine maintenance and repair, always consult your engine's official service manual or a qualified small engine technician.
