Wstęp
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your GENERIC DC4499 6 Quart Double Acting 12V Hydraulic Pump. This unit is designed for use with hydraulic dump trailers, providing reliable up and down functionality. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage or injury.
Ważne informacje dotyczące bezpieczeństwa
OSTRZEŻENIE: Nieprzestrzeganie tych instrukcji bezpieczeństwa może spowodować poważne obrażenia, śmierć lub uszkodzenie mienia.
- Przed przystąpieniem do prac konserwacyjnych lub instalacyjnych należy zawsze odłączyć zasilanie.
- Upewnij się, że wszystkie połączenia elektryczne są solidne i właściwie zaizolowane.
- Wear appropriate personal protective equipment (PPE), including eye protection and gloves, when working with hydraulic systems.
- Do not exceed the maximum operating pressure of the pump.
- Trzymaj ręce i ubranie z dala od ruchomych części.
- Use only recommended hydraulic fluid.
- Ensure the pump is mounted securely to a stable surface.
- Do not operate the pump if any components are damaged or leaking.
Zawartość opakowania
Przed rozpoczęciem instalacji sprawdź, czy wszystkie elementy są obecne:
- 1x DC4499 6 Quart Double Acting 12V Hydraulic Pump
- 1x Two-button Up/Down Controller with 15' Extension Cord
- Mounting Hardware (may vary)
Konfiguracja i instalacja
Proper installation is crucial for the performance and longevity of your hydraulic pump. If you are unsure about any step, consult a qualified professional.
1. Montaż pompy
- Select a secure, level, and dry location for mounting the pump, away from excessive heat or debris.
- Ensure there is adequate space for ventilation and access for maintenance.
- Use appropriate bolts and washers to firmly secure the pump to the mounting surface.
2. Połączenia hydrauliczne
- Connect the pressure line from the pump to the "UP" port of your hydraulic cylinder.
- Connect the return line from the pump to the "DOWN" port of your hydraulic cylinder.
- Ensure all hydraulic fittings are clean and free of debris before connecting. Use thread sealant or tape as recommended by the fitting manufacturer.
- Dokładnie dokręć wszystkie połączenia, aby zapobiec wyciekom, ale nie dokręcaj ich zbyt mocno.
3. Połączenia elektryczne
- Connect the positive (+) terminal of the pump to a fused 12V DC power source capable of supplying the required ampwymazać
- Connect the negative (-) terminal of the pump to a good chassis ground.
- Connect the two-button controller to the designated port on the pump. Ensure the connection is secure.
- Verify all electrical connections are tight and properly insulated to prevent shorts.
4. Napełnianie zbiornika
- Remove the filler cap from the hydraulic reservoir.
- Fill the reservoir with a high-quality hydraulic fluid (e.g., AW-32 or AW-46) to the recommended level, typically indicated by a sight glass or dipstick. Do not overfill.
- Dokładnie załóż korek wlewu.

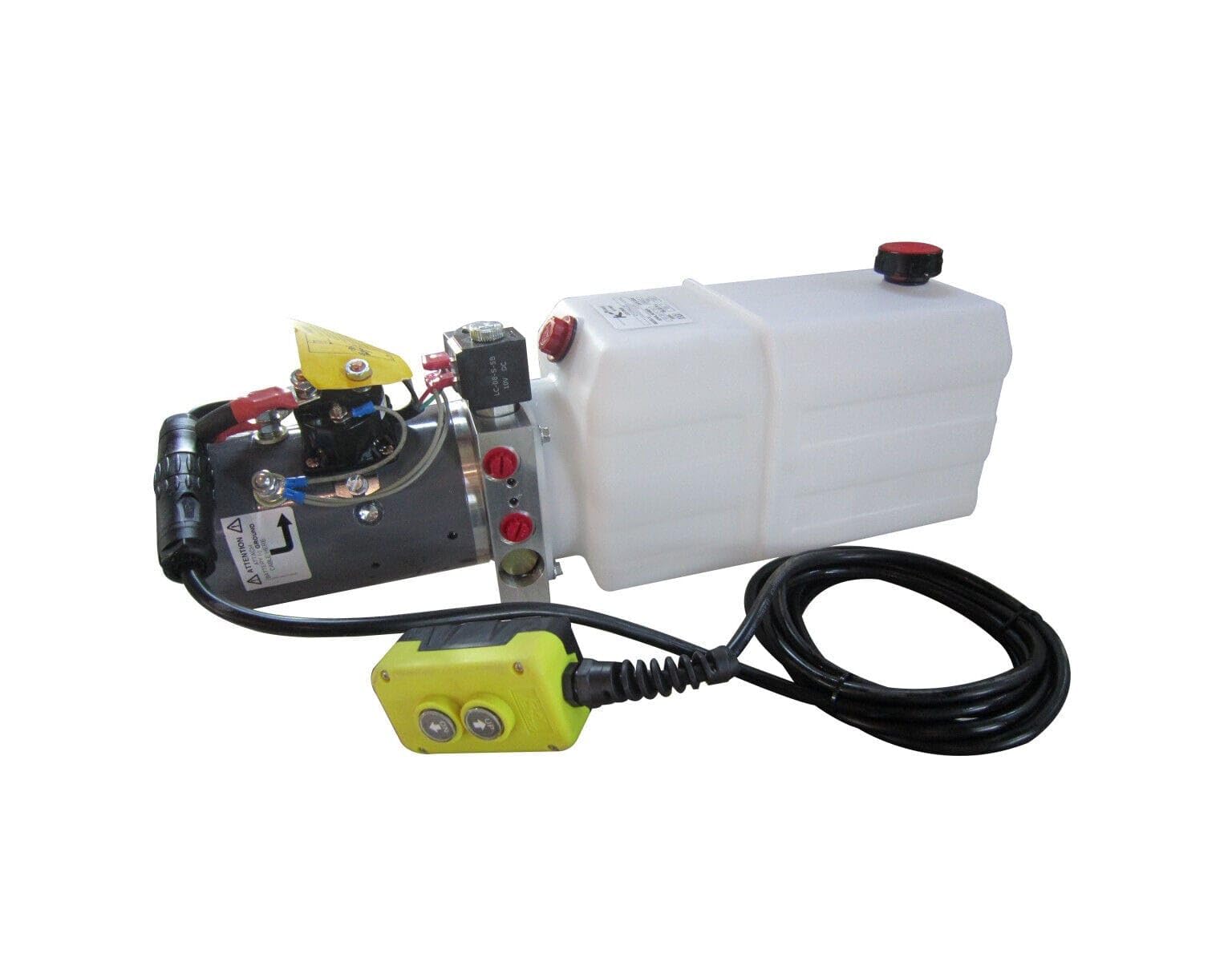

Image: The DC4499 6 Quart Double Acting 12V Hydraulic Pump with its reservoir and control unit. This image shows the overall design and key components of the hydraulic pump system.
Instrukcja obsługi
This hydraulic pump is designed for simple operation using the included two-button controller.
1. Initial Start-up and Bleeding Air
- After installation and filling the reservoir, briefly press the "UP" button on the controller. The pump motor should activate, and the cylinder should begin to extend.
- If the cylinder does not move smoothly or makes unusual noises, there may be air in the system. Cycle the cylinder fully up and down several times to bleed out any trapped air.
- Check the hydraulic fluid level after bleeding and top off if necessary.
2. Normalna praca
- To raise the dump trailer or hydraulic cylinder, press and hold the "UP" button on the controller. Release the button when the desired height is reached.
- To lower the dump trailer or hydraulic cylinder, press and hold the "DOWN" button on the controller. Release the button when the desired position is reached.
- Avoid continuously running the pump motor for extended periods without a load, as this can cause overheating.
Konserwacja
Regular maintenance ensures optimal performance and extends the lifespan of your hydraulic pump.
- Kontrola poziomu płynu: Regularly check the hydraulic fluid level and top off as needed. Use only clean, recommended hydraulic fluid.
- Uzupełnianie płynów: Replace the hydraulic fluid annually or every 200 hours of operation, whichever comes first. Refer to the fluid manufacturer's recommendations.
- Kontrola filtra: If your system includes a filter, inspect and replace it according to the manufacturer's guidelines.
- Połączenia elektryczne: Periodically inspect all electrical connections for corrosion, looseness, or damage. Tighten or repair as necessary.
- Hose and Fitting Inspection: Check hydraulic hoses and fittings for leaks, cracks, or wear. Replace any damaged components immediately.
- Czyszczenie: Keep the pump and reservoir clean and free of dirt and debris.
Rozwiązywanie problemów
W tej sekcji znajdziesz rozwiązania typowych problemów, na jakie możesz natrafić.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Silnik pompy nie działa. | No power, loose electrical connection, faulty switch, blown fuse. | Sprawdź pojemność akumulatoratage, inspect all electrical connections, test the controller switch, check and replace fuse if necessary. |
| Pump runs but cylinder does not move or moves slowly. | Low hydraulic fluid, air in the system, clogged filter, faulty relief valve, internal pump issue. | Check and fill fluid, bleed air from the system, inspect/replace filter, consult a professional for valve/pump issues. |
| Hydraulic fluid leaks. | Loose fittings, damaged hoses, worn seals. | Tighten fittings, replace damaged hoses, replace worn seals. |
| Pompa się przegrzewa. | Low fluid level, continuous operation under heavy load, restricted flow, incorrect fluid type. | Check fluid level, allow pump to cool, ensure proper ventilation, verify correct fluid type. |
Specyfikacje
- Model: DC4499
- Typ: Podwójne działanie
- Pojemność zbiornika: 6 kwarty
- Tomtage: 12V prądu stałego
- Aplikacja: Hydraulic Dump Trailers
- Kontroler: Two-button Up/Down with 15' cord
- Numery referencyjne: DC45173, 070116 (Manufacturer Part Number: TR-1HY101)
Gwarancja i wsparcie
Aby uzyskać informacje o gwarancji lub pomocy technicznej, zapoznaj się z dokumentacją dołączoną do produktu lub skontaktuj się ze sprzedawcą. Zachowaj paragon jako dowód zakupu.
