tekswamp DirecTV AC Adapter Power Supply 18W User Manual

1. Wprowadzenie

This manual provides instructions for the safe and effective use of the Tekswamp DirecTV AC Adapter Power Supply, Model EPS18R-15. This 18W power supply is designed to provide reliable power to compatible DirecTV Home Clients.

1.1. Koniec produktuview

The Tekswamp DirecTV AC Adapter is a genuine replacement or spare power supply for various DirecTV Home Client models. It converts standard AC wall power to the required DC voltage dla Twojego urządzenia.

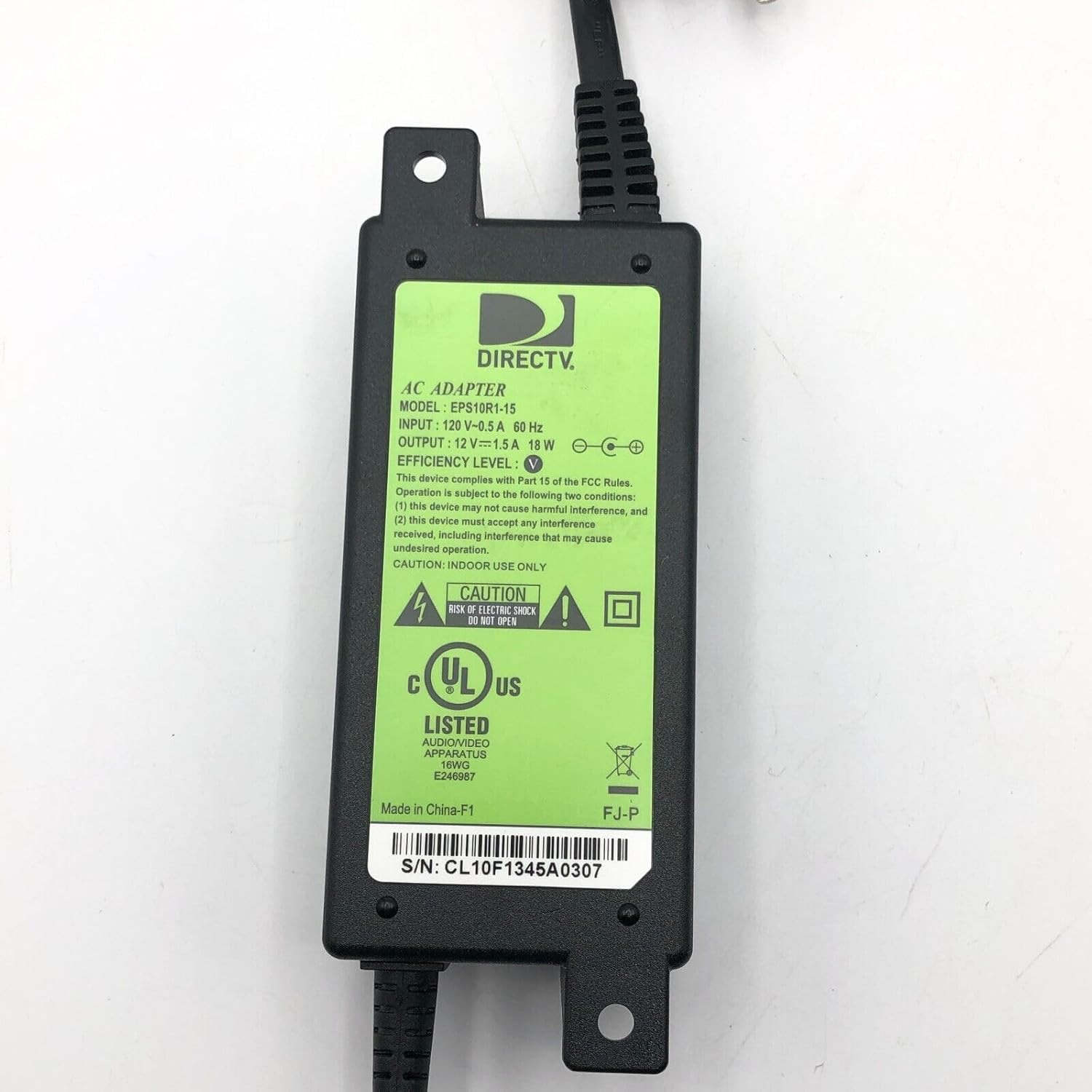

Obraz 1.1: Przód view of the Tekswamp DirecTV AC Adapter, displaying its label with model number EPS18R-15, input/output specifications, and safety certifications. The serial number CL10F1345A0307 is visible on the label.

1.2. Co znajduje się w pudełku

• 1 x Tekswamp DirecTV AC Adapter (Model: EPS18R-15)
• 1 x Przewód zasilający

2. Informacje dotyczące bezpieczeństwa

OSTRZEŻENIE: RYZYKO PORAŻENIA PRĄDEM. NIE OTWIERAĆ.

• Always ensure the adapter and power cord are free from damage before use.
• Nie wystawiaj adaptera na działanie wody, wilgoci ani ekstremalnych temperatur.
• Używaj wyłącznie z urządzeniami zgodnymi ze specyfikacją zawartą w niniejszej instrukcji.
• Disconnect from the power outlet before cleaning or if not in use for extended periods.
• Przechowywać w miejscu niedostępnym dla dzieci.

3. Konfiguracja

Follow these steps to properly connect your AC adapter to your DirecTV Home Client:

1. Sprawdź zgodność: Before connecting, ensure that your DirecTV Home Client requires a 12.5V 1.5A power supply with a 5.5 x 3.3mm + Pin connector tip. Incorrect voltage or polarity can damage your device.
2. Połącz z urządzeniem: Insert the DC output connector of the AC adapter firmly into the power input port of your DirecTV Home Client.


Obraz 3.1: Zbliżenie view of the 5.5 x 3.3mm + Pin DC output connector tip, which connects to the DirecTV Home Client.

3. Podłącz przewód zasilający: Plug one end of the provided power cord into the AC input port of the adapter.
4. Podłącz do gniazdka ściennego: Plug the other end of the power cord into a standard 100-240V AC wall outlet.

Image 3.2: The Tekswamp AC Adapter shown with both the detachable power cord and the integrated DC output cable connected, ready for use.

4. Instrukcja obsługi

Once the adapter is correctly connected to both your DirecTV Home Client and a power outlet, the client device should power on automatically or be ready to be powered on via its own power button. The adapter operates continuously when plugged in.

5. Konserwacja

• Czyszczenie: Use a dry, soft cloth to clean the adapter. Do not use liquid cleaners or aerosols.
• Składowanie: Store the adapter in a cool, dry place when not in use. Avoid wrapping the cables too tightly.
• Kontrola: Periodically inspect the adapter and cables for any signs of wear, cuts, or damage. If damage is found, discontinue use immediately.

6. Rozwiązywanie Problemów

If your DirecTV Home Client is not receiving power, consider the following:

• Brak zasilania:
  • Ensure all connections are secure: the power cord to the adapter, the adapter to the wall outlet, and the DC connector to the DirecTV Home Client.
  • Sprawdź działanie gniazdka ściennego za pomocą innego urządzenia.
  • Verify that the adapter's specifications (voltage, amperage, connector tip size, and polarity) precisely match the requirements of your DirecTV Home Client.
• Przegrzanie:
  • If the adapter feels excessively hot, disconnect it immediately. Ensure it is placed in a well-ventilated area and not covered.
  • The adapter includes built-in protections against internal overheating (IO), short circuits (SC), and incorrect voltage (IV) to ensure safe operation.
• Awaria urządzenia: If the adapter appears to be working but the DirecTV Home Client is not, consult the client device's manual or support resources.

7. Specyfikacje

8. Gwarancja i wsparcie

This product is designed and tested for quality and reliability. While specific warranty details are not provided in the product information, Tekswamp is committed to providing great customer service. For support or inquiries, please refer to the seller's contact information on your purchase platform.
