LUME CUBE LC-TLXL
Lume Cube RGB 4' XL Tube Light User Manual
Model: LC-TLXL
1. Wprowadzenie
The Lume Cube RGB 4' XL Tube Light is a powerful and versatile lighting tool designed for filmmakers, photographers, and content creators. It offers extensive color control, durable construction, and convenient app integration to enhance your creative projects.
2. Co jest zawarte
The Lume Cube RGB 4' XL Tube Light package includes the following items:
- Lume Cube RGB 4' XL Tube Light
- Aluminum Tripod Legs
- Coated Steel Loops & Mounting Bolts (2x)
- Zasilacz sieciowy
- Wyściełana torba podróżna

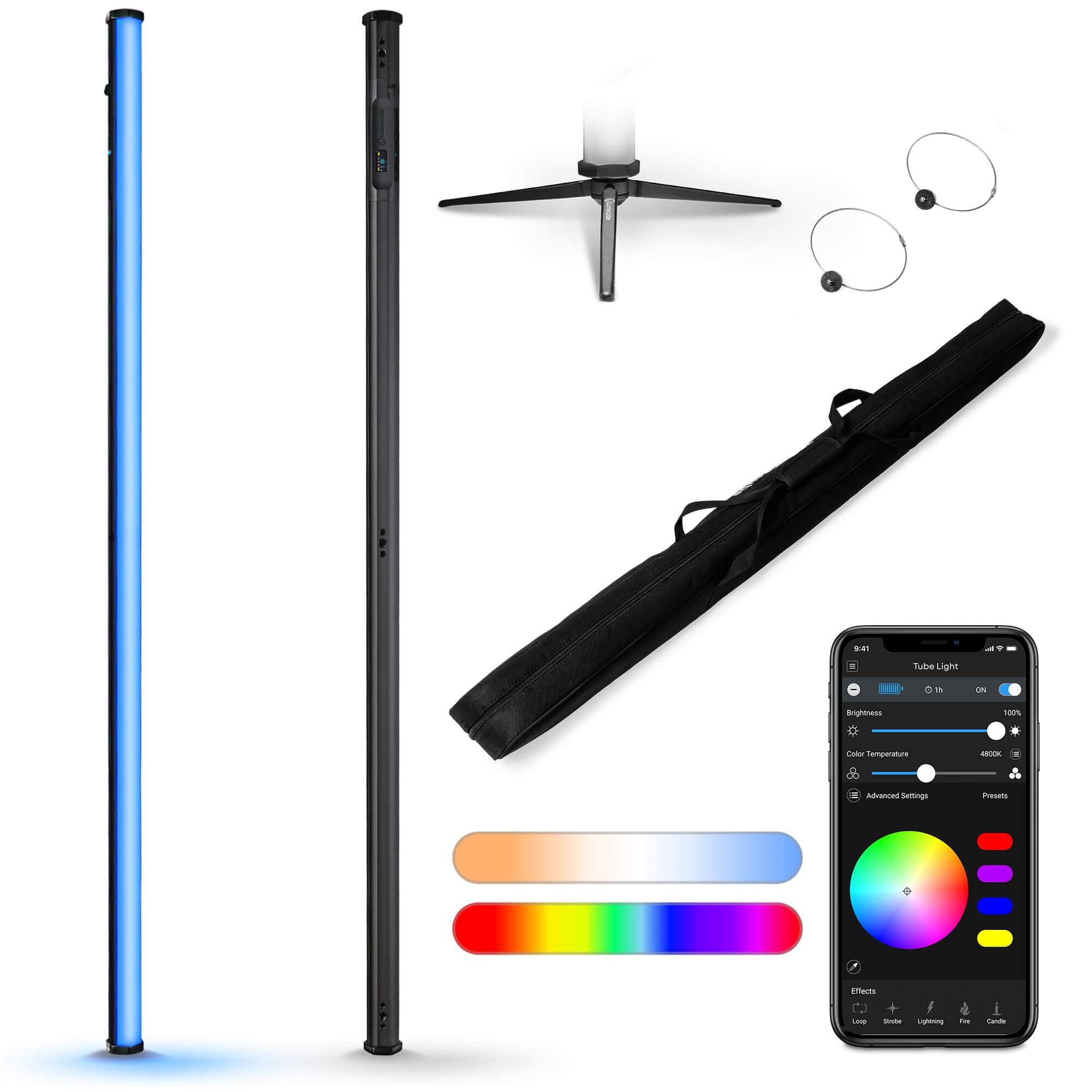

Image: The Lume Cube RGB 4' XL Tube Light with its padded travel bag, aluminum tripod legs, coated steel loops, mounting bolts, and AC power adapter.
Video: An unboxing video demonstrating the contents of the Lume Cube Tube Light package, including the XL model.
3. Konfiguracja
- Rozpakować: Carefully remove all components from the padded travel bag.
- Włączanie: Locate the power switch on the side of the tube light and slide it to the 'ON' position. The light will illuminate.
- Opcje montażu:
- Statyw: Attach the aluminum tripod legs to one of the 1/4" 20 threads located on the ends or along the back of the tube light.
- Wiszące: Use the coated steel loops and mounting bolts with the 1/4" 20 threads to hang the light.
- Magnetic Mounting (Mini only, not XL): The Tube Light Mini features magnets on both end caps for easy low-profile mounting to metallic surfaces. (Note: This feature is specific to the Mini model and not the XL).
Image: The Lume Cube RGB 4' XL Tube Light, showcasinze względu na jego konstrukcję i rozmiar.
Image: The Lume Cube RGB 4' XL Tube Light mounted on its included tripod base.
4. Instrukcja obsługi
4.1 Elementy sterujące na urządzeniu
The Tube Light XL features an intuitive LCD screen and physical controls for direct adjustments.
- Przełącznik włączania/wyłączania: Slide to power the device.
- Pokrętło regulacyjne: Rotate to navigate menus and adjust values.
- Toggle Button (Blue): Press to select options or confirm settings.
- Port USB-C: For charging and acting as a power bank.
- Circular 15V Charge Port: For faster charging of the Tube Light XL.
Image: Close-up of the Lume Cube RGB 4' XL Tube Light's control panel, showing the LCD screen, adjustment dial, mode button, power button, and USB-C charge port.
4.2 LCD Screen Navigation
The LCD screen displays current settings and battery life. Use the adjustment dial to scroll through modes (CCT, HSL, FX) and the blue toggle button to enter a mode and select parameters.
- CCT Mode (Correlated Color Temperature): Adjust brightness (0-100%), color temperature (2700K-7500K), and green/magenta tint for precise white light.
- HSL Mode (Hue, Saturation, Luminosity): Control brightness (0-100%), hue (full RGB spectrum up to 360 colors), and saturation (color intensity 0-100%).
- Tryb FX (efekty specjalne): Select from seven pre-programmed effects (Strobe, Color Loop, Lightning, Fire, Candle, Siren, TV Flicker) and adjust their brightness and speed (1-10 Hz).
- Menu SET: Toggle Bluetooth functionality on or off.
- Wskaźnik baterii: Displays remaining battery life and estimated runtime at current brightness.
4.3 Sterowanie aplikacją Bluetooth
For advanced control and features, use the Lume Control app.
- Pobierz aplikację: Download the "Lume Control" app from your device's app store.
- Włącz Bluetooth: On your Tube Light XL, navigate to the SET menu and ensure Bluetooth is 'ON'.
- Paruj urządzenie: Open the Lume Control app, go to "Bluetooth Pairing," and select your Tube Light XL from the available devices.
- Kontrola: Once connected, you can adjust brightness, color temperature, hue, saturation, and effects directly from your phone. The app also features a color picker to match colors from objects in your scene.
Image: A smartphone displaying the Lume Control app interface, showing color and brightness controls for the Lume Cube Tube Light.
Wideo: Ponadview of the Lume Cube 4ft Tube Light, demonstrating its features and app control.
5. Konserwacja
- Czyszczenie: Use a soft, dry cloth to clean the exterior of the tube light. Avoid abrasive cleaners or solvents.
- Składowanie: Store the tube light in its padded travel bag when not in use to protect it from dust and damage.
- Pielęgnacja baterii: For optimal battery longevity, avoid fully discharging the battery frequently. Charge the device regularly, even during periods of non-use.
6. Rozwiązywanie Problemów
| Wydanie | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Światło się nie włącza | Bateria jest rozładowana; wyłącznik zasilania jest wyłączony. | Charge the device using the AC power adapter or USB-C cable. Ensure the power switch is in the 'ON' position. |
| Nie można połączyć się przez aplikację Bluetooth | Bluetooth is off on the light; App is not updated; Device is out of range. | Ensure Bluetooth is 'ON' in the light's SET menu. Update the Lume Control app. Move closer to the light. |
| Moc światła jest słaba | Brightness setting is low; Battery is low. | Increase brightness via on-device controls or the app. Charge the device. |
7. Specyfikacje
- Model: LC-TLXL
- Marka: KOSTKA LUMY
- Czas pracy baterii: 192 minutes (at full brightness)
- Łączność: Bluetooth
- Interfejs sprzętowy: Bluetooth
- Kod UPC: 810019501456
- Tryby Flash: Adjustable brightness (0-100%), seven pre-programmed special effects with 10-speed settings, controlled via Bluetooth app.
- Poziom wodoodporności: Wodoodporny
- Numer części producenta: LC-TLXL
- Liczba jednostek: 1.0 Liczba
- Ocena CRI: 97+
- Moc wyjściowa: 3400 lumenów
8. Gwarancja i pomoc techniczna
The Lume Cube RGB 4' XL Tube Light comes with a 1 rok gwarancji producenta.
For further assistance, technical support, or warranty claims, please visit the official LUME CUBE Store or contact their customer service directly.
LUME CUBE Store: Odwiedź sklep
