DEERFAMY Portable CampInstrukcja obsługi prysznica

Wstęp

Thank you for choosing the DEERFAMY Portable Camping Shower. This manual provides essential information for the safe and efficient use of your portable shower. Please read these instructions carefully before operation and retain them for future reference.

Składniki produktu

The DEERFAMY Portable Camping Shower package includes the following items:

• Battery (4400mAh, with lighting device)
• Pompa
• Shower head (1pc)
• Wąż o długości 6 stóp
• Siatkowa torba do przechowywania
• Hook (1pc)
• Suction cup hook (1pc)
• Suction mount (1pc)
• USB cable (1pc)
• Shower O-ring (2pcs)
• Filter cotton (2pcs)

Image: All components of the DEERFAMY Portable Camping Shower, including the battery, pump, shower head, hose, and accessories.

Organizować coś

1. Podłącz wąż: Attach one end of the 6ft hose to the pump and the other end to the shower head. Ensure O-rings are properly seated to prevent water leakage.
2. Włóż baterię: Securely connect the battery unit to the pump.
3. Przygotuj źródło wody: Place the pump into a bucket or container filled with water.
4. Mount the Shower Head: Use the provided hook or suction cup hook to hang the shower head at a desired height.

Image: Demonstrates how to hang the shower head using the provided hook on a branch and a suction cup hook on a car window.

Ładowanie akumulatora

The portable shower is equipped with a 4400mAh rechargeable battery. Before first use, ensure the battery is fully charged.

• Wejście ładowania: The USB interface requires a 5V/1A input.
• Kompatybilne ładowarki: Use a laptop USB port, car USB charger, or a standard mobile phone charger.
• Wskaźnik ładowania: The indicator lights on the battery display the current power level.
• Czas pracy baterii: Pełne naładowanie wystarcza na około 90–100 minut pracy.

Image: Shows the battery unit with its Type-C charging interface and indicator lights, along with various USB charging options like a car charger, wall adapter, and laptop.

Działanie

1. Włączanie: Once the pump is submerged in water and the battery is connected, press the power button on the battery unit to turn on the pump.
2. Kontrola przepływu wody: To activate the water flow from the shower head, press and hold the shower head down. Releasing it will stop the flow.
3. Natężenie przepływu wody: The water flow rate is between 0.71-0.79 gallons per minute (2.7-3.0 liters per minute).
4. Oszczędność wody: The shower head features a water-saving design with dense outlet holes and an ON/OFF control by adjusting the shower head position.

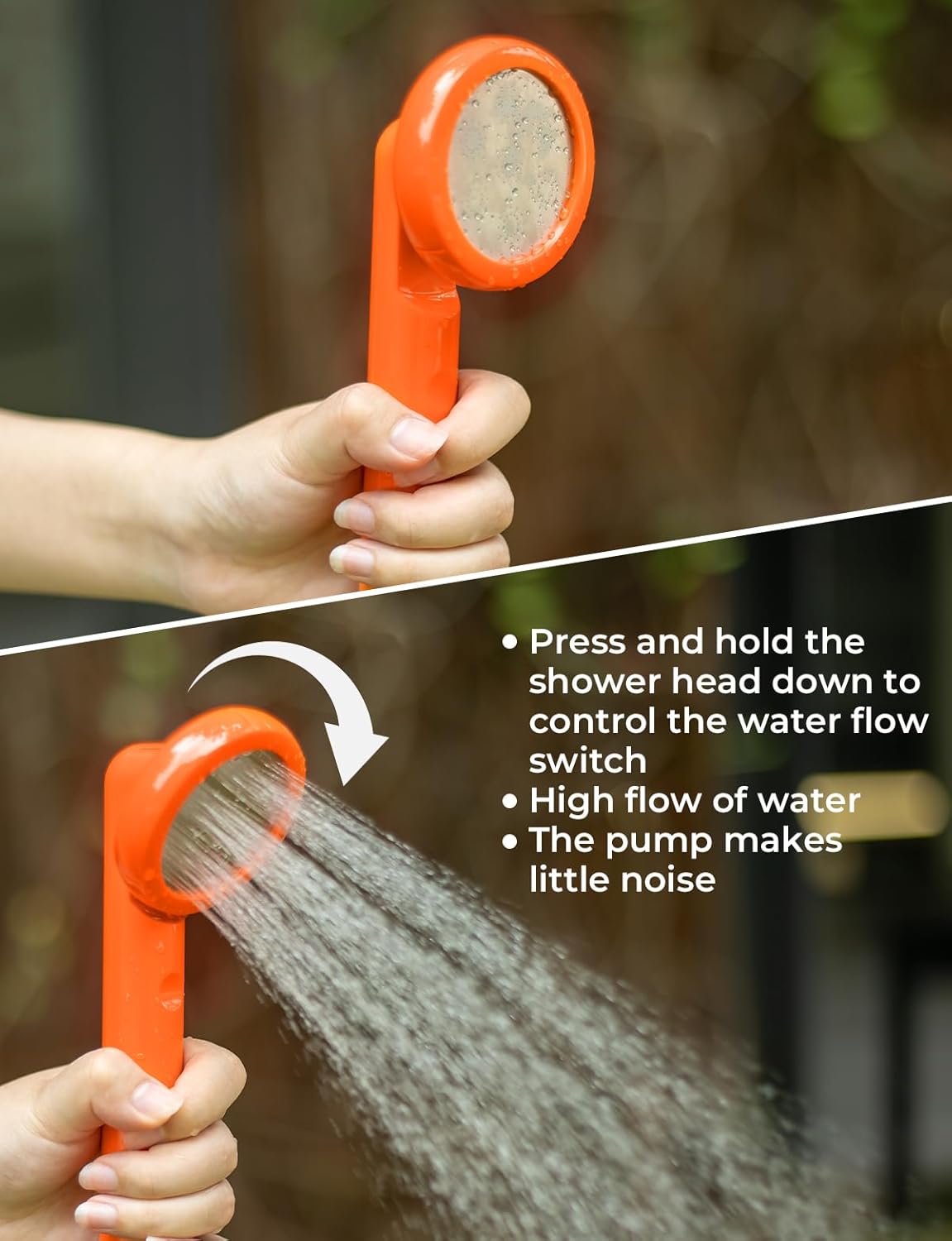

Image: Illustrates how to control the water flow by pressing and holding the shower head down.

Image: Details the shower head's dense water outlet holes and the ON/OFF mechanism by adjusting its position.

Urządzenie oświetleniowe

The external battery unit includes a built-in lighting device for convenience and safety, especially during nighttime use.

• Tryby oświetlenia: The device offers multiple lighting modes, which can be used as independent lighting or for SOS signals in emergencies.
• Nighttime Safety: Provides illumination for showering in low-light conditions.

Image: Shows the portable shower in use with its integrated lighting, demonstrating its utility for night showers and as an independent light source.

Konserwacja

Czyszczenie filtra

The pump includes a built-in filter cotton to purify water. Regular cleaning of the filter is recommended to maintain optimal performance and water quality.

• Dostęp do filtra: Disconnect the pump from the battery and hose. Carefully open the pump housing to access the filter cotton.
• Czyszczenie: Rinse the filter cotton under clean running water. If heavily soiled, replace it with one of the spare filter cotton pieces provided.
• Ponowny montaż: Ensure the filter is properly seated before reassembling the pump housing.

Pielęgnacja baterii

• Stopień wodoodporności: The battery is waterproof against splashes. However, do not submerge the battery in water as this will cause damage.
• Składowanie: Przechowuj urządzenie w suchym miejscu, gdy nie jest używane.

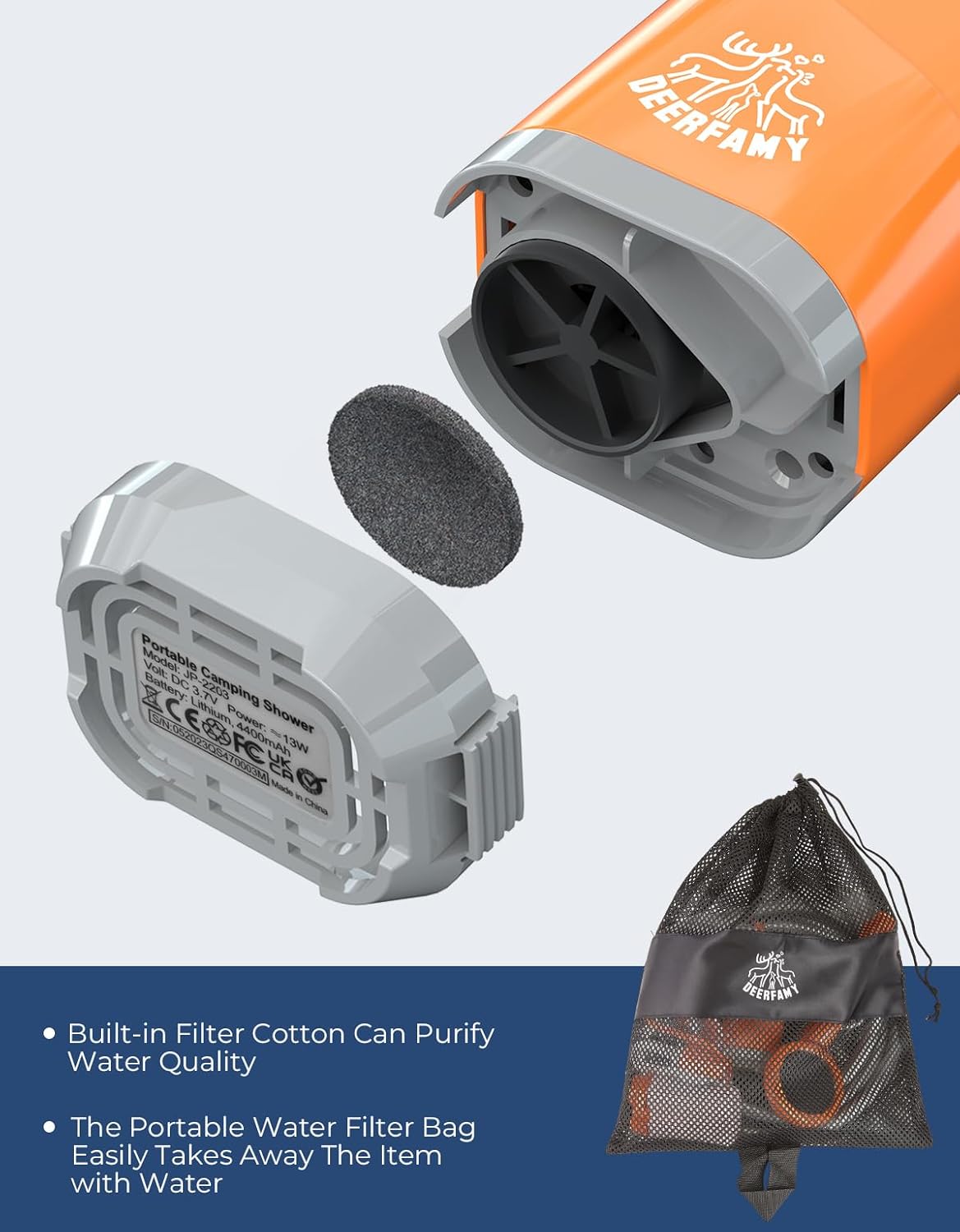

Image: Shows the built-in filter cotton being removed from the pump for cleaning or replacement, and the mesh storage bag for convenient transport.

Rozwiązywanie problemów

Specyfikacje

Gwarancja i wsparcie

DEERFAMY offers a two-year warranty for this product, ensuring zero risk. We also provide lifetime customer service for any inquiries or assistance you may need.

For support, please contact DEERFAMY customer service through the retailer's platform or the official DEERFAMY webstrona.
