RICHMAT HJM2 Massage Motor Replacement User Manual

Wstęp

This manual provides essential information for the installation, operation, and maintenance of your RICHMAT HJM2 Massage Motor Replacement. This motor is designed to replace existing Richmat massage motors in adjustable beds, compatible with both head and foot massage functions.

Przed instalacją i użyciem należy dokładnie przeczytać niniejszą instrukcję, aby zagwarantować prawidłowe działanie i bezpieczeństwo.

Informacje dotyczące bezpieczeństwa

• Always disconnect power to the adjustable bed before attempting any installation or maintenance.
• Ensure the replacement motor's connector matches your control box. This motor features a 2-pin round power connector. Do not attempt to use if your existing connector is white or of a different type.
• Podczas pracy trzymaj ręce i luźne ubrania z dala od ruchomych części.
• Do not expose the motor to excessive moisture or liquids.

Produkt ponadview

The RICHMAT HJM2 is a direct replacement massage motor for adjustable beds. It is designed for easy interchangeability, allowing it to replace either the head or foot massage motors. Its robust design ensures reliable performance.

Rycina 1: Przód view of the RICHMAT HJM2 Massage Motor, showing the main body and power cable.

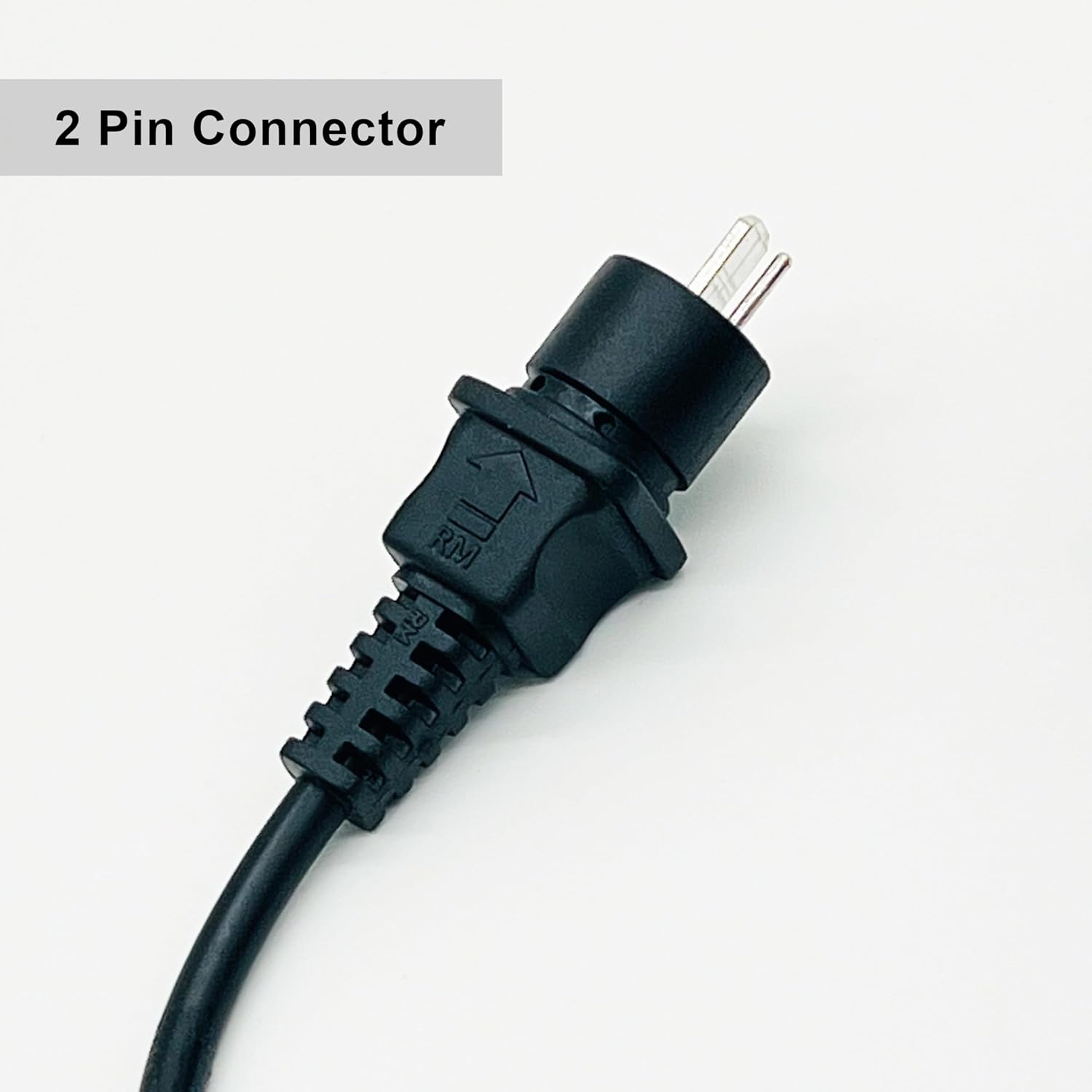

Rysunek 2: Zbliżenie view of the 2-pin round power connector, essential for verifying compatibility with your adjustable bed's control box.

Instalacja (konfiguracja)

The RICHMAT HJM2 massage motor is designed for simple, tool-free installation.

1. Odłącz zasilanie: Before beginning, ensure your adjustable bed is completely unplugged from the power outlet.
2. Locate Existing Motor: Identify the massage motor you wish to replace. It will typically be mounted to the bed frame.
3. Unplug Old Motor: Carefully unplug the power connector of the old massage motor from the bed's control box.
4. Usuń stary silnik: Detach the old motor from its mounting bracket. The RICHMAT HJM2 is designed to fit standard mounting points.
5. Zainstaluj nowy silnik: Secure the new RICHMAT HJM2 motor onto the existing mounting bracket.
6. Podłącz nowy silnik: Plug the 2-pin round power connector of the new motor into the corresponding port on your adjustable bed's control box. Ensure a firm connection.
7. Przywróć zasilanie: Once the new motor is securely installed and connected, plug your adjustable bed back into the power outlet.

Rysunek 3: Strona view of the motor, showing the mounting points for easy installation.

Działanie

After successful installation, the RICHMAT HJM2 massage motor operates in conjunction with your adjustable bed's existing remote control and control box.

• Włączanie: Ensure the adjustable bed is plugged into a functional power outlet.
• Aktywuj masaż: Use your bed's remote control to activate the massage function. The motor should begin to vibrate, providing the desired massage effect.
• Dostosuj ustawienia: If your bed's remote offers different massage intensities or patterns, adjust them as desired. The HJM2 motor will respond accordingly.

Konserwacja

The RICHMAT HJM2 massage motor is designed for minimal maintenance.

• Czyszczenie: Periodically wipe the exterior of the motor with a dry, soft cloth to remove dust. Do not use liquid cleaners or abrasive materials.
• Kontrola: Occasionally inspect the power cable and connector for any signs of wear, damage, or loose connections.
• Składowanie: If storing the motor, keep it in a dry, cool place away from direct sunlight and extreme temperatures.

Rozwiązywanie problemów

Specyfikacje

Figure 4: Approximate dimensions of the RICHMAT HJM2 Massage Motor.

Gwarancja i wsparcie

For information regarding warranty coverage or technical support, please refer to the original documentation provided with your adjustable bed or contact the manufacturer of your adjustable bed directly. As this is a replacement part, warranty terms may vary.
