CYSSJF Restaurant Paging System User Manual

Wstęp

This manual provides detailed instructions for the setup, operation, and maintenance of your CYSSJF Restaurant Paging System. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.

Produkt ponadview

The CYSSJF Restaurant Paging System is a wireless calling system designed to improve customer service and operational efficiency in various settings such as restaurants, food courts, coffee shops, and clinics. It consists of a keypad transmitter and multiple coaster pagers.

Image: The CYSSJF Restaurant Paging System, showing the keypad transmitter/charging base and multiple coaster pagers. The pagers are illuminated red, indicating they are charging.

Główne cechy:

• Duża pojemność: The keypad transmitter supports up to 999 pagers.
• Duża odległość transmisji: Up to 150-200ft indoors, and approximately 500ft in barrier-free environments (based on 433.92MHz frequency).
• Wiele trybów alertów: 8 call modes including vibration, sound, and light, or combinations thereof.
• Łatwy w użyciu: Pagers are pre-configured and ready for use.
• Skalowalny: Supports multiple transmitters with the same ID to call the same guest pager, and one keyboard can call many pagers simultaneously.

Organizować coś

1. Rozpakuj komponenty: Carefully remove all components from the packaging. Ensure you have the keypad transmitter/charging base, 20 coaster pagers, and the power adapter.
2. Podłącz zasilanie: Plug the DC5V power adapter into the keypad transmitter/charging base and then into a standard electrical outlet.
3. Pagery do opłat: Place all coaster pagers into the charging slots on the keypad transmitter. The red light on the pagers will indicate charging. Ensure all pagers are fully charged before first use.
4. Initial Configuration (Pre-set): The pagers are typically pre-set with registration numbers 1 to 20. No initial setup is usually required for basic operation.

Image: Coaster pagers placed in the charging base, with red indicator lights showing they are receiving power.

Instrukcja obsługi

Basic Operation Flow:

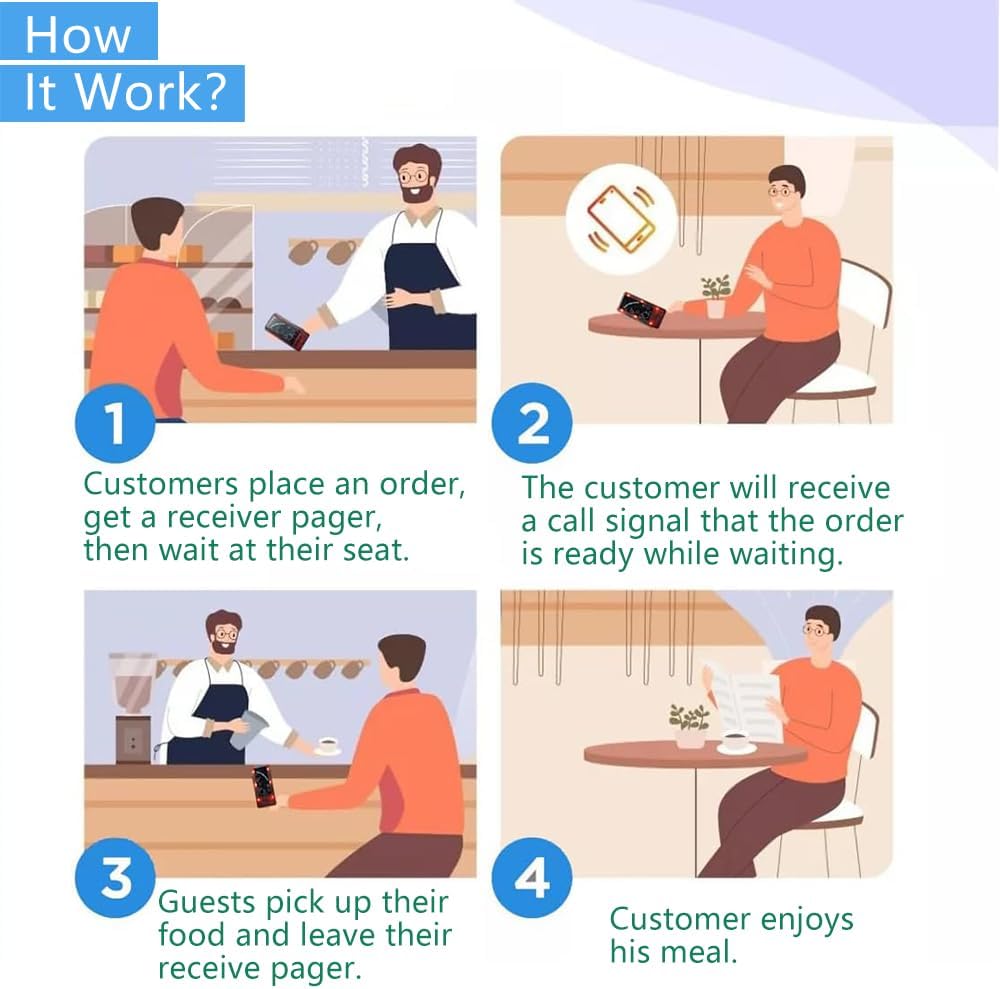

Image: A four-panel diagram illustrating the customer paging process. 1. Customer places an order and receives a pager. 2. Customer waits and receives a call signal when the order is ready. 3. Customer picks up food and returns the pager. 4. Customer enjoys their meal.

1. Registering Pager Numbers (If needed):

The pagers are typically pre-registered. If you need to register new pagers or change numbers:

1. Naciśnij ZABAWA key on the keypad transmitter.
2. Enter the desired 3-digit number (000-999) for the pager.
3. Place the pager on the charging base. The pager will register the new number.

2. Calling a Pager:

1. Upewnij się, że pager jest włączony i znajduje się w zasięgu.
2. On the keypad transmitter, enter the 3-digit number of the pager you wish to call.
3. Naciśnij DZWONIĆ key. The pager will activate with its set alert mode (vibration, sound, or flash).
4. The keypad has a "+1" function to quickly call the next sequential number.

3. Stopping a Pager Call:

There are three methods to stop a pager call:

• Powrót do bazy: Place the activated pager back onto any charging slot on the keypad transmitter. The call will automatically stop.
• Manual Stop from Keypad: On the keypad, enter the pager number and then press the F2 klawisz.
• Manual Stop from Pager: Press any key on the pager itself to stop the alert.

4. Turning Pagers On/Off:

To turn a pager on or off, long-press the ZABAWA button on the pager itself.

5. Quick Shutdown Function:

To quickly shut down all pagers after a day's work, press "111+Call" and then "999+Call" sequentially on the keypad transmitter. All pagers will power off.

6. Changing Alert Modes:

The system offers 8 call modes, including various combinations of flash, vibration, and beep, plus a silent (sourdine) mode.

Image: A visual representation of the 8 available alert modes for the pagers. These modes combine flashing lights, vibration, and beeping sounds, with one mode being silent (sourdine).

Refer to the specific instructions provided with your product for details on how to switch between these modes, as this may vary.

Konserwacja

• Czyszczenie: Use a soft, dry cloth to clean the keypad transmitter and pagers. Avoid using abrasive cleaners or solvents.
• Ładowanie: Always return pagers to the charging base when not in use to ensure they are ready for the next service period.
• Pielęgnacja baterii: The pagers contain built-in 3.7V polymer lithium batteries. Avoid extreme temperatures and prolonged exposure to direct sunlight.
• Składowanie: Jeśli system nie będzie używany przez dłuższy czas, należy go przechowywać w chłodnym i suchym miejscu.

Rozwiązywanie problemów

Image: An illustration demonstrating the effective transmission range of the paging system. It shows a range of 500ft in open, unobstructed areas and a reduced range of 150-200ft indoors due to walls and other barriers.

Specyfikacje

Gwarancja i wsparcie

For warranty information and technical support, please refer to the contact details provided by your retailer or visit the official CYSSJF webstrona. Zachowaj dowód zakupu na potrzeby roszczeń gwarancyjnych.

Manufacturer: Quanzhou Shuojiang Electronic Commerce Co., Ltd.
