TOTEDELL XR950 Carburetor Instruction Manual

1. Ważne informacje dotyczące bezpieczeństwa

Read and understand all safety instructions before installation or operation. Failure to follow these instructions may result in serious injury or property damage.

• Always wear appropriate personal protective equipment, including safety glasses and gloves, when working with fuel systems and engine components.
• Ensure the engine is cool and the spark plug wire is disconnected before performing any maintenance or installation.
• Work in a well-ventilated area. Gasoline and its vapors are highly flammable and explosive.
• Trzymaj otwarty ogień, iskry i inne źródła zapłonu z dala od miejsca pracy.
• Properly dispose of old fuel and engine fluids according to local regulations.

2. Zawartość opakowania

Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:

• 1 x XR950 Carburetor
• 1 x Filtr powietrza
• 1 x Filtr paliwa
• 1 x świeca zapłonowa
• Gaskets (various sizes for installation)

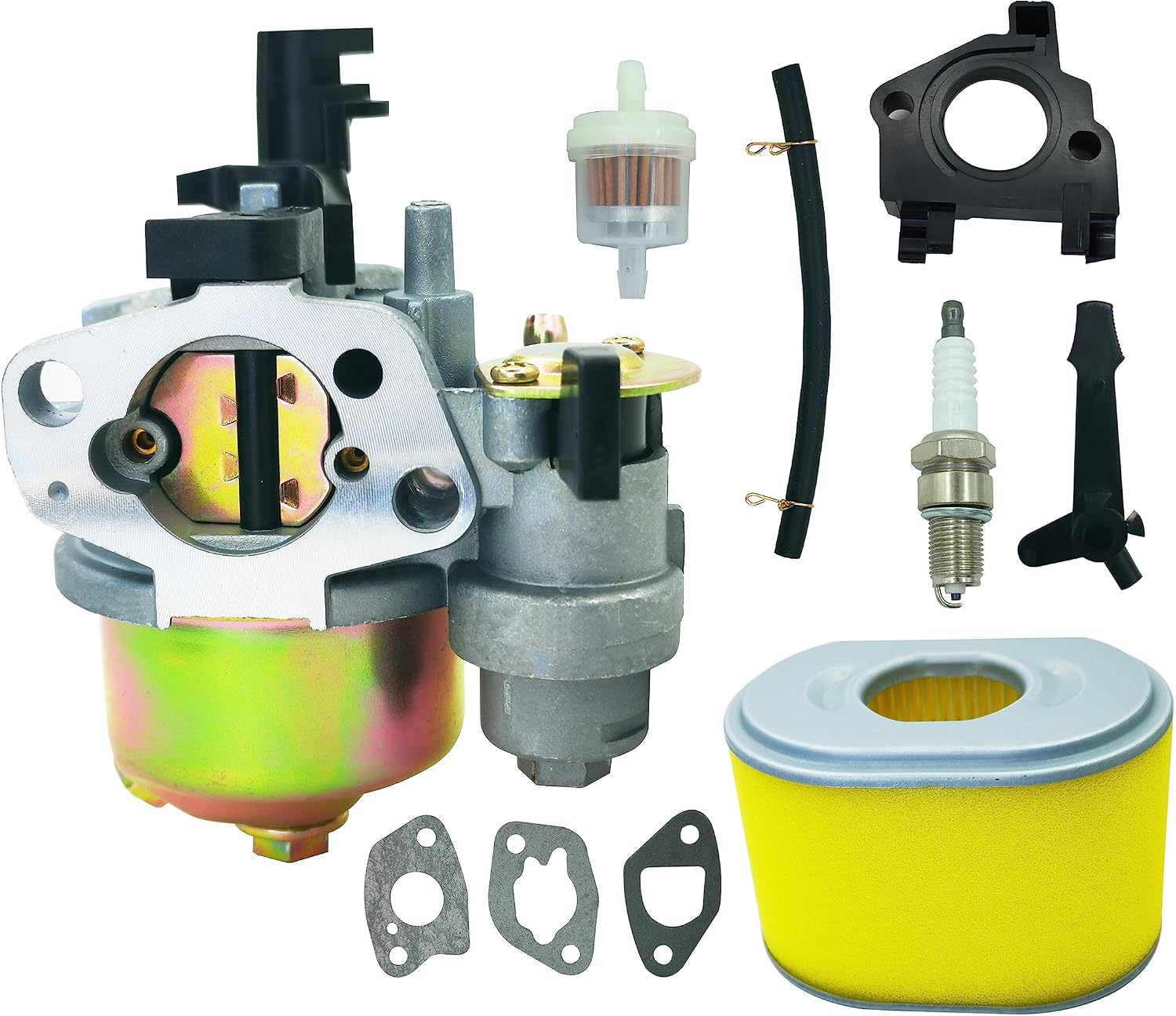

Figure 2.1: Complete XR950 Carburetor Kit. This image displays all components included in the package: the carburetor unit, an air filter, a fuel filter, a spark plug, and a set of gaskets.

3. Koniec produktuview

The TOTEDELL XR950 Carburetor is designed as a replacement part for Briggs & Stratton 208cc 950 series engines, specifically model 130G32. It is responsible for mixing air and fuel in the correct ratio for combustion.

Rycina 3.1: Przód view of the XR950 Carburetor. This image shows the main body of the carburetor, including the air intake and fuel inlet.

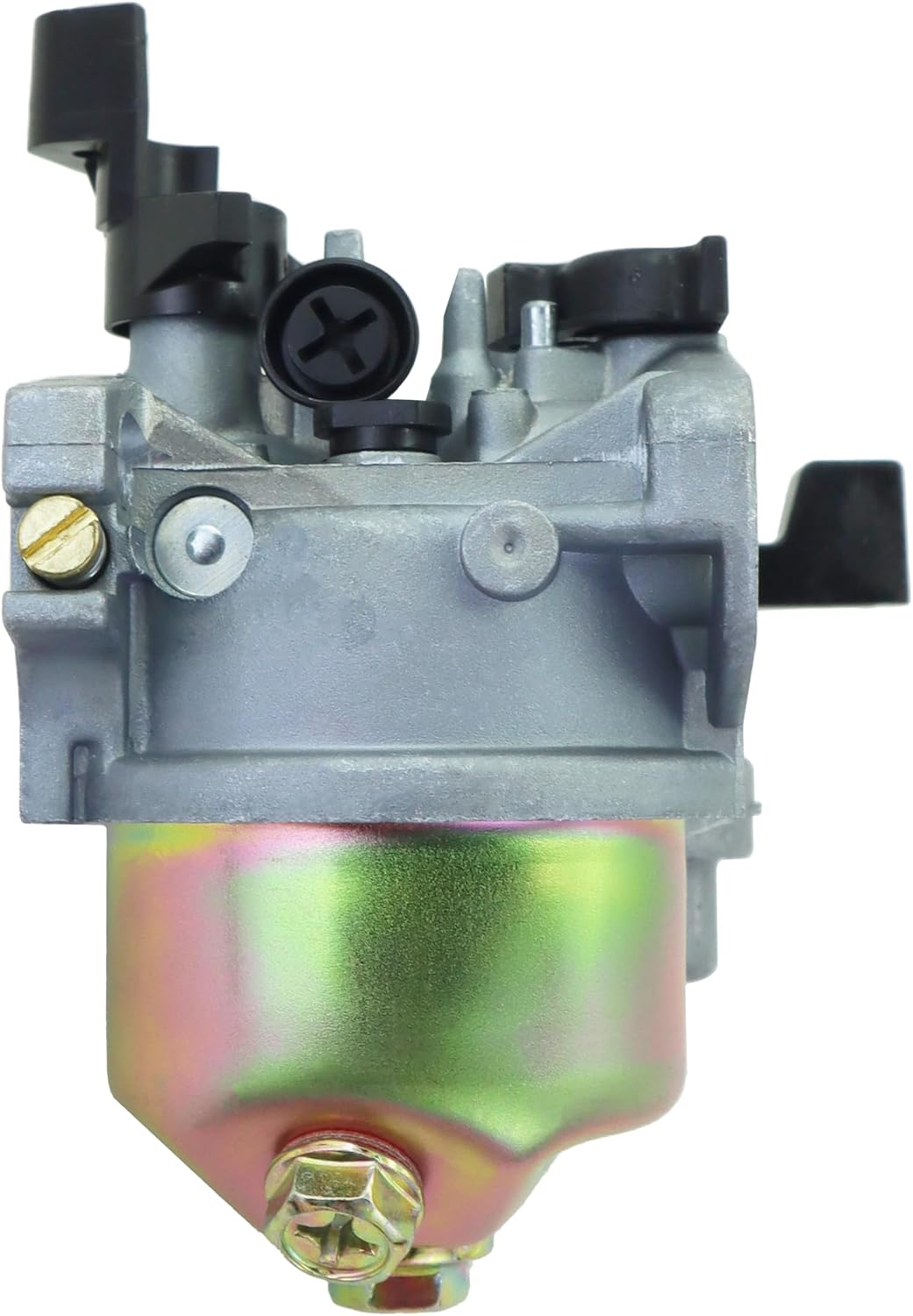

Rysunek 3.2: Strona view of the XR950 Carburetor. This perspective highlights the fuel bowl and various adjustment points.

4. Instrukcje instalacji (konfiguracja)

This section provides general guidance for replacing a carburetor. Specific steps may vary depending on your engine model. Refer to your engine's service manual for detailed instructions.

4.1. Przygotowanie

1. Ensure the engine is turned off and cool to the touch.
2. Odłącz przewód świecy zapłonowej, aby zapobiec przypadkowemu uruchomieniu.
3. Turn off the fuel supply valve, if equipped.
4. Place a suitable container under the carburetor to catch any draining fuel.
5. Carefully drain the fuel tank or pinch off the fuel line to prevent fuel leakage.

4.2. Removal of Old Carburetor

1. Remove the air filter housing and air filter.
2. Odłącz przewód paliwowy od gaźnika.
3. Carefully detach any throttle linkage, choke linkage, and governor springs connected to the carburetor. Note their positions for reassembly.
4. Unbolt the carburetor from the engine manifold. Remove any old gaskets.

4.3. Installation of New Carburetor

1. Oczyść powierzchnie montażowe kolektora silnika.
2. Install new gaskets between the carburetor and the engine manifold.
3. Mount the new XR950 Carburetor onto the engine, ensuring proper alignment. Secure with bolts, tightening them evenly.
4. Reconnect the throttle linkage, choke linkage, and governor springs to their original positions.
5. Install the new fuel filter in the fuel line, ensuring the flow direction is correct.
6. Reconnect the fuel line to the carburetor.
7. Replace the old spark plug with the new one provided.
8. Install the new air filter into the air filter housing, then reattach the housing.

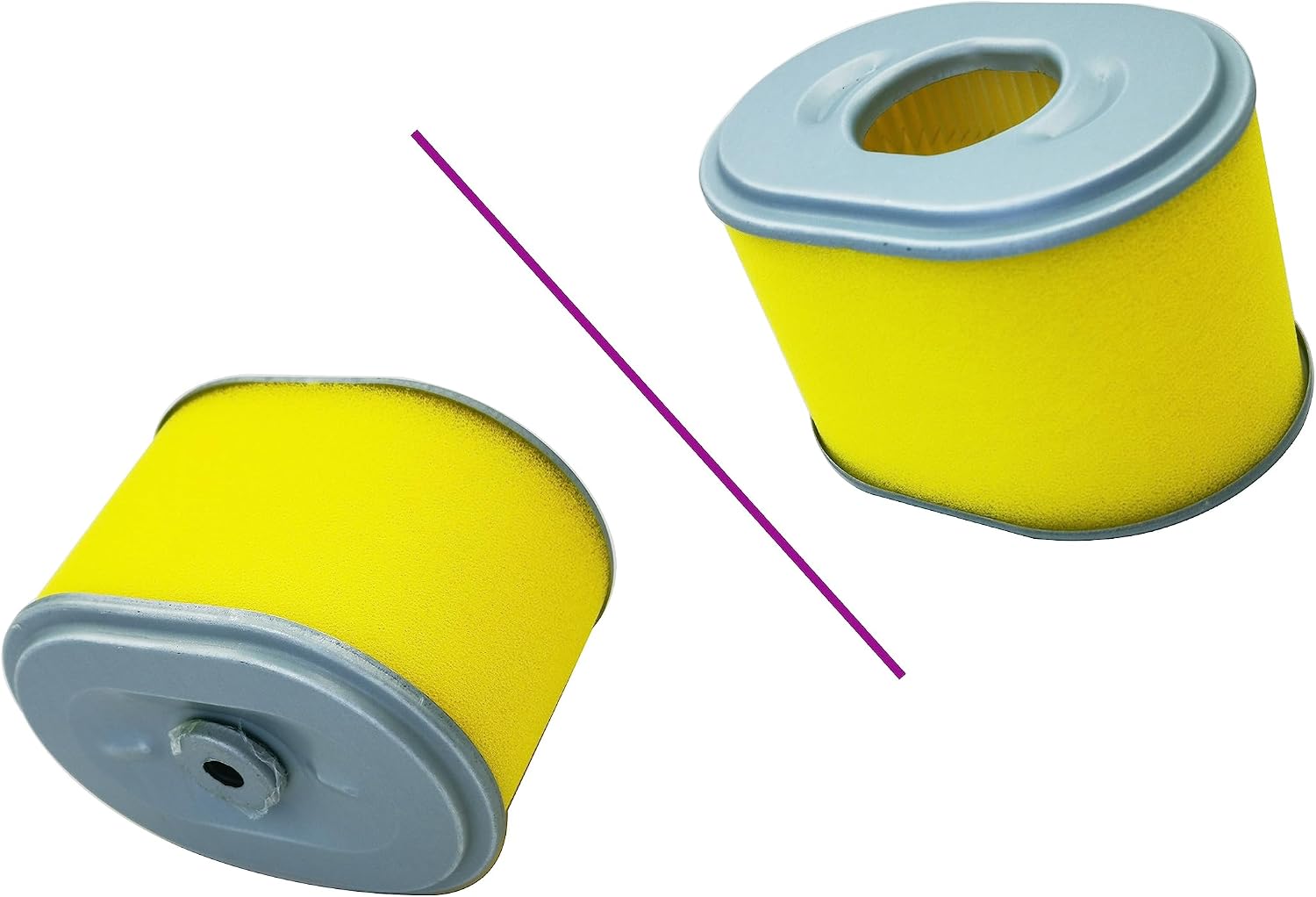

Figure 4.1: The included air filter. This component is crucial for protecting the engine from dust and debris.

4.4. Po instalacji

1. Otwórz zawór dopływu paliwa.
2. Sprawdź szczelność wszystkich połączeń.
3. Podłącz ponownie przewód świecy zapłonowej.

5. Instrukcja obsługi

After successful installation, the engine should start and run smoothly. Follow your engine manufacturer's specific starting procedures.

• Ensure the fuel tank contains fresh, clean gasoline.
• Engage the choke if starting a cold engine.
• Pull the starter cord or engage the electric starter.
• Po uruchomieniu silnika należy stopniowo wyłączać ssanie w miarę nagrzewania się silnika.
• Allow the engine to warm up for a few minutes before applying load.

6. Konserwacja

Regular maintenance ensures optimal performance and extends the life of your engine and carburetor.

6.1. Konserwacja filtra powietrza

• Inspect the air filter regularly (e.g., every 25 operating hours or annually).
• Clean or replace the air filter if it appears dirty or clogged. A clogged air filter can lead to poor engine performance and increased fuel consumption.

6.2. Konserwacja układu paliwowego

• Replace the fuel filter annually or if fuel flow is restricted.
• Use fresh, clean gasoline. Stale fuel can cause carburetor issues.
• Consider using a fuel stabilizer if the engine will be stored for an extended period.

6.3. Konserwacja świec zapłonowych

• Inspect the spark plug annually or every 100 operating hours.
• Clean or replace the spark plug if it is fouled, worn, or damaged. Ensure the gap is set correctly according to engine specifications.

7. Rozwiązywanie Problemów

This section addresses common issues you might encounter after carburetor installation.

If issues persist after attempting these solutions, it is recommended to consult a qualified service technician or refer to your engine's specific service manual.

8. Specyfikacje

9. Informacje o gwarancji

This product is covered by a manufacturer's warranty.

• Okres gwarancji: 180 days after date of purchase.
• This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized repairs.
• Zachowaj dowód zakupu na potrzeby roszczeń gwarancyjnych.

10. Obsługa klienta

For technical assistance, questions regarding installation, or warranty claims, please contact TOTEDELL customer support through the retailer where the product was purchased.

Kontaktując się z pomocą techniczną, przygotuj następujące informacje:

• Product Model Number: XR950
• Data zakupu
• opis problemu
