YZONA Front Bumper Bull Bar with Winch Frame Plate & D-Rings Instruction Manual

1. Wprowadzenie

This manual provides detailed instructions for the installation, operation, and maintenance of your YZONA Front Bumper Bull Bar. This accessory is designed to enhance the front-end protection of your vehicle and provide mounting points for a winch and D-rings. Please read these instructions carefully before beginning installation to ensure proper fitment and safe use.

2. Zgodność

This YZONA Front Bumper Bull Bar is compatible with the following vehicles:

• 2021-2023 Ford Bronco 2 Door models
• 2021-2023 Ford Bronco 4 Door models

Ważny: This product is designed to fit only vehicles equipped with the original modular steel front bumper. To jest niekompatybilny with the Ford Bronco Sport or other bumper types.

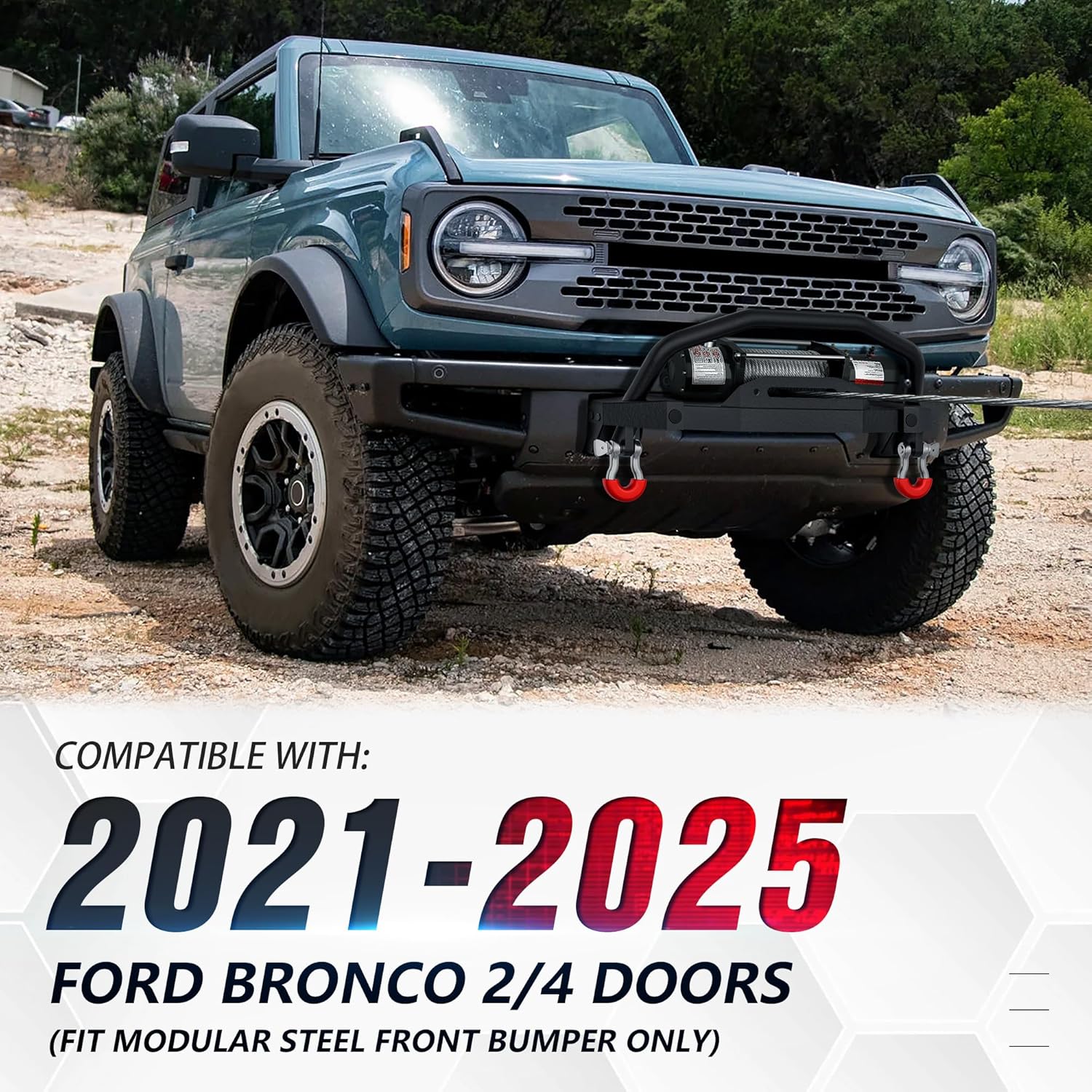

Image 2.1: The YZONA Bull Bar installed on a Ford Bronco, illustrating its compatibility with 2021-2025 Ford Bronco 2/4 Door models equipped with the modular steel front bumper.

3. Funkcje produktu

The YZONA Front Bumper Bull Bar is constructed with durability and functionality in mind. Key features include:

• Solidna konstrukcja stalowa: Manufactured from heavy-duty carbon steel for maximum protection and longevity.
• Trwałe wykończenie: Features a two-step textured black powder coating with an electro-galvanized E-coating layer for enhanced protection against rust and wear.
• Zintegrowana płyta wyciągarki: Includes a built-in winch plate capable of supporting winches up to 12,000 lbs.
• D-Ring Mounts: Equipped with mounting points for 9,500-pound-rated D-rings (D-rings included).
• Auxiliary Light Mounts: Designed with provisions for mounting additional off-road lights.

Image 3.1: Illustration of the bull bar's key features, including mounting points for off-road lights, the integrated winch plate with dimensions (10" x 4.5"), and the included 9,500-pound-rated D-rings.

Rysunek 3.2: Przekrój poprzeczny view detailing the multi-layer material construction, featuring a powder-coated surface over an electro-galvanized E-coating, applied to carbon steel for enhanced durability and corrosion resistance.

4. Instalacja

The installation of the YZONA Front Bumper Bull Bar is designed to be straightforward and requires no modifications to your vehicle. It is a direct bolt-on application.

4.1 Wymagane narzędzia (nie wchodzą w skład zestawu)

• Zestaw kluczy
• Zestaw nasadek
• Klucz dynamometryczny (zalecany do prawidłowego dokręcania elementów złącznych)

4.2 Kroki instalacji

1. Przygotuj pojazd: Park your Ford Bronco on a level surface and engage the parking brake. Ensure the engine is off and cool.
2. Zlokalizuj punkty montażowe: Identify the existing mounting points on your vehicle's modular steel front bumper. These are typically pre-drilled holes designed for accessories.
3. Position Bull Bar: Carefully lift the YZONA Bull Bar into position, aligning its mounting holes with the vehicle's existing bumper holes. It may be helpful to have a second person assist with this step.
4. Zabezpiecz sprzętowo: Use the provided bolts and washers (4 bolts, 4 flat washers, 4 lock washers) to attach the bull bar to the bumper. Start all bolts by hand to prevent cross-threading.
5. Dokręć elementy złączne: Once all bolts are started, progressively tighten them using appropriate tools. Refer to your vehicle's service manual for recommended torque specifications for bumper accessory attachments, if available. Ensure all fasteners are securely tightened.
6. Kontrola końcowa: Verify that the bull bar is securely mounted and does not wobble. Check for any obstructions or interference with other vehicle components.

Image 4.1: Visual guide demonstrating the straightforward installation process, highlighting the use of existing vehicle screws for mounting the bull bar.

Obraz 4.2: Koniecview of the bull bar's dimensions and the included installation hardware, consisting of four bolts, four flat washers, and four lock washers.

5. Zagadnienia operacyjne

While the bull bar itself does not have operational components, consider the following when using accessories mounted to it:

• Winch Usage: If a winch is installed, always follow the winch manufacturer's instructions for safe operation. Ensure the winch is properly secured to the bull bar's winch plate and rated within the bull bar's capacity (up to 12,000 lbs).
• D-Ring Usage: Use the D-rings for recovery operations only. Ensure tow straps or recovery ropes are properly attached and rated for the load. Avoid sudden jerking motions during recovery.
• Światła dodatkowe: If auxiliary lights are installed, ensure they are wired correctly and do not interfere with vehicle's existing lighting or electrical systems.

6. Konserwacja

Regular maintenance will help preserve the appearance and functionality of your YZONA Front Bumper Bull Bar.

• Czyszczenie: Wash the bull bar regularly with mild automotive soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coat finish.
• Kontrola: Periodically inspect all mounting bolts and fasteners to ensure they remain tight. Re-tighten if necessary. Check the bull bar for any signs of damage, rust, or wear, especially after off-road use.
• Pielęgnacja wykończenia: The durable black anti-rust finish is designed for longevity. If minor scratches or chips occur, touch-up paint designed for powder-coated surfaces can be used to prevent rust.

7. Rozwiązywanie Problemów

W tej sekcji omówiono typowe problemy, na które możesz natrafić.

7.1 Problemy z instalacją

• Trudności w ustawianiu otworów: Ensure the bull bar is correctly oriented. Slight adjustments may be needed to align all mounting points. Do not force bolts.
• Luźne dopasowanie po montażu: Re-check all fasteners. Ensure they are tightened to the appropriate torque specifications. Over time, vibrations can loosen bolts, so periodic checks are important.

7.2 General Concerns

• Plamy rdzy: While the bull bar has an anti-rust coating, prolonged exposure to harsh elements or physical damage to the coating can lead to rust. Clean affected areas and apply rust-inhibiting primer and paint as needed.
• Nietypowe dźwięki: If you hear rattling or other unusual noises, inspect all mounting points and any attached accessories (winch, lights, D-rings) to ensure they are secure.

8. Specyfikacje

9. Gwarancja i obsługa klienta

YZONA provides comprehensive support for its products:

• Gwarancja: Produkt objęty jest 2-letnią gwarancją liczoną od daty zakupu.
• Obsługa klienta: Lifetime customer support is available for any questions or concerns regarding installation, operation, or product issues. Please refer to your purchase documentation for contact information.
