SHARK LA455 Rotator Upright Vacuum User Manual

1. Koniec produktuview

The Shark LA455 Rotator Upright Vacuum is designed for powerful and efficient cleaning across various floor types. With its advanced technology and sleek design, it delivers exceptional performance on both carpets and hard floors. Equipped with a high-performance motor, it effortlessly captures dust, dirt, and debris, leaving your surfaces spotless.

The convenient Lift-Away design allows for versatile cleaning, enabling you to easily clean hard-to-reach areas, stairs, and furniture. Its innovative swivel steering ensures comfortable maneuverability around obstacles. The vacuum also features a self-cleaning brushroll for effective pet hair pickup and an Anti-Allergen Complete Seal Technology with a HEPA filter to trap dust and allergens.

Główne cechy:

• DuoClean PowerFins: A PowerFin roller and a soft roller combine on every floor for continuous cleaning contact, digging deep into carpets and directly connecting with hard floors.
• Samooczyszczająca się szczotka: Designed for powerful collection of pet hair without hair wrap.
• Technologia Lift-Away: Detachable capsule allows for easy cleaning of stairs, furniture, and elevated areas.
• Technologia pełnego uszczelnienia antyalergicznego + filtr HEPA: Zatrzymuje 99.9% kurzu i alergenów wewnątrz odkurzacza.
• Zaawansowany układ kierowniczy z funkcją obrotu: Easily maneuver your vacuum in and out of tight spaces and around furniture.
• Mocne reflektory LED: Located on the nozzle to reveal hidden debris.

The Shark LA455 Rotator Upright Vacuum, showcasing jego ogólnego projektu.

The DuoClean PowerFins system effectively cleans both carpets and hard floors.

Anatomy of the Shark Rotator Lift-Away Vacuum, highlighting its key components and technologies.

The Anti-Allergen Complete Seal system ensures dust and allergens are contained within the vacuum.

2. Instalacja i montaż

Your Shark LA455 vacuum requires minimal assembly before first use. Ensure all components are present and undamaged upon unboxing.

1. Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania.
2. Attach Pod to Floor Nozzle: Align the pod with the floor nozzle and slide it down until it clicks securely into place.
3. Insert Wand into Pod: Insert the extension wand into the top of the pod until it clicks.
4. Attach Handle to Wand: Przesuń uchwyt na górę przedłużki, aż usłyszysz kliknięcie.
5. Podłącz wąż: Podłącz wąż do tylnej części pojemnika odkurzacza, wpychając go aż do kliknięcia.
6. Sklep z akcesoriami: Attach any included accessories to the on-board storage posts.

Once assembled, ensure the power cord is securely plugged into a grounded outlet before operation.

3. Instrukcja obsługi

The Shark LA455 offers versatile cleaning modes for different surfaces.

Ustawienia zasilania i powierzchni:

The power switch is located on the top of the pod. It has three settings:

• OFF: Wyłącza odkurzacz.
• Setting 1 (Hard Floor): Provides gentle cleaning for hard floors. The brushrolls spin slowly.
• Setting 2 (Carpet): Provides powerful deep cleaning for carpets. The brushrolls spin faster.

An indicator light on the floor nozzle will illuminate green when the brushroll is active and working correctly.

Korzystanie z trybu Lift-Away:

For portable cleaning, detach the pod from the floor nozzle:

1. Step on the red "Lift-Away" pedal located on the side of the floor nozzle.
2. Pull the pod upwards to detach it from the floor nozzle.
3. To use the wand for extended reach, press the gray "Wand Release" button on the top of the pod and pull the wand out.
4. Attach desired cleaning accessories (e.g., crevice tool, pet power brush) to the end of the wand or directly to the handle.

Cleaning stairs efficiently with the detachable Lift-Away pod.

Effective pet hair pickup from upholstery using the Lift-Away feature and specialized tool.

Reaching high areas for cleaning with the extended wand in Lift-Away mode.

Obrotowy układ kierowniczy:

The advanced swivel steering allows for easy navigation around furniture and obstacles. Simply twist the handle to steer the vacuum in the desired direction.

4. Konserwacja i czyszczenie

Regular maintenance ensures optimal performance of your Shark LA455 vacuum.

Opróżnianie pojemnika na kurz:

Opróżniaj pojemnik na kurz po każdym użyciu lub gdy zanieczyszczenia osiągną linię MAX FILL.

1. Sprawdź, czy odkurzacz jest odłączony od zasilania.
2. Press the gray "Dust Cup Release" button on the side of the pod and lift the dust cup away.
3. Hold the dust cup over a trash bin. Press the bottom release latch to open the bottom flap and empty debris.
4. If necessary, press the top release latch to open the top flap for thorough cleaning.
5. Close both flaps securely before placing the dust cup back onto the pod.

Czyszczenie filtrów:

The Shark LA455 features washable filters. Rinse filters with cold water only and allow them to air-dry completely for at least 24 hours before reinstalling.

• Filtry przedsilnikowe (piankowe i filcowe): Znajduje się w pojemniku na kurz. Płucz co 3 miesiące.
• Filtr HEPA za silnikiem: Located at the base of the vacuum. Rinse once a year.

Samooczyszczająca się szczotka:

The self-cleaning brushroll is designed to prevent hair wrap. If any debris or hair remains, carefully remove it using scissors or by hand while the vacuum is unplugged.

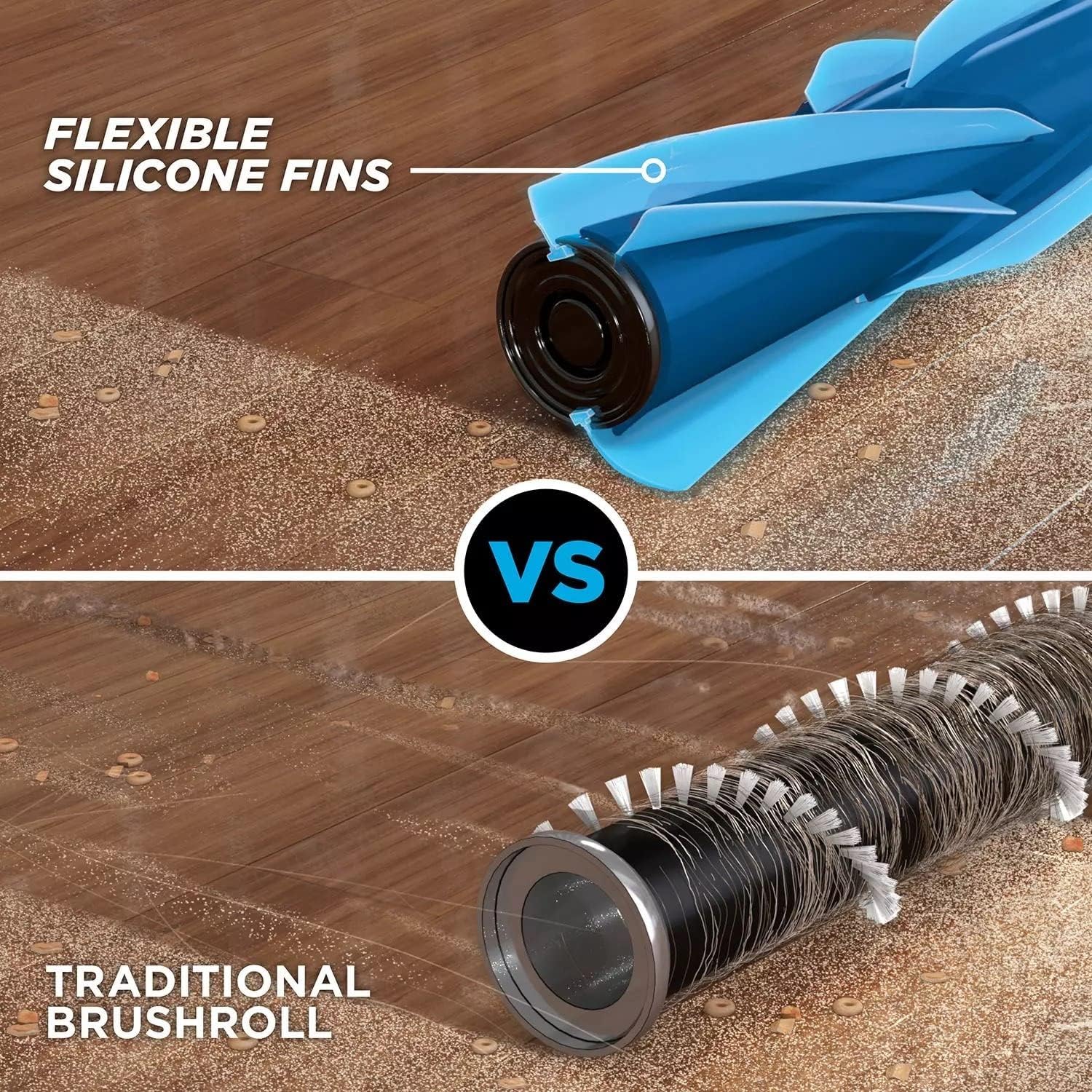

Illustration of the flexible silicone fins on the self-cleaning brushroll, designed to prevent hair wrap.

5. Specyfikacje produktu

6. Rozwiązywanie Problemów

If you encounter issues with your Shark LA455, refer to the common problems and solutions below:

No Power / Vacuum Not Turning On:

• Sprawdź, czy przewód zasilający jest prawidłowo podłączony do sprawnego gniazdka elektrycznego.
• Sprawdź, czy wyłącznik zasilania jest w pozycji „ON”.
• Check your household circuit breaker if other electrical devices are not working.

Utrata ssania:

• Jeśli pojemnik na kurz jest pełny, opróżnij go.
• Check and clean all filters (pre-motor and HEPA) as described in the Maintenance section. Ensure they are completely dry before reinstallation.
• Inspect the hose, wand, and accessory connections for blockages.
• Check the floor nozzle for blockages or debris in the brushroll area.

Wałek szczotkowy się nie obraca:

• Ensure the vacuum is powered on and the surface setting is appropriate (Setting 1 or 2).
• Check the brushroll area for any obstructions, such as tangled hair or large debris. Remove any blockages.
• Ensure the floor nozzle is properly attached to the main unit.

7. Gwarancja i wsparcie

For warranty information, product registration, or further technical support, please visit the official Shark webOdwiedź witrynę lub skontaktuj się z działem obsługi klienta. Zachowaj paragon jako dowód zakupu na wypadek reklamacji.

Wsparcie online: Odwiedzać www.sharkclean.com

Obsługa klienta: Zapoznaj się z opakowaniem produktu lub oficjalnym webstrona z numerami kontaktowymi i godzinami otwarcia.
