Zündapp E-Bike Front Wheel with Ananda M129F Hub Motor User Manual

1. Wprowadzenie

This manual provides essential information for the proper installation, safe operation, and routine maintenance of your Zündapp electric bicycle front wheel. This front wheel is designed for Zündapp Green 2.7, Z502, Z503, Z510, and Z517 electric city bikes with 28-inch wheels. It features an integrated Ananda M129F hub motor. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

2. Informacje dotyczące bezpieczeństwa

• Always wear a helmet when riding an electric bicycle.
• Przed każdą jazdą upewnij się, że wszystkie elementy są solidnie zamocowane.
• Regularly inspect the wheel, spokes, motor cable, and brakes for any signs of wear or damage.
• Do not attempt to modify the motor or electrical system, as this may void the warranty and pose safety risks.
• Podczas pracy trzymaj ręce i ubranie z dala od ruchomych części.
• Jeśli nie jesteś pewien co do procedur montażu lub konserwacji, skonsultuj się z wykwalifikowanym mechanikiem rowerowym.

3. Zawartość opakowania

Sprawdź, czy po rozpakowaniu wszystkie elementy są obecne i nieuszkodzone:

• 1x Zündapp 28-inch Front Wheel with Ananda M129F Hub Motor

Note: Additional components such as tires, inner tubes, and quick-release skewers or axle nuts are typically sold separately or are part of your existing bicycle.

4. Konfiguracja i instalacja

This section outlines the general steps for installing your new front wheel. Professional installation is recommended.

4.1 Sprawdzenie zgodności

• Ensure your bicycle is one of the compatible Zündapp models: Green 2.7, Z502, Z503, Z510, or Z517.
• Confirm your bicycle uses 28-inch (700c) wheels.
• Verify your bicycle's braking system is compatible with V-brakes or rim brakes.

4.2 Preparing the Wheel

1. If not already installed, mount your tire and inner tube onto the rim. Ensure the tire is seated correctly and inflated to the recommended pressure.
2. If using rim brakes, ensure the braking surface of the rim is clean and free of grease.

Obraz 1: Przód view of the Zündapp 28-inch E-Bike Front Wheel with Ananda M129F Hub Motor.

4.3 Installing the Wheel onto the Bicycle

1. Carefully remove your existing front wheel, if applicable.
2. Position the new front wheel into the bicycle's front fork dropouts. Ensure the motor axle is fully seated.
3. Secure the wheel using the appropriate axle nuts or quick-release mechanism. Tighten securely according to your bicycle's specifications.
4. Align the brake pads with the rim's braking surface. Adjust the brakes as necessary to ensure proper function and clearance.

Obraz 2: Bok view of the Zündapp 28-inch E-Bike Front Wheel, showing the hub motor and spokes.

4.4 Connecting the Motor Cable

1. Locate the 9-pin connector cable extending from the hub motor.
2. Connect this cable to the corresponding 9-pin connector on your e-bike's wiring harness. Ensure the connection is firm and secure.
3. Route the cable safely along the bicycle frame, securing it with cable ties to prevent it from snagging or interfering with moving parts.

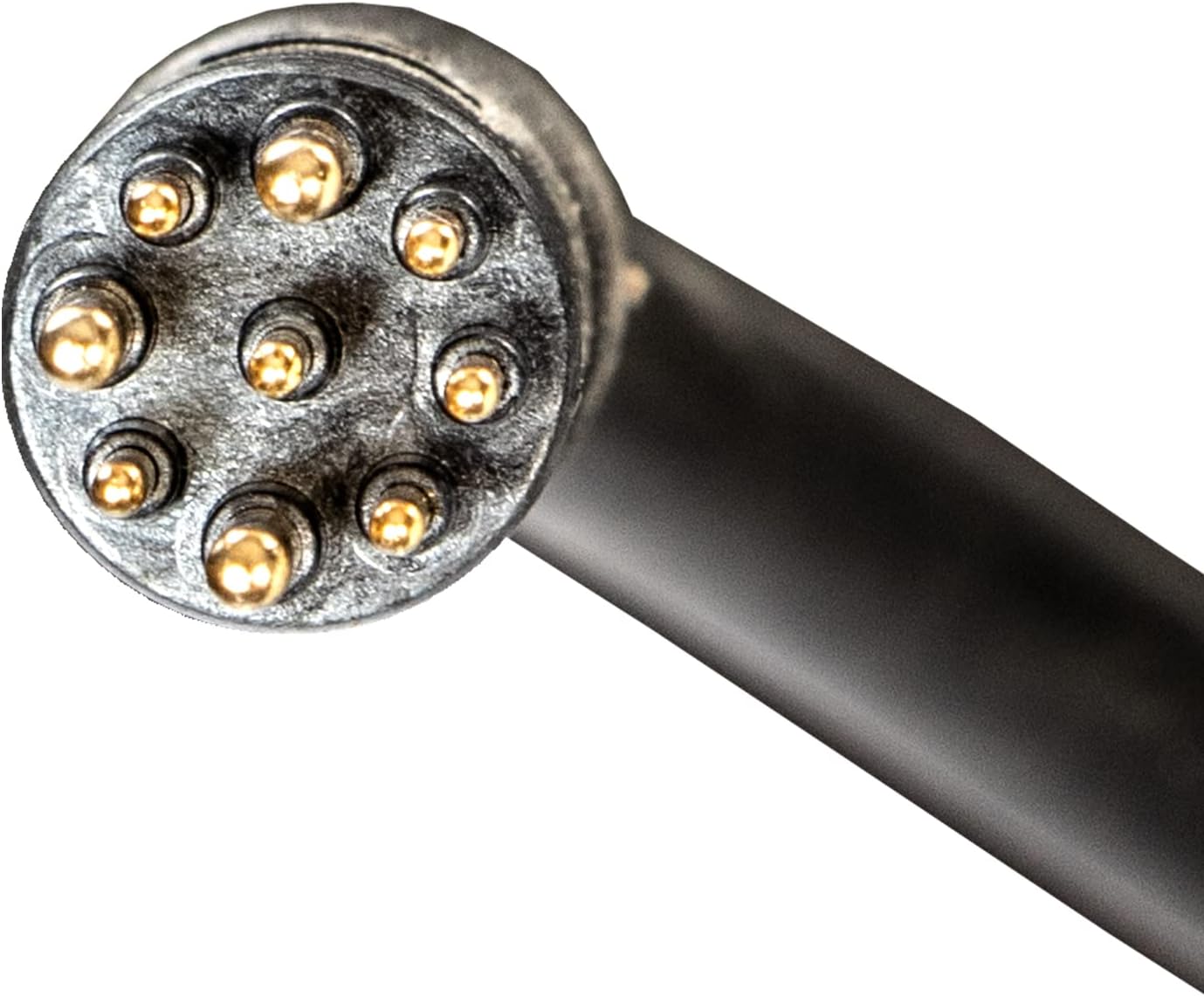

Obraz 3: Zbliżenie view of the 9-pin connector for the Ananda M129F Hub Motor.

5. Instrukcja obsługi

Once the front wheel is installed and connected, the e-bike's motor system will operate as designed. Refer to your main e-bike manual for specific instructions on:

• Turning the e-bike system on and off.
• Selecting pedal assist levels.
• Monitoring battery life and speed.

The Ananda M129F hub motor provides assistance based on your pedaling input, enhancing your riding experience.

6. Konserwacja

Regular maintenance ensures the longevity and safe operation of your front wheel and motor.

• Czyszczenie: Keep the wheel, rim, and motor housing clean. Use a damp cloth to wipe away dirt and grime. Avoid high-pressure washing directly on the motor or electrical connections.
• Napięcie mówienia: Periodically check the tension of the spokes. Uneven or loose spokes can affect wheel integrity and ride quality. If you notice loose spokes, have them adjusted by a professional.
• Ciśnienie w oponach: Maintain correct tire pressure as indicated on your tire's sidewall.
• Hamulce: Ensure brake pads are not excessively worn and are properly aligned with the rim.
• Kontrola kabla: Check the motor cable for any signs of fraying, cuts, or damage. Ensure the connector remains clean and dry.
• Axle Nuts/Quick Release: Confirm that the axle nuts or quick-release lever are securely tightened before each ride.

7. Rozwiązywanie Problemów

If you encounter issues with your front wheel or motor, consider the following common troubleshooting steps:

• Motor Not Providing Assistance:
  • Sprawdź, czy system roweru elektrycznego jest włączony.
  • Ensure the motor cable is securely connected.
  • Sprawdź, czy bateria jest wystarczająco naładowana.
  • Check for any error codes on your e-bike's display.
• Unusual Noises from Wheel/Motor:
  • Inspect for loose spokes.
  • Check for foreign objects caught in the wheel or motor area.
  • Ensure brake pads are not rubbing against the rim or rotor.
• Brake Ineffectiveness:
  • Adjust brake cable tension.
  • Clean the rim's braking surface.
  • Replace worn brake pads.

For persistent issues, contact Zündapp customer support or a certified e-bike technician.

8. Specyfikacje

9. Gwarancja i wsparcie

For warranty information, please refer to the documentation provided with your original Zündapp e-bike or contact the retailer where you purchased this front wheel. If you require technical assistance or have questions not covered in this manual, please contact Zündapp customer support through their official weblub u autoryzowanego sprzedawcy.
