Digital Tester ET360 Thickness Gauge User Manual

1. Koniec produktuview

The ET360 Digital Thickness Gauge is a high-precision instrument designed for measuring the thickness of coatings on various metal substrates. It is capable of measuring on both ferrous (Fe) and non-ferrous (NFe) metals, including Fe+Zn coatings. Its compact size and ergonomic design allow for convenient one-hand operation, making it ideal for automotive paintwork inspection and other industrial applications.

Key features include micron-level accuracy, automatic substrate identification, and a wear-proof high-precision probe tip for long-term reliability.

Rycina 1: Przód view of the ET360 Digital Thickness Gauge, showing the display and control buttons.

Figure 2: Key features of the ET360, highlighting its HD wide-angle display, ergonomic design for comfortable grip, durable ABS material construction, and the high-precision measurement probe.

2. Konfiguracja

2.1 Instalacja baterii

The ET360 thickness gauge requires two (2) AAA batteries for operation (batteries not included). Follow these steps to install the batteries:

1. Znajdź pokrywę komory baterii z tyłu urządzenia.
2. Aby otworzyć komorę, przesuń lub odepnij pokrywę.
3. Włóż dwie baterie AAA, zwracając uwagę na prawidłową biegunowość (+/-), zgodnie ze wskazaniami wewnątrz komory.
4. Dokładnie zamknij pokrywę komory baterii.

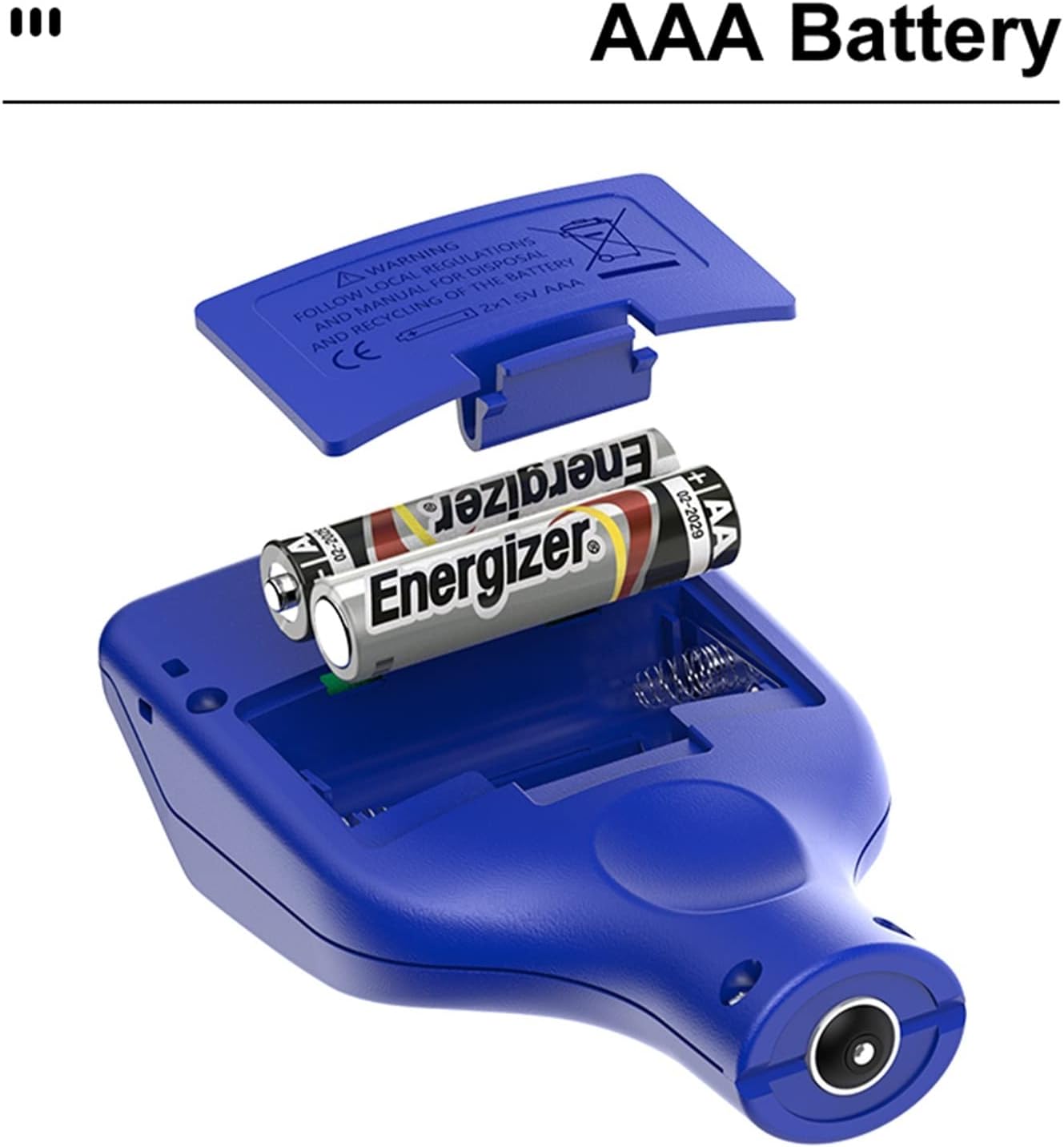

Figure 3: Illustration of battery installation in the ET360 thickness gauge, showing the open battery compartment and placement of AAA batteries.

2.2 Włączanie/wyłączanie

Press and hold the power button (usually marked with a power symbol) to turn the device on. The display will illuminate. To turn off the device, press and hold the power button again, or the device may automatically shut off after a period of inactivity to conserve battery life.

3. Instrukcja obsługi

3.1 Zasady pomiaru

The ET360 utilizes two primary measurement principles:

• Electromagnetic Induction (Fe, Fe+Zn): Used for measuring non-magnetic coatings on magnetic substrates (e.g., steel, iron). This includes coatings like paint, plastic, enamel, and zinc plating on steel.
• Eddy Current Effect (NFe): Used for measuring non-conductive coatings on non-magnetic, conductive substrates (e.g., aluminum, copper, brass). This includes coatings like paint, anodizing, or plastic on aluminum.

The gauge automatically identifies the substrate material (ferrous or non-ferrous) and switches to the appropriate measurement mode rapidly.

3.2 Wykonywanie pomiaru

1. Upewnij się, że urządzenie jest włączone.
2. Place the probe tip perpendicularly onto the surface to be measured. Apply gentle, steady pressure.
3. The measurement reading will appear on the digital display.
4. Lift the probe from the surface to prepare for the next measurement.

3.3 Kalibracja

For accurate measurements, periodic calibration is recommended. The ET360 supports calibration at multiple points:

• Kalibracja zera: Calibrate on a bare, uncoated substrate of the same material as the one you intend to measure.
• Kalibracja wielopunktowa: The device supports calibration at 0, 50, 100, 250, 500, and 1000 micrometers (um) using standard calibration foils. Refer to the on-screen prompts or specific instructions in the device's internal menu for detailed calibration procedures.

Always ensure the calibration foils are clean and free from dust or damage.

3.4 Wybór jednostki

The ET360 can display measurements in micrometers (um) or mils (mil). Use the "um/mils" button to toggle between these units as needed.

4. Konserwacja

4.1 Czyszczenie

To ensure the longevity and accuracy of your device:

• Przetrzyj obudowę urządzenia miękką, suchą ściereczką. Nie używaj środków czyszczących o właściwościach ściernych ani rozpuszczalników.
• Keep the probe tip clean and free from debris. Gently wipe it with a soft cloth if necessary. Avoid scratching or damaging the probe surface.

4.2 Przechowywanie

When not in use for extended periods, remove the batteries to prevent leakage and potential damage to the device. Store the gauge in a cool, dry place, away from direct sunlight, extreme temperatures, and high humidity.

5. Rozwiązywanie Problemów

If you encounter issues with your ET360 thickness gauge, consider the following:

• Urządzenie się nie włącza:
  • Sprawdź, czy baterie zostały prawidłowo zainstalowane i czy ich biegunowość jest prawidłowa.
  • Wymień stare lub wyczerpane baterie na nowe.
• Niedokładne odczyty:
  • Ensure the probe tip is clean and free of debris.
  • Perform a zero calibration on a known bare substrate.
  • Perform multi-point calibration using standard calibration foils.
  • Ensure the probe is placed perpendicularly and firmly on the surface.
  • Verify the substrate material matches the expected measurement mode (Fe/NFe).
• Display issues (e.g., blank, flickering):
  • Sprawdź poziom naładowania baterii i wymień ją, jeśli jest bliska rozładowania.
  • Upewnij się, że urządzenie nie będzie narażone na działanie ekstremalnych temperatur.

Jeśli po wypróbowaniu tych rozwiązań problem nadal występuje, skontaktuj się z obsługą klienta.

6. Specyfikacje

The following table details the technical specifications of the ET360 Digital Thickness Gauge:

Figure 4: Detailed technical specifications for the ET360 Digital Thickness Gauge, including probe types, measurement ranges, accuracy, resolution, and operating conditions.

7. Gwarancja i wsparcie

For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact the seller/manufacturer directly. Typically, products purchased through Amazon may be subject to a 30-day return policy. Specific warranty terms may vary by region and seller.

For further assistance, please visit the product page on Amazon or contact the seller 李飞莹6046 (Seller ID: A3PZ3UC1AST4FQ).
