Vinka DR23 Electrical Bicycle Display User Manual

1. Wprowadzenie i koniecview

This manual provides essential information for the installation, operation, and maintenance of your Vinka DR23 Electrical Bicycle Display. The DR23 display is designed for Vinka motor systems and utilizes a 6-prong wire connector for seamless integration. It serves as the primary interface for monitoring your e-bike's performance and status.

Przed przystąpieniem do instalacji lub użytkowania urządzenia należy uważnie przeczytać niniejszą instrukcję, aby zagwarantować jego prawidłowe działanie i bezpieczeństwo.

Figure 1: Vinka DR23 Electrical Bicycle Display. This image shows the front view of the DR23 display unit, featuring a digital screen and three control buttons on the left side.

2. Konfiguracja i instalacja

The Vinka DR23 display is a 6-wire control unit. Proper connection to your e-bike's Vinka motor system is crucial for functionality. Ensure the e-bike's power is off before beginning installation.

2.1 Montaż wyświetlacza

The display is designed for stem mounting. Securely attach the display to your bicycle's stem using the provided mounting hardware. Ensure it is positioned for clear visibility and easy access to the control buttons while riding.

Połączenie 2.2 przewodowe

The DR23 display connects via a 6-prong wire connector. Carefully match the wires according to the diagram and table below. Incorrect wiring can damage the display or the e-bike system.

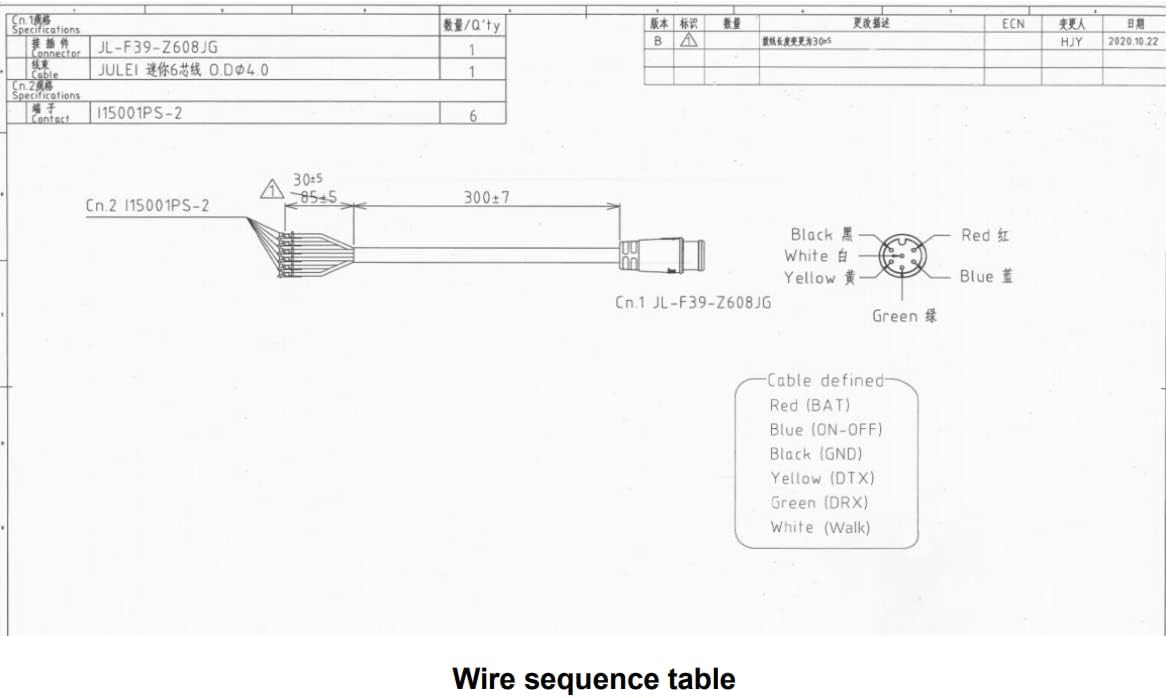

Figure 2: Vinka DR23 Wire Diagram. This diagram illustrates the 6-wire connector (Cn.1 JL-F39-2608JG) and the corresponding wire colors and their functions, leading to the display unit (Cn.2 I15001PS-2).

Figure 3: Vinka DR23 Wire Sequence Table. This table provides a detailed breakdown of each of the 6 wires, listing their serial number, code, and specific function.

2.3 Wire Function Table

After connecting all wires, ensure they are securely fastened and protected from moisture and physical damage. Once connections are verified, you may power on your e-bike system.

3. Instrukcja obsługi

The Vinka DR23 display provides real-time information and control over your e-bike's functions. It features a clear digital screen and intuitive button controls.

3.1 Włączanie/wyłączanie zasilania

To power on the display, press and hold the central power button (typically marked with a power symbol) for a few seconds. To power off, press and hold the same button until the display shuts down.

3.2 Wyświetlanie informacji

The display shows various parameters, including:

• Prędkość: Aktualna prędkość jazdy (km/h).
• Dystans: Total distance traveled (Km).
• Poziom naładowania baterii: Wskaźnik poziomu naładowania akumulatora.
• Wskaźnik reflektorów: Shows if the e-bike's headlights are active.
• Kody błędów: May display codes for system malfunctions (refer to e-bike's main manual for specific codes).

3.3 Funkcje przycisków

The display features buttons for interaction. While specific functions may vary slightly based on the e-bike's controller, common button functions include:

• Przycisk zasilania: Powers the display on/off.
• Przyciski w górę/w dół: Adjust assist levels, navigate menus, or activate specific features like walk assist (as indicated by the "Walk" wire function).
• Mode/Set Button: Cycles through display modes (e.g., ODO, Trip) or enters settings menus.

Refer to your e-bike's main user manual for detailed instructions on specific button operations and advanced settings.

4. Konserwacja

Proper maintenance ensures the longevity and optimal performance of your Vinka DR23 display.

• Czyszczenie: Użyj miękkiego, damp ściereczka do wycierania ekranu wyświetlacza iasing. Unikaj środków czyszczących o działaniu ściernym i rozpuszczalników, które mogą uszkodzić powierzchnię.
• Ochrona: While the display is designed for outdoor use, avoid prolonged exposure to direct sunlight, extreme temperatures, or heavy rain. Consider a protective cover if storing the e-bike outdoors.
• Znajomości: Periodically check all wire connections to ensure they are secure and free from corrosion.
• Składowanie: If storing the e-bike for an extended period, ensure the display is clean and dry.

5. Rozwiązywanie Problemów

If you encounter issues with your Vinka DR23 display, consider the following troubleshooting steps:

• Wyświetlacz się nie włącza:
  • Check if the e-bike's main battery is charged and turned on.
  • Verify all wire connections, especially the BAT (Battery power) and GND (Ground) wires, are secure.
  • Ensure the ON-OFF wire is correctly connected and functioning.
• Brak odczytu prędkości/odległości:
  • Check the connection of the DTX (Data transmission) and DRX (Data receiving) wires.
  • Ensure the speed sensor on your e-bike is properly installed and functioning.
• Przyciski nie reagują:
  • Try restarting the display by powering it off and on.
  • Upewnij się, że żadne zanieczyszczenia nie blokują przycisków.
• Wyświetlane kody błędów:
  • Zapisz konkretny kod błędu.
  • Consult your e-bike's main user manual or contact the e-bike manufacturer for interpretation of error codes.

If problems persist after attempting these steps, it is recommended to contact a qualified e-bike technician or the product's support.

6. Specyfikacje

7. Gwarancja i wsparcie

For warranty information and technical support, please refer to the documentation provided with your complete e-bike system or contact the original seller/manufacturer of the e-bike. This display unit is designed to integrate with specific Vinka motor systems, and support may be provided through the overall e-bike system's warranty and service channels.

For further assistance, please have your product model number (DR23) and any relevant purchase information ready.
