YHTAUTO Soft Roll Up Truck Bed Tonneau Cover Instruction Manual

1. Koniec produktuview

The YHTAUTO Soft Roll Up Truck Bed Tonneau Cover is designed to protect your truck bed and its contents from weather elements and provide enhanced security. Made from durable, weatherproof PVC and a solid aluminum frame, this cover offers a practical and stylish solution for truck owners.

This tonneau cover is compatible with:

• 2009-2018 Dodge Ram 1500
• Ram 1500 Classic 2019-2024
• 2003-2024 Ram 2500/3500

Ważny: This cover is designed for 6.4 Ft (76") bed length trucks only and is not compatible with Ram Box, Utility Track Systems, or Split Tailgates. Please measure your truck bed size before purchase.

2. Konfiguracja i instalacja

Before beginning installation, ensure your truck bed is clean and free of debris. It is recommended to have a second person assist with the installation process.

2.1 Rozpakowanie i sprawdzenie komponentów

Carefully unbox the tonneau cover and verify all components are present according to the accessories list. The package includes the main cover, two side rails, and six clamps.

Figure 2.1: Main components of the YHTAUTO Soft Roll Up Tonneau Cover.

2.2 Zagadnienia do rozważenia przed instalacją

For proper fitment and to prevent damage, any existing modifications such as roll bars, tool boxes, bedrails, or headache racks must be removed from the truck bed before installing the tonneau cover.

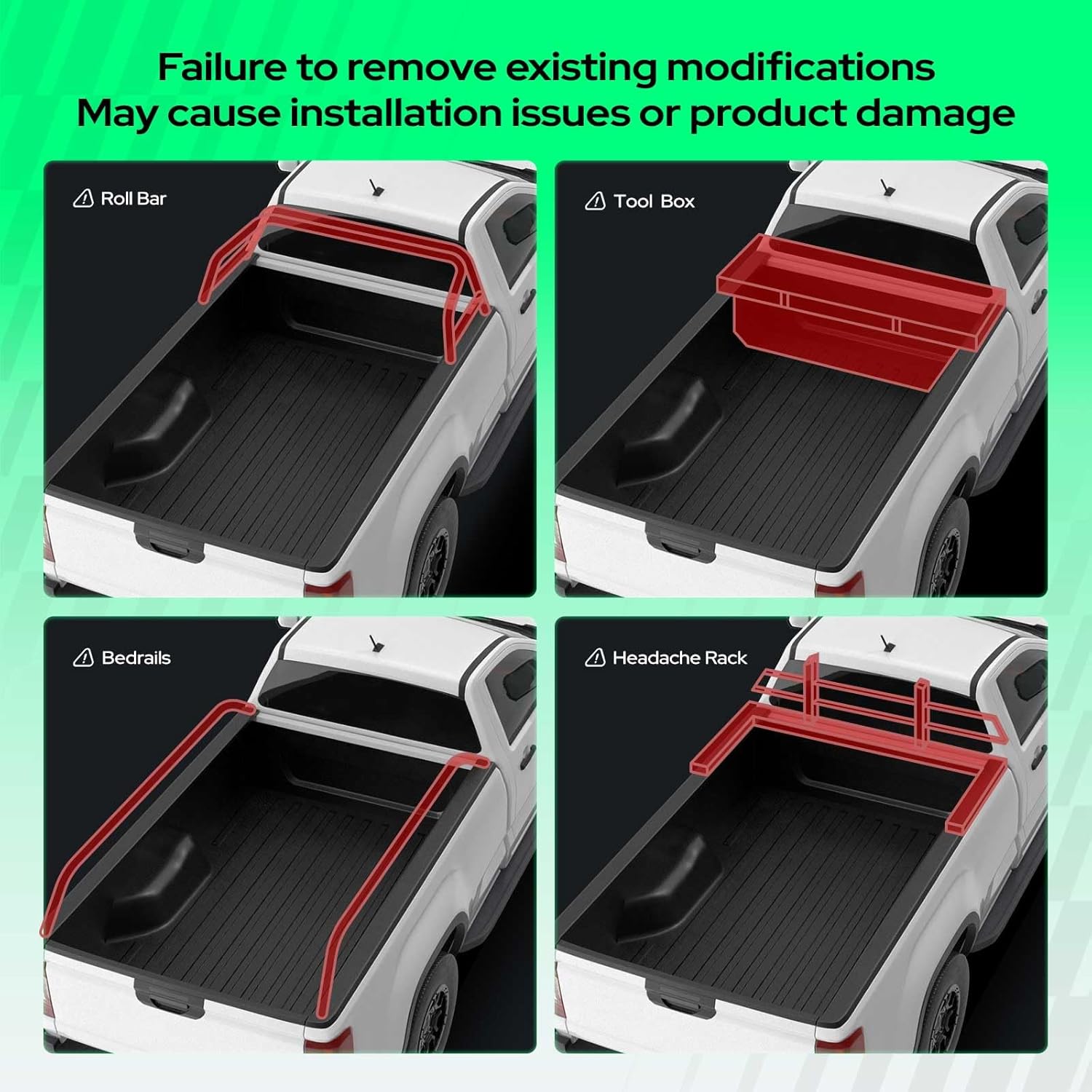

Rysunek 2.2: Examples of truck bed modifications that require removal.

Ensure your truck bed length is 6.4 FT (76 inches) for proper compatibility.

Figure 2.3: Confirming truck bed length for compatibility.

2.3 Kroki instalacji

1. Position the side rails onto the truck bed rails. Ensure a tight fit.
2. Secure the side rails using the provided clamps. Tighten all clamps fully to ensure stability.
3. Position the tonneau cover assembly over the installed side rails.
4. Ensure the cover is properly aligned and secured to the rails.

For a visual guide on the installation process, please refer to the official installation video below:

Uwaga: If you are not qualified or lack the skills to do the installation, please consult with a professional technician. Please make sure to take necessary safety precautions before operation.

3. Instrukcja obsługi

The YHTAUTO Soft Roll Up Tonneau Cover features an automatic locking mechanism for secure closure and easy access.

3.1 Blokowanie i odblokowywanie

The cover is designed to be tight and secured when locked in place. To unlock and roll up the cover, simply pull the yellow cord located at the tailgate end of the cover. This disengages the auto-latching mechanism, allowing you to roll the cover forward.

Figure 3.1: Auto-locking design and unlocking mechanism.

3.2 Rolling Up the Cover

Once unlocked, you can easily roll the cover towards the cab of the truck to access the bed. Roll it to the desired position and secure it with the integrated straps to prevent it from unrolling during transit.

Figure 3.2: Easy roll-up feature for bed access.

Figure 3.3: Cover rolled up and tied down for maximum bed utility.

4. Konserwacja i pielęgnacja

Proper maintenance will ensure the longevity and optimal performance of your tonneau cover.

4.1 Czyszczenie

Clean the tonneau cover regularly with mild soap and water. Avoid harsh chemicals or abrasive cleaners, as these can damage the PVC material. Rinse thoroughly and allow to air dry.

4.2 Ochrona przed warunkami atmosferycznymi

The double-layer PVC material provides excellent protection against harsh sunlight, high winds, rain, and snow. This helps to keep your truck bed contents safe and dry, extending the life of your truck bed by shielding it from direct exposure to elements.

Figure 4.1: Tonneau cover providing shelter and privacy for truck bed contents.

Figure 4.2: Enhanced protection for the truck bed.

4.3 UV and Scratch Prevention

The PVC material is designed with anti-UV properties to resist fading and cracking from sun exposure, and also offers scratch prevention to maintain its appearance over time.

5. Rozwiązywanie Problemów

This section addresses common issues you might encounter with your tonneau cover.

5.1 Wyciek wody

• Wydanie: Water is entering the truck bed.
• Rozwiązanie:
  1. Check that the side rails are properly seated and the clamps są w pełni dokręcone.
  2. Inspect the weather seals along the edges of the cover and ensure they are making full contact with the truck bed rails.
  3. Sprawdź, czy klapa tylna jest całkowicie zamknięta i szczelnie przylega do pokrywy.
  4. Ensure the cover is properly latched at the tailgate end.

5.2 Difficulty Rolling/Unrolling

• Wydanie: The cover is stiff or difficult to roll up or unroll.
• Rozwiązanie:
  1. Ensure the auto-latching mechanism is fully disengaged by pulling the yellow cord.
  2. Check the side rails and ensure there is no debris or obstruction preventing smooth movement.
  3. Apply a silicone-based lubricant (avoid petroleum-based products) to the vinyl and rail channels if friction is present.

5.3 Cover Not Latching Securely

• Wydanie: The cover does not latch firmly at the tailgate.
• Rozwiązanie:
  1. Verify that the side rails are installed correctly and are not too far apart or too close together.
  2. Check the alignment of the cover with the tailgate. Minor adjustments to the rail position might be necessary.
  3. Ensure the latching mechanism itself is free of obstructions and operating smoothly.

6. Specyfikacje produktu

7. Gwarancja i wsparcie

YHTAUTO stands behind the quality of its products. For specific warranty information, please refer to the documentation included with your purchase or visit the official YHTAUTO store on Amazon. If you encounter any issues or require assistance, please contact YHTAUTO customer support directly through the Amazon platform or their official webstrona.

You can visit the YHTAUTO Store for more information: YHTAUTO Store
