Instrukcja obsługi

Wstęp

This dedicated LED spotlight is designed for wide use in various small and medium-sized machines, numerical control machine test equipment, and other mechanical equipment requiring auxiliary lighting. Its flexible design and efficient lighting make it an ideal solution for precision work environments.

Główne cechy obejmują:

• Elastyczna konstrukcja: The entire light and its body are designed to bend, allowing for easy adjustment of the light direction as needed.
• Efektywność energetyczna: In comparison to ordinary incandescent lamps, this LED lighting consumes only 1/10th of the power for the same brightness.
• Stabilna wydajność: Utilizes high-brightness, low light failure LEDs, ensuring stable performance and no flickering.
• Accurate Drive: Features a built-in constant current power supply that accurately drives the LED, further enhancing the stability and longevity of the lamp.

Produkt ponadview

Rysunek 1: Nadview of the Generic BGA Rework Station LED Spotlight. This image displays the complete unit, including the flexible gooseneck arm, the LED light head, and the circular mounting base with wiring.

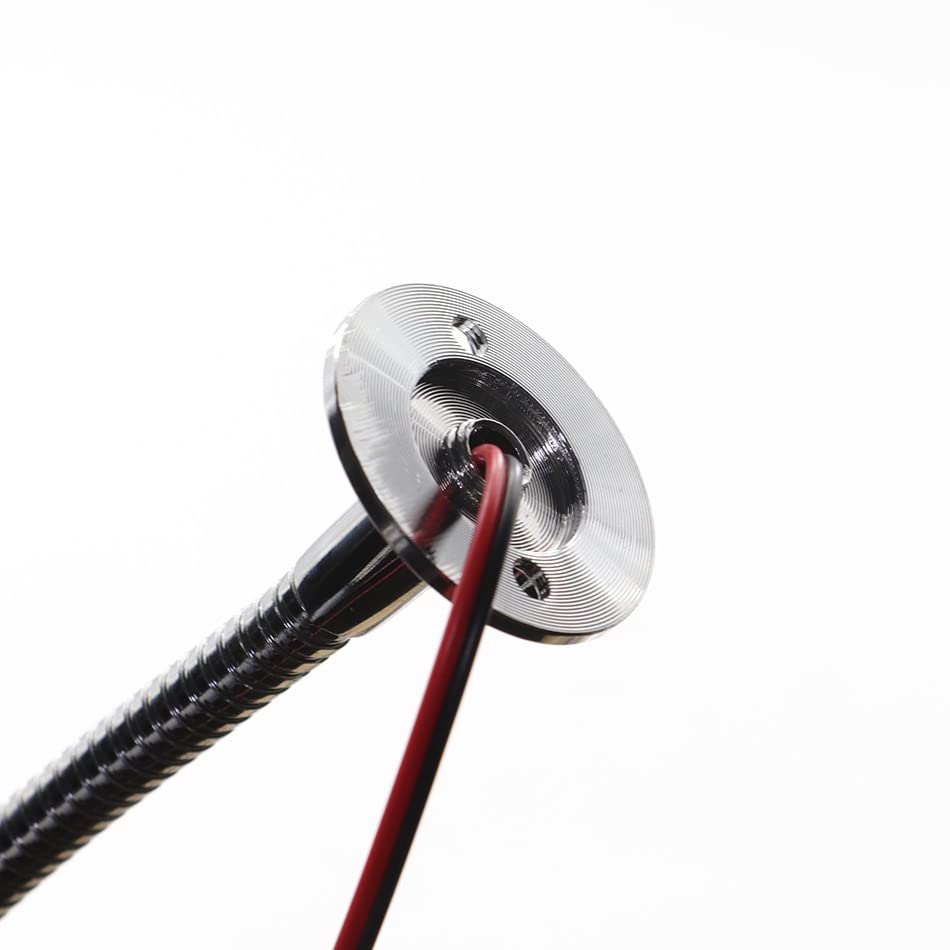

Rysunek 2: Detail of the mounting base. This close-up shows the circular base with screw holes for secure attachment and the red and black power wires extending from its center.

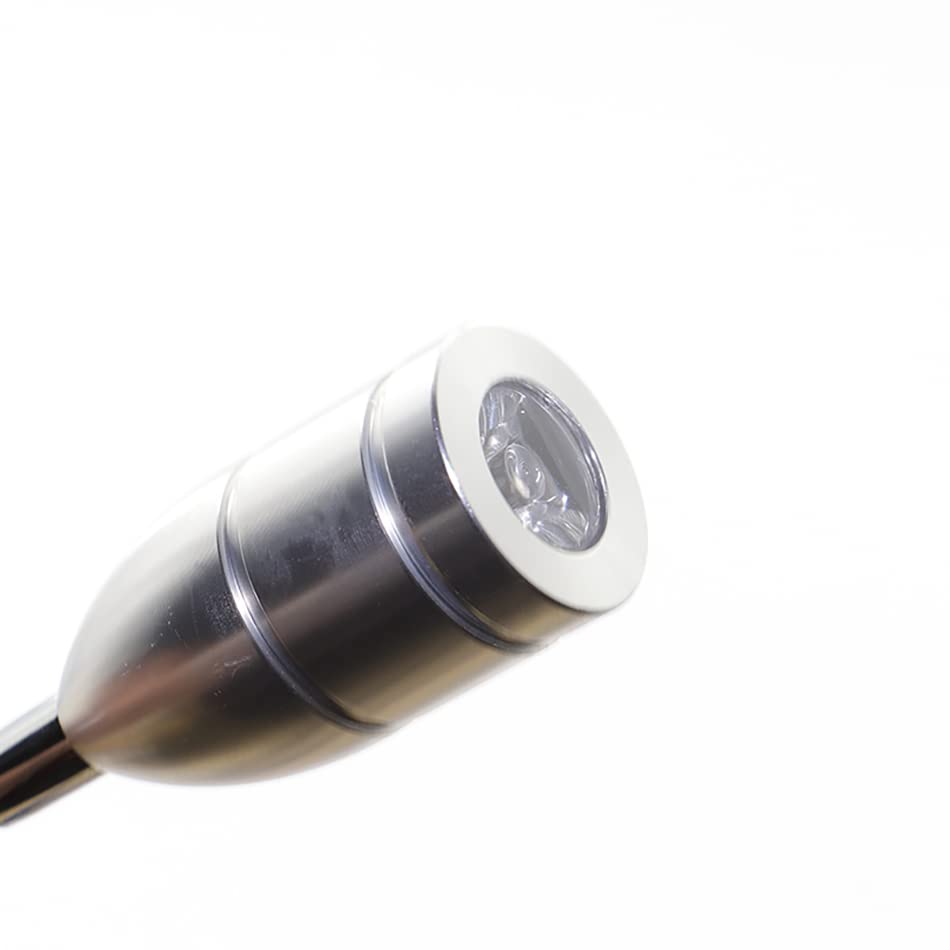

Rysunek 3: Close-up of the LED light head. This image highlights the front of the spotlight, showing the multiple LED elements within the lens, designed for focused illumination.

Rysunek 4: Wymiarowy view of the LED spotlight. This image illustrates the total length of the spotlight, indicating it measures approximately 550mm from the base to the tip of the LED head when fully extended.

Organizować coś

1. Wybierz miejsce montażu: Select a stable and appropriate surface near your BGA rework station or other equipment where auxiliary lighting is required. Ensure the surface can support the light and allow for flexible positioning.
2. Zabezpiecz bazę: Using appropriate screws (not included), securely fasten the circular mounting base (refer to Figure 2) to the chosen surface. Ensure it is firmly attached to prevent movement during use.
3. Podłącz zasilanie: Connect the red and black wires extending from the base to a compatible 12-24V AC/DC power source. Ensure correct polarity (red for positive, black for negative) to prevent damage. If unsure, consult a qualified electrician.
4. Ustaw światło: Once mounted and powered, gently bend the flexible arm to position the LED light head (refer to Figure 3) to illuminate your work area as desired. The arm is designed for repeated adjustments.

Instrukcja obsługi

The LED spotlight is designed for straightforward operation once properly installed.

• Włączanie/wyłączanie: The light will turn on when power is supplied to the connected wires. To turn off, disconnect or switch off the power source.
• Regulacja oświetlenia: The flexible gooseneck allows for precise aiming of the light. Gently bend and twist the arm to direct the light exactly where it is needed on your workpiece.
• Optymalna jasność: The built-in constant current power supply ensures consistent brightness. No manual brightness adjustments are required.

Konserwacja

To ensure the longevity and optimal performance of your LED spotlight, follow these simple maintenance guidelines:

• Czyszczenie: Disconnect power before cleaning. Use a soft, dry cloth to wipe the light head and flexible arm. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the electrical components. Do not use abrasive cleaners or solvents.
• Kontrola: Periodically inspect the wiring for any signs of wear, fraying, or damage. Check the mounting base for looseness. Address any issues promptly.
• Składowanie: If storing the light for an extended period, ensure it is clean, dry, and stored in a safe place away from extreme temperatures or humidity.

Rozwiązywanie problemów

Specyfikacje

Gwarancja i wsparcie

For information regarding warranty, returns, or technical support, please refer to the seller's policy on the purchase platform or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

Note: Specific warranty terms may vary based on region and retailer.
