Wstęp
The Einhell AQUINNA 18/30 F LED cordless garden pump is a powerful device designed for water supply in gardens or homes, operating independently of a mains connection. It is an integral part of the flexible Power X-Change system, allowing for versatile combination with other Einhell batteries, chargers, and tools. This pump utilizes an 18 V battery and features 'Double Runtime' technology with two integrated battery slots for extended operation. If one battery depletes, the second automatically takes over. The charge level of both batteries is continuously displayed via an LED indicator.
The pump offers two operational modes: Tryb BOOST for maximum flow and Tryb ECO for optimized battery life at reduced pressure. It can achieve a flow rate of up to 3,000 liters per hour, a maximum delivery height of 28 meters (2.8 bar pressure), and can draw water from a maximum depth of 6 meters. For user convenience, it includes a large water filling cap for easy priming and a drain plug for simple emptying, crucial for frost protection during winter. A transparent pre-filter protects against impurities, with its clear cover allowing for easy monitoring of water levels and filter cleanliness. A non-return valve prevents water reflux, and overload protection automatically shuts down the pump to prevent damage from overheating. The pump is equipped with a central handle for easy transport and mounting holes for fixed installations. It features two robust metal threaded connections. Please note that Power X-Change batteries and charger are sold separately.
Instrukcje konfiguracji
1. Podłączanie węży
Connect the suction hose to the pump's inlet. Ensure a secure, airtight connection to prevent air from entering the system, which can affect pump performance. Use the provided metal threaded connections for durability.
2. Zalewanie pompy
Before first use, or after the pump has been emptied, it must be primed. Open the large water filling cap and pour water into the pump until it is full. The transparent pre-filter cover allows you to monitor the water level. Close the cap securely after filling.
3. Wkładanie baterii
The pump requires two 18V Power X-Change batteries for operation. Open the battery compartment cover and insert the batteries into the two available slots. Ensure they click into place. Close the cover to protect the batteries from splashes.
4. Pozycjonowanie pompy
Place the pump on a stable, level surface near your water source. The pump can draw water from a maximum depth of 6 meters. For permanent installations, use the integrated mounting holes to secure the pump.
Instrukcja obsługi
1. Włączanie i wybór trybu
Once batteries are inserted and the pump is primed, press the 'Power On' button. The LED indicators will show the battery charge level. Select your desired operating mode: Tryb ECO for optimal battery life and reduced pressure, or Tryb BOOST for maximum flow and pressure.
2. Monitoring Battery and Water Levels
The LED indicators on the pump continuously display the charge level of both batteries. The transparent cover of the pre-filter allows you to visually check the water level inside the pump and the cleanliness of the filter at any time.
3. Automatic Battery Switching

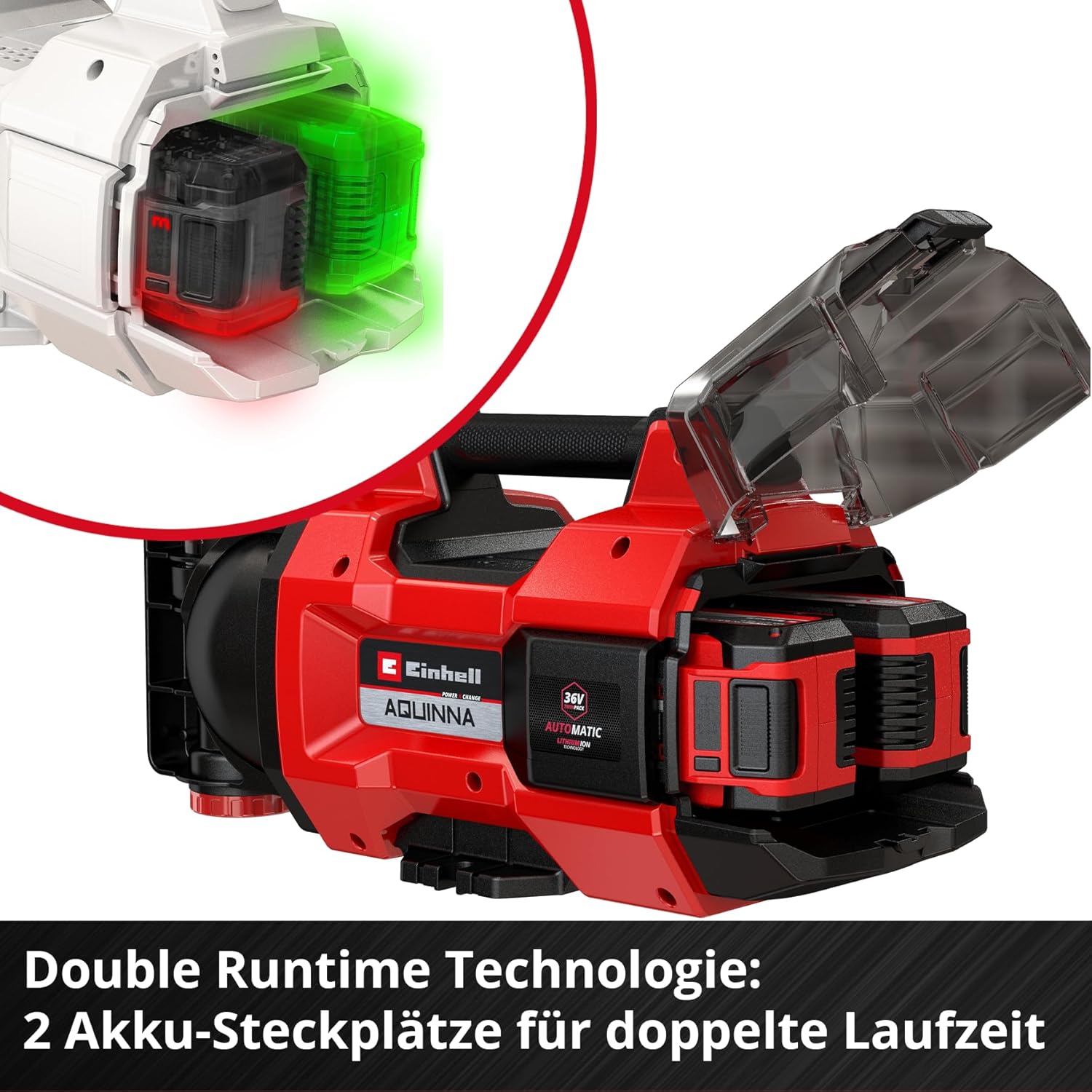

Thanks to the 'Double Runtime' technology, if one battery becomes discharged during operation, the pump will automatically switch to the second battery, ensuring uninterrupted water supply.
4. Zabezpieczenie przed przeciążeniem
The pump is equipped with an overload protection system. In case of overheating, the pump will automatically shut down to prevent damage. Allow the pump to cool down before resuming operation.
5. Demonstracja wideo
Watch this video for a visual guide on setting up and operating your Einhell AQUINNA pump.
Konserwacja
1. Czyszczenie filtra wstępnego
Regularly check the transparent pre-filter cover for impurities. If the filter appears dirty, unscrew the cover, remove the filter basket, and clean it thoroughly under running water. Reinsert the clean filter and secure the cover.
2. Frost Protection (Draining)
To protect the pump from frost damage during winter or prolonged periods of non-use, it is essential to drain all water. Locate the drain plug on the underside of the pump, unscrew it, and allow all water to exit. Re-secure the plug once drained.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Pompa nie uruchamia się | Discharged batteries, incorrect battery insertion, power switch off. | Check battery charge level via LED indicator and recharge if necessary. Ensure batteries are correctly inserted. Turn on the power switch. |
| Low flow rate or pressure | Pump not primed, air in suction line, clogged pre-filter, ECO mode selected. | Prime the pump by filling with water. Check suction hose for leaks. Clean the pre-filter. Switch to BOOST mode for higher performance. |
| Pompa nieoczekiwanie zatrzymuje się | Overload protection activated (overheating), battery discharged, no water in source. | Allow pump to cool down. Check battery charge and replace/recharge. Verify water source is not empty. |
| Wyciek wody | Loose hose connections, damaged seals. | Tighten all hose connections. Inspect seals and O-rings for damage and replace if necessary. |
Specyfikacje
| Funkcja | Wartość |
|---|---|
| Wymiary produktu (dł. x szer. x wys.) | Wymiary 50.3 x 21.1 x 26.8 cm |
| Waga przedmiotu | 4 kilograma |
| Producent | Jednorożec |
| Numer modelu przedmiotu | 4180430 |
| Kraj pochodzenia | Chiny |
| Marka | Jednorożec |
| Kolor | Czerwony |
| Tworzywo | Stal nierdzewna |
| Styl | Solo: Without Battery or Charger |
| Źródło zasilania | Zasilany bateryjnie |
| Maksymalna szybkość przepływu | 3000 litra na godzinę |
| Availability of Spare Parts in EU | 1 rok |
| Międzynarodowy kod artykułu | 04006825668513 |
| Nazwa typu produktu | Bezprzewodowa pompa ogrodowa |
| Zawarte komponenty | Cordless Garden Pump, key for pre-filter |
Informacje o gwarancji
This Einhell product comes with a standard manufacturer's warranty. Please refer to the warranty card included in the product packaging or visit the official Einhell website for detailed terms and conditions. Keep your proof of purchase for any warranty claims.
Wsparcie
For technical assistance, spare parts, or further inquiries, please contact Einhell customer support. You can find contact information on the official Einhell website or in the documentation provided with your product. Ensure you have your product model number (4180430) and serial number ready when contacting support.
