Geiger Counter Nuclear Radiation Detector User Manual

1. Wprowadzenie

The RuchundeBu TC-8500 is a high-sensitivity Geiger Counter Nuclear Radiation Detector designed for monitoring X, β (beta), and γ (gamma) rays. Equipped with a Geiger-Muller counter tube, it provides real-time radiation measurements, automatic data record storage, and a voice broadcast system for enhanced usability. This manual provides detailed instructions for the proper setup, operation, and maintenance of your device.

Opis: Przód view of the RuchundeBu TC-8500 Geiger Counter, showing its large color LCD screen displaying real-time radiation levels, average, cumulative values, temperature, and humidity. The device has a white body with black rubberized grips on the sides and clearly labeled buttons below the screen.

2. Co znajduje się w pudełku

Po otrzymaniu przesyłki sprawdź jej zawartość, aby upewnić się, że znajdują się w niej wszystkie elementy:

• Nuclear Radiation Detector TC-8500 x 1
• Kabel USB x 1
• Instrukcja obsługi x 1

Opis: The package contents for the TC-8500 Geiger Counter, including the detector unit, a USB charging cable, a mini tripod stand (not listed in 'whats_in_the_box' but visible in image), and the user manual, all neatly arranged within a protective carrying case.

3. Konfiguracja

3.1 Instalacja baterii

Before initial use, you must install the battery and remove the insulating sheet from the battery compartment. This sheet is placed to prevent damage during transportation.

1. Znajdź pokrywę komory baterii z tyłu urządzenia.
2. Otwórz pokrywę komory baterii.
3. Remove the insulating sheet placed over the battery terminals.
4. Ensure the battery is properly seated with correct polarity.
5. Dokładnie zamknij pokrywę komory baterii.

Opis: An image showing the battery compartment of the TC-8500 Geiger Counter, indicating where the rechargeable battery is inserted, alongside the included USB charging cable.

3.2 Pierwsze włączenie zasilania

After battery installation, press and hold the power button (usually marked with a power symbol) to turn on the device. The LCD screen will illuminate, and the device will begin its startup sequence.

4. Instrukcja obsługi

4.1 Zasada działania

The TC-8500 Geiger Counter utilizes a Geiger-Muller (GM) counter tube to detect radiation. When a ray passes through the GM tube, it causes ionization, generating a detection current pulse. Each pulse is detected by the electronic circuit and recorded as a count. The displayed value represents the count value in the selected mode. Due to the random nature of radioactivity, readings may vary from minute to minute. For more accurate results, it is recommended to take readings over an average period, as longer intervals yield more precise average counts.

4.2 Detekcja promieniowania

The TC-8500 is capable of measuring α (alpha), β (beta), γ (gamma), and X-ray radiation. It offers high sensitivity for most commonly used nuclides, making it optimal for detecting even small changes in radiation levels.

Opis: An image illustrating the multi-functional capabilities of the TC-8500 Geiger Counter, including detection of X, β, and γ rays, temperature, humidity, real-time monitoring, trend graph display, and an upgraded sensor for fast measurements.

4.3 Data Recording and Voice Broadcast

The device automatically records monitoring data during use and can store up to 1000 groups of data. Additionally, the TC-8500 features a voice broadcast operating system that provides audible feedback during operation, enhancing user convenience.

4.4 Wyświetl ponadview

The LCD display provides comprehensive information about the current radiation levels and environmental conditions:

Opis: Zbliżenie view of the TC-8500's LCD screen, with labels pointing to key display elements such as date, time, alarm indicator, power display, real-time measurement value (RT), average value (AVG), cumulative value (CUM), historical data curve, real-time temperature, and real-time humidity.

• RT (Real-Time): Displays the current radiation measurement.
• AVG (średnia): Shows the average radiation level over a period.
• CUM (Cumulative): Indicates the total accumulated radiation dose.
• REK: Displays the number of recorded data groups.
• Temperatura: Pokazuje temperaturę otoczenia.
• Wilgotność: Displays the ambient humidity percentage.
• Historical Data Curve: A graphical representation of radiation trends over time.

4.5 Ustawienia językowe

The TC-8500 supports multiple languages for its display and voice broadcast system. Refer to the on-screen menu or the full PDF manual for instructions on how to change the language settings to your preference.

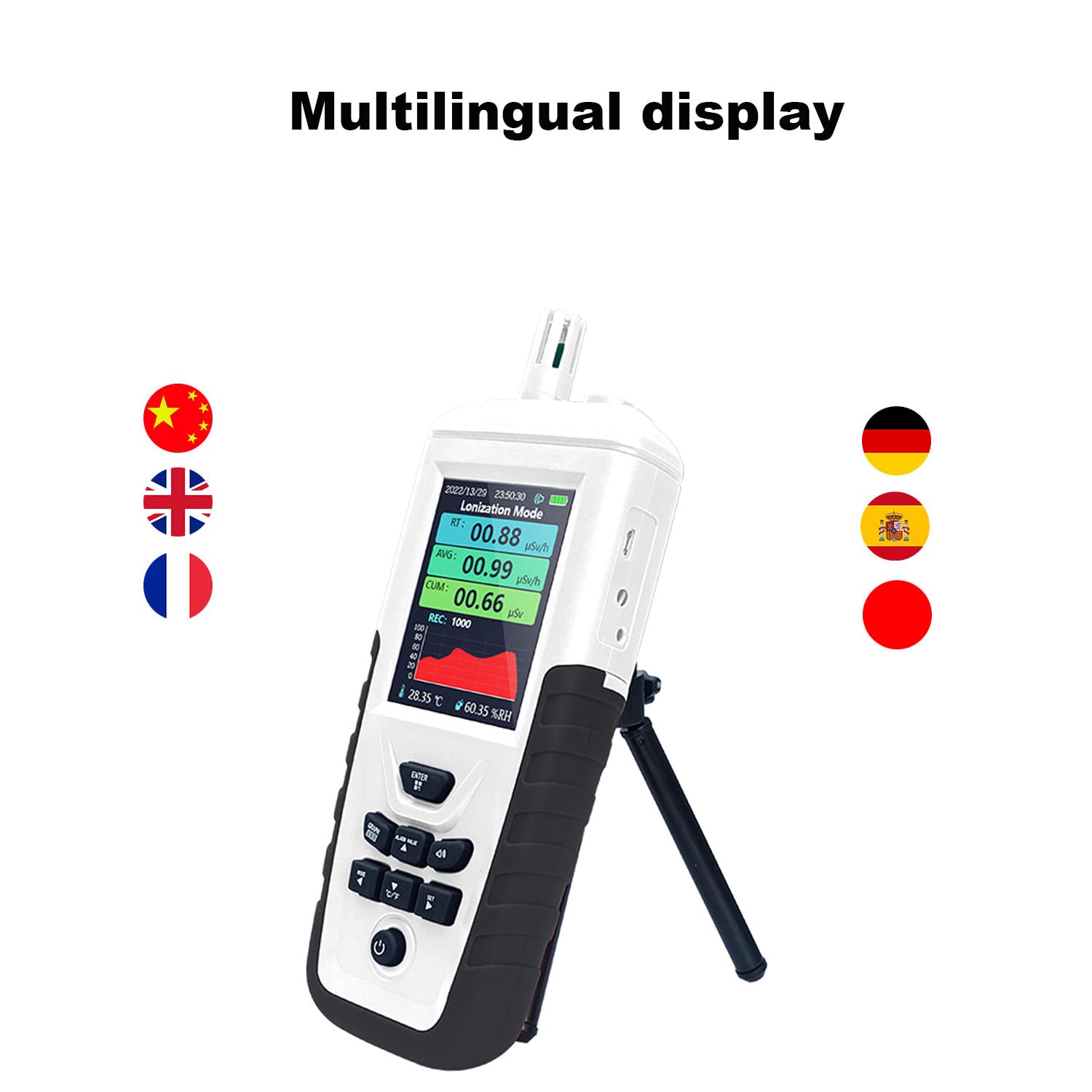

Opis: The TC-8500 Geiger Counter displayed with flags representing various language options, indicating its multilingual interface for broader user accessibility.

5. Konserwacja

To ensure the longevity and accuracy of your TC-8500 Geiger Counter, follow these maintenance guidelines:

• Czyszczenie: Do czyszczenia urządzenia należy używać miękkiej, suchej ściereczki. Nie należy używać środków czyszczących ani rozpuszczalników o działaniu ściernym, ponieważ mogą one uszkodzić urządzenie.asing lub ekran.
• Składowanie: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the battery.
• Obsługiwanie: Handle the device with care to avoid drops or impacts, which could damage internal components.
• Kalibrowanie: While the device is factory calibrated, if you suspect inaccuracies, contact customer support for potential recalibration services.

6. Rozwiązywanie Problemów

If you encounter issues with your TC-8500, refer to the following common problems and solutions:

• Urządzenie się nie włącza:
  • Sprawdź, czy akumulator jest prawidłowo zainstalowany i naładowany.
  • Verify that the insulating sheet has been removed from the battery compartment (refer to Section 3.1).
  • If using the USB cable, ensure it is properly connected to a power source.
• Niespójne odczyty:
  • Radiation detection is inherently random; slight fluctuations are normal. For more accurate results, observe readings over a longer period.
  • Ensure the device is not near strong electromagnetic interference sources.
• Transmisja głosowa nie działa:
  • Check the volume settings in the device menu.
  • Ensure the voice broadcast feature is enabled.

For issues not covered here, please refer to the full user manual PDF or contact RuchundeBu customer support.

7. Specyfikacje

8. Obszary zastosowań

The RuchundeBu TC-8500 Geiger Counter is suitable for a wide range of applications where radiation monitoring is necessary:

• Safety Organizations: Police, fire brigades, and emergency response teams for hazardous material detection.
• Ochrona środowiska: Monitoring environmental pollution in homes, food, water, and general surroundings.
• Zastosowanie przemysłowe: Metal recycling companies, mines, hardware factories, and ceramic factories.
• Transportation Hubs: Ports, wharves, and airports for security screening.
• Healthcare & Research: Hospitals, research institutions, laboratories, drug administrations, and universities.

Opis: The TC-8500 Geiger Counter positioned against a backdrop of a nuclear power plant at sunset, symbolizing its use in detecting environmental radiation and its various practical functions.

Opis: Firefighters working at an accident scene, illustrating the use of the Geiger Counter in emergency response situations where hazardous materials or radiation might be present.

Opis: A person using a laptop in an outdoor setting, symbolizing the application of the Geiger Counter for environmental protection and monitoring of radiation levels.

Opis: An airport gate sign, indicating the relevance of the Geiger Counter for use in ports, wharves, and airports for security and hazardous material detection.

Opis: A hallway lined with hospital beds, signifying the use of the Geiger Counter in hospitals, research institutions, and laboratories for monitoring radiation in medical and scientific settings.

Opis: A large cargo ship docked at a port, highlighting the Geiger Counter's utility in monitoring radiation levels at ports and wharves for safety and compliance.

Opis: A large pile of scrap metal, indicating the use of the Geiger Counter in metal recycling companies to detect radioactive contamination.

Opis: Wnętrze view of a mine tunnel, illustrating the Geiger Counter's application in mines for monitoring naturally occurring radioactive materials or other radiation sources.

9. Gwarancja i wsparcie

For detailed warranty information, please refer to the official product documentation included with your purchase or visit the RuchundeBu official website. If you require technical support, have questions about operation, or need assistance with troubleshooting, please contact RuchundeBu customer service. You can also refer to the comprehensive Instrukcja obsługi (IFU) w formacie PDF Aby uzyskać bardziej szczegółowe informacje.
