1. Wprowadzenie
The Meilen Solar Animal Repeller is designed to deter various pests from your garden, yard, and outdoor areas using ultrasonic sound, alarm sounds, and flashing lights. It features a 360-degree detection range and is powered by solar energy, offering an environmentally friendly solution for animal control.
Image 1.1: The Meilen Solar Animal Repeller effectively covers a 360-degree area, deterring animals like foxes, cats, squirrels, raccoons, and dogs from entering your property.
2. Funkcje produktu
- Ochrona 360°: Equipped with two infrared sensors for comprehensive motion detection up to 5000 square feet.
- Multiple Deterrent Methods: Emits ultrasound, alarm sounds, and flashing lights upon detection.
- 7 Tryby pracy: Customizable settings to target different types of animals and situations.
- Underground Rodent Repellent: Includes a buzzer mode to deter subterranean pests like moles and gophers.
- Zasilane energią słoneczną: Integrated solar panel for continuous charging, reducing energy consumption.
- Trwałe i odporne na warunki atmosferyczne: Constructed with high-quality, UV-resistant material, rated IP66 for water resistance against rain and snow.
- Flexible Induction Modes: Easily switch between single-sided and double-sided induction.
3. Zawartość opakowania i jego składniki
Przed instalacją należy upewnić się, że wszystkie komponenty są obecne:
- Meilen Solar Animal Repeller Unit (with integrated solar panel, PIR sensor, ultrasonic speakers, LED flash light, Type-C charging port)
- Korbowód
- Mounting Rod (Ground Stake)
- Buzzer (for underground rodent repellent)
Rysunek 3.1: Szczegółowy view of the Meilen Solar Animal Repeller's main components and their functions.
4. Instrukcje konfiguracji
- Montaż: Connect the connecting rod to the main repeller unit. Then, attach the mounting rod (ground stake) to the bottom of the connecting rod.
- Umieszczenie: Wybierz miejsce na zewnątrz, które odbiera ample direct sunlight for the solar panel to charge effectively. Ensure the area to be protected is within the device's 360-degree detection range. Avoid placing it behind large obstructions that could block the sensor or sunlight.
- Instalacja: Firmly insert the assembled repeller into the ground using the mounting rod. Ensure it is stable and upright.
- Opłata początkowa: For optimal performance, allow the device to charge under direct sunlight for at least 8 hours before first use, or use the Type-C charging port for a quicker initial charge if needed.
5. Instrukcja obsługi
5.1. Wybór trybu
Użyj "Mode Adjustment" button on the device to cycle through the 7 available operation modes. Each press will switch to the next mode. The first 6 modes are for ground animals, and the 7th mode (Buzzer Mode) is for underground animals.
5.2. Sensitivity/Volume Adjustment
Ten "Sensor Sensitivity/Sonic Volume" knob controls both the detection range and the volume of the sonic deterrent. Turn the knob to adjust:
- Turn Right (Increase Sensitivity): Increases the detection distance (up to 12 meters) and the volume of the sound.
- Turn Left (Decrease Sensitivity): Decreases the detection distance and the volume of the sound.

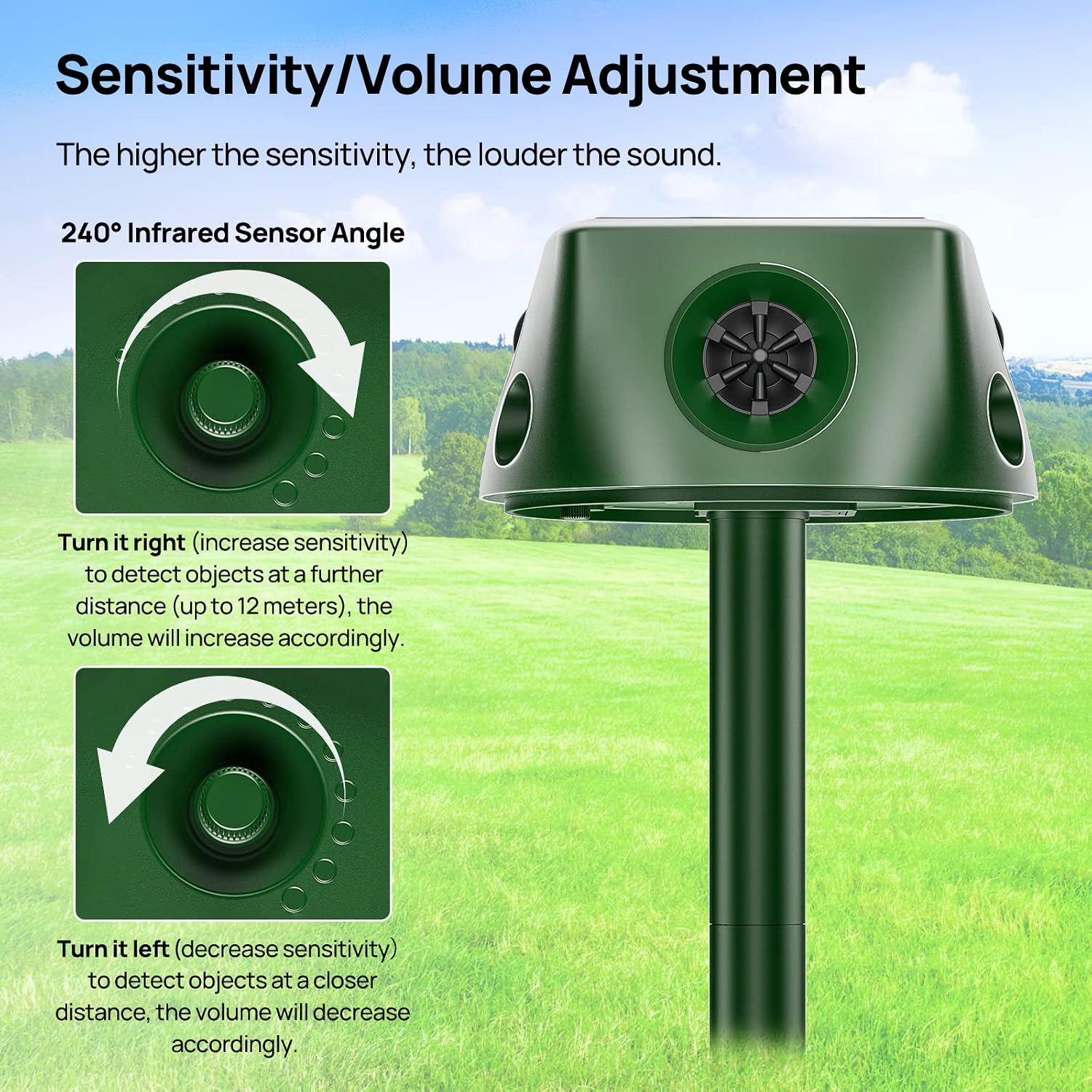

Image 5.1: Adjusting the sensitivity and sonic volume for optimal performance.
5.3. Single/Double-sided Induction Mode
To switch between single-sided and double-sided induction, press the designated button for 2 seconds. The white flashing light will flash twice to indicate the change in mode. Double-sided induction provides broader coverage.
6 Tryby działania
The repeller offers 7 distinct modes to address various pest issues:
- Tryb 1: Ultrasound (15kHz-65kHz).
- Tryb 2: SOS Alarm sound.
- Tryb 3: Red and white LED flashing light.
- Tryb 4: Animal sounds.
- Tryb 5: Ultrasound (15kHz-65kHz) + Red and white LED flashing light + SOS Alarm sound.
- Tryb 6: Ultrasound (15kHz-65kHz) + Red and white LED flashing light + SOS Alarm sound + Animal sounds.
- Buzzer Mode (Mode 7): Seismic waves (works at night only). This mode is triggered every five minutes to deter underground rodents.
Obraz 6.1: Koniecview of the 7 distinct operation modes.
7. Underground Rodent Repellent (Buzzer Mode)
To activate the underground rodent repellent feature:
- Connect the provided buzzer to the device's buzzer interface.
- Insert the buzzer into the ground in the area where underground rodents (moles, gophers, shrews) are present.
- Przełącz urządzenie na "Buzzer Mode" (Mode 7) using the mode adjustment button.
The buzzer simulates seismic waves to drive away subterranean pests. Consistent use for 2 to 4 weeks is typically required for effective deterrence of moles and gophers from crops and lawns.
Image 7.1: Utilizing the upgraded buzzer for underground pest control.
8. Zasilanie i ładowanie
The Meilen Solar Animal Repeller is designed for energy efficiency and durability:
- Ładowanie słoneczne: The integrated solar panel continuously absorbs sunlight to charge the internal lithium battery, ensuring daily operation without external power.
- Ładowanie typu C: A Type-C charging port is available for supplementary charging, especially during periods of low sunlight or for a quick initial charge.
- Odporna na warunki atmosferyczne konstrukcja: The device has an IP66 waterproof rating, making it resistant to rain, snow, and harsh sunlight. Its high-quality material is also resistant to drops and UV exposure.
Image 8.1: Solar power design and IP66 waterproof capabilities.
9. Konserwacja
To ensure the longevity and optimal performance of your Meilen Solar Animal Repeller:
- Wyczyść panel słoneczny: Regularnie przecieraj panel słoneczny miękką, miękką szmatką.amp ściereczką, aby usunąć kurz, brud i zanieczyszczenia, które mogą utrudniać ładowanie.
- Clear Sensors: Ensure the PIR sensors are free from obstructions like leaves or tall grass to maintain accurate motion detection.
- Sprawdź umiejscowienie: Periodically verify that the device remains securely installed and positioned for maximum sun exposure and coverage.
- Przechowywanie w zimie: In areas with prolonged periods of extreme cold or heavy snow, consider storing the device indoors to protect the battery and electronics.
10. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Device is not activating or making sound. | Low battery charge; Sensor obstructed; Sensitivity set too low. | Ensure solar panel receives direct sunlight or charge via Type-C. Clear any obstructions from the sensor. Increase sensor sensitivity. |
| Zwierząt to nie odstrasza. | Incorrect mode selected; Sensitivity/volume too low; Animals accustomed to deterrent. | Try a different operation mode. Increase sensitivity and volume. Reposition the device. Consider using multiple units for larger areas. |
| Buzzer mode is ineffective for underground rodents. | Insufficient time for deterrence; Buzzer not properly inserted. | Allow 2-4 weeks for full effectiveness. Ensure buzzer is firmly inserted into the ground. |
| Device activates too frequently or for non-animal movement (e.g., leaves). | Sensitivity set too high; Device placed too close to moving objects. | Decrease sensor sensitivity. Reposition the device away from foliage or other moving objects. |
11. Specyfikacje
- Marka: Meilen
- Model: B0BPLQK7RC
- Kolor: Zielony
- Styl: Nowoczesny
- Docelowe gatunki: Raccoon, Rat, Mouse (also deters deer, cats, rabbits, skunks, squirrels, moles, gophers, shrews)
- Liczba jednostek: 1.0 jednostka
- Zasięg wykrywania: Up to 5000 square feet, 360° sector (with two infrared sensors)
- Czułość czujnika: Adjustable, up to 12 meters detection distance
- Wodoodporność: IP66
- Źródło zasilania: Solar powered with Type-C charging option
12. Gwarancja i wsparcie
For any questions or concerns regarding your Meilen Solar Animal Repeller, please contact customer support through the Amazon platform. Our team is committed to providing a prompt resolution within 24 hours.
