1. Wprowadzenie
The CZUR Shine 1300 A3 Pro is a versatile book scanner designed for efficient digitization of documents, books, and 3D objects. It features advanced technologies such as Optical Character Recognition (OCR), automatic page flattening, and deskewing. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your scanner to ensure optimal performance.
Image 1.1: The CZUR Shine 1300 A3 Pro Book Scanner set up with a book on its scanning mat.
Obraz 1.2: Koniecview of scanner features including 13 Megapixel camera, 1 second per page scan speed, curve flatten technology, and 180+ language OCR.
2. Konfiguracja
2.1 Rozpakowanie i komponenty
Ostrożnie wypakuj wszystkie elementy z pudełka. Upewnij się, że znajdują się w nim następujące elementy:
- CZUR Shine 1300 A3 Pro Scanner Unit
- Black Scanning Mat
- Kabel USB
- Pedał nożny
- Zasilacz (jeśli dotyczy)
- Instrukcja instalacji oprogramowania
2.2 Konfiguracja fizyczna
- Umieść skaner na stabilnej, płaskiej powierzchni.
- Unfold the scanner arm to its upright position. The scanner is 90-degree foldable for portability.
- Position the black scanning mat directly beneath the scanner arm, aligning it with the scanner's base. The mat has markings for A3 and A4 document sizes.
- Podłącz kabel USB skanera do komputera.
- Connect the foot pedal to the designated port on the scanner (if using).
- Podłącz zasilacz do skanera i gniazdka elektrycznego.
Image 2.1: The scanner's adjustable height and foldable design for A3 and A4 scanning areas.
Image 2.2: The scanner in its folded position, highlighting its portability.
2.3 Instalacja oprogramowania
The CZUR Shine 1300 A3 Pro is compatible with Windows XP, 7, 8, 10, and macOS 10.11 or later (macOS 10.13 or later recommended).
- Insert the provided software CD or download the latest software from the official CZUR webstrona.
- Follow the on-screen instructions to install the CZUR scanning software.
- Po instalacji, jeśli zostaniesz o to poproszony, uruchom ponownie komputer.
Image 2.3: The scanner's compatibility with various operating systems and video conferencing platforms for diverse applications.
3. Instrukcja obsługi
3.1 Podstawowa procedura skanowania
- Uruchom oprogramowanie skanujące CZUR na swoim komputerze.
- Place the document or book you wish to scan on the black scanning mat, ensuring it is within the marked A3 or A4 boundaries.
- Adjust the scanner's height if necessary to ensure the entire document is visible in the software's preview window. The scanner has a 2-level height adjustable neck.
- Use the control knob on the base to adjust brightness or other settings as needed.
- Click the 'Scan' button in the software or press the foot pedal to initiate scanning. The scanner captures images at an ultra-fast speed, less than 1 second per page.
- Review the scanned image in the software.
- Save the scanned document in your desired format (JPG, PDF, Searchable PDF, Word, Excel, TIFF).

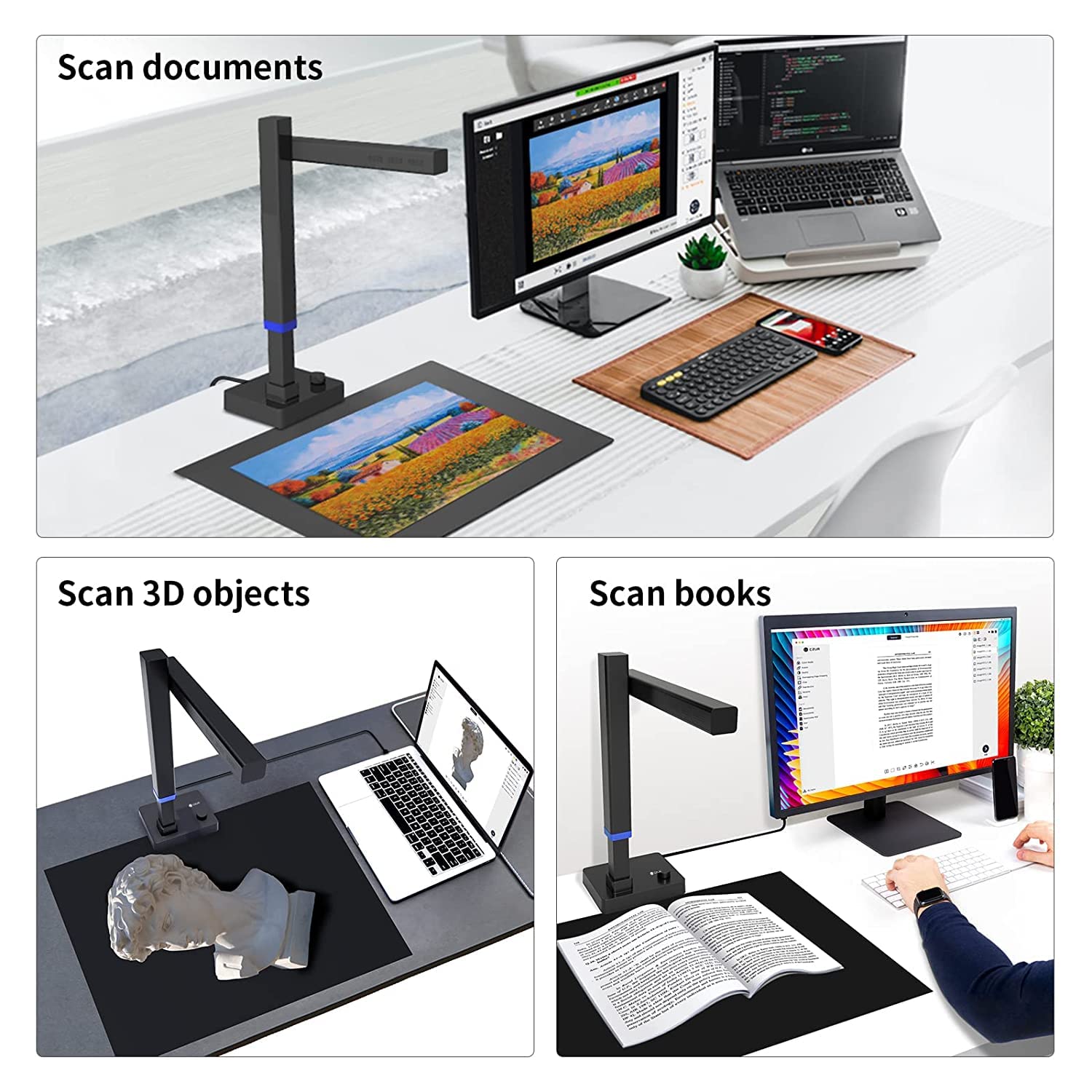

Image 3.1: The scanner's versatility in scanning various items including documents, books, and three-dimensional objects.
Image 3.2: The control knob on the scanner base, used for adjustments.
3.2 Zaawansowane funkcje skanowania
- Patented Flattening Curved Book Page Technology: For scanning books, the software automatically flattens the 3D curved surface of open pages, correcting distortion and removing finger images.
- Rozpoznawanie znaków optycznych (OCR): The scanner's software, powered by ABBYY, can recognize text in over 180 languages and convert scanned images into editable formats like Word, Excel, and Searchable PDF.
- Smart Paging and Auto Cropping: The software intelligently detects page boundaries and crops images automatically.
- Połącz strony: This feature allows combining scans of two facing pages into a single, continuous document.
- Stamp Mode and Multiple Color Modes: Utilize various processing modes for different document types and desired output.
Image 3.3: Explanation of the patented Curve Flatten Technology, which corrects curved book pages.
Image 3.4: The software interface, demonstrating its capabilities for scanning various document types and converting them.
3.3 Document Camera Function
The CZUR Shine 1300 A3 Pro can also function as a document camera for remote teaching, learning, and online meetings. It is compatible with platforms like ZOOM, Google Meet, and Skype.
- Ensure the scanner is connected to your computer and the software is running.
- In your video conferencing software, select the CZUR scanner as your camera input.
- Place documents or objects under the scanner to display them live during your session.
4. Konserwacja
- Czyszczenie: Use a soft, dry cloth to clean the scanner's exterior. For the camera lens and LED lights, use a lens cleaning cloth and solution. Avoid abrasive cleaners or solvents.
- Składowanie: When not in use, fold the scanner arm down for compact storage. Store in a dry, dust-free environment.
- Aktualizacje oprogramowania: Regularnie sprawdzaj oficjalny CZUR webwitryna z aktualizacjami oprogramowania, która zapewnia optymalną wydajność i dostęp do nowych funkcji.

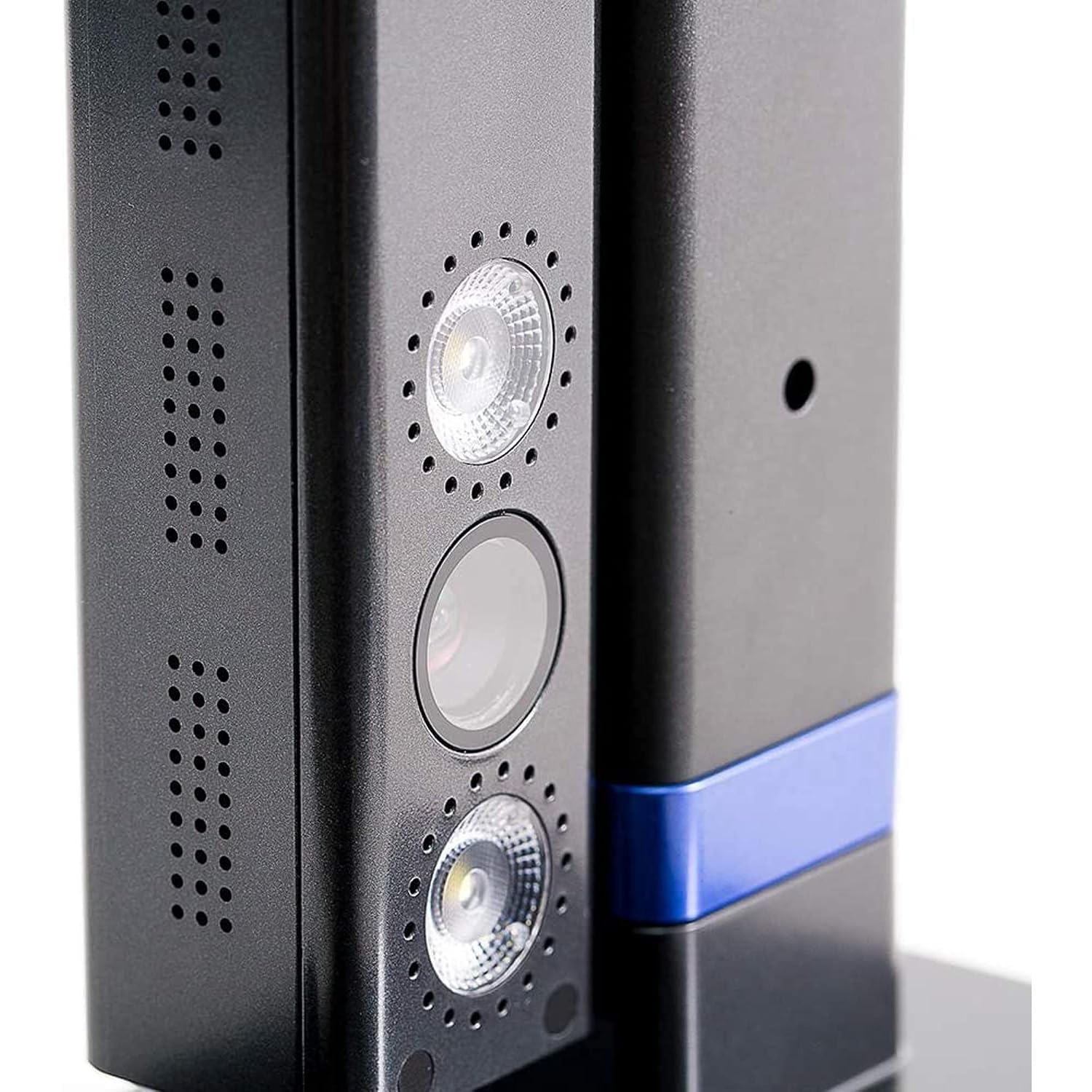

Image 4.1: Close-up of the scanner's camera and integrated LED lights, which should be kept clean for clear scans.
5. Rozwiązywanie Problemów
5.1 Typowe problemy i rozwiązania
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Komputer nie wykrył skanera | Loose USB connection, driver issue, power issue | Check USB cable connection. Reinstall scanner drivers. Ensure power adapter is connected and scanner is powered on. Try a different USB port. |
| Zeskanowane obrazy są niewyraźne lub niejasne | Dirty lens, insufficient lighting, incorrect focus, document not flat | Clean the camera lens. Ensure adequate lighting (use built-in LEDs). Adjust scanner height. Ensure documents are flat on the mat. |
| OCR not working or inaccurate | Software settings, language pack missing, poor scan quality | Verify OCR language settings in the software. Ensure the scanned text is clear and legible. Update software to the latest version. |
| Skaner się nie włącza | Power adapter issue, power outlet issue | Sprawdź podłączenie zasilacza. Spróbuj użyć innego gniazdka elektrycznego. |
6. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Model | Shine 1300 A3 Pro |
| Typ skanera | Skaner książek |
| Transduktor | CMOS 13 Megapixel (4160*3120) |
| Rezolucja | A4≈340 DPI, A3≈245 DPI |
| Maksymalny rozmiar skanowania | A3 (16.5 x 11.69 cala) |
| Prędkość skanowania | Mniej niż 1 sekunda na stronę |
| Źródło światła | PROWADZONY |
| Łączność | USB |
| System operacyjny | Windows XP/7/8/10, macOS 10.11+ (10.13+ recommended) |
| Waga | Około 4 funta |
| Cechy | OCR, Auto-Flatten, Deskew, Auto Cropping, Smart Paging, Document Camera Function |
Image 6.1: Visual representation of key specifications: A3 maximum scanning size and 1 second per page scan speed.
7. Informacje o gwarancji
The CZUR Shine 1300 A3 Pro Book Scanner comes with a 1-letnia gwarancja from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the warranty card included with your product or visit the official CZUR webstrona.
8. Wsparcie
For technical assistance, software downloads, or further inquiries, please visit the official CZUR support website. You may also contact CZUR customer service through the contact information provided on their webmiejscu lub w opakowaniu produktu.
