Gas One Propane Refill Adapter and 4ft Hose Adapter

Wstęp

This manual provides instructions for the safe and effective use of your Gas One Propane Refill Adapter and 4ft Hose Adapter. This product allows you to refill 1lb propane tanks from larger 20lb tanks and to connect small 1lb propane appliances directly to 20lb propane tanks. Please read all instructions carefully before use.

Ważne informacje dotyczące bezpieczeństwa

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE, EXPLOSION, OR SERIOUS INJURY.

• TYLKO DO UŻYTKU NA ZEWNĄTRZ. Never refill or connect propane tanks indoors or in enclosed spaces.
• FLAMMABLE GAS. Propane is highly flammable. Keep away from ignition sources, open flames, sparks, and heat.
• SPRAWDŹ WYCIEKI. Always perform a leak test using soapy water after connecting any propane components. Bubbles indicate a leak. Do not use if a leak is detected.
• NIE PRZEPEŁNIAĆ. The refill adapter is designed with a safety feature to prevent overfilling 1lb tanks. However, always monitor the process.
• WENTYLACJA. Zapewnić odpowiednią wentylację podczas użytkowania.
• HANDLING TANKS. Handle propane tanks with care. Do not drop or abuse them.
• PRZECHOWYWANIE. Store propane tanks in a well-ventilated area, away from direct sunlight and heat sources.
• OSTRZEŻENIE DOTYCZĄCE PROPOZYCJI 65 W KALIFORNII: Ten produkt może narazić Cię na działanie substancji chemicznych, w tym ołowiu, który jest znany w stanie Kalifornia jako czynnik powodujący raka i wady wrodzone lub inne szkody reprodukcyjne. Aby uzyskać więcej informacji, przejdź do www.P65Warnings.ca.gov.

Zawartość opakowania

• 1x Gas One Propane Refill Adapter
• 1x Gas One 4ft Propane Hose Adapter (Type 1 / QCC1 to 1lb appliance connection)

Produkt ponadview

4ft Hose Adapter Components

Image: The 4ft hose adapter featuring the red Type 1 (QCC1) connector for 20lb propane tanks.

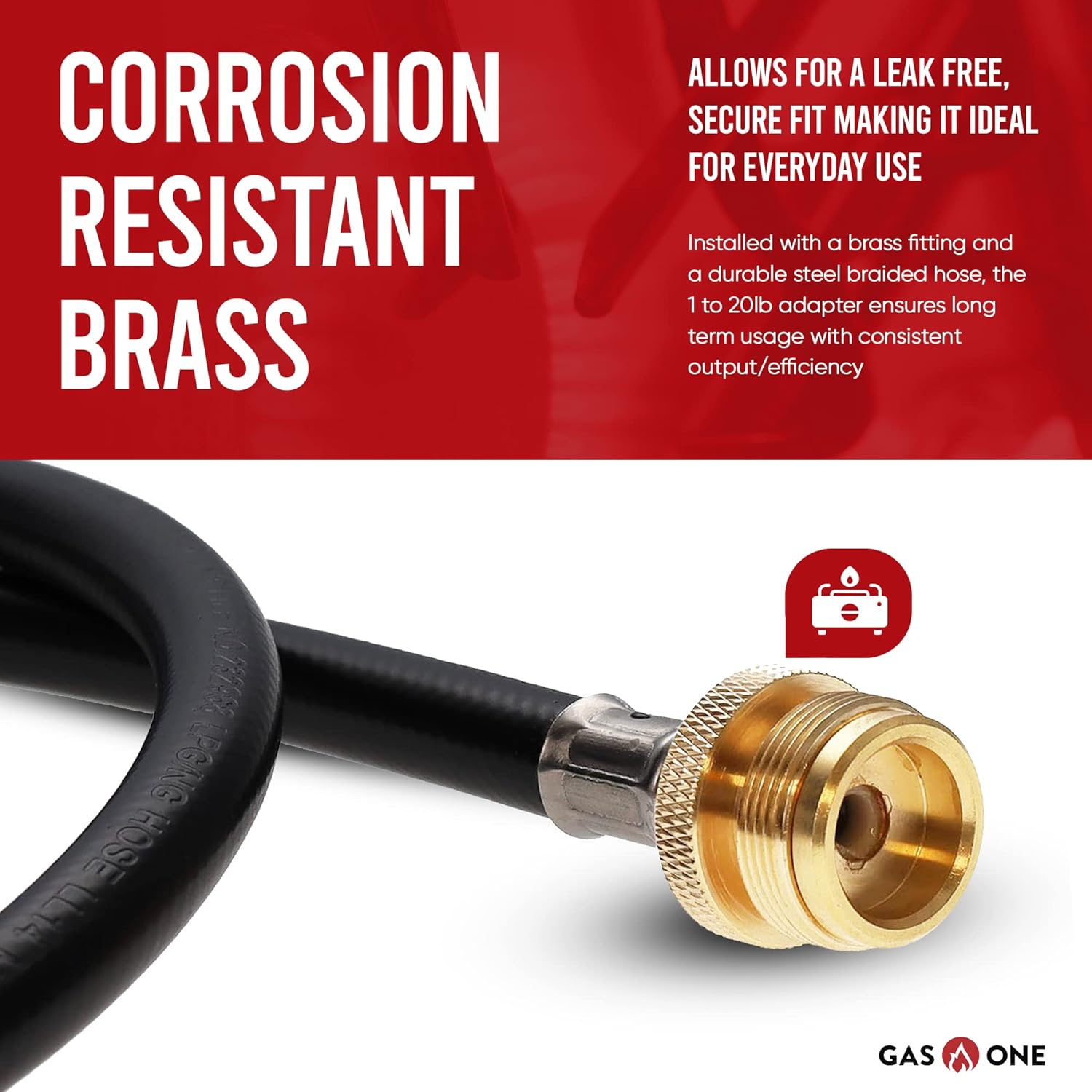

Image: The other end of the 4ft hose adapter, showing the brass fitting for connecting to 1lb propane appliances.

Propane Refill Adapter Components

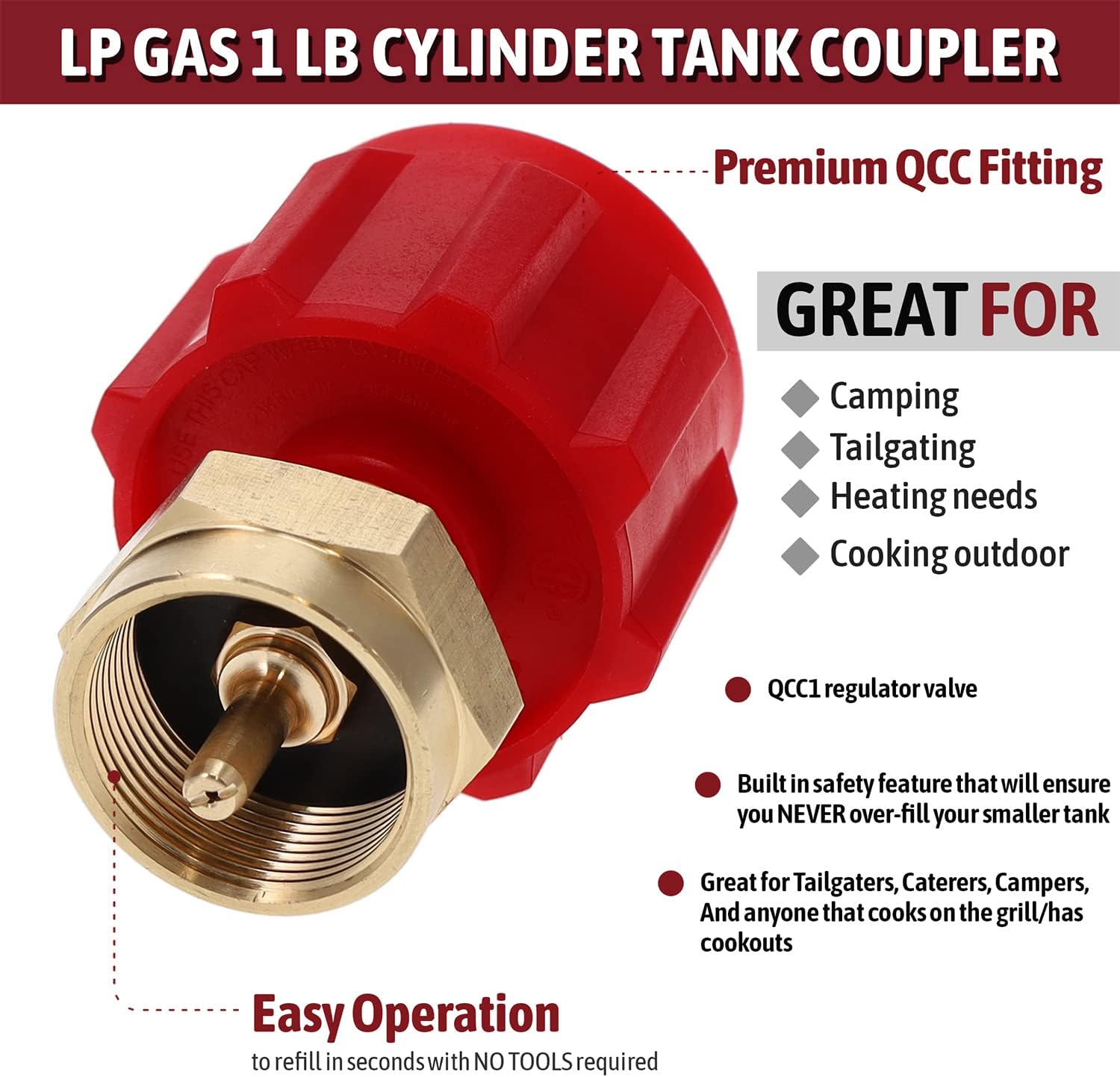

Image: The propane refill adapter, showing the QCC1 fitting for connection to a 20lb propane tank.

Image: The propane refill adapter, showing the connection point for a 1lb propane tank.

Instrukcje instalacji i obsługi

Using the 4ft Hose Adapter (Connecting 1lb Appliances to 20lb Tanks)

1. Ensure both the 20lb propane tank and the 1lb propane appliance are turned off.
2. Connect the red Type 1 (QCC1) end of the 4ft hose adapter to your 20lb propane tank. Hand-tighten securely.
3. Connect the brass fitting end of the 4ft hose adapter to your 1lb propane appliance. Hand-tighten securely.
4. Perform a leak test: Apply a soapy water solution to all connections. If bubbles appear, tighten connections. If bubbles persist, do not use and check for damaged parts.
5. Slowly open the valve on the 20lb propane tank.
6. You can now operate your 1lb propane appliance as usual.
7. When finished, close the valve on the 20lb propane tank first, then turn off the appliance.
8. Disconnect the hose adapter when not in use.

Image: The 4ft hose adapter in use, connecting a 20lb propane tank to a portable grill, demonstrating its primary function.

Using the Propane Refill Adapter (Refilling 1lb Tanks from 20lb Tanks)

WARNING: Refilling 1lb tanks requires extreme caution. Always follow these steps precisely and perform outdoors in a well-ventilated area, away from any ignition sources.

1. Prepare the 1lb Tank: For best results, place the empty 1lb propane tank in a freezer for 15-30 minutes. This cools the tank, reducing its internal pressure and allowing more efficient refilling.
2. Position the 20lb Tank: Place the 20lb propane tank securely upside down on a stable surface, ensuring it will not tip over.
3. Connect Refill Adapter to 20lb Tank: Screw the refill adapter onto the valve of the inverted 20lb propane tank. Hand-tighten firmly.
4. Connect 1lb Tank to Refill Adapter: Screw the chilled 1lb propane tank onto the other end of the refill adapter. Hand-tighten firmly.
5. Open 20lb Tank Valve: Slowly open the valve on the 20lb propane tank. You should hear the propane flowing into the 1lb tank.
6. Monitor Refill: The flow will slow down and eventually stop as the pressure equalizes. This typically takes 30 seconds to 2 minutes. Do not attempt to force more propane into the 1lb tank. The adapter has a safety feature to prevent overfilling.
7. Zamknij zawory: First, close the valve on the 20lb propane tank. Then, close the valve on the 1lb propane tank.
8. Odłączyć: Carefully disconnect the 1lb tank from the refill adapter, then disconnect the refill adapter from the 20lb tank.
9. Leak Test 1lb Tank: Apply soapy water to the valve of the refilled 1lb tank to check for leaks before use or storage.

Image: The propane refill adapter connected to a 1lb propane tank, ready for the refilling process from an inverted 20lb tank.

Konserwacja

• Czyszczenie: Wipe the adapter and hose with a damp W razie potrzeby przetrzyj ściereczką. Nie używaj silnych środków chemicznych ani ściernych środków czyszczących.
• Kontrola: Before each use, inspect the hose for cuts, abrasions, or kinks. Check all fittings for damage or wear. Replace the product if any damage is found.
• Składowanie: Store the adapter and hose in a clean, dry place, away from direct sunlight and extreme temperatures. Ensure all connections are clean and free of debris before storage.

Rozwiązywanie problemów

Specyfikacje

• Marka: Gas One
• Numer modelu: 50139+50180R
• Tworzywo: Mosiądz
• Waga przedmiotu: Około 12.5 uncji
• Znajomości: Type 1 (QCC1) for 20lb tanks, connection for 1lb disposable cylinders/appliances
• Długość węża: 4 stóp

Gwarancja i wsparcie

Gas One products are designed for durability and reliability. Based on customer feedback, this product typically includes a 1-year warranty covering manufacturing defects. For specific warranty details, claims, or technical support, please contact Gas One customer service directly.

You can find more information and contact details by visiting the official Gas One store on Amazon: Gas One Store.
