NEO-TEC 16 Inch Chainsaw Guide Bar & Chain Combo Instruction Manual

1. Wprowadzenie

This manual provides essential information for the proper installation, safe operation, and maintenance of your NEO-TEC 16 Inch Chainsaw Guide Bar and Chain Combo. Please read these instructions thoroughly before use to ensure safety and optimal performance. This product is designed for use with compatible chainsaws as specified in the compatibility section.

2. Koniec produktuview

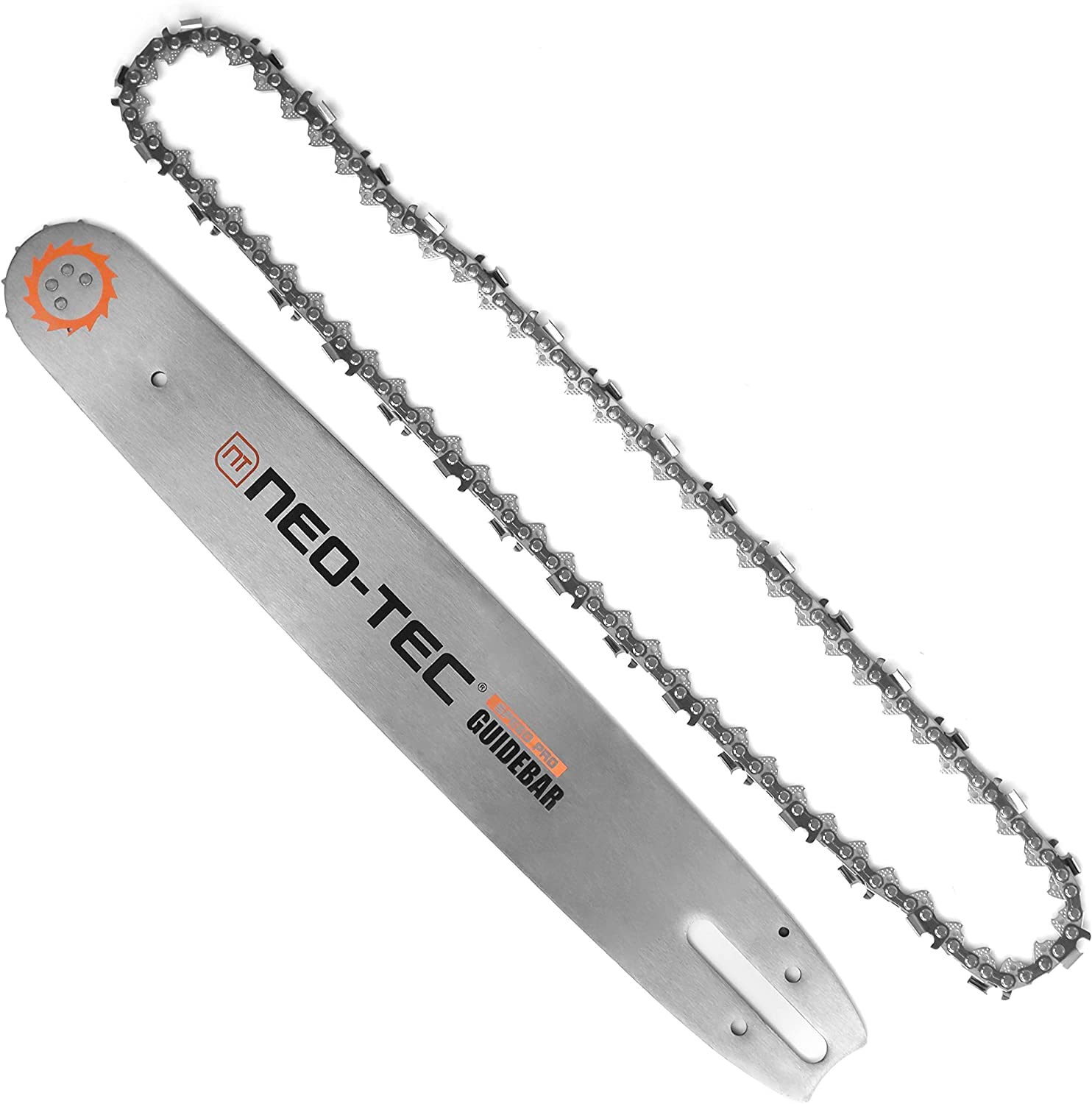

The NEO-TEC 16 Inch Chainsaw Guide Bar and Chain Combo is a high-quality replacement or upgrade kit for various chainsaw models. It includes a durable guide bar and a full chisel saw chain, engineered for efficient wood cutting.

Chainsaw equipped with NEO-TEC 16-inch guide bar and chain

Figure 2.1: Chainsaw equipped with the NEO-TEC 16-inch guide bar and chain. This image illustrates the product in a typical operational setting.

Główne cechy:

Długość prowadnicy: 16 cali
Podziałka łańcucha: 0.325 cali
Wskaźnik łańcucha: 0.050 cali
Linki do napędów: 66
Typ łańcucha: Full Chisel for aggressive cutting
Tail Mount: 8.2mm (K095)

Figure 2.2: Detail of the guide bar tail, illustrating the mounting mechanism. This part connects the guide bar to the chainsaw engine housing.

Rysunek 2.3: Zbliżenie view of the guide bar tip, showing the sprocket nose. The sprocket nose helps reduce friction and improve chain speed.

Figure 2.4: Close-up of the full chisel saw chain links. This chain design provides aggressive cutting performance.

Figure 2.5: Diagram illustrating the full chisel chain cutting action and tooth profile. This shows how the sharp, square-cornered teeth engage with wood.

3. Zgodność

This NEO-TEC 16 Inch Guide Bar and Chain Combo is designed to fit a wide range of chainsaws. It is crucial to verify your chainsaw's specifications (bar length, pitch, gauge, and drive links) against the product specifications before installation.

Compatible Chainsaw Brands/Models:

NEOTEC: Różne modele
HUSQVARNA: 133, 140, 1400, 141, 154, 1600, 234, 238, 240, 242, 243, 246, 254, 257, 261, 262, 33, 336, 338XPT, 339XP, 340, 345, 346, 350, 351, 353, 353E-TECH, 355, 357, 359, 36, 360, 362, 38, 40, 41, 42, 435, 44, 440, 444, 445, 45, 450, 455, 460, 466, 49, 50, 51, 543XP, 545, 55, 550XP, 555, 560XP, 57
ECHO: CS-4510
CRAFTSMAN: 316.35022, 316.35084, 316.35085, 35201, 38180, 41AY85AR799
PARTNER: 365, 400, 405, 410, 450, 460, 510, 540, EL1450, EL1650, P-360, P-400, P-450, P-500, P-5000
POULAN: 325
MCCULLOCH: 300
DOLMAR: 109, 110, 111, 113, 115, 115I, PS-460, PS-510, PS-5100S, PS-5100SH, PS-5105, PS-5105H, PS-540, PS-6100, PS-6100H
EFCO: 181, MT 6500, MT 7200, MT 8200
JONSERED: 2012, 2014, 2015, 2036, 2040, 2041, 2045, 2050, 2050 Turbo, 2051, 2054, 2055, 2063, 2141, 2145, 2149, 2149 Turbo, 2150, 2152, 2159, 2163, 370, 410, 420, 425, 435, 45, 450, 451, 455, 49, 490, 50, 51, 510, 52, 520, 520SP, 521, 525, 535, 590, CS 2141, CS 2145, CS 2149, CS 2150, CS 2152, CS 2152W, CS 2153, CS 2156, CS 2159

Important Note: This guide bar is NOT compatible with Stihl chainsaws.

Figure 3.1: Diagram showing the D009 tail mount dimensions and compatible brands, with a warning that it is not compatible with Stihl chainsaws. Always verify your chainsaw's tail mount type.

4. Informacje dotyczące bezpieczeństwa

Operating a chainsaw can be dangerous. Always prioritize safety. This guide bar and chain are components of a chainsaw system. Refer to your chainsaw's original instruction manual for comprehensive safety guidelines.

Ogólne środki ostrożności:

Środki ochrony osobistej (PPE): Always wear appropriate PPE, including a helmet with face shield, hearing protection, safety glasses, heavy-duty gloves, chainsaw protective trousers/chaps, and steel-toed boots.
Przeczytaj instrukcje: Thoroughly read and understand both this manual and your chainsaw's owner's manual before operation.
Sprawdź sprzęt: Before each use, inspect the chainsaw, guide bar, and chain for damage, wear, or loose components. Ensure the chain is sharp and properly tensioned.
Obszar roboczy: Clear the work area of obstacles, bystanders, and pets. Ensure stable footing.
Fuel/Power: Handle fuel safely (for gas chainsaws) or ensure power cords are clear (for electric chainsaws).
Odrzut: Uważaj na ryzyko odbicia. Unikaj cięcia końcówką prowadnicy.
Hamulec łańcucha: Ensure the chain brake is functional and engaged when starting or moving the chainsaw.
Pierwsza pomoc: Miej pod ręką apteczkę pierwszej pomocy i wiedz, jak z niej korzystać.

5. Konfiguracja i instalacja

Installing the guide bar and chain requires careful attention to detail. Always refer to your specific chainsaw's owner's manual for detailed, model-specific instructions. The following are general steps:

Kroki instalacji:

Zapewnij bezpieczeństwo: Disconnect the spark plug wire (gas chainsaws) or unplug the power cord (electric chainsaws) to prevent accidental starting. Engage the chain brake.
Usuń stare komponenty: Loosen the bar nuts and remove the clutch cover. Carefully remove the old guide bar and chain.
Czysty: Clean any sawdust or debris from the clutch area, bar mounting studs, and guide bar groove.
Zainstaluj nowy łańcuch: Place the new NEO-TEC chain around the clutch sprocket, ensuring the cutting edges are facing the correct direction (usually forward on the top of the bar).
Prowadnica montażowa: Slide the new NEO-TEC guide bar onto the bar mounting studs. Align the chain drive links with the groove in the guide bar.
Łańcuch pozycji: Guide the chain around the nose sprocket of the guide bar. Ensure all drive links are seated correctly in the bar groove.
Wymiana pokrywy sprzęgła: Reinstall the clutch cover, ensuring the chain tensioner pin engages with the hole in the guide bar. Hand-tighten the bar nuts.
Regulacja napięcia łańcucha: Adjust the chain tension according to your chainsaw's manual. The chain should be snug against the bottom of the guide bar, but still able to be pulled freely by hand. It should not sag underneath the bar.
Dokręć nakrętki prętowe: Fully tighten the bar nuts securely.
Sprawdź smarowanie: Upewnij się, że zbiornik oleju pilarki łańcuchowej jest napełniony odpowiednim olejem do prowadnicy i łańcucha.
Kontrola końcowa: Reconnect the spark plug wire or plug in the power cord. Perform a brief test run to ensure proper operation and lubrication.

6. Działanie

Once the NEO-TEC guide bar and chain are correctly installed and tensioned, operate your chainsaw according to its manufacturer's instructions. The full chisel chain is designed for aggressive and fast cutting in clean wood.

Wytyczne operacyjne:

Smarowanie: Always ensure the chain is adequately lubricated during operation. Check the oil level frequently.
Prędkość łańcucha: Operate the chainsaw at full throttle when cutting to ensure proper chain speed and lubrication.
Technika cięcia: Use proper cutting techniques to avoid kickback and maintain control. Do not force the saw; let the sharp chain do the work.
Ostrość: A sharp chain cuts efficiently and safely. A dull chain will produce fine sawdust instead of chips and require more force, increasing ryzyko wypadków.
Warunki środowiskowe: Be mindful of weather conditions. Avoid operating in rain or extreme cold/heat if not designed for such conditions.

7. Konserwacja

Regular maintenance of your NEO-TEC guide bar and chain will extend their lifespan and ensure safe, efficient operation.

Harmonogram konserwacji:

Po każdym użyciu:
- Wyczyść rowek prowadnicy, aby usunąć trociny i zanieczyszczenia.
- Sprawdź napięcie łańcucha i w razie potrzeby wyreguluj.
- Sprawdź ostrość i uszkodzenia łańcucha. W razie potrzeby naostrz lub wymień.
- Inspect the guide bar for burrs or uneven wear. File down burrs if present.
Periodically (e.g., every 8-10 hours of use):
- Flip the guide bar over to ensure even wear on both sides.
- Check the guide bar rails for spreading or damage. Replace if significantly worn.
- Clean the oil holes on the guide bar to ensure proper lubrication flow.
- Inspect the drive sprocket for wear. Replace if teeth are hooked or worn.

Ostrzenie łańcucha:

The full chisel chain requires specific sharpening techniques. Use a round file of the correct diameter (typically 5/32" or 4.0mm for 0.325" pitch chains, but verify with chain manufacturer) and a flat file for depth gauges. Maintain consistent angles for optimal cutting performance. If unsure, consult a professional.

8. Rozwiązywanie Problemów

This section addresses common issues related to the guide bar and chain. For chainsaw-specific problems, refer to your chainsaw's manual.

Problem	Możliwa przyczyna	Rozwiązanie
Chain cuts crooked or unevenly	Unevenly sharpened cutters; worn guide bar rails; bent guide bar.	Resharpen chain evenly; replace guide bar if worn or bent.
Chain produces fine sawdust instead of chips	Tępy łańcuch.	Naostrzyć łańcuch.
Chain binds or stalls in cut	Dull chain; improper chain tension; insufficient lubrication; guide bar pinch.	Sharpen chain; adjust chain tension; check oiler for proper function; ensure guide bar groove is clean.
Łańcuch spada z prowadnicy	Loose chain tension; worn guide bar; worn drive sprocket.	Adjust chain tension; inspect and replace worn components.
Nadmierne wibracje	Damaged chain; bent guide bar; loose components.	Inspect and replace damaged chain or guide bar; tighten all fasteners.

9. Specyfikacje

Detailed technical specifications for the NEO-TEC 16 Inch Chainsaw Guide Bar & Chain Combo:

Długość pręta: 16 cali
Podziałka łańcucha: 0.325 cali
Wskaźnik łańcucha: 0.050 cali
Linki do napędów: 66
Typ łańcucha: Pełne dłuto
Tail Mount: 8.2mm (K095 / D009)
Marka: NEO-TEC

10. Gwarancja i pomoc techniczna

For warranty information or technical support regarding your NEO-TEC 16 Inch Chainsaw Guide Bar & Chain Combo, please contact NEO-TEC customer service. Keep your purchase receipt as proof of purchase.

Contact information can typically be found on the product packaging or the official NEO-TEC webstrona.
